Oase ProfiClear Premium XL Discharge Module – Pump Fed

Final Stage Water Polishing for ProfiClear XL Filtration Systems

The Oase ProfiClear Premium XL Discharge Module – Pump Fed is the final stage filtration chamber within the ProfiClear Premium XL modular system. It is specifically engineered to refine and polish water after biological processing, ensuring maximum clarity before water is returned to the pond. As a result, it plays a critical role in achieving professional level water quality in large koi ponds and commercial installations.

Installed after the Moving Bed Module, this chamber focuses on final stage biological and fine particle filtration. Therefore, it enhances overall system performance by capturing remaining suspended solids while supporting additional bacterial settlement.

Suitable for ornamental ponds up to 530,000 litres and koi ponds up to 100,000 litres, the XL Discharge Module is designed for estate lakes, large private koi ponds and high demand professional systems. Consequently, it provides the finishing stage required in advanced multi chamber filtration setups.

ClearWave Final Stage Filtration

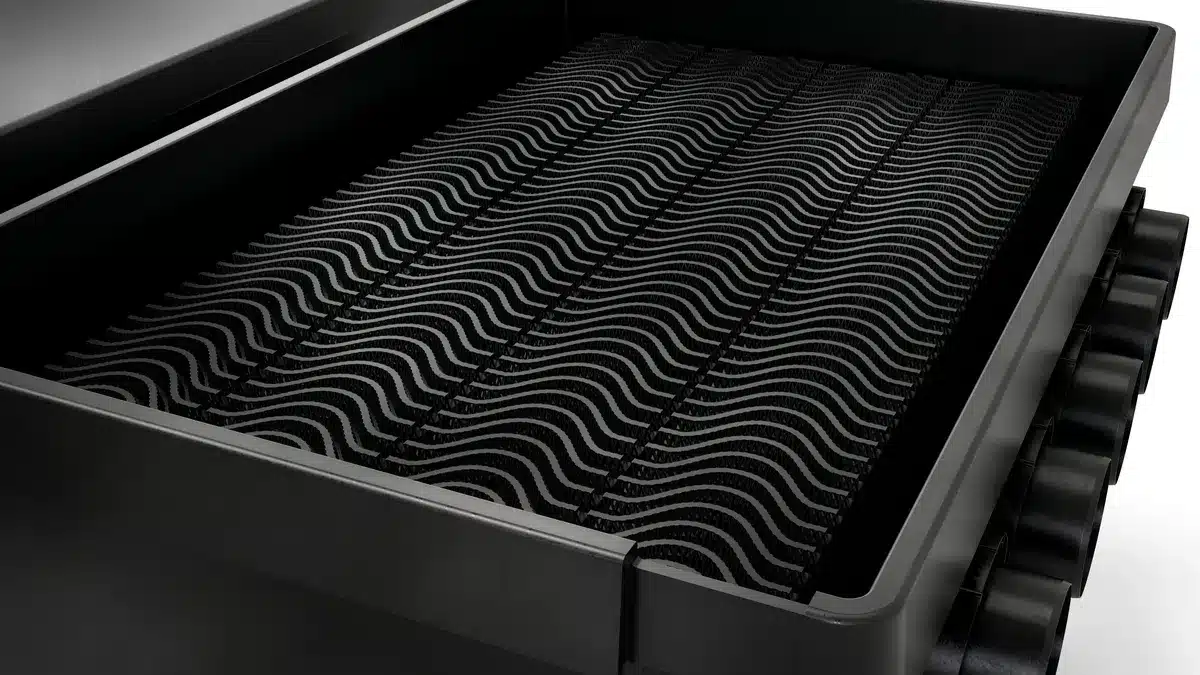

At the core of the module is the fixed bed ClearWave filtration system. Unlike moving media, ClearWave blocks remain static within the chamber. As a result, they provide a protected biological settlement zone while also capturing fine debris that has passed through previous stages.

Because water flows evenly through the structured media, microorganisms colonise the surface and assist in further pollutant breakdown. In addition, fine suspended particles are retained within the structure, which improves water polishing and clarity.

This final stage ensures that water returning to the pond has undergone mechanical separation, biological nitrification and then final refinement. Therefore, overall system stability and clarity are enhanced.

Modular Integration and Flexible Outlet Design

The ProfiClear Premium XL Discharge Module – Pump Fed connects directly to the XL Moving Bed Module and integrates seamlessly into the ProfiClear Premium XL system architecture. As a result, it completes the full mechanical and biological filtration process.

The module features five DN110 outlets, allowing flexible pipework configuration and efficient water distribution. Consequently, installers can adapt the return layout to suit large scale pond builds and commercial systems.

Furthermore, an integrated bottom drain with slide valve enables straightforward maintenance and waste removal. Therefore, servicing remains efficient even in high capacity installations.

Designed for compatibility with the Oase Easy Garden Control system, the module supports digital monitoring through the Oase Control app. As a result, professional installations benefit from smart system management and performance tracking.

Key Features

• Final stage filtration module for ProfiClear Premium XL systems
• Designed for pump fed installations
• Fixed bed ClearWave filtration blocks for water polishing
• Additional biological settlement zone for enhanced pollutant breakdown
• Captures fine suspended particles after drum and moving bed stages
• Suitable for ornamental ponds up to 530,000 litres
• Suitable for koi ponds up to 100,000 litres
• Five DN110 outlets for flexible installation and water return
• Integrated bottom drain with slide valve for easy maintenance
• Compatible with Oase Easy Garden Control and Oase Control app
• Modular integration with XL Drum and XL Moving Bed Modules

Technical Specifications

• Product type: Final stage discharge filtration module
• Filtration media: Fixed bed ClearWave blocks
• Maximum ornamental pond size: 530,000 litres
• Maximum koi pond size: 100,000 litres
• Outlet configuration: 5 x DN110
• Installation type: Pump fed modular system
• System compatibility: Oase ProfiClear Premium XL modular range
• Control compatibility: Oase Easy Garden Control, Oase Control app
• Maintenance: Integrated bottom drain and slide valve

The Full Oase ProfiClear Premium XL Pump Fed Filter System includes:

Oase ProfiClear Premium XL Drum Filter – Pump Fed OC

Oase ProfiClear Premium XL Standing Bed Module

Oase ProfiClear Premium XL Moving Bed Module – Hel X

Oase ProfiClear Premium XL Moving Bed Module – Pond Pads

Oase ProfiClear Premium XL Discharge Module Pump Fed

2x Oase Bitron Premium 180w UVC

2x Oase AquaMax Eco Expert 26000

Technical information

Aeration setup notes

Oase ProfiClear Premium XL Discharge Module Pump Fed should be chosen as part of the complete air system, not just by litres per minute. Airline length, airline bore, diffuser depth, manifold taps and back pressure all affect the real airflow that reaches the pond or filter. A well matched aeration system runs more quietly, puts less strain on the pump and gives more dependable oxygen support.

• Use suitable airline size for the pump output and distance involved.
• Keep the air pump dry, ventilated and protected from flooding.
• Spread airflow across multiple diffusers on larger ponds where possible.
• Check diaphragms, filters and diffusers during routine servicing.

For koi ponds, moving bed filters and warm weather aeration, consistent airflow is often more useful than simply oversizing the pump. Balanced diffuser placement gives better circulation and helps avoid stagnant areas.
