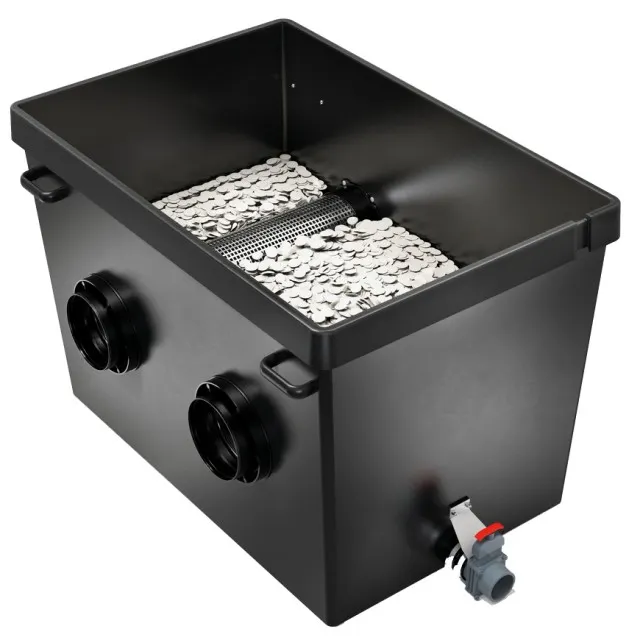

Oase ProfiClear Premium XL Moving Bed Module – Hel X

Advanced Moving Bed Biological Filtration for Large Ponds

The Oase ProfiClear Premium XL Moving Bed Module – Hel-X is a high capacity biological filtration chamber designed specifically for integration within the ProfiClear Premium XL modular system. It provides intensive nitrification for large koi ponds, ornamental ponds and commercial aquatic installations. As a result, it helps maintain stable water parameters in heavily stocked and high demand environments.

Positioned after the mechanical drum stage, this module focuses entirely on biological filtration. Therefore, it plays a key role in reducing ammonia, ammonium and nitrite before water returns to the pond. In large koi systems, this stage is essential for long term fish health and consistent clarity.

Suitable for ornamental ponds up to 530,000 litres and koi ponds up to 100,000 litres, the XL Hel-X Moving Bed Module is engineered for estate lakes, professional pond builds and serious koi installations. Consequently, it delivers the biological strength required in systems with substantial fish loads.

Advanced Hel-X Moving Bed Technology

This configuration houses 100 litres of Oase Hel-X biomedia. Unlike fixed media systems, Hel-X operates within a fully aerated moving bed chamber. As a result, the media remains in constant motion, which supports consistent oxygen exposure and strong bacterial activity.

Because the media is fluidised, beneficial bacteria receive continuous oxygenation. Therefore, nitrification performance remains efficient and stable. In addition, the moving bed process helps prevent clogging and supports long term biological reliability without channeling or dead zones.

Modular XL System Integration

The ProfiClear Premium XL Moving Bed Module – Hel-X connects directly to the ProfiClear Premium XL Drum Filter and can be combined with further XL modules where required. As a result, biological capacity can be scaled in line with pond size and stocking density.

Furthermore, the module integrates with the Oase Easy Garden Control system. Therefore, installers can monitor system performance digitally via the Oase Control app. Because of this modular architecture, pond professionals can design fully customised, expandable filtration systems for large scale installations.

Key Features

• High capacity moving bed biological filtration module for ProfiClear Premium XL systems
• Supplied with 100 litres of Oase Hel-X biomedia for strong nitrification performance
• Moving bed design keeps media in constant motion for consistent oxygenation
• Supports breakdown of ammonia, ammonium and nitrite in high load koi ponds
• Positioned after XL drum filtration to reduce biological load and improve stability
• Suitable for ornamental ponds up to 530,000 litres
• Suitable for koi ponds up to 100,000 litres
• Modular design allows additional XL modules to be added if higher capacity is required
• Compatible with Oase Easy Garden Control for digital monitoring via the Oase Control app
• Heavy duty construction designed for demanding outdoor installations

Technical Specifications

• Product type: Biological moving bed filtration module
• Media supplied: 100 litres Oase Hel-X biomedia
• Filtration role: Biological nitrification stage after mechanical drum filtration
• Maximum ornamental pond size: 530,000 litres
• Maximum koi pond size: 100,000 litres
• System compatibility: Oase ProfiClear Premium XL modular filtration range
• Control compatibility: Oase Easy Garden Control, Oase Control app monitoring
• Installation use: Large koi ponds, ornamental ponds and commercial aquatic systems

The Full Oase ProfiClear Premium XL Gravity Fed Filter System includes:

Oase ProfiClear Premium XL Drum Filter – Gravity Fed OC

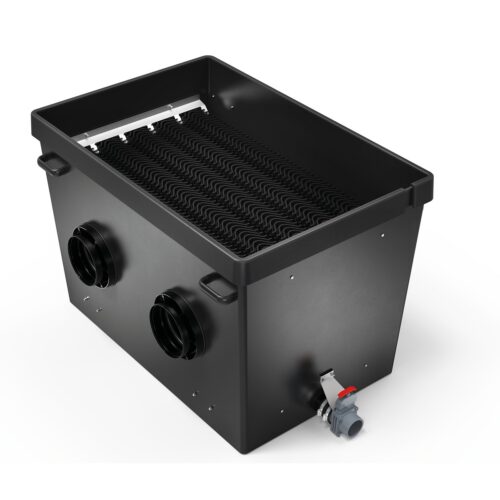

Oase ProfiClear Premium XL Standing Bed Module

Oase ProfiClear Premium XL Moving Bed Module – Hel X

Oase ProfiClear Premium XL Moving Bed Module – Pond Pads

Oase ProfiClear Premium XL Discharge Module Gravity Fed

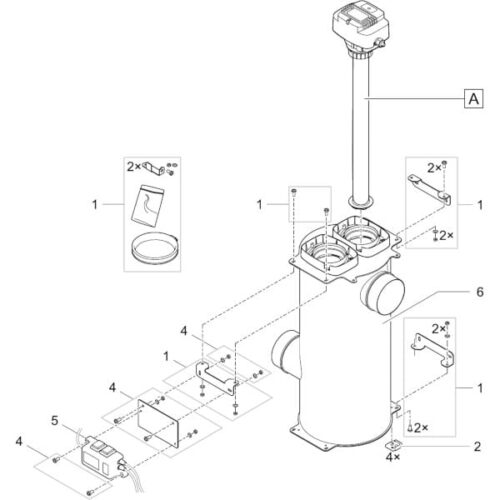

2x Oase Bitron Premium 180w UVC

2x Oase AquaMax Eco Expert 26000



The Full Oase ProfiClear Premium XL Pump Fed Filter System includes:

Oase ProfiClear Premium XL Drum Filter – Pump Fed OC

Oase ProfiClear Premium XL Standing Bed Module

Oase ProfiClear Premium XL Moving Bed Module – Hel X

Oase ProfiClear Premium XL Moving Bed Module – Pond Pads

Oase ProfiClear Premium XL Discharge Module Pump Fed

2x Oase Bitron Premium 180w UVC

2x Oase AquaMax Eco Expert 26000

Technical information

Dimensions (L x W x H)	mm	1330 x 875 x 820
Net weight	kg	83.00
Limited Warranty	Years	2 + 1
Biological filter surface protected	m2	330.0
Number of inlets	Units	2
Inlet connections	mm	180
Number of outlets	Units	2
Outlet connections		180 mm
Sludge discharge connections		DN 75
Min. flow rate	l/h	25000
Max. flow rate	l/h	66000
Connection to		AquaOxy 5000, ProfiClear Premium DF-XL pump-fed, ProfiClear Premium DF-XL gravity, ProfiClear Premium XL pump-fed drain module, ProfiClear Premium XL gravity-fed drain module
Installation height above water level	cm	8.5
Type of use		Gravity fed system, Pump fed system
Other		Aeration pre-installed Pollutant discharge incl. slide valve
Temperature display		No
Inlet connections		180 mm
