Choose a drum filter for the pond and the pipework
A drum filter takes solid waste out of the water and rinses the screen automatically. It can reduce the routine work of cleaning the mechanical stage, but the pond still needs suitable biological filtration, circulation, aeration and regular checks.
Compare Burtons drums, Filtreau drum filters and Oase ProfiClear Compact, or use the ranges below for combi and modular systems. Start with the actual flow, stocking and feeding, the proposed gravity-fed or pump-fed layout and the space available. Check the complete supplied kit before choosing by pond volume alone.
£2,993.51 (inc VAT)
Out of stock
Mechanical filtration is one part of the system
Water passes through the drum screen, which holds back particles larger than its openings. As waste restricts the screen, the control system starts a wash cycle: the drum turns and spray jets rinse the collected material into the waste chute. The exact trigger, timing and wash arrangement depend on the model.
That is physical separation. It does not directly process dissolved ammonia or nitrite, and clear-looking water is not proof that those readings are safe. A standalone drum needs an appropriate biological stage after it. A combi filter puts stages together in one housing, but its biological capacity, media and air supply still need checking.
| Arrangement | What it gives you | What to check |
|---|---|---|
| Standalone drum | Burtons standalone drums or Filtreau drum filters | A separate biological stage, the wash arrangement, inlets and outlets, waste route and the total flow through the circuit. |
| Combi drum | Burtons combi filters or Filtreau Excellent combi filters | The media and air-pump requirements, actual biological capacity, supplied equipment and enough room to service both stages. |
| Compact Oase system | ProfiClear Premium Compact | The exact gravity-fed or pump-fed version, permitted levels and flow, included media and the rest of the required equipment. |
| Modular Oase system | ProfiClear Premium L or Premium XL | A compatible arrangement of drum, biological modules and pump/return components, with space and connections for each part. |
Gravity-fed and pump-fed layouts need different checks
In a gravity-fed arrangement, water reaches the filter through the pond’s drain or skimmer pipework and the circulation pump is normally after the mechanical stage. The filter’s specified installation level relative to the pond is critical. Do not use one brand’s above-water measurement for a different model, even where the housings look similar.
In a pump-fed arrangement, the pump sends water from the pond into the filter and the downstream stages and return must pass that flow away. Check the required filter height, return-pipe capacity and overflow arrangements. A product’s gravity-fed maximum flow should not be assumed to be its pump-fed rating.
Add together the actual flows of any pumps drawing through the same filter, then compare that duty with the manufacturer’s limit and inlet arrangement. The pump’s maximum-flow label is not its delivered flow through the completed circuit. Compare suitable filter pumps and variable-flow pumps as part of the design.
Check the screen and the complete kit
Choose the screen approved for the exact filter rather than assuming a particular micron number is best for every koi pond. Finer separation, waste loading, available screen area and the wash routine interact. The mesh rating is not a promise that every kind of suspended or dissolved material will be removed.

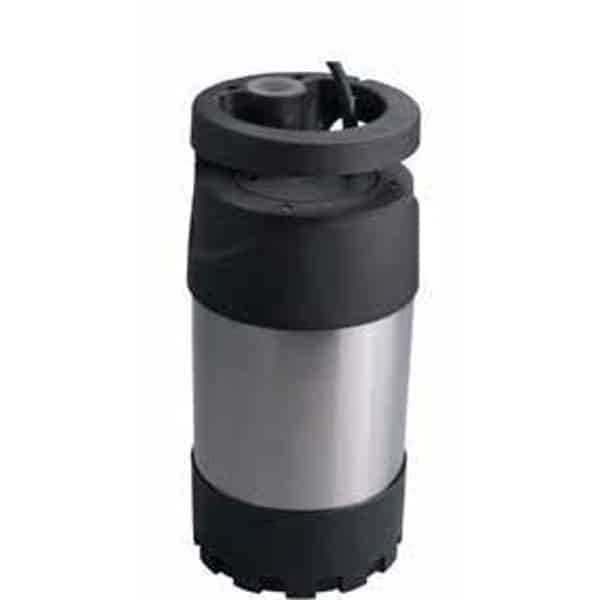

Check whether the quoted product includes its rinse pump, controller, UVC, biological media and air pump. Manufacturers offer different combinations and versions. For example, Burtons describes a pre-fitted wash pump on its BD-500, while Filtreau lists versions with different rinse-pump and media arrangements. A combi housing should not be treated as a complete ready-to-run pond circuit without checking those items.
For a separate biological stage, compare bio chambers and compatible filter media. Specify the air supply required by the biological design. Keep the media, air diffuser, air pump and chamber capacity as a matched arrangement rather than choosing each from a headline maximum.
Plan the waste water and replacement water
A washed-screen drum needs a suitable waste route. Leave access to the chute, pipework and drains so collected material can be removed without blocking the outlet. The filter also needs a stable, level base and protection from flooding; check the manufacturer’s requirements before constructing the filter bay.
Do not assume all drum spray bars connect directly to mains water. Some systems use a rinse pump and filtered pond water. That wash water leaves the pond, so the water level still needs maintaining. A mains top-up is a separate question from where the spray water comes from.
Agree how replacement water will be treated and controlled, and how overflow will be handled. An automatic top-up is useful only as part of a properly planned arrangement; it does not make an unnoticed leak or blocked drain harmless. Monitor the wash pattern and pond level after commissioning rather than relying on a universal claim that a drum uses very little water.
Automatic cleaning still needs regular inspection
Check the screen, spray pattern, waste chute, level sensor and the rinse-pump intake or filter as the manual directs. Clean scale with a product and method approved for that equipment. Keep the controller and lid safety features working; do not bypass an interlock to keep a system running.
A change in cleaning frequency can be a useful warning. It might follow more feeding or an initial heavy waste load, but it can also point to a dirty screen, inadequate rinsing, low pond level, restricted pipework or a sensor problem. Inspect the cause rather than immediately changing the controller’s settings.
Our Cuxton drum-filter maintenance project records a return visit after a power cut had stopped the filter, followed by another check later that month. It is a useful reminder to confirm that the whole system has restarted, not simply that the electricity is back on.
Drum-filter questions
Does a drum filter replace biological filtration?
No. The screen separates solid particles; the biological stage processes dissolved waste. A combi may house both, but check its media, maturation, air supply and suitability for the feeding load. Continue monitoring water quality after an upgrade.
Will a drum cure green water or blanketweed?
A drum is a solids separator, not an algae treatment. UVC clarification addresses suitable suspended green-water algae as part of a designed system. Attached blanketweed, nutrients and the pond’s maintenance need their own assessment. Do not choose a drum on a promise that it will solve every clarity problem.
Do I need to connect the filter to mains water?
Check the model. A rinse pump can use filtered pond water for the spray bar, while other arrangements have their own supply requirements. Replacing the water lost during washing is a separate part of the plan, with suitable treatment and level control.
How often should it wash?
There is no single correct number of cycles for every pond. Waste load, flow, screen condition, water level and the control settings all matter. Use the manufacturer’s normal-operation guidance and investigate a sustained change rather than copying another pond’s interval.
What happens in a power cut?
The automatic wash system stops if it has no power, and the circulation pump may stop too. Gravity-fed describes the route into the filter; it does not keep pumping water around the pond when the return pump has stopped. Follow the model’s restart and fault guidance and check actual flow and aeration when power returns.
Can I fit one to an existing pond?
Often, but first establish the existing levels, drains, pump position and room for the filter and biological stage. A pump-fed arrangement may suit a retrofit, while an existing gravity circuit needs careful level and pipework checks. Plan the changeover so established filtration and water-quality monitoring are considered.
Does a larger drum let me keep more koi?
Not on its own. Screen capacity is only one part of stocking and feeding decisions. Biological treatment, aeration, pond volume, circulation, maintenance and measured water quality remain important. Do not use a mechanical-filter upgrade as automatic permission to increase stocking.
How much will the complete installation cost?
Use the price for the exact filter or bundle, then allow for any additional media, air and circulation pumps, UVC, pipework, valves, waste and top-up arrangements, electrical work and installation. Ask for a complete-system quotation rather than comparing filter-housing prices alone.
Is every automatic filter in this section a washed mesh drum?
No. Related automatic filtration ranges can use different methods. For example, AquaForte BioFleece uses a replaceable fleece roll, so its consumables and maintenance should be compared on that basis. Read the individual operating method rather than assuming every automatic filter has the same screen and spray system.
What information will help you recommend a system?
Send the pond volume, koi numbers and feeding pattern, existing filter and pumps, drain and skimmer arrangement, pipe sizes, available dimensions and working water level. Include access, waste drainage and any planned future changes. Photographs and a sketch help us check how the complete setup would fit.
For a fuller comparison, read our drum-filter buying and installation guide. You can also compare Filtreau Excellent drums, the matching Excellent trickle-shower range and AquaForte BioFleece filters. Check compatibility with the selected filter rather than mixing modules by size alone.
Keep checking the pond with suitable pond water test kits, and browse all pond filters for other approaches. We build and maintain ponds as well as supplying equipment, so we can discuss the layout and the ongoing jobs before you commit to a system.
