Oase DN110 Filter Discharge Pipework

Oase DN110 Filter Discharge Pipe and 45° Bend for Oase Pond Filter Returns

Build or Extend Your Oase DN110 Filter Return

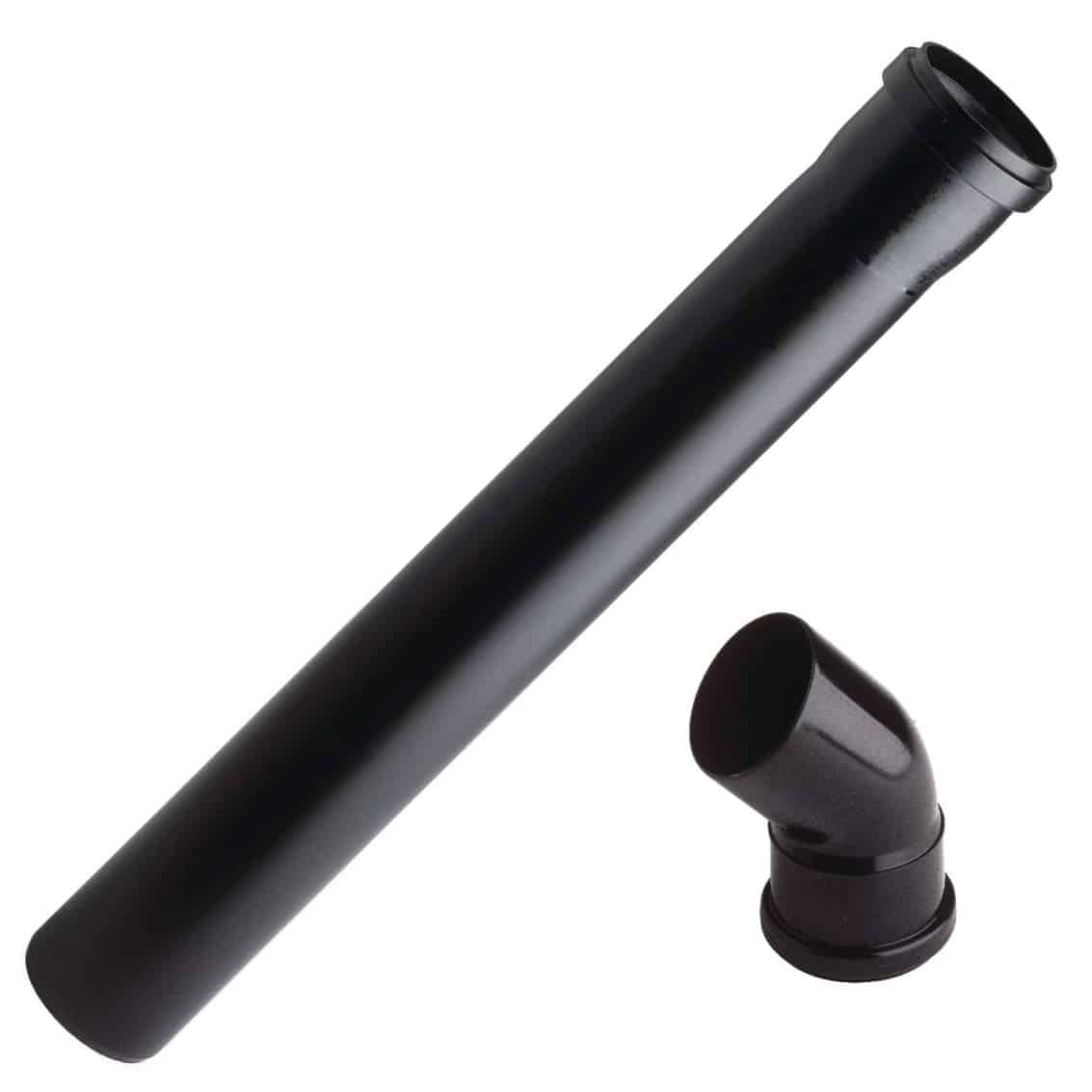

Choose from a 48cm straight pipe or 45° connection bend

Oase DN110 Filter Discharge Pipework provides a reliable way to construct, extend, repair or modify the water return from a compatible Oase pond filter. Available as either a 48cm straight discharge pipe or a 45° connection bend, these genuine Oase components can be combined to create a practical return route suited to the position of your filter and pond.

The large-diameter DN110 format is designed for filtration systems that need to carry substantial volumes of filtered water. Although described as DN110, Oase lists an actual component diameter of 105mm. This large outlet route helps filtered water leave the system freely without being forced through narrow or unsuitable pipework.

A correctly planned discharge route is essential for an efficient pond filtration system. Once water has passed through the filter, it must be able to return to the pond without excessive restrictions, unnecessary bends or raised sections that could interfere with the flow.

This is particularly important with gravity-return systems. The filter must be installed high enough for water to flow naturally from the outlet back towards the pond, waterfall, stream or return channel. The pipework should maintain an appropriate downward fall and be kept as short and direct as the installation allows.

Two Useful DN110 Variations

The 48cm straight pipe can be used to extend the filter outlet, connect the filter to another compatible fitting or create a direct section of return pipework. Its manageable length is suitable for both compact filter houses and larger filtration installations.

The 45° bend provides a gradual change of direction when the return cannot travel in a completely straight line. It is useful for routing pipework around filtration equipment, filter-house walls, landscaping or other obstacles without creating an unnecessarily sharp corner.

Several straight sections and bends can be combined where a longer or more complex return is required. However, unnecessary changes in direction should be avoided, especially on gravity-fed returns where every restriction can affect how freely water leaves the filter.

Genuine Oase Filter Pipework

Using genuine Oase components helps ensure that the pipework is suitable for the corresponding DN110 filtration connections. Pipework described using similar nominal measurements may not always have the same actual diameter, socket design or connection method.

The modular push-fit format makes the components straightforward to assemble. The pipe and bend should be carefully aligned and pushed fully into the adjoining socket or compatible fitting. All connecting surfaces should be clean and free from dirt before assembly.

Longer pipe runs should be supported independently so that their weight does not pull against the filter outlet. This helps protect the filter body, prevents the joints from becoming misaligned and creates a tidier, more professional installation.

The return can discharge directly into the pond or form part of a route supplying a stream, waterfall, cascade or return channel. The correct arrangement will depend on the filter model, installation height, available space and intended return position.

These components are suitable for new pond installations, filtration upgrades and repairs to established systems. They are also useful when a filter is relocated or the existing water-return point needs to be changed.

Select either the 48cm straight pipe or the 45° bend from the variation menu before adding the product to your basket.

Available Variations

48cm Straight Discharge Pipe

A straight 480mm section of black DN110 discharge pipe for extending the outlet from a compatible Oase filter or connecting additional DN110 components.

Oase product code: 50427
Length: 480mm
Actual diameter: 105mm

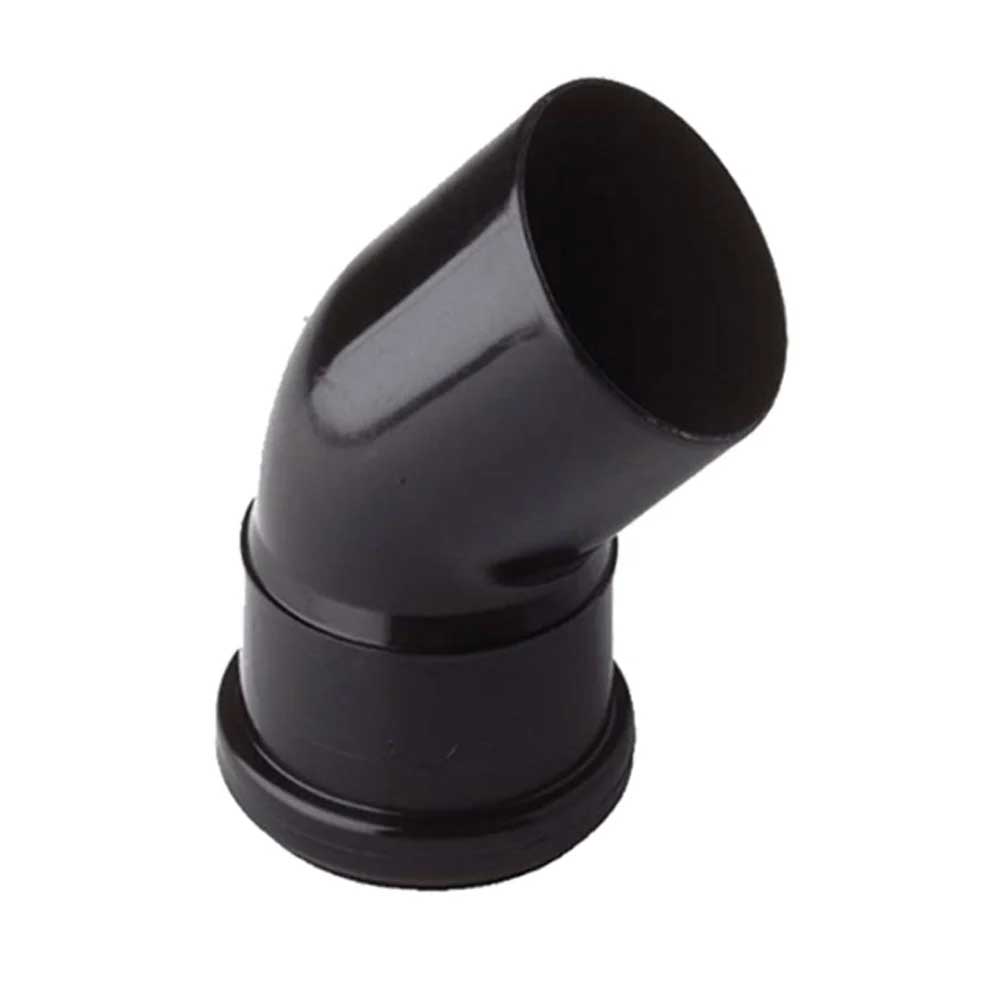

45° Connection Bend

A black DN110 connection elbow that creates a gradual 45-degree change of direction within the filter discharge or water-return route.

Oase product code: 50430
Angle: 45 degrees
Actual diameter: 105mm

Key Benefits

• Genuine Oase filter discharge components
• Choice of 48cm straight pipe or 45° bend
• Large-diameter DN110 format
• Actual component diameter of 105mm
• Suitable for high-flow pond filtration systems
• Helps create a clear and unrestricted water return
• Push-fit format for straightforward installation
• Suitable for gravity-return pipework
• Components can be combined as required
• Useful for new installations, extensions and repairs
• Discreet black finish
• Suitable for professional and domestic pond installations

Compatible Oase Equipment

The DN110 pipework is suitable for selected larger Oase filters and filtration equipment with compatible DN110 connections, including:

• Oase BioTec 30
• Oase BioTec ScreenMatic 36
• Oase BioTec Premium 80000
• Oase ProfiClear modular filtration systems
• Selected Oase ProfiClear Premium systems
• Selected Oase Bitron Premium installations

Compatibility can vary according to the exact model, generation and installation configuration. Check the outlet size and existing pipework before ordering.

Choosing the Correct Variation

Choose the 48cm straight pipe when you need to:

• Extend the outlet away from the filter
• Cover a short distance towards the pond return
• Connect the filter to another DN110 fitting
• Replace a damaged straight pipe section
• Create a direct gravity-return route

Choose the 45° bend when you need to:

• Change the direction of the return pipework
• Route the pipe around equipment or structures
• Create a more gradual turn
• Redirect the return towards a waterfall or stream
• Alter an existing DN110 discharge arrangement

Common Uses

• Constructing a new filter-to-pond return
• Extending an existing DN110 discharge route
• Replacing damaged or missing pipework
• Relocating an Oase pond filter
• Connecting filtration equipment inside a filter house
• Directing water towards a pond return
• Supplying a waterfall or return channel
• Modifying a koi pond filtration system
• Creating an organised gravity-return installation
• Connecting compatible Oase DN110 components

Installation Advice

Plan the complete discharge route before ordering or assembling the pipework. Identify the straight sections, bends, connectors and supports required to reach the intended return point.

Clean the connecting surfaces before assembly and remove any dirt or debris that could prevent a secure joint. Carefully align each component and push it fully into position.

Do not force components together at an angle. Misaligned pipework can place strain on the joint and filter outlet.

Gravity-return pipework should maintain a suitable downward fall from the filter towards the pond. Avoid dips, raised sections and unnecessary bends that could restrict the water flow or cause the filter to back up.

Support long, horizontal or elevated sections independently. The filter outlet should not carry the full weight of the installed return pipework.

Once the filtration system is operating, inspect every joint for leaks and confirm that water is flowing freely back towards the pond.

Related Oase DN Pipework and Compatible Filters

Choose DN110 for large Oase filter outlets and high-flow gravity return pipework where the exact filter or module specifies DN110. This is normally used on larger ProfiClear and larger BioTec ScreenMatic installations.

For smaller Oase flow-through filters, DN50 or DN75 pipework may be the correct choice instead.

• Oase DN50 Filter Discharge Pipework
• Oase DN75 Filter Discharge Pipework
• Oase Rubber Connection 2" Female Threaded – DN110 Eccentric
• Oase Bitron Gravity Hose Adapter Kit
• Browse Oase ScreenMatic filters
• Browse Oase ProfiClear filters

Product Specifications

Brand: Oase
Product range: DN110 Filter Discharge Pipework
Product type: Pond filter discharge and return pipework
Available variations: 48cm straight pipe and 45° bend
Pipework format: DN110
Actual stated diameter: 105mm
Connection method: Push fit
Colour: Black
Straight pipe length: 480mm
Straight pipe product code: 50427
Bend angle: 45 degrees
Bend product code: 50430
Primary use: Returning filtered water from the filter
Quantity supplied: One selected pipe or bend
