Oase FiltoClear 60000 Set OC Pond Filter

Oase FiltoClear 60000 Set OC Pond Filter

High Performance Pressurised Filtration System with Twin Pumps and 84 Watt UV

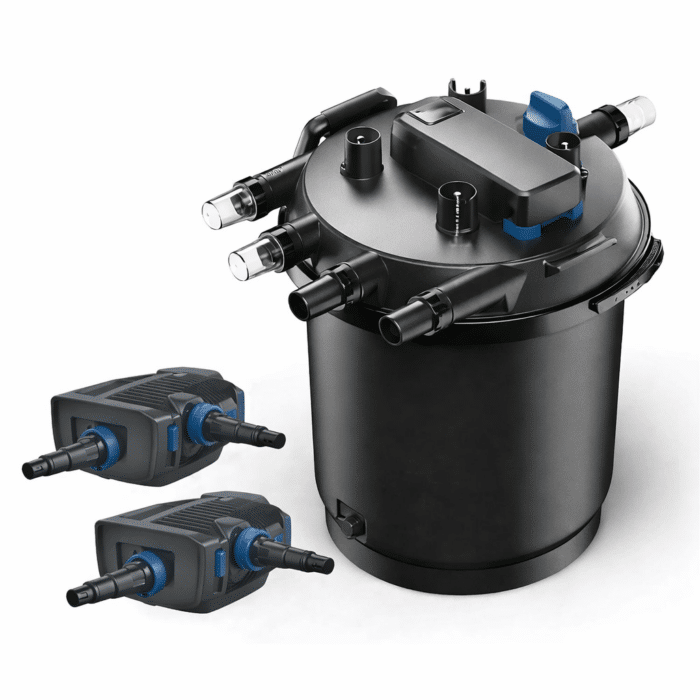

The Oase FiltoClear 60000 Set OC is a complete high performance pressurised filtration system designed for large ornamental ponds, swim ponds and well stocked fish ponds. Supplied with 2 x AquaMax Eco Premium 17000 pumps and an integrated 84 watt UV clarifier, this system delivers strong mechanical filtration, reliable biological processing and effective green water control straight out of the box.

Because this is a pressurised filter, clean water can be returned above pond level without reducing performance. The sealed container is rated to operate at pressures up to 1.5 bar, allowing water to feed waterfalls, raised spillways and longer return pipe runs with confidence. In addition, the twin 2 inch inlet design allows two suction points in the pond, improving circulation and debris collection across a wider area.

The filter body is engineered to handle flow rates of up to 20000 litres per hour. Internally, it uses a multi stage foam system made up of coarse, medium and fine filter foams, ensuring effective mechanical separation before biological polishing. A built in pollutant indicator provides a clear visual signal when cleaning is required.

The integrated 84 watt UV clarifier controls suspended algae and helps maintain clear water, while the UV lamp can be serviced without dismantling the entire system. The patented internal cleaning system allows fast maintenance without removing filter foams or disconnecting pipework. Dirty water is discharged separately through the sludge outlet, keeping servicing clean and straightforward.

Supplied with two Oase AquaMax Eco Premium 17000 pumps, this set provides balanced hydraulic flow and strong real world turnover rates when correctly sized to pond volume and stocking density.

Designed for Strong Circulation and Easy Maintenance

The FiltoClear 60000 Set OC measures approximately 670 x 600 x 760 mm and weighs around 15 kg. It can be buried up to the filter head for discreet installation, making it suitable for high end garden builds where appearance matters as much as performance.

The twin pump configuration improves solids transport to the filter and reduces stagnant areas within the pond. As a result, overall water movement and filtration efficiency improve, particularly in larger pond layouts.

Built to Oase’s usual high standards, the FiltoClear 60000 is robust, reliable and designed for year round use on larger koi ponds and decorative water features. To find out more information about the range, view our full Oase Pressure Filter Guide.

Key Benefits

• Complete filtration set for large ponds up to 60000 litres
• Includes 2 x AquaMax Eco Premium 17000 pumps for strong circulation
• Integrated 84 watt UV clarifier for green water control
• Handles flow rates up to 20000 litres per hour
• Pressurised design suitable for raised returns and waterfalls
• Twin 2 inch inlets and outlets for flexible installation
• Built in pollutant indicator for maintenance timing
• Patented compression cleaning system with separate sludge discharge
• Can be buried for discreet installation

Technical Specifications

• Maximum pond size ornamental and swim ponds up to 60000 litres
• Fish ponds up to 30000 litres
• Koi ponds up to 15000 litres
• Maximum flow rate 20000 litres per hour
• UV clarifier 84 watt integrated
• UVC cable length 5 metres
• Inlets 2 x 2 inch
• Outlets 2 x 2 inch
• Sludge outlet 2 inch
• Maximum operating pressure 1.5 bar
• Dimensions 670 x 600 x 760 mm
• Weight approximately 15 kg
• Voltage 230 V / 50 Hz
• Supplied pumps 2 x AquaMax Eco Premium 17000
• Warranty 2 year standard warranty, extendable to 3 years upon registration

Technical information

Dimensions (L x W x H)	mm	670 x 600 x 760
Rated voltage		220 – 240 V / 50/60 Hz
Power consumption	W	84
Power cable length	m	5.00
Net weight	kg	15
Limited Warranty	Years	2 + 1
UVC power	W	60
Qty of super fine foams (green)	Units	4
Qty of coarse foams (blue)	Units	4
Qty of medium foams (purple)	Units	4
Qty of fine  foams (red)	Units	4
Inlet connection x2		2″
Outlet connections x2		2″
Sludge discharge connections		2″
Max. flow rate	l/h	36000
Max. operating pressure	bar	1.5
Suitable for ponds up to max.	m3	60
Suitable for ponds with fish stock	m3	30
Suitable for ponds with koi	m3	15

UV sizing and maintenance notes

Oase FiltoClear 60000 Set OC Pond Filter should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.

• Replace UV lamps as part of routine seasonal maintenance.
• Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
• Match the UV to the pump and filter rather than installing it in isolation.
• Allow safe access for lamp changes and winter maintenance.

Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
