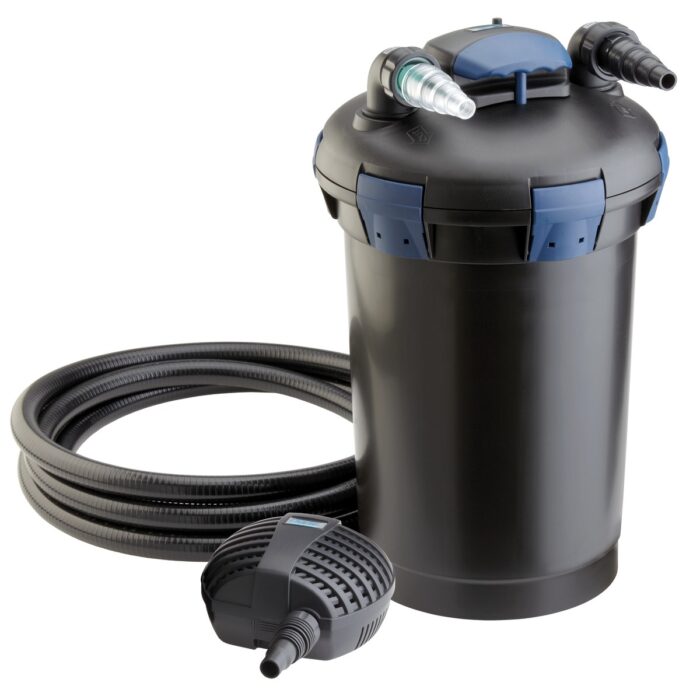

Oase BioPress Set 10000 Pond Filter System
| Brand |
|---|
The Oase BioPress Set 10000 is a complete pressurised pond filter system including FP3500 pump, 11W UV clarifier and 5m hose. Designed for ponds up to 10000 litres, it delivers effective green water control and simple maintenance in one ready to install kit.
£322.99 (inc VAT)
Oase BioPress Set 10000 Pond Filter System
Complete Pressurised Pond Filter Kit with FP3500 Pump and 11W UV
The Oase BioPress Set 10000 Pond Filter System is a powerful, ready to install filtration solution designed for larger garden ponds and moderately stocked fish ponds. Combining the BioPress 10000 pressurised filter, FP3500 filter pump, integrated 11W ultraviolet clarifier and 5 metres of smooth bore hose, this complete kit delivers efficient mechanical, biological and UV filtration in one convenient package.
The integrated 11 watt UV clarifier targets single celled algae, helping prevent green water and improving overall pond clarity. As a result, water stays cleaner, clearer and healthier for fish and plants throughout the season.
This set provides a practical and cost effective alternative to Oase FiltoClear systems while still offering reliable filtration performance and easy maintenance.
Easy Maintenance and Flexible Installation
The BioPress 10000 includes an integrated easy clean handle that compresses the internal filter sponges. This allows pond waste to be flushed out without removing or handling the foams directly, making routine maintenance quicker and cleaner.
An inspection window built into the lid allows you to visually confirm UV operation at any time. Because the housing is fully sealed and pressurised, water can be pumped to a higher level than the filter itself. Therefore, it is ideal for supplying a raised waterfall, cascade or stream feature.
For discreet installations, the filter body can be partially buried in soft ground, leaving only the lid visible above ground level.
The BioPress Set 10000 is suitable for:
- Ornamental ponds up to 10000 litres
- Fish ponds up to 5000 litres
- Koi ponds up to 2500 litres
Key Features
- Complete pond filtration kit including filter, pump and hose
- BioPress 10000 pressurised filter
- FP3500 filter pump included
- Integrated 11W ultraviolet clarifier
- 5 metres of 1 inch smooth bore hose included
- Easy clean sponge compression handle
- Quick release lid catches
- Inspection window for UV monitoring
- Sealed housing suitable for waterfall return
- Partially buryable design
- 2 year manufacturer guarantee on filter and pump
Technical Specifications
- BioPress 10000 filter dimensions 350 x 570mm Diameter x Height
- FP3500 pump dimensions 190 x 175 x 110mm
- UVC power consumption 11W
- Pump power consumption 70W
- Recommended hose sizes 3/4 inch, 1 inch, 1.25 inch, 1.5 inch
- Pond size up to 10000 litres depending on fish stock
- Filter UVC cable length 5m
- Pump cable length 10m
- Filter guarantee 2 years
- Pump guarantee 2 years
Technical information
| Dimensions (Ø × H) | mm | 350 × 570 |
|---|---|---|
| Rated voltage | 230 V / 50 Hz | |
| Power consumption UVC | W | 14 |
| Power consumption pump | W | 70 |
| Power cable length UVC | m | 3.00 |
| Power cable length pump | m | 10.00 |
| Net weight | kg | 9.09 |
| Guarantee | Years | 2 |
| UVC power | W | 11 |
| Number of blue filter foams | Units | 2 |
| Number of black filter foams | Units | 2 |
| Number of bio-surface elements | Units | 30 |
| Pollutant level indicator | No | |
| Temperature display | No | |
| Inlet connections | mm | 19 / 25 / 32 / 38 |
| Inlet connections | ¾”, 1″, 1 ¼”, 1 ½” | |
| Connections, outlet | mm | 19 / 25 / 32 / 38 |
| Outlet connections | ¾”, 1″, 1 ¼”, 1 ½” | |
| Max. operating pressure | bar | 0.2 |
| Suitable for ponds up to max. | m3 | 10.0 |
| Suitable for ponds with fish stock | m3 | 5.0 |
| Suitable for ponds with koi | m3 | 2.5 |
UV sizing and maintenance notes
Oase BioPress Set 10000 Pond Filter System should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.
- Replace UV lamps as part of routine seasonal maintenance.
- Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
- Match the UV to the pump and filter rather than installing it in isolation.
- Allow safe access for lamp changes and winter maintenance.
Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
Before you order
Before ordering Oase BioPress Set 10000 Pond Filter System, check the product dimensions, connection sizes and the other equipment it will be installed with. This is especially important on ponds where a pump, filter, UV, air system or return line already exists. A quick check at this stage can prevent avoidable restrictions, leaks or compatibility problems.
If you are replacing an existing item, compare the old model carefully and allow for any changes to hose size, pipework, cable length or service access.
