Oase BioTec ScreenMatic2 40000 Filter UV and Pump Set OC

Oase BioTec ScreenMatic2 40000 Filter UV and Pump Set OC

Complete Automated Pond Filation System with Smart Control

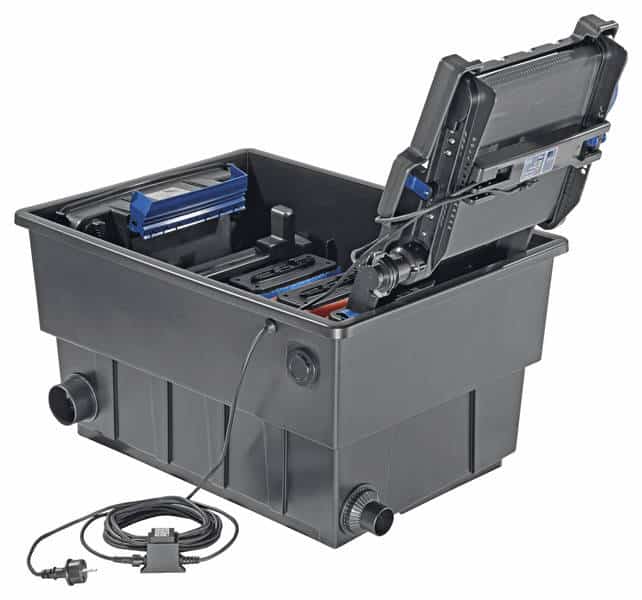

The Oase BioTec ScreenMatic2 40000 Filter UV and Pump Set OC is a professional grade, automated flow through filtration system designed for large garden ponds and koi ponds up to 40000 litres. This complete set combines advanced mechanical filtration, high capacity biological media, a powerful energy efficient pump and a 36W UV clarifier to deliver clear, healthy water with minimal manual cleaning.

Unlike standard box filters, the ScreenMatic2 system features an automated 300 micron belt pre filter that removes solid waste before it reaches the biological stage. As a result, maintenance is significantly reduced and biological performance remains stable for longer periods.

The OC designation means the included pump is compatible with Oase Control systems, allowing electronic control and smart integration when paired with an Oase Eco Controller.

Suitable for:

• Up to 40000 litres without fish
• Up to 20000 litres with goldfish
• Up to 10000 litres with koi

Intelligent Automated Mechanical Filtration

Water is delivered into the system by the Oase AquaMax Eco Premium 13000 OC pump. This high efficiency solids handling pump moves water and particles up to 11mm into the Oase BioTec ScreenMatic2 40000 filter.

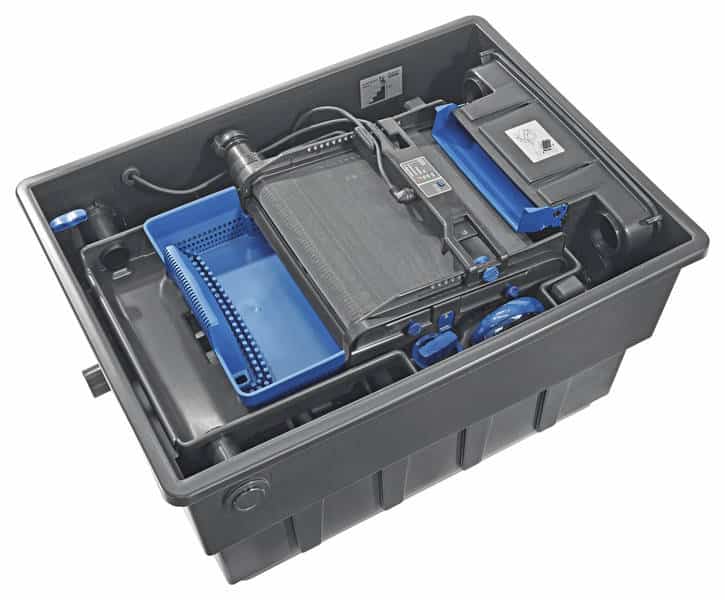

The first stage of filtration is the automated 300 micron fabric belt. A built in sensor continuously monitors debris levels. When dirt accumulates, the Screendrive motor activates automatically and advances the belt, transporting waste into a collection tray. This prevents blockages and dramatically reduces manual cleaning.

Because solids are removed before reaching the biological stage, the filter sponges stay cleaner and more efficient.

High Capacity Biological Filtration with Zeolite Support

After mechanical screening, water passes through eight high capacity filter foams arranged in graduated densities:

• 2 blue foams
• 3 red foams
• 3 purple foams

These sponges provide extensive surface area for beneficial bacteria, supporting nitrification and biological waste conversion.

The system also includes 2.5kg of zeolite granulate. Zeolite binds excess nutrients and ammonia, helping stabilise water chemistry and reduce the risk of algae blooms.

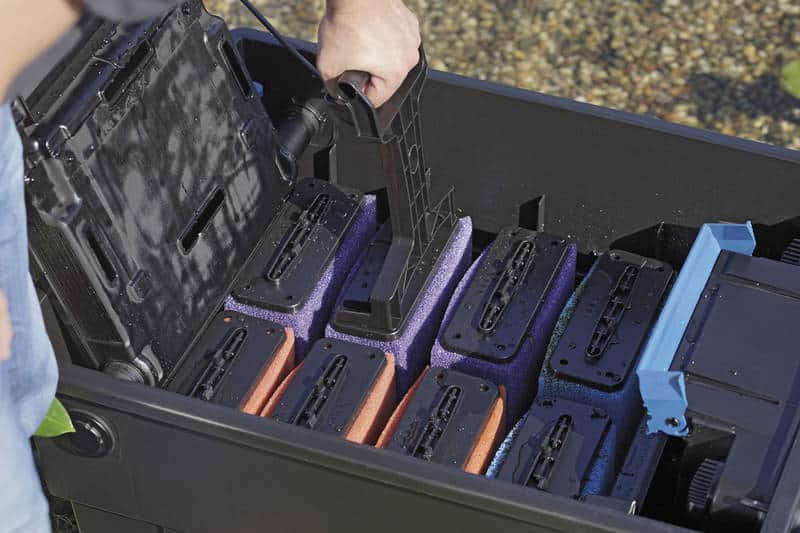

The filter foams can be cleaned in situ using the integrated compression handle, allowing debris to be flushed via the sludge drain without removing the sponges.

Oase Bitron C 36W UV Clarifier for Green Water Control

For ultraviolet treatment, the system includes the Oase Bitron C 36W UV clarifier.

This high performance UV unit neutralises single celled algae responsible for green water, while also reducing harmful bacteria and pathogens. The result is improved water clarity and healthier conditions for fish.

The UV treated algae are then captured by the mechanical and biological stages, completing the filtration cycle.

Smart Pump Control with Oase AquaMax Eco Premium 13000 OC

The included Oase AquaMax Eco Premium 13000 OC pump provides energy efficient, continuous water circulation.

Because this is an OC model, it can be electronically controlled via compatible Oase Eco Control systems. This allows flow adjustment, monitoring and system optimisation through app based smart control when connected to an Oase Control interface.

This makes the ScreenMatic2 40000 Set OC ideal for modern pond installations requiring intelligent control.

Explore Other Oase BioTec ScreenMatic² Models & Sets:

🔹 Oase BioTec ScreenMatic² 40000 – Standalone filter unit for pond owners who already have a pump and UV clarifier.
🔹 Oase BioTec ScreenMatic² 60000 – Larger capacity filtration for bigger ponds or increased fish stocking.
🔹 Oase BioTec ScreenMatic² 90000 – Designed for large koi ponds requiring enhanced filtration.
🔹 Oase BioTec ScreenMatic² 145000 – The most powerful model for expansive ponds with heavy fish loads.

For a complete breakdown of the ScreenMatic² series, check out our Oase ScreenMatic Pond Filter Guide.

Key Features

• Complete automated pond filtration system
• Oase BioTec ScreenMatic2 40000 flow through filter
• Oase AquaMax Eco Premium 13000 OC smart pump
• Oase Bitron C 36W UV clarifier
• Automated 300 micron belt pre filter
• Screendrive dirt sensor activation
• 8 high capacity biological filter foams
• 2.5kg zeolite granulate media included
• In situ sponge compression cleaning handle
• Sludge drain outlet
• Smart pump compatibility with Oase Control systems
• Designed for large ponds and koi systems

Technical Specifications

• Maximum pond size 40000 litres no fish
• Maximum pond size 20000 litres goldfish
• Maximum pond size 10000 litres koi
• Pump maximum flow approximately 13000 litres per hour
• Solids handling capability up to 11mm
• Pre filter screen 300 micron
• Biological foams 8 total
• Zeolite media 2.5kg included
• UV clarifier 36W
• Automated belt cleaning system
• Smart control compatible pump
