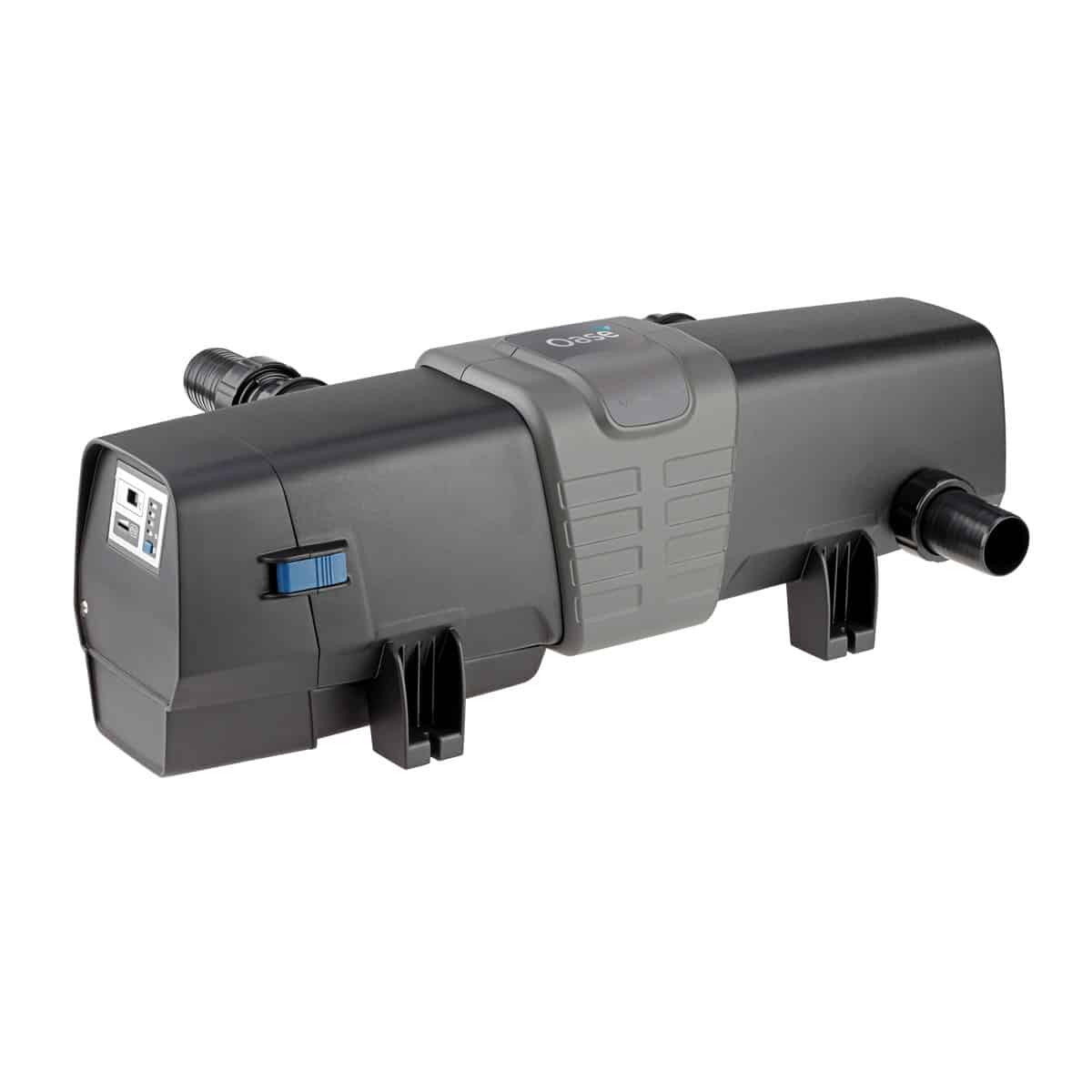

Oase Bitron Eco 180 Watt UVC

Oase Bitron Eco 180 Watt UVC

Intelligent High Output UVC Clarifier for Extra Large Koi and Commercial Pond Systems

The Oase Bitron Eco 180 Watt UVC is the most powerful model in the Bitron Eco range. It is designed for very large koi ponds, heavily stocked systems and commercial water features where maximum ultraviolet performance and intelligent energy control are essential.

This high output unit removes suspended algae, reduces harmful bacteria and improves overall water clarity, even in demanding installations with high turnover rates. Because of its enlarged irradiation chamber and intelligent bypass control, it maintains optimal exposure time at flow rates up to 50000 litres per hour.

Unlike conventional UV clarifiers, the Bitron Eco 180W features advanced eco control technology. The system automatically adjusts irradiation intensity according to seasonal demand. As a result, it can reduce energy consumption by up to 50% during cooler months while still maintaining effective algae control during peak summer conditions.

Eco Control Technology and Energy Efficiency

The unit operates using high efficiency 60 watt UVC lamp technology developed in collaboration with Philips. These lamps offer an extended service life of up to 12000 hours, which is approximately 50% longer than traditional UV bulbs. Consequently, running costs remain lower and servicing intervals are extended.

A high volume housing increases internal water retention time. Therefore, water receives longer ultraviolet exposure, improving treatment of suspended algae, turbidity and harmful microorganisms. In addition, the automatic bypass regulation system adapts water distribution internally to ensure consistent irradiation across varying flow rates.

The patented automatic cleaning rotor continuously prevents debris and limescale from settling on the quartz sleeves. This ensures reliable UV penetration without manual cleaning. Furthermore, lamp replacement is simple and does not require dismantling the quartz glass, which reduces maintenance time.

The digital display provides real time information including lamp status and water temperature. With IP68 protection, the unit can be installed directly beside the pond or integrated within filtration chambers.

The Bitron Eco 180 Watt integrates seamlessly with Oase ProfiClear, BioTec 30 and BioTec ScreenMatic² 90 to 140000 filtration systems, making it ideal for professional and large scale installations.

Key Benefits

• Designed for very large koi and commercial pond systems
• Intelligent eco control system reduces energy consumption by up to 50%
• High intensity ultraviolet treatment for algae and bacteria control
• Effective at flow rates up to 50000 litres per hour
• Extended 12000 hour lamp lifespan
• Automatic bypass regulation for consistent irradiation
• Patented automatic cleaning rotor
• Digital temperature and lamp monitoring display
• IP68 rated for pond side installation
• Compatible with ProfiClear and BioTec ScreenMatic² systems
• 2 + 1 year manufacturer guarantee

Technical Specifications

• Dimensions: 725 x 227 x 248 mm
• Rated voltage: 220 to 240 V 50 to 60 Hz
• Power consumption: 180 watts
• Estimated UVC operating time: 12000 hours
• Minimum flow rate: 10000 litres per hour
• Maximum flow rate: 50000 litres per hour
• Maximum operating pressure: 1 bar
• Inlet conConnections: 38 mm and 50 mm 1½ inch and 2 inch
• Outlet conConnections: 38 mm and 50 mm 1½ inch and 2 inch
• Power cable length: 5 metres
• Net weight: 8.25 kg
• Bypass control: automatic
• Cleaning system: automatic rotor
• Housing: impact resistant plastic

Technical information

Best results in the pond

Oase Bitron Eco 180 Watt UVC should be used as part of a sensible water quality routine. Treatments work best when the pond is correctly filtered, well aerated and tested regularly. Before adding any pond treatment, check the pond volume, read the dosage instructions and consider recent changes such as heavy rain, filter cleaning, medication, water changes or new fish.

• Measure the pond volume as accurately as possible before dosing.
• Use water tests to understand the problem before treating.
• Keep filters and aeration running unless the product instructions say otherwise.
• Allow time for the pond to respond before repeatedly adding more product.

Good pond care is usually a combination of filtration, testing, sensible feeding and the correct treatment at the right time. That approach gives more reliable results than treating symptoms without checking the cause.
