Oase BioSmart 24000 Pond Filter Set
| Brand |
|---|
The Oase BioSmart 24000 Pond Filter Set is a complete gravity return filtration system for ponds up to 24000 litres. Supplied with the Oase AquaMax Eco Classic 5500 pump and Oase Vitronic 24W UV clarifier, it delivers mechanical, biological and ultraviolet filtration in one matched package. Ideal for larger goldfish ponds and lightly stocked koi ponds, it provides strong water clarity with straightforward maintenance.
£598.49 (inc VAT)
Oase BioSmart 24000 Pond Filter Set
High Capacity Complete Filtration System with Pump and 24W UV
The Oase BioSmart 24000 Pond Filter Set is a powerful gravity return filtration system designed for larger garden ponds, goldfish ponds and lightly stocked koi ponds. Unlike pressurised filters, the BioSmart range operates as a flow through box filter. As a result, it offers generous biological capacity, excellent oxygenation and reliable long term water stability.
This complete set includes a correctly matched pump and UV clarifier, ensuring balanced performance from day one. Therefore, it is ideal for new pond builds, filtration upgrades or replacing an outdated system.
The Oase BioSmart 24000 set is suitable for:
- Up to 24000 litres without fish
- Up to 12000 litres with goldfish
- Up to 6000 litres with koi
Intelligent Filtration and Simple Maintenance
The Oase BioSmart 24000 SET delivers both mechanical and biological filtration in a durable, UV resistant housing.
Water first enters the chamber via the Oase AquaMax Eco Classic 5500 pump. It then passes through nine layered filter foams:
- 4 blue coarse foams
- 4 red fine foams
- 1 green ultra fine foam
These foams trap debris while simultaneously providing a large surface area for beneficial bacteria. Consequently, ammonia and nitrite are broken down efficiently, helping to stabilise water chemistry and maintain fish health.
The system also includes an integrated pollution level indicator. This visual display shows clearly when maintenance is required, removing the guesswork from pond care.

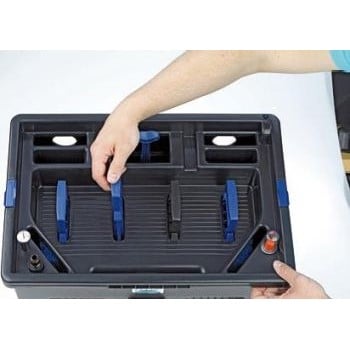

Cleaning is quick and controlled. The in situ EasyClean handles allow you to compress all foams from outside the unit. As a result, trapped debris is flushed into the sludge drain without removing the sponges. In addition, the bottom sludge outlet with slide valve enables easy waste discharge.
A built in thermometer provides instant visibility of water temperature, which is particularly useful during seasonal changes.
For even greater biological performance, the filter can be paired with an Oase OxyTex pond aerator. When installed, OxyTex can increase biological efficiency by up to 25 percent by improving oxygen availability inside the chamber.
Complete Matched System with Pump and UV
The Oase BioSmart 24000 Pond Filter Set is supplied as a fully balanced filtration package. Water is pumped into the filter by the included Oase AquaMax Eco Classic 5500, ensuring correct flow rate and solids handling performance.
The system includes:
- Oase BioSmart 36000 flow through gravity filter
- Oase AquaMax Eco Classic 5500 pump
- Oase Vitronic 24W UV clarifier
- 5 metres of 38mm flexible hose
- 100ml BioKick filter starter
Once water passes through the filter foams, it is exposed to ultraviolet light within the Oase Vitronic 24W UV clarifier. This neutralises single celled algae responsible for green water, along with harmful bacteria and pathogens.
Filtered water then exits via gravity return through the DN 75 outlet back into the pond. Because this is a gravity discharge filter, it must be positioned above pond water level.
The result is a complete mechanical, biological and ultraviolet filtration system that works together as a balanced unit.
Key Features
- Complete gravity return pond filtration set
- Mechanical and biological multi stage filtration
- Integrated 24W UV clarifier for green water control
- Includes matched AquaMax Eco Classic 5500 pump
- 9 filter foams for high biological capacity
- Integrated pollution level indicator
- Built in thermometer
- EasyClean in situ foam compression system
- Sludge drain with slide valve
- Compatible with Oase OxyTex aeration
- Can be partially buried up to one third of its height
- Durable UV resistant housing
Technical Specifications
- Maximum pond size 24000 litres no fish
- Maximum pond size 12000 litres goldfish
- Maximum pond size 6000 litres koi
- Maximum system flow rate up to 8000 litres per hour
- Pump max head 2.8 metres
- Filter dimensions 920 x 555 x 405mm
- Filter foams 4 blue coarse, 4 red fine, 1 green ultra fine
- Inlet sizes 25mm, 32mm, 38mm
- Outlet DN 75
- Sludge discharge DN 50
Technical information
| Dimensions filter (L × W × H) | mm | 920 × 555 × 405 |
|---|---|---|
| Net weight | kg | 21.00 |
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption UVC | W | 24 |
| Power cable length UVC | m | 5.00 |
| Guarantee | Years | 2 |
| UVC power | W | 24 |
| Number of filter foams, total | Units | 9 |
| Number of blue filter foams | Units | 4 |
| Number of red filter foams | Units | 4 |
| Number of green filter foams | Units | 1 |
| Temperature display | Yes | |
| Inlet connections | mm | 19 / 25 / 32 / 38 |
| Inlet connections | ¾”, 1″, 1 ¼”, 1 ½” | |
| Outlet connections | DN 75 | |
| Sludge discharge connections | DN 50 | |
| Corresponding filter/watercourse pump | AquaMax Eco Classic 5500 | |
| Dimensions pump (L × W × H) | mm | 280 × 230 × 140 |
| Power consumption pump | W | 60 |
| Max. flow rate | l/h | 5500 |
| Power cable length pump | m | 10.00 |
| Suitable for ponds up to max. | m3 | 24.0 |
| Suitable for ponds with fish stock | m3 | 12.0 |
| Suitable for ponds with koi | m3 | 6.0 |
Key benefits
- Helps complete a reliable pond setup when matched to the equipment around it.
- Useful for checking compatibility, installation layout and long term maintenance access.
- Best chosen as part of the whole pond system rather than as a standalone item.
- Pairs with suitable pumps, filters, hose, pipework, spares or accessories depending on the installation.
