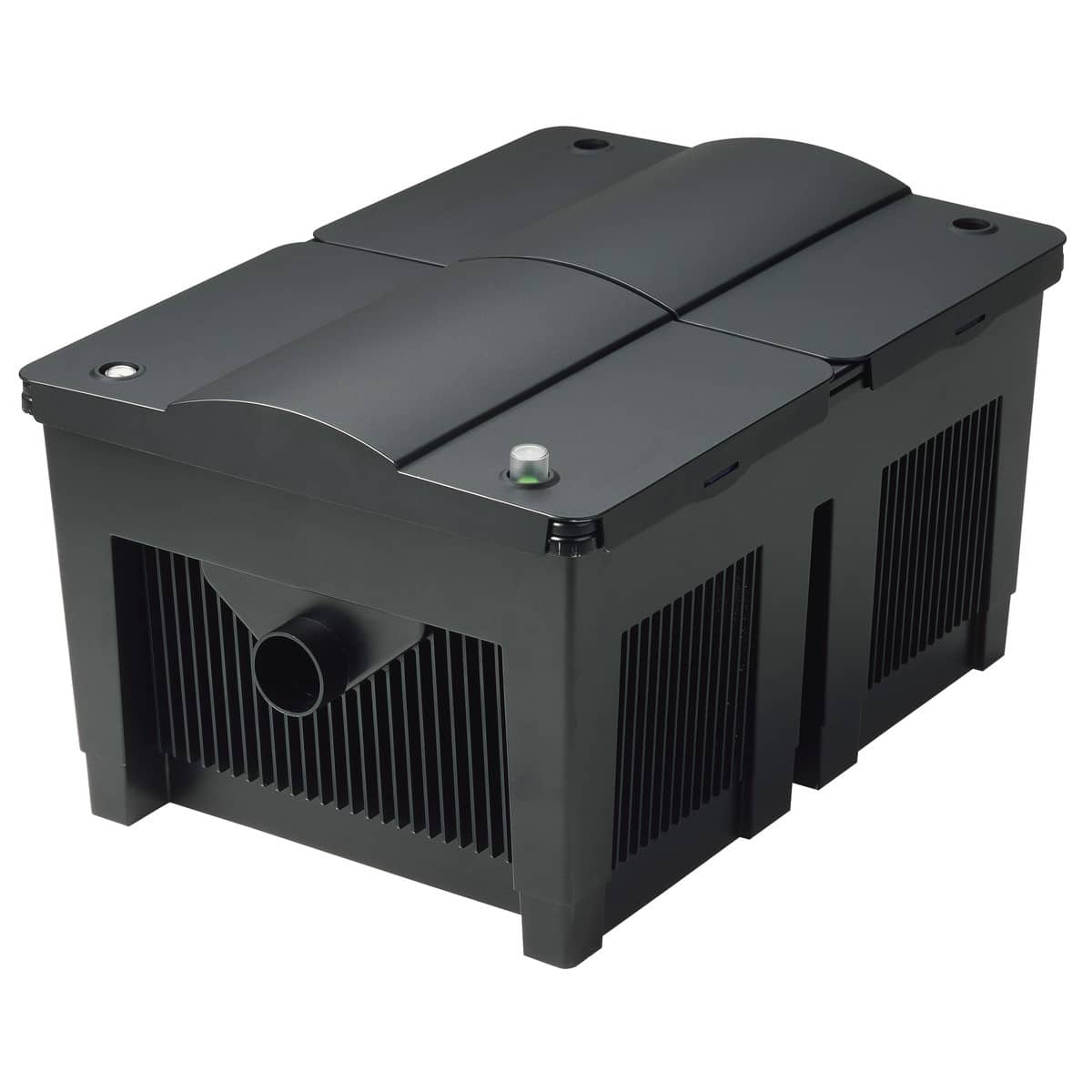

Oase BioSmart 36000 Pond Filter
| Brand |
|---|
The Oase BioSmart 36000 Pond Filter is a high capacity flow through gravity return filtration system designed for ponds up to 36000 litres. Featuring nine stage foam filtration, an integrated pollution indicator and in situ cleaning system, it delivers powerful mechanical and biological pond filtration. Ideal for large garden ponds and moderately stocked koi ponds, it provides reliable and easy to manage water clarity.
£339.99 (inc VAT)
Oase BioSmart 36000 Pond Filter
High Capacity Flow Through Filtration for Large Garden and Koi Ponds
The Oase BioSmart 36000 is a high capacity flow through gravity return pond filter designed for large garden ponds, ornamental ponds and moderately stocked koi ponds. As a gravity discharge box filter, it allows high water volumes to pass through while maintaining strong biological filtration capacity.
This model offers significantly increased foam volume compared to smaller BioSmart units, making it suitable for higher waste loads and larger water volumes. As a result, it delivers consistent mechanical debris removal and stable biological filtration throughout the pond season.
The Oase BioSmart 36000 is suitable for:
- Up to 36000 litres without fish
- Up to 18000 litres with goldfish
- Up to 9000 litres with koi
Therefore, it is ideal for large decorative ponds and medium stocked koi systems that require reliable, accessible filtration.
Intelligent Monitoring and Easy Maintenance

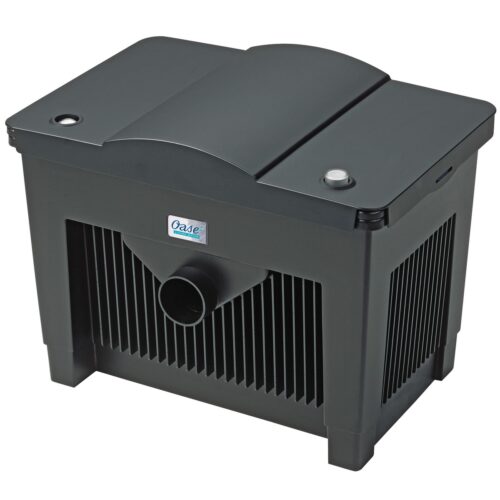

Like the 18000 model, the Oase BioSmart 36000 includes an integrated pollution level indicator. This visual display clearly signals when maintenance is required, helping you maintain optimal filtration performance.

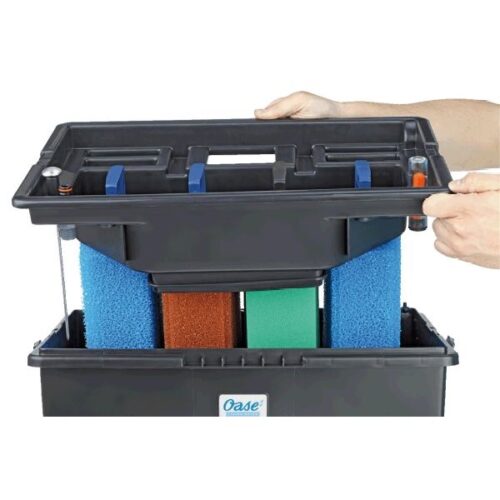

The in situ cleaning system allows all nine filter foams to be compressed simultaneously using the external handles. Consequently, accumulated waste is flushed directly to the sludge drain without removing the foams. This keeps maintenance quick and significantly less messy.
A bottom sludge drain with slide valve allows coarse debris to be discharged easily. In addition, the built in thermometer provides real time water temperature monitoring, supporting improved seasonal pond management.
For enhanced biological efficiency, the BioSmart 36000 can be paired with the Oase OxyTex pond aerator. When installed, OxyTex can increase biological filtration performance by up to 25 percent by improving oxygen supply within the filter chamber.
How the Oase BioSmart 36000 Works and Set Options
Water enters the Oase BioSmart 36000 through a pump fed inlet before flowing through multiple filtration stages:
- Four blue coarse foams capture larger debris and solids
- Four red fine foams provide mechanical polishing and biological surface area
- One green ultra fine foam delivers final stage filtration
As water passes through these layers, beneficial bacteria colonise the sponge surfaces and break down ammonia and nitrite. Consequently, harmful waste compounds are converted into less toxic substances, supporting a balanced pond ecosystem. Once filtered, water exits via gravity return through the DN 75 outlet back into the pond.
Because this is a gravity return filter, it must be positioned above pond water level to allow water to flow back naturally.
The Oase BioSmart 36000 is available as a standalone flow through filter if you already have a correctly sized pond pump and UV clarifier. However, it is also available as a complete Oase BioSmart 36000 Filtration Set, which includes a fully matched pump, UV clarifier and hose for a balanced and ready to install system.
The set version includes:
- Oase AquaMax Eco Classic 11500 Pond Pump
- Oase Vitronic 36W UV Clarifier
- High quality flexible pond hose
This complete package ensures correct flow rates, effective green water control and straightforward installation from day one, making it ideal for larger pond builds or full system upgrades.
Key Features
- Flow through gravity return pond filter
- Large capacity multi stage foam filtration
- Nine filter foams for increased biological surface area
- Integrated pollution level indicator
- Built in thermometer
- In situ foam compression cleaning system
- Sludge drain with slide valve
- Compatible with Oase OxyTex aeration system
- Compatible with Vitronic and Bitron C UV clarifiers
- Can be partially buried up to one third of its height
- Durable UV resistant housing
Technical Specifications
- Maximum pond size 36000 litres no fish
- Maximum pond size 18000 litres goldfish
- Maximum pond size 9000 litres koi
- Maximum recommended flow rate 8000 litres per hour
- Dimensions 767 x 555 x 408mm
- Filter foams 4 blue coarse, 4 red fine, 1 green ultra fine
- Inlet sizes 25mm, 32mm, 38mm
- Outlet DN 75
- Sludge discharge DN 50
Technical information
| Dimensions filter (L x W x H) | mm | 382 x 555 x 408 |
| Net weight | kg | 10.50 |
| Limited Warranty | Years | 3 |
| Number of filter foams, total | Units | 9 |
| Number of blue filter foams | Units | 4 |
| Number of red filter foams | Units | 4 |
| Number of green filter foams | Units | 1 |
| Temperature display | Yes | |
| Inlet connections | mm | 25 / 32 / 38 |
| Inlet connections | 1″, 1 ¼”, 1 ½” | |
| Outlet connections | DN 75 | |
| Sludge discharge connections | DN 50 | |
| Max. flow rate | l/h | 8000 |
| Suitable for ponds up to max. | m3 | 36.0 |
| Suitable for ponds with fish stock | m3 | 18.0 |
| Suitable for ponds with koi | m3 | 9.0 |
