Oase Vitronic 18 W UVC
| Brand | |
|---|---|
| UV Type | Pond UV Clarifier |
| UV Wattage | 18 W |
| Compatible Spare Category | UV Spares |
The Oase Vitronic 18 W UVC is a compact ultraviolet pond clarifier designed to eliminate green water algae and improve pond water clarity. Suitable for ponds up to 20,000 litres, it connects easily to most pond pumps and filtration systems. This inline UV clarifier helps maintain clear and healthy pond water by destroying suspended algae and harmful microorganisms.
£104.49 (inc VAT)

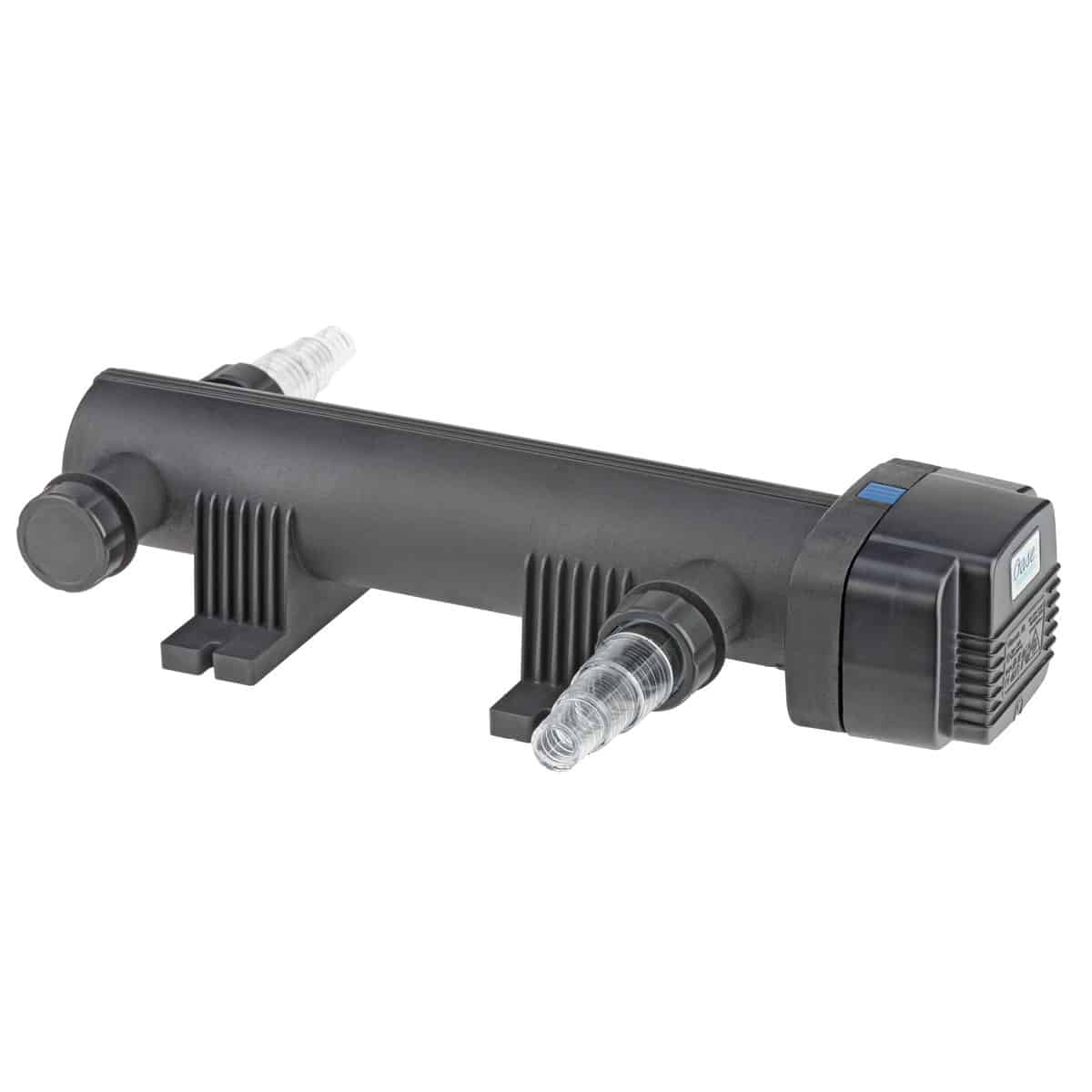

Oase Vitronic 18 W UVC Pond Clarifier
Powerful UV Clarifier for Clear and Healthy Pond Water
The Oase Vitronic 18 W UVC is a compact ultraviolet pond clarifier designed to eliminate green water caused by suspended algae and improve overall pond water clarity. By exposing pond water to ultraviolet light as it passes through the chamber, the unit disrupts single celled algae, bacteria and harmful microorganisms responsible for cloudy pond water.
Designed for inline dry installation, the Vitronic 18 W can be easily connected to most pond pumps and filtration systems. The unit includes stepped hose connectors compatible with multiple hose diameters, making installation straightforward for a wide range of pond setups.
How the Oase Vitronic 18 W UVC Works
Water is pumped from the pond through the UVC chamber where it flows past the ultraviolet lamp. The UV light disrupts the cellular structure of free floating algae, causing them to clump together so they can then be removed by the pond filtration system.
This process helps restore clear pond water while also reducing harmful bacteria and microorganisms that may affect fish health. The result is improved water clarity and a more stable aquatic environment.
The Vitronic range is designed for easy operation and maintenance. A visual inspection window allows you to confirm the UV lamp is operating correctly, while the quick release ballast unit makes lamp replacement simple.
For safety, the built in switch automatically shuts off the UV lamp when the unit is opened. This prevents accidental exposure to ultraviolet light during maintenance.
The Vitronic UVC range is compatible with many pond filters including the Oase BioSmart filtration systems, making it a versatile upgrade for ponds suffering from persistent green water.
Pond Size Recommendations
Natural ponds without fish can be treated up to approximately 20,000 litres.
Goldfish ponds are suitable up to around 10,000 litres.
Koi ponds require stronger filtration and are recommended up to approximately 5,000 litres.
Correct pump flow rate and filtration are important to ensure effective UV clarification.
Key Features
- 18 watt ultraviolet clarifier for controlling green water algae
- Helps reduce harmful bacteria and microorganisms in pond water
- Suitable for ponds up to 20,000 litres depending on stocking levels
- Inline installation for easy connection to pond pumps and filters
- Visual inspection window to confirm lamp operation
- Quick release ballast unit for simple lamp replacement
- Built in safety switch prevents lamp operation when opened
- Compatible with Oase BioSmart filtration systems
- Stepped hose connectors for multiple hose sizes
Technical Specifications
- Dimensions 529 x 186 x 130 mm
- UV lamp power 18 watts
- Maximum pond size 20,000 litres without fish
- Maximum pond size 10,000 litres with goldfish
- Maximum pond size 5,000 litres with koi
- Maximum flow rate 3,500 litres per hour
- Hose connections 25 mm
- Hose connections 32 mm
- Hose connections 38 mm
- Power cable length 3 metres
Technical information
| Dimensions (L × W × H) | mm | 529 × 186 × 130 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 18 |
| Power cable length | m | 5.00 |
| Net weight | kg | 2.09 |
| Guarantee | Years | 2 |
| UVC power | W | 18 |
| Temperature display | No | |
| UVC operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Units | 1 |
| Inlet connections | mm | 25 / 32 / 38 |
| Inlet connections | 1″, 1 ¼”, 1 ½” | |
| Number of outlets | Units | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Outlet connections | 1″, 1 ¼”, 1 ½” | |
| Max. flow rate | l/h | 3500 |
| Max. operating pressure | bar | 0.6 |
| Suitable for ponds up to max. | m3 | 20.0 |
| Suitable for ponds with fish stock | m3 | 10.0 |
| Suitable for ponds with koi | m3 | 5.0 |
| Connection to | BioSmart 18000/36000, BioTec ScreenMatic2 40 – 60000 |
UV sizing and maintenance notes
Oase Vitronic 18 W UVC should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.
- Replace UV lamps as part of routine seasonal maintenance.
- Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
- Match the UV to the pump and filter rather than installing it in isolation.
- Allow safe access for lamp changes and winter maintenance.
Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
