Oase FiltoClear 5000 Set OC
| Brand |
|---|
The Oase FiltoClear 5000 Set OC is a compact pressurised pond filter system supplied with an AquaMax Eco Premium 5000 pump and integrated 18 watt UV clarifier. Suitable for wildlife ponds up to 5000 litres and fish ponds up to 2500 litres, it provides efficient filtration and raised waterfall capability. Easy Clean Technology ensures simple and hygienic maintenance.
£569.99 (inc VAT)

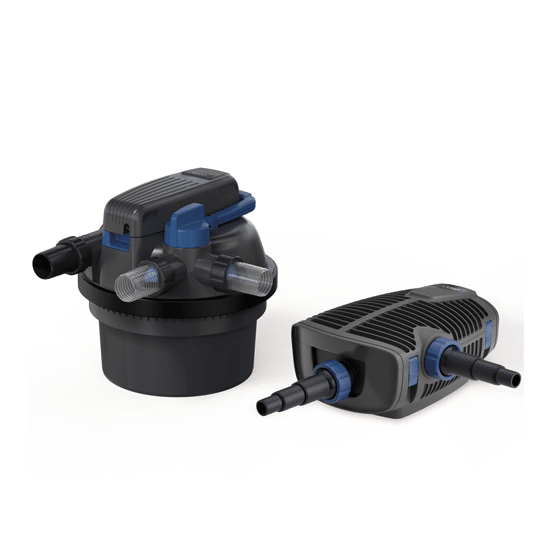

Oase FiltoClear 5000 Set OC Filter and Pump System
Compact Pressurised Pond Filter with Oase AquaMax Eco Premium 5000 Pump and 18 Watt UV
The Oase FiltoClear 5000 Set OC is a compact, complete filtration system designed for small ornamental ponds and lightly stocked fish ponds where reliable water clarity and easy maintenance are essential.
This all in one set combines the Oase FiltoClear 5000 pressurised filter with an energy efficient Oase AquaMax Eco Premium 5000 pump and an integrated 18 watt UV clarifier. Together, they provide effective mechanical filtration, stable biological processing and dependable green water control in a neat and space saving package.
Designed for wildlife ponds up to 5000 litres and fish ponds up to 2500 litres, this system is ideal for smaller garden ponds where elevated returns or decorative features are required. Because the filter operates under pressure, clean water can be pumped uphill to supply waterfalls or raised watercourses without reducing performance.
The sealed filter housing allows the unit to be partially recessed into the ground, enabling discreet installation while keeping all controls accessible.
Filtration Performance and Maintenance
At the heart of the system is an integrated 18 watt UV clarifier. This UV unit helps control suspended algae and green water, improving overall clarity and maintaining a healthier pond environment.
Internally, the FiltoClear 5000 uses layered filter foams to capture debris before water passes through the biological stage. The compact pressure vessel ensures efficient contact time while maintaining steady flow.
The maximum flow rate of the filter is 5000 litres per hour. When paired with the AquaMax Eco Premium 5000 pump, which consumes just 35 watts, the system provides energy efficient circulation suitable for small ponds and raised features.
Maintenance is straightforward thanks to the Easy Clean Technology. Using the external cleaning mechanism, the internal foam sections are compressed to release trapped debris, which is then discharged through the waste outlet. This allows hygienic servicing without removing dirty foams.
The filter includes a 5 metre cable on the UV unit, while the supplied pump includes a 10 metre cable, allowing flexible positioning within the garden.
Key Benefits
- Complete filtration set including pump, UV clarifier and pressure filter
- Suitable for wildlife ponds up to 5000 litres
- Suitable for fish ponds up to 2500 litres
- Integrated 18 watt UV clarifier for green water control
- Easy Clean Technology for hygienic maintenance
- Energy efficient AquaMax Eco Premium 5000 pump
- Pressurised design suitable for waterfalls and raised returns
- Compact size ideal for smaller gardens
- Can be recessed into the ground for discreet installation
- 2 year filter guarantee extendable to 3 years upon registration
Technical Specifications
- Maximum pond size wildlife ponds: 5000 litres
- Maximum pond size fish ponds: 2500 litres
- Maximum flow rate: 5000 litres per hour
- UV clarifier: 18 watt integrated
- Filter dimensions: 380 mm diameter x 370 mm height
- Pump dimensions: 340 x 280 x 165 mm
- Pump power consumption: 35 watts
- Recommended hose size: 1½ inch and 2 inch internal diameter, 38 mm and 50 mm
- Filter UVC cable length: 5 metres
- Pump cable length: 10 metres
- Filter guarantee: 2 plus 1 years upon registration
- Pump guarantee: 3 plus 2 years upon registration
Built to Oase’s usual high standards, the FiltoClear 31000 is robust, reliable and ideal for year round use on larger ponds. To find out more information about the range, view our full Oase Pressure Filter Guide.
Technical information
| Dimensions filter (L × W × H) | mm | 380 × 380 × 370 |
|---|---|---|
| Net weight | kg | 14.43 |
| Rated voltage filter | 220 – 240 V / 50 – 60 Hz | |
| Power consumption UVC | W | 18 |
| UVC cleaning rotor | No | |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Power cable length UVC | m | 5.00 |
| Number of red filter foams | Units | 1 |
| Number of purple filter foams | Units | 1 |
| Inlet connections | mm | 38 / 50 |
| Inlet connections | 1 ½”, 2″ | |
| Connections, outlet | mm | 38 / 50 |
| Outlet connections | 1 ½”, 2″ | |
| Connections, sludge discharge | mm | 38 / 50 |
| Sludge discharge connections | 1 ½”, 2″ | |
| Max. operating pressure | bar | 0.2 |
| Dimensions pump (L × W × H) | mm | 340 × 275 × 160 |
| Rated voltage Pump | 220 – 240 V / 50 – 60 Hz | |
| Power consumption pump | W | 35 |
| Max. flow rate | l/h | 4000 |
| Guarantee (+ request guarantee) pump | Years | 3 + 2 |
| Power cable length pump | m | 10.00 |
| Suitable for ponds up to max. | m3 | 5.0 |
| Suitable for ponds with fish stock | m3 | 2.5 |
UV sizing and maintenance notes
Oase FiltoClear 5000 Set OC should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.
- Replace UV lamps as part of routine seasonal maintenance.
- Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
- Match the UV to the pump and filter rather than installing it in isolation.
- Allow safe access for lamp changes and winter maintenance.
Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
