Oase FiltoClear 19000 Set OC
| Brand |
|---|
The Oase FiltoClear 19000 Set OC is a high capacity pressurised pond filter system supplied with an AquaMax Eco Premium 13000 pump and integrated 42 watt UV clarifier. Suitable for ponds up to 19000 litres, it provides strong filtration performance and raised waterfall capability. Easy Clean Technology ensures straightforward and hygienic maintenance.
£854.99 (inc VAT)

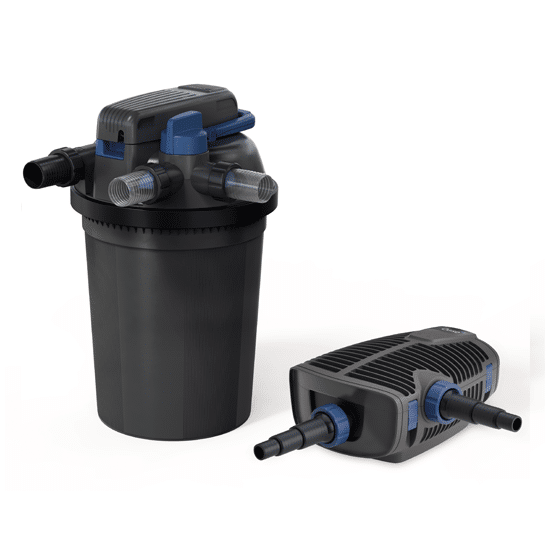

Oase FiltoClear 19000 Set OC Filter and Pump System
High Capacity Pressurised Pond Filter with AquaMax Eco Premium 13000 Pump and 42 Watt UV
The Oase FiltoClear 19000 Set OC is a complete pressurised filtration system designed for medium to large garden ponds where reliable water clarity, strong circulation and simple maintenance are essential.
This all in one set combines the Oase FiltoClear 19000 pressure filter with an energy efficient Oase AquaMax Eco Premium 13000 pump and an integrated 42 watt UV clarifier. Together, they provide effective mechanical filtration, stable biological processing and dependable green water control.
Suitable for wildlife ponds up to 19000 litres, fish ponds up to 10000 litres and koi ponds up to 5000 litres, this system delivers significantly increased capacity compared to the 13000 model. Because the filter operates under pressure, clean water can be pumped uphill to supply waterfalls, decorative streams or raised return points without loss of performance.
The sealed filter housing also allows the unit to be partially recessed into the ground. As a result, it can be integrated discreetly into landscaped gardens while remaining fully accessible for maintenance.
Filtration Performance and Maintenance
At the centre of the system is an integrated 42 watt UV clarifier. This high output UV unit effectively controls suspended algae and green water, helping to maintain clear and healthy pond water even in larger volumes.
Internally, the FiltoClear 19000 uses layered filter foams to progressively capture debris before water passes through the biological stage. This ensures efficient solids removal while supporting beneficial bacteria growth for long term filtration stability.
The maximum flow rate of the filter is 13000 litres per hour. When paired with the AquaMax Eco Premium 13000 pump, which consumes just 60 watts, the system delivers strong yet energy efficient circulation suitable for medium to larger ponds and elevated water features.
Maintenance remains straightforward thanks to the Easy Clean Technology. Using the external cleaning mechanism, the internal foam sections are compressed to release trapped debris, which is then discharged through the waste outlet. There is no need to remove dirty foams during routine servicing.
The filter includes a 5 metre cable on the UV unit and the supplied pump features a 10 metre cable, allowing flexible installation within the garden.
Key Benefits
- Complete filtration set including pump, UV clarifier and pressure filter
- Suitable for wildlife ponds up to 19000 litres
- Suitable for fish ponds up to 10000 litres
- Suitable for koi ponds up to 5000 litres
- Integrated 42 watt UV clarifier for strong green water control
- Easy Clean Technology for hygienic maintenance
- Energy efficient AquaMax Eco Premium 13000 pump
- Pressurised design suitable for waterfalls and raised return systems
- Compact housing that can be recessed into the ground
- 2 year filter guarantee extendable to 3 years upon registration
Technical Specifications
- Maximum pond size wildlife ponds: 19000 litres
- Maximum pond size fish ponds: 10000 litres
- Maximum pond size koi ponds: 5000 litres
- Maximum flow rate: 13000 litres per hour
- UV clarifier: 42 watt integrated
- Filter dimensions: 380 mm diameter x 608 mm height
- Pump dimensions: 340 x 280 x 165 mm
- Pump power consumption: 60 watts
- Recommended hose size: 1½ inch and 2 inch internal diameter, 38 mm and 50 mm
- Filter UVC cable length: 5 metres
- Pump cable length: 10 metres
- Filter guarantee: 2 plus 1 years upon registration
- Pump guarantee: 3 plus 2 years upon registration
Built to Oase’s usual high standards, the FiltoClear 19000 is robust, reliable and ideal for year round use on larger ponds. To find out more information about the range, view our full Oase Pressure Filter Guide.
Technical information
| Dimensions filter (L × W × H) | mm | 380 × 380 × 608 |
|---|---|---|
| Net weight | kg | 17.50 |
| Rated voltage filter | 220 – 240 V / 50 – 60 Hz | |
| Power consumption UVC | W | 42 |
| UVC cleaning rotor | Yes | |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Power cable length UVC | m | 5.00 |
| Number of blue filter foams | Units | 2 |
| Number of red filter foams | Units | 1 |
| Number of purple filter foams | Units | 1 |
| Inlet connections | mm | 38 / 50 |
| Inlet connections | 1 ½”, 2″ | |
| Connections, outlet | mm | 38 / 50 |
| Outlet connections | 1 ½”, 2″ | |
| Connections, sludge discharge | mm | 38 / 50 |
| Sludge discharge connections | 1 ½”, 2″ | |
| Max. operating pressure | bar | 0.2 |
| Dimensions pump (L × W × H) | mm | 340 × 280 × 165 |
| Rated voltage Pump | 220 – 240 V / 50 – 60 Hz | |
| Power consumption pump | W | 100 |
| Max. flow rate | l/h | 12000 |
| Guarantee (+ request guarantee) pump | Years | 3 + 2 |
| Power cable length pump | m | 10.00 |
| Suitable for ponds up to max. | m3 | 19.0 |
| Suitable for ponds with fish stock | m3 | 10.0 |
| Suitable for ponds with koi | m3 | 5.0 |
