Oase Eco Pump Control
| Brand |
|---|
The Oase Eco Pump Control allows precise digital adjustment of pump flow while providing real time performance data and fault alerts. It connects directly to compatible Oase pumps without needing a separate power supply. Ideal for improving efficiency and control in pond, filter, and water feature systems.
£124.99 (inc VAT)
Oase Eco Pump Control
Precision digital control for Oase pond and fountain pumps

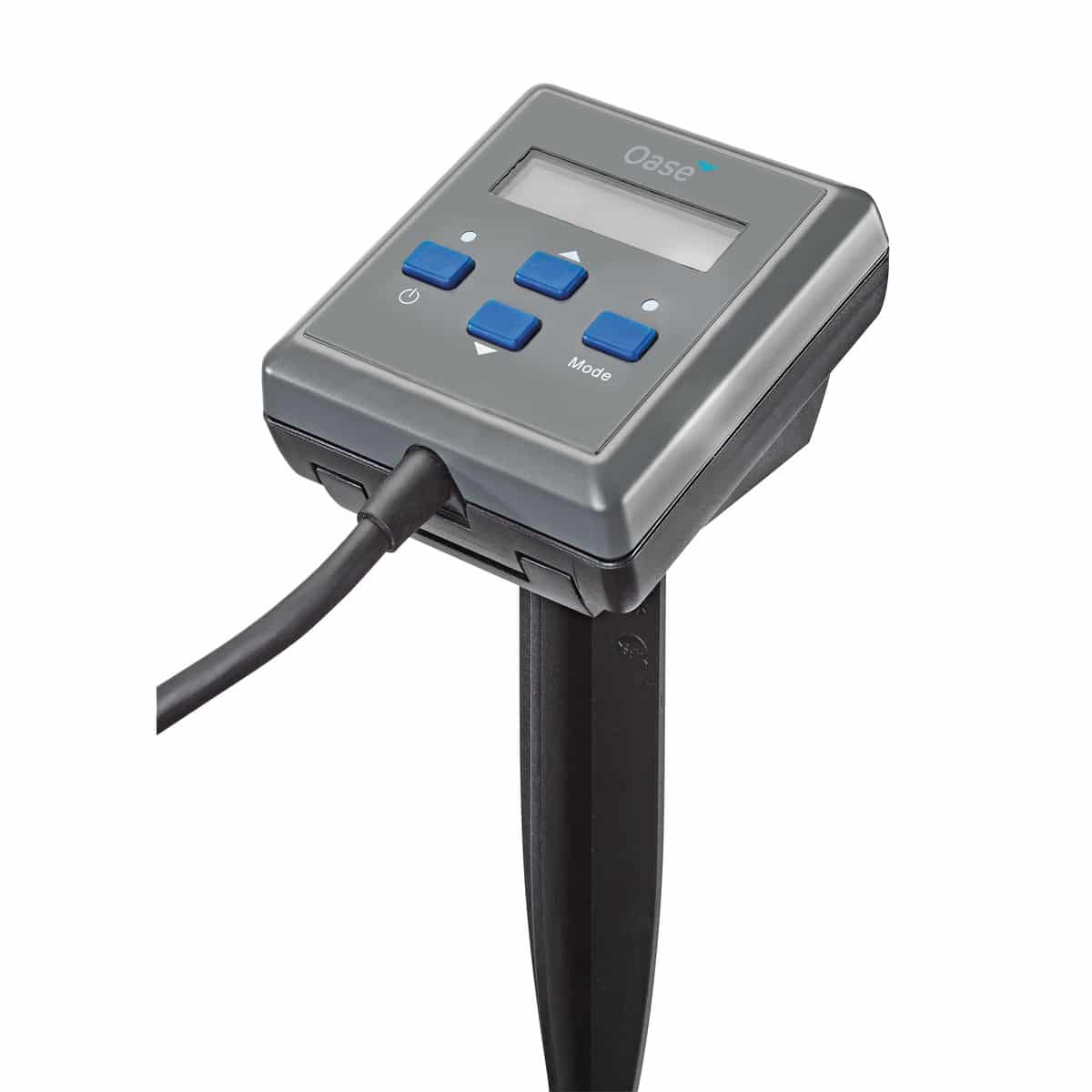

The Oase Eco Pump Control is a digital control unit that gives you precise control and real time feedback for compatible Oase pumps. It allows you to adjust water flow electronically, monitor performance, and receive live diagnostics without needing a separate power supply.

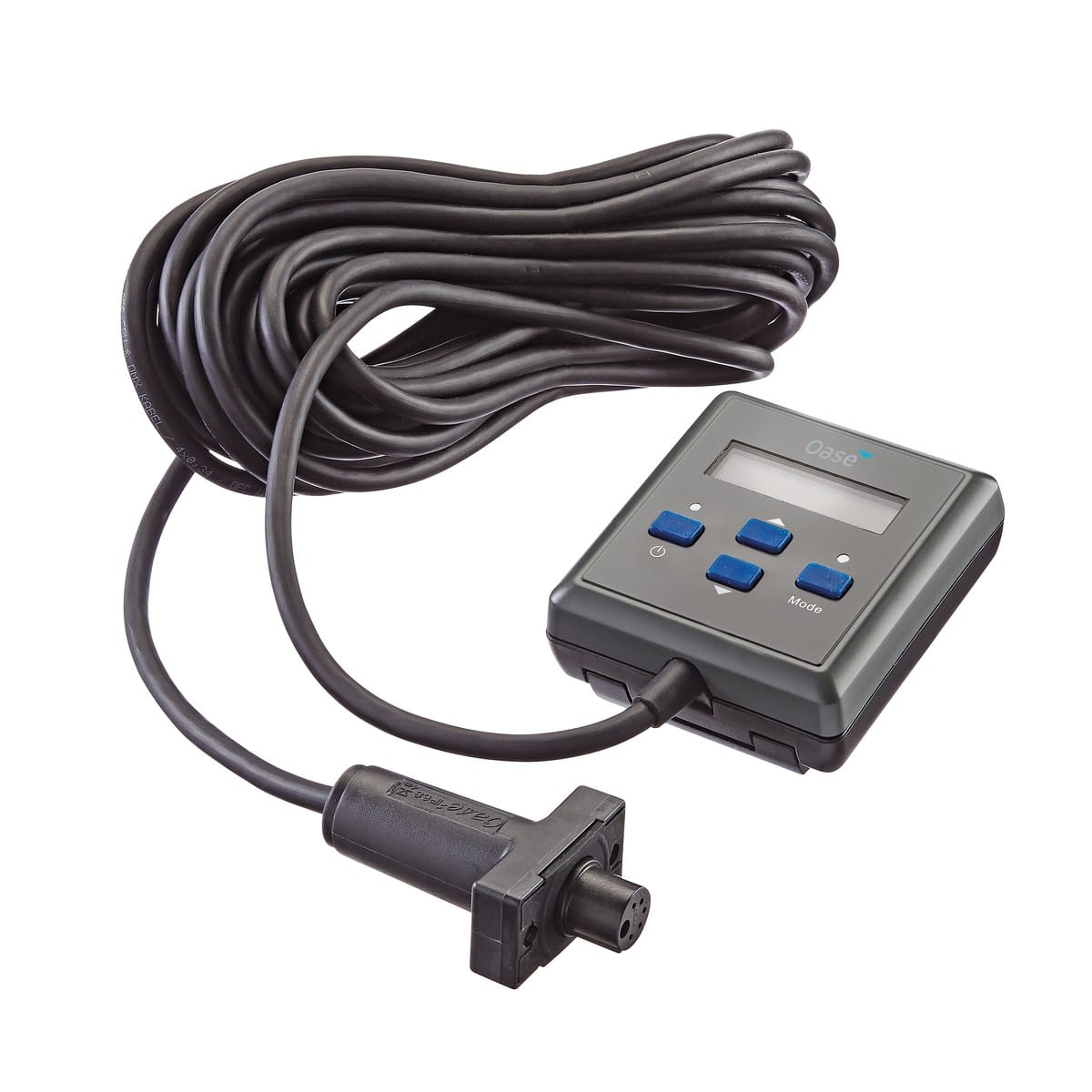

Designed for high performance Oase pumps, this controller connects directly using the supplied 10 metre DMX RDM cable. Once installed, it provides a simple and effective way to manage pump output. As a result, it is ideal for ponds, filtration systems, waterfalls, and fountains.
One of the key advantages of the Oase Eco Pump Control is its ability to adjust flow rates in small increments. This means you can fine tune performance depending on the time of year or the needs of your pond. For example, you can reduce flow during winter to save energy, then increase it again in warmer months.
Real time monitoring and smart pump control

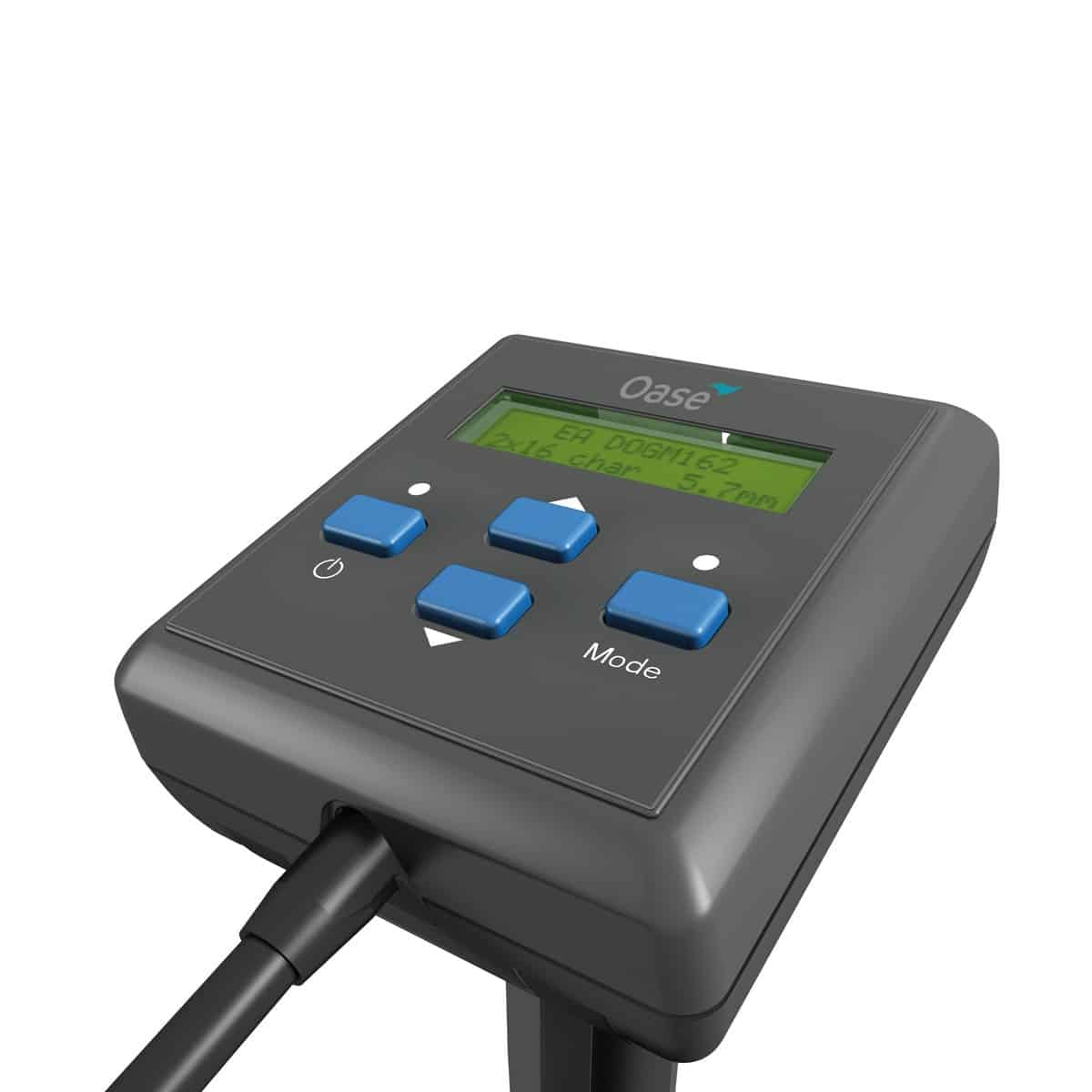

In addition to flow control, the unit provides real time performance data through its illuminated digital display. This includes power consumption, pump speed, total running time, and system status. Because of this, you can clearly see how your pump is performing and make adjustments when needed.
The controller also lets you manage built in smart features such as Seasonal Flow Control for AquaMax pumps and Dynamic Function Control for Aquarius pumps. These features automatically adjust performance, helping to improve efficiency while reducing energy usage.
Another key benefit is the built in fault reporting system. The Eco Pump Control displays clear warning messages if issues occur, such as low water levels, blockages, or high temperatures. As a result, you can quickly identify and resolve problems before they cause damage.
Finally, the unit draws power directly from the pump, so it does not require a separate power supply. This keeps installation straightforward and reduces clutter around the pond. In addition, the weather resistant design allows it to operate reliably outdoors throughout the year.
Overall, the Oase Eco Pump Control provides a simple but highly effective way to improve control, efficiency, and monitoring of your pond pump system.
Reasons to Buy
- Precisely control pump flow from 0 to 100 percent
- Monitor real time performance including power usage and speed
- Reduce energy consumption by adjusting flow seasonally
- Receive clear fault alerts to prevent damage
- No separate power supply required
- Ideal for ponds, waterfalls, filters, and fountains
Compatibility
The Oase Eco Pump Control is designed to work with Oase Control compatible equipment, including:
- Filter Pumps: Oase AquaMax Eco Premium 5000 – 21000, Oase AquaMax Eco Expert 21000 – 44000, Oase AquaMax Eco Titanium 33000 – 81000
- Fountain Pumps: Oase Aquarius Eco Premium 4500 – 16500, Oase Aquarius Eco Expert 22000 – 44000
- Floating Fountain: Oase PondJet Eco Premium
It can also be used within wider Oase systems where compatible devices are connected via EGC cabling. This makes the controller suitable for a wide range of Oase pond systems, from domestic garden ponds to larger koi and commercial installations.
Product Guidance
- Connect directly to compatible pumps using the supplied cable
- Install in an accessible location for easy monitoring
- Use to adjust flow rates depending on seasonal requirements
- Ideal for controlling waterfalls, filters, and fountain displays
- Suitable for both permanent and upgrade installations
Pump Error Messages and Diagnostics
The Oase Eco Pump Control provides clear warning messages to help you quickly identify and resolve issues with your pump. These alerts allow you to act early, preventing damage and maintaining efficient operation.
WARNING NO WATER
This warning indicates that the pump is running dry or that water flow has been significantly reduced.
This is often caused by low water levels, a blocked intake, or excessive debris inside the pump. As a result, the pump may not be receiving enough water to operate safely.
WARNING MOTOR BLOCKED
This warning means the impeller is restricted and the dry run protection has been triggered.
In most cases, this is caused by debris such as leaves, sludge, or small stones blocking the impeller. Therefore, the pump will need to be inspected and cleaned before restarting.
WARNING HIGH TEMPERATURE
This warning indicates that the water temperature or surrounding ambient temperature is too high.
This can occur during hot weather or if the pump is installed in a dry environment with limited airflow. Consequently, the pump may temporarily reduce performance or shut down to protect itself.
WARNING HIGH POWER
This warning shows that the pump is drawing more power than expected.
This is typically caused by a restricted impeller or heavily soiled water increasing resistance. As a result, the pump has to work harder, which can reduce efficiency and potentially cause damage if not addressed.
Related Products and Accessories
To get the most from the Oase Garden Controller Cloud, you will need compatible accessories and supporting equipment. These allow you to connect, expand, and fully control your pond system.
Oase Control Connection Cables
Oase Control devices are connected using EGC connection cables in a simple daisy chain system. Choosing the correct cable length ensures a clean and reliable installation.
- Oase Control Connection EGC Cable 2.5m (47038)
- Oase Control Connection EGC Cable 5m (47039)
- Oase Control Connection EGC Cable 10m (47040)
- Oase Control Connection EGC Cable 30m (72713)
- Oase Control Cable EGC Connector (47788)
These cables allow multiple devices to communicate with each other and the controller, creating a fully connected smart pond system.
Oase InScenio FM Master EGC Cloud
If you require power control as well as smart connectivity, the Oase InScenio FM-Master EGC Cloud is a suitable alternative and can be used as part of a complete Oase Control system.
Unlike the Garden Controller Cloud, the FM Master includes built in power sockets, allowing you to switch and control electrical devices directly alongside app based control.
This makes it ideal for setups where both power management and smart control are needed in one unit.
Oase Garden Controller EGC Cloud
The Oase Garden Controller Cloud acts as the central hub of the Oase Control system, allowing you to monitor and control compatible pond equipment remotely via the Oase app.
It connects multiple devices together and provides real time feedback, making it ideal for smart pond setups where control and monitoring are important.
Oase Eco Pump Control
For more advanced pump management, the Oase Eco Pump Control allows precise adjustment of pump performance.
When used alongside Oase Control systems, it enables improved control over flow rates, energy usage, and overall system efficiency, particularly on larger pond installations.
Why these accessories matter
- Reliable communication between all connected devices
- Full functionality of the Oase Control system
- Easier installation and future system expansion
- Improved performance and control of your pond setup
Ideal For
- Koi ponds requiring adjustable flow rates
- Large filtration systems needing seasonal control
- Waterfalls, streams, and fountain features
- Energy conscious pond owners
- Monitoring and diagnosing pump performance
Key Benefits
- Electronic flow adjustment from 0 to 100 percent
- Real time monitoring of power consumption and speed
- Fault reporting for early issue detection
- Control of SFC and DFC smart features
- Powered directly from the pump
- Simple installation with supplied cable
Technical Specifications
- Cable Length: 10 metres DMX RDM cable included
- Power Supply: Powered directly by connected pump
- Display: Illuminated digital screen
- Protection Rating: IP44 housing, IP68 connection terminal
- Compatibility: Oase Control compatible pumps
- Guarantee: 3 years
Technical information
| Dimensions (L × W × H) | mm | 95 × 85 × 35 |
|---|---|---|
| Power consumption | W | 1 |
| Power cable length | m | 10.00 |
| Net weight | kg | 0.70 |
| Guarantee | Years | 3 |
| Setup type | For dry installation only |
