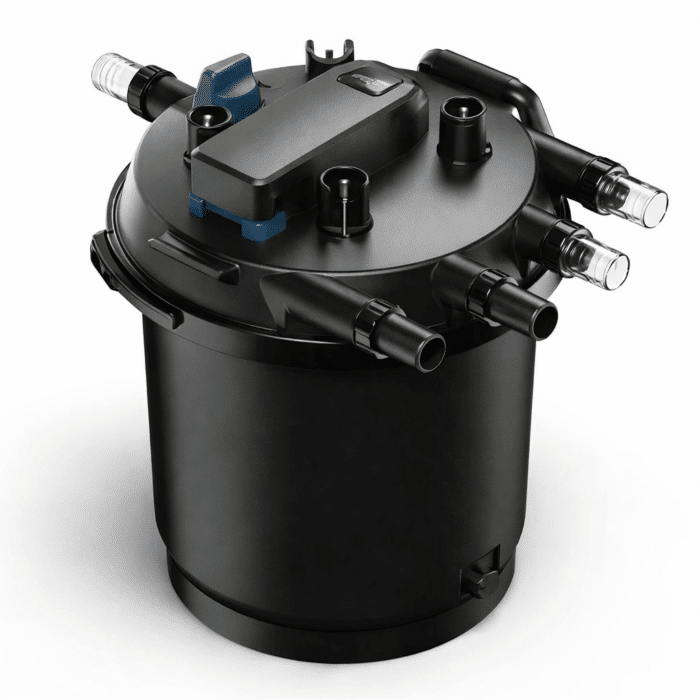

Oase FiltoClear 60000 Pressurised Pond Filter

Oase FiltoClear 60000 Pressurised Pond Filter

High Performance 84 Watt UV Pressure Filter for Large Ornamental and Koi Ponds

The Oase FiltoClear 60000 Pressurised Pond Filter is a high capacity filtration system designed for larger garden ponds, koi ponds and decorative water features where consistent water clarity and dependable biological performance are essential.

Engineered for ornamental ponds up to 60000 litres, fish ponds up to 30000 litres and koi ponds up to 15000 litres, this professional grade pressure filter delivers powerful mechanical separation, effective biological processing and integrated ultraviolet clarification within a compact and discreet unit.

The sealed pressure vessel allows filtered water to be pumped back to the pond at height. This makes the FiltoClear 60000 ideal for raised waterfalls, streams and elevated return points without compromising flow rate or filtration efficiency. The housing is rated to operate at pressures up to 1.5 bar, allowing confident use with higher output pumps.

Filtration Performance and Maintenance

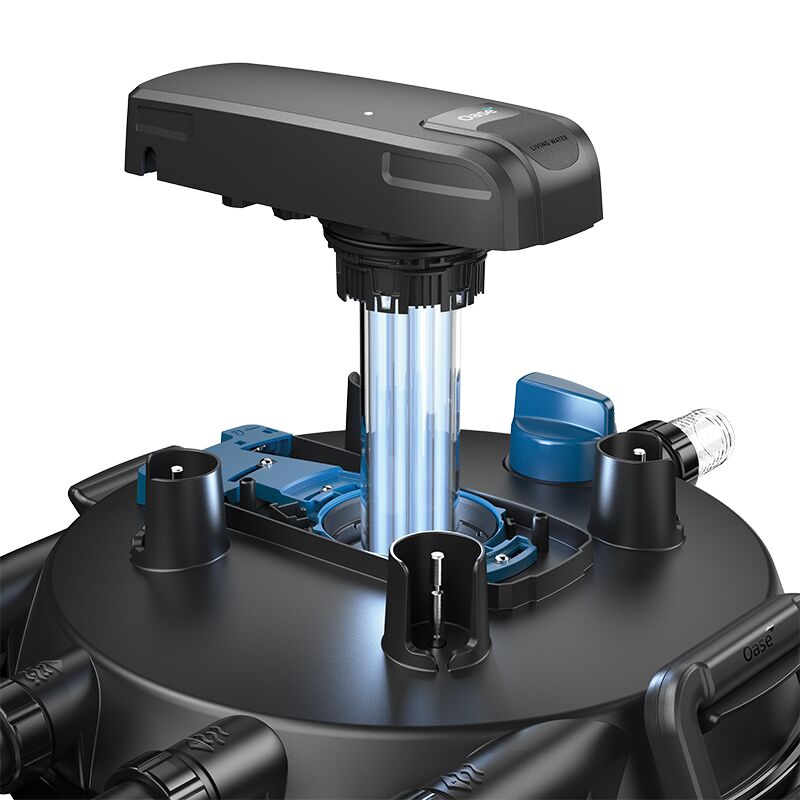

An integrated 84 watt UV clarifier provides strong green water control by targeting suspended algae cells before they can cloud the pond. The UV unit is designed for straightforward servicing, allowing access without dismantling the entire filter body or interrupting circulation for extended periods.

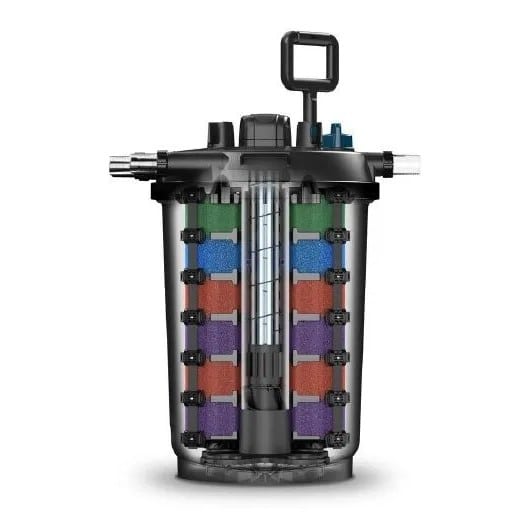

Internally, the filter uses a multi stage foam system arranged in quadrant sections. Coarse, medium and fine foams trap debris progressively, ensuring effective mechanical filtration before water passes through the biological stage. Even water distribution reduces the risk of channel formation and supports long term filtration stability.

With a maximum flow capacity of 20000 litres per hour, the FiltoClear 60000 features two 2 inch inlets and two 2 inch outlets. This configuration allows either a single high output pump or a twin pump setup. Using dual suction points improves circulation, reduces stagnant areas and enhances solids transport to the filter.

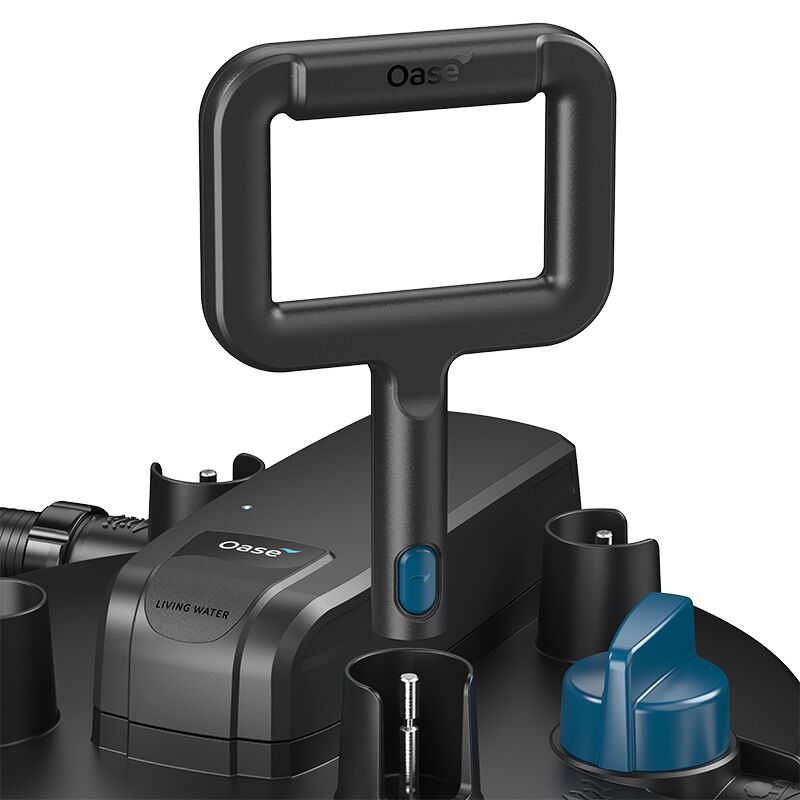

Maintenance is simple and hygienic thanks to the patented internal cleaning mechanism. Using the external cleaning handle, the foam quadrants are compressed, releasing trapped debris which is discharged through a dedicated waste outlet. There is no need to remove or manually rinse dirty foams, and waste water can be directed to a drain or reused in garden borders.

For discreet installations, the filter can be buried in the ground up to the filter head, allowing it to blend into landscaped gardens while keeping all controls fully accessible.

Key Benefits

• Suitable for ornamental ponds up to 60000 litres
• Ideal for fish ponds up to 30000 litres
• Suitable for koi ponds up to 15000 litres
• Integrated 84 watt UV clarifier for effective green water control
• Pressurised design suitable for raised returns, waterfalls and streams
• Handles flow rates up to 20000 litres per hour
• Two 2 inch inlets and two 2 inch outlets for flexible pump configurations
• Patented compression cleaning system with separate waste discharge
• Can be buried up to the filter head for discreet installation
• Robust housing rated to 1.5 bar operating pressure

Technical Specifications

• Maximum pond size ornamental ponds: 60000 litres
• Maximum pond size fish ponds: 30000 litres
• Maximum pond size koi ponds: 15000 litres
• Maximum flow rate: 20000 litres per hour
• UV clarifier: 84 watt integrated
• Inlets: 2 x 2 inch
• Outlets: 2 x 2 inch
• Sludge outlet: 2 inch
• Maximum operating pressure: 1.5 bar
• Recommended hose size: 2 inch internal diameter
• Voltage: 230 V
• Frequency: 50 Hz
• Recommended single pump: Oase AquaMax Eco Expert 36000

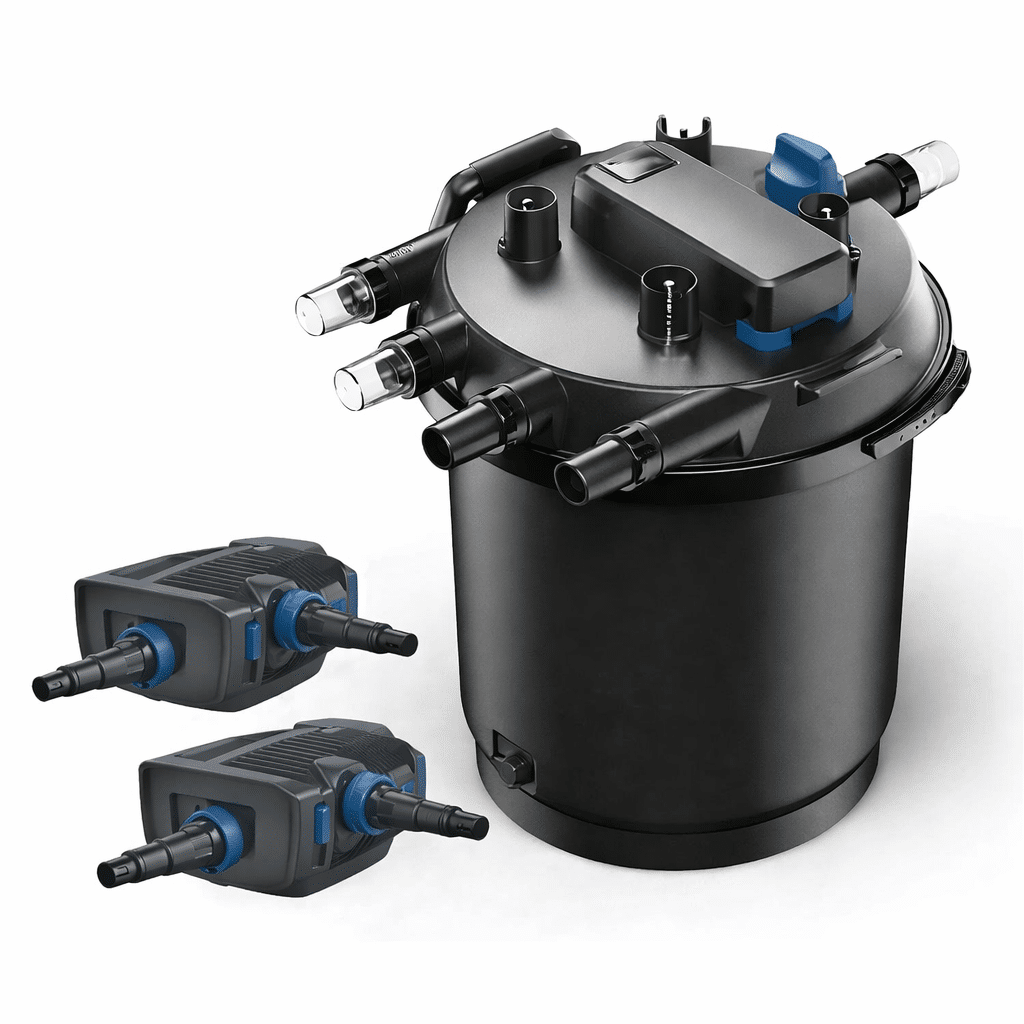

• Recommended twin pump setup: 2 x Oase AquaMax Eco Premium 17000

Technical information

UV sizing and maintenance notes

Oase FiltoClear 60000 Pressurised Pond Filter should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.

• Replace UV lamps as part of routine seasonal maintenance.
• Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
• Match the UV to the pump and filter rather than installing it in isolation.
• Allow safe access for lamp changes and winter maintenance.

Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
