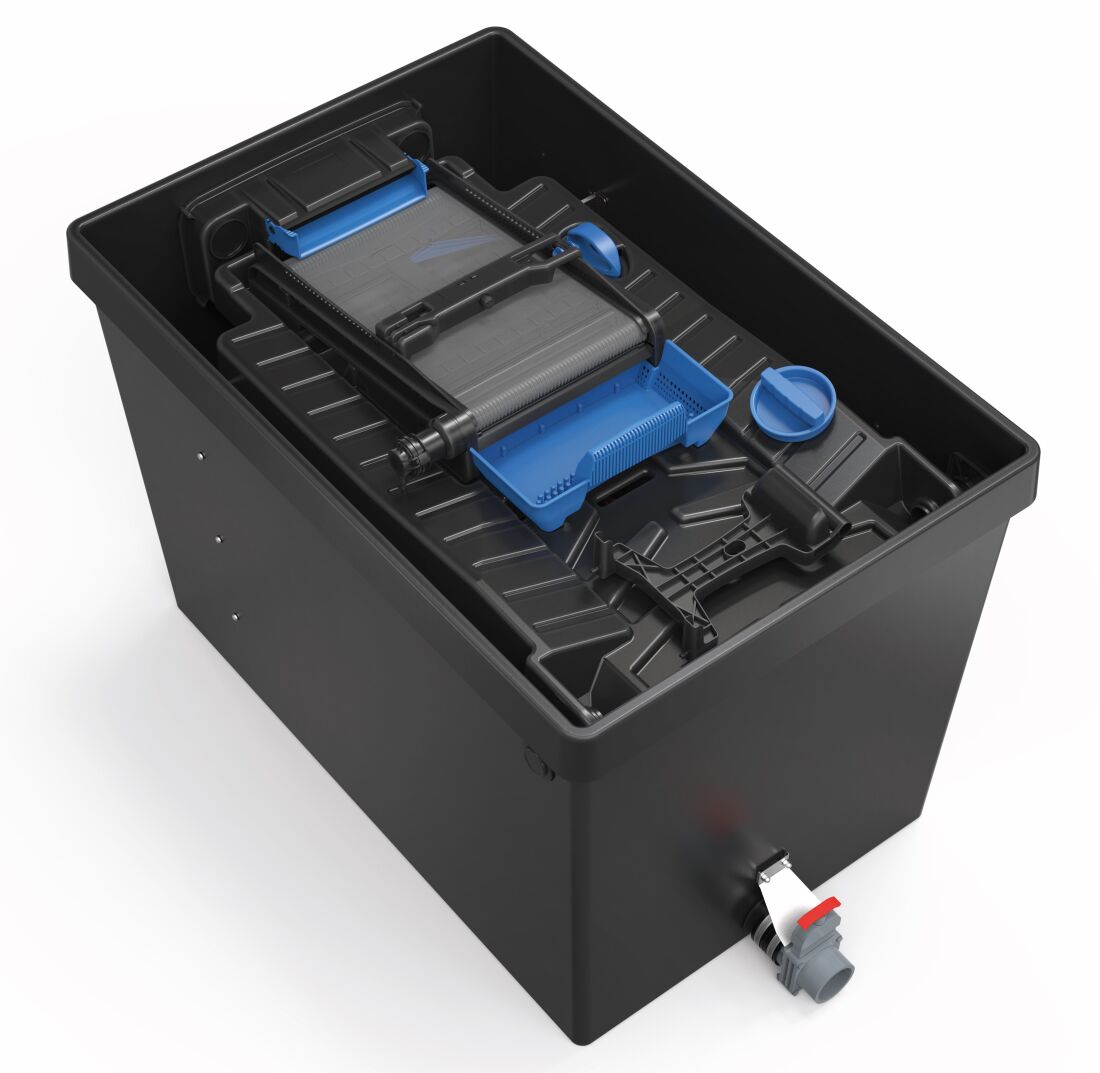

Oase BioTec ScreenMatic2 145000

Oase BioTec ScreenMatic2 145000

Advanced Flow Through Mechanical and Biological Pond Filtration

The Oase BioTec ScreenMatic2 145000 is a very high capacity, low maintenance flow through pond filter designed for the largest ornamental and heavily stocked koi ponds. It is suitable for ponds up to 145,000 litres in ornamental setups, up to 72,500 litres with fish, or up to 36,250 litres with koi, giving exceptional performance for substantial garden water features and demanding biological loads.

At its core, the system uses Oase’s automatic 300 micron pre filter screen. This moving screen continuously removes leaves, algae and coarse debris before it reaches the biological filtration stages. As a result, the finer media stays cleaner for longer and overall filtration efficiency is improved.

An intelligent ScreenMatic sensor monitors debris build up and activates the screen only when required, reducing unnecessary power use and wear. Collected waste is transported into an external debris tray for clean and simple disposal. This makes ongoing maintenance much less frequent and more user-friendly.

After mechanical pre filtration, water flows through a multi stage biological filtration system featuring 24 high capacity filter foams. These foams provide extensive surface area for beneficial bacteria to colonise. Consequently, ammonia and nitrite are broken down naturally, helping to maintain stable, healthy water conditions in larger pond environments.

Furthermore, the inclusion of special filter granulate supports improved nutrient control and water quality. This makes the BioTec ScreenMatic2 145000 especially well suited to large ponds with high fish stocking or heavy organic loads.

Maintenance is straightforward, with a compression cleaning handle allowing foam cleaning in place, and an instant cleaning button for manual activation when needed. Finally, for enhanced algae control, the system can be paired with compatible Oase Bitron UV clarifiers as part of a complete water clarity solution.

Key features

• Very high capacity flow through pond filter for large ornamental and koi ponds
• Automatic 300 micron pre filter screen removes coarse debris before biological filtration
• Intelligent ScreenMatic sensor activates cleaning only when necessary
• 24 high capacity filter foams for extensive biological filtration
• Integrated special filter granulate for improved nutrient control
• External debris collection tray for clean and easy waste removal
• Compression cleaning handle for foam cleaning without removal
• Manual instant cleaning button for full user control
• Compatible with Oase Bitron UV clarifiers for green water control

Technical specifications

• Maximum pond size ornamental: up to 145,000 litres
• Maximum pond size with fish: up to 72,500 litres
• Maximum pond size with koi: up to 36,250 litres
• Maximum flow rate: 15,000 litres per hour
• Coarse debris extraction: 300 micron
• Dimensions filter (L x W x H): 1,088 x 890 x 745 mm
• Net weight: 68 kg
• Inlet conConnections: 25 / 32 / 38 / 50 mm
• Outlet connection: DN 110
• Sludge discharge connection: DN 50
• Number of filter foams: 24 (6 blue, 9 red, 9 purple)
• Special filter granulate: 7 kg
• Guarantee: 2 years plus 1 year upon registration

Explore Other Oase BioTec ScreenMatic² Models

The BioTec ScreenMatic² range offers tailored filtration solutions for ponds of varying sizes:

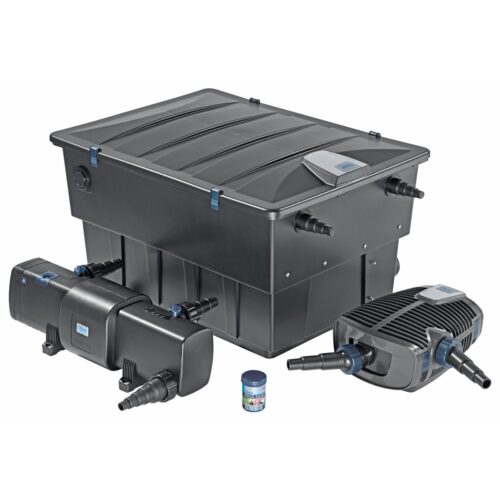

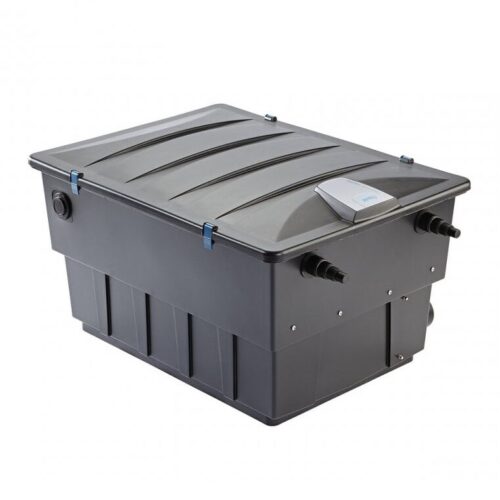

• Oase BioTec ScreenMatic² 40000 – Ideal for smaller ponds with moderate filtration needs.

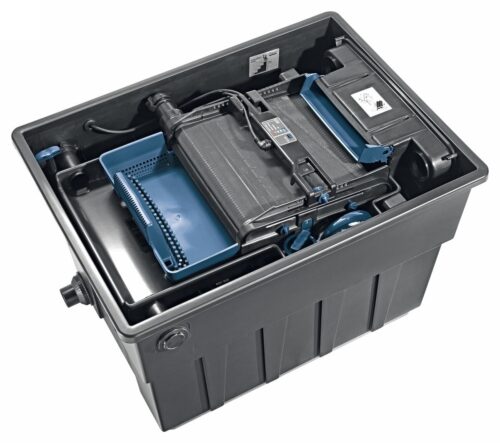

• Oase BioTec ScreenMatic² 60000 – Ideal for larger ponds needing enhanced capacity.
• Oase BioTec ScreenMatic² 90000 – Advanced filtration for high-stock Koi ponds.
• Oase BioTec ScreenMatic² 145000 – Maximum performance for large-scale ponds and lakes.

For a complete breakdown of how the ScreenMatic² series works and which model best suits your pond, check out our comprehensive Oase ScreenMatic Pond Filter Guide.

Technical information

UV sizing and maintenance notes

Oase BioTec ScreenMatic2 145000 should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.

• Replace UV lamps as part of routine seasonal maintenance.
• Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
• Match the UV to the pump and filter rather than installing it in isolation.
• Allow safe access for lamp changes and winter maintenance.

Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
