Oase BioTec ScreenMatic2 40000

Oase BioTec ScreenMatic2 40000

Advanced Flow Through Mechanical and Biological Pond Filtration

The Oase BioTec ScreenMatic2 40000 is a low maintenance flow through pond filter designed to deliver reliable mechanical and biological filtration for larger garden ponds. It is suitable for ponds up to 40,000 litres without fish, 20,000 litres with fish, or 10,000 litres with koi, making it ideal for ornamental ponds and lightly stocked koi ponds.

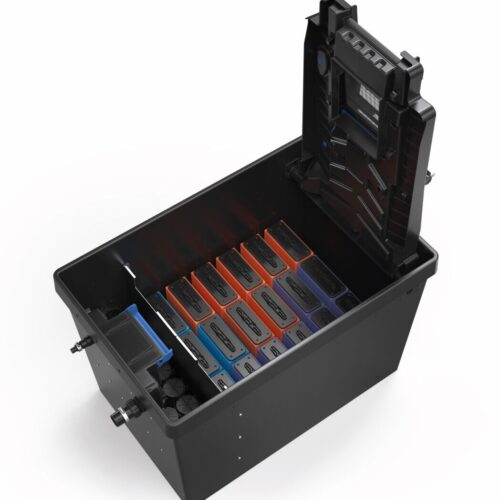

The key feature of the system is the automatic 300 micron pre filter screen. This moving screen continuously removes leaves, algae and coarse debris before it reaches the biological filter media. An intelligent ScreenMatic sensor monitors debris build up and activates the screen only when required, ensuring consistent performance while minimising wear and power usage. Collected waste is transported into an external debris tray for quick and hygienic disposal.

Following mechanical filtration, water passes through eight large capacity biological filter sponges that provide an extensive surface area for beneficial bacteria. These bacteria naturally break down ammonia and nitrite, helping to maintain stable and healthy water conditions. The integrated zeolite granulate further supports water quality by binding excess nutrients and reducing ammonia spikes.

Maintenance is straightforward, with a compression cleaning handle allowing the sponges to be cleaned in place and an instant cleaning button for manual activation when needed. For improved algae control, the BioTec ScreenMatic2 40000 can be paired with Oase Bitron UV clarifiers to help keep pond water clear during warmer months.

Key features

• Flow through pond filter for ornamental ponds and lightly stocked koi ponds
• Automatic 300 micron pre filter screen removes coarse debris before biological filtration
• Intelligent ScreenMatic sensor activates cleaning only when necessary
• Eight large biological filter sponges for effective waste breakdown
• Integrated zeolite granulate for improved ammonia and nutrient control
• External debris collection tray for clean and easy waste removal
• Compression cleaning handle for sponge cleaning without removal
• Manual instant cleaning button for full user control
• Compatible with Oase Bitron UV clarifiers for green water control

Technical specifications

• Maximum pond size ornamental: up to 40,000 litres
• Maximum pond size with fish: up to 20,000 litres
• Maximum pond size with koi: up to 10,000 litres
• Maximum flow rate: 9,000 litres per hour
• Coarse debris extraction: 300 micron
• Dimensions: 788 x 590 x 445 mm
• Inlet conConnections: 25 mm, 32 mm, 38 mm
• Outlet and sludge discharge: DN 75, DN 50
• Guarantee: 2 years plus 1 year upon registration

Explore Other Oase BioTec ScreenMatic² Models

The BioTec ScreenMatic² range offers tailored filtration solutions for ponds of varying sizes:

• Oase BioTec ScreenMatic² 40000 – Ideal for smaller ponds with moderate filtration needs.
• Oase BioTec ScreenMatic² 60000 – Ideal for larger ponds needing enhanced capacity.
• Oase BioTec ScreenMatic² 90000 – Advanced filtration for high-stock Koi ponds.
• Oase BioTec ScreenMatic² 145000 – Maximum performance for large-scale ponds and lakes.

For a complete breakdown of how the ScreenMatic² series works and which model best suits your pond, check out our comprehensive Oase ScreenMatic Pond Filter Guide.

Technical info:

UV sizing and maintenance notes

Oase BioTec ScreenMatic2 40000 should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.

• Replace UV lamps as part of routine seasonal maintenance.
• Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
• Match the UV to the pump and filter rather than installing it in isolation.
• Allow safe access for lamp changes and winter maintenance.

Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
