Oase BioTec ScreenMatic2 60000

Oase BioTec ScreenMatic2 60000

Advanced Flow Through Mechanical and Biological Pond Filtration

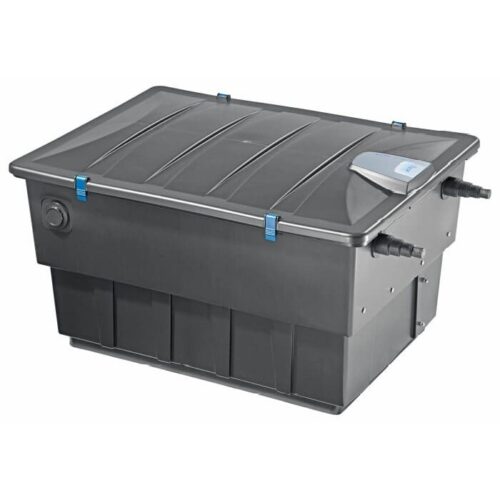

The Oase BioTec ScreenMatic2 60000 is a high capacity, low maintenance flow through pond filter designed for larger garden ponds that require reliable mechanical and biological filtration with minimal hands on cleaning. It is suitable for ponds up to 60,000 litres in ornamental setups, up to 30,000 litres with fish, or up to 15,000 litres with koi, making it an excellent choice for ponds with higher biological demand.

At the heart of the system is Oase’s automatic 300 micron pre filter screen. This continuously removes leaves, algae and coarse debris before it can reach the biological filtration stages. An intelligent ScreenMatic sensor monitors debris build up and activates the screen only when required, ensuring consistent performance while reducing unnecessary wear and power usage. Collected waste is transported into an external debris tray for clean and hygienic disposal.

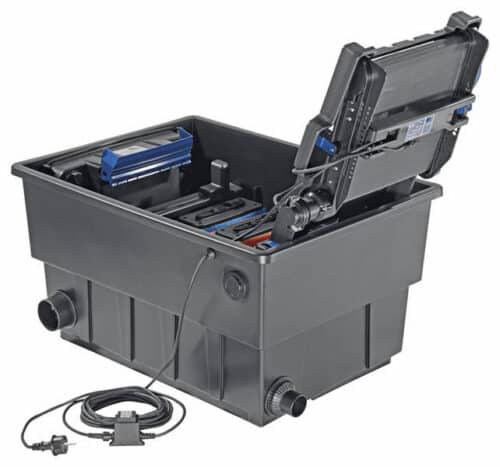

After mechanical pre filtration, water flows through a multi stage biological filtration system using eight large capacity filter sponges. These provide a substantial surface area for beneficial bacteria to colonise, allowing the natural breakdown of ammonia and nitrite and supporting long term water clarity and stable pond conditions. The inclusion of special filter granulate further improves nutrient control and overall filtration efficiency.

Maintenance is simple and user friendly, with a compression cleaning handle allowing the sponges to be cleaned in place and an instant cleaning button for manual activation when required. For enhanced algae control, the BioTec ScreenMatic2 60000 can be paired with compatible Oase Bitron UV clarifiers to help maintain clear water during warmer months.

Key features

• High capacity flow through pond filter for large ornamental ponds and koi ponds
• Automatic 300 micron pre filter screen removes coarse debris before biological filtration
• Intelligent ScreenMatic sensor activates cleaning only when necessary
• Eight large biological filter sponges for effective waste and nutrient breakdown
• Integrated special filter granulate for improved ammonia and nutrient control
• External debris collection tray for clean and easy waste removal
• Compression cleaning handle for sponge cleaning without removal
• Manual instant cleaning button for full user control
• Compatible with Oase Bitron UV clarifiers for green water control

Technical specifications

• Maximum pond size ornamental: up to 60,000 litres
• Maximum pond size with fish: up to 30,000 litres
• Maximum pond size with koi: up to 15,000 litres
• Maximum flow rate: 11,000 litres per hour
• Coarse debris extraction: 300 micron
• Dimensions filter (L x W x H): 788 x 590 x 545 mm
• Net weight: 24 kg
• Inlet conConnections: 25 mm, 32 mm, 38 mm
• Outlet connection: DN 75
• Sludge discharge connection: DN 50
• Special filter granulate: 3.5 kg
• Guarantee: 2 years plus 1 year upon registration

Explore Other Oase BioTec ScreenMatic² Models

The BioTec ScreenMatic² range offers tailored filtration solutions for ponds of varying sizes:

• Oase BioTec ScreenMatic² 40000 – Ideal for smaller ponds with moderate filtration needs.
• Oase BioTec ScreenMatic² 60000 – Ideal for larger ponds needing enhanced capacity.
• Oase BioTec ScreenMatic² 90000 – Advanced filtration for high-stock Koi ponds.
• Oase BioTec ScreenMatic² 145000 – Maximum performance for large-scale ponds and lakes.

For a complete breakdown of how the ScreenMatic² series works and which model best suits your pond, check out our comprehensive Oase ScreenMatic Pond Filter Guide.

Technical information

UV sizing and maintenance notes

Oase BioTec ScreenMatic2 60000 should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.

• Replace UV lamps as part of routine seasonal maintenance.
• Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
• Match the UV to the pump and filter rather than installing it in isolation.
• Allow safe access for lamp changes and winter maintenance.

Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
