In-Lite DOT 22 Direct 12V Recessed Path Light
| Configuration / Finish | Trimless 22mm, Stainless Steel Ring 28, Black Ring 28, Pearl Grey Ring 28 |
|---|---|
| Brand | |
| Guarantee | 5 Years |
| IP Rating | IP67 |
| Colour Temperature | 2850K |
| Power Source | 12V Transformer |
| Light Type | Recessed Light, Floor Light, Path Light |
| Material | Stainless Steel, Aluminium |
| Light Colour | Warm White |
| Light Output | 2 lm |
| Beam / Light Direction | Upward |
| VA Load | 0.5 VA |
| CRI | 97 |
A compact direct-light path and driveway marker, offered trimless or with Black, Pearl Grey or Stainless Steel Ring 28 bezels.
Price range: £61.72 through £77.54 (inc VAT)
In-Lite DOT 22 Direct 12V Recessed Path Light
DOT 22 is a compact direct-light marker for driveways and garden paths. Its 22mm light source is easy to repeat as a clean route line, while optional Ring 28 finishes provide a deliberate bezel where the installation surface calls for one.
The 2850K, CRI 97 output gives a defined point with highly natural colour. Unlike several older small In-Lite ground spots, DOT 22 is suitable for all current HUB transformers, including SMART HUB-300.
Where this light works best
Place fittings approximately 1.5 to 2 metres apart as a starting point. Mix DOT 22 with the larger DOT where a more playful scale change suits the design.
Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.
Choose the right recessed effect
Choose DOT for a clearer direct point, FUSION for a softer frosted glow or HYVE for a visible honeycomb texture.
Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.
Installation planning
Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.
The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.
Verified technical information
- Light output: 2 lumens
- Colour temperature: 2850K warm white
- CRI: 97
- VA load: 0.5VA
- LED power: 0.36W
- IP rating: IP67

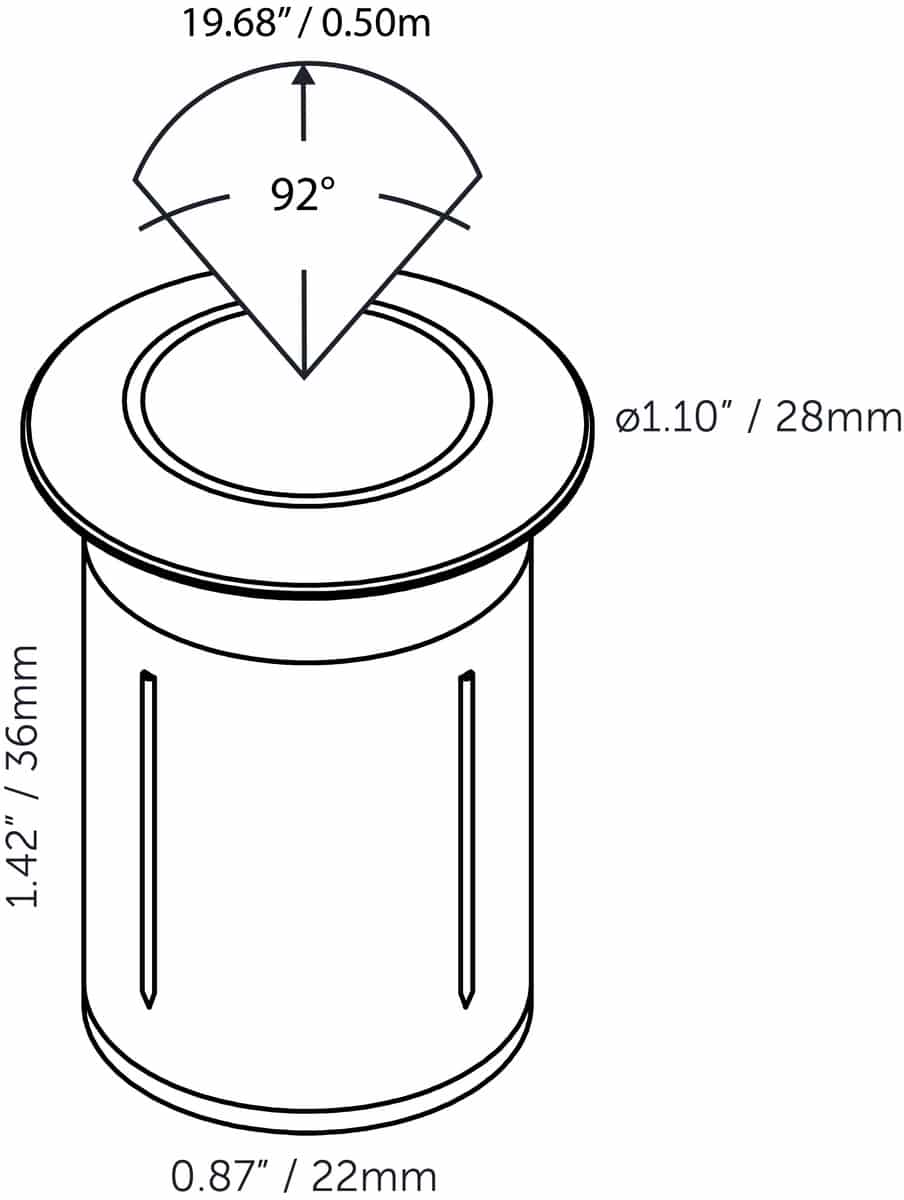

- Trimless light diameter: 22mm; Ring versions: 28mm bezel
- Recessed depth: 50mm
- Compatible with SMART HUB-300
- 5-year manufacturer guarantee

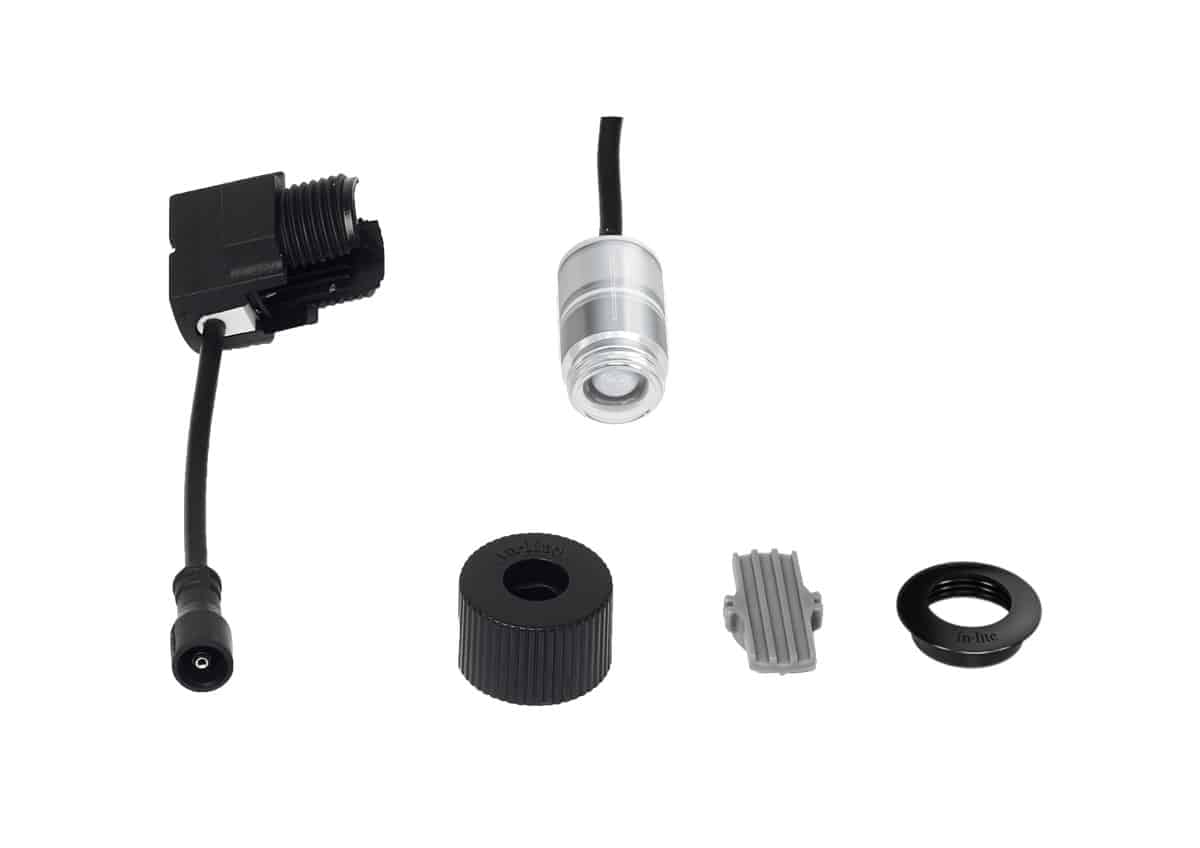

What is supplied
- One complete In-Lite recessed fitting in the selected configuration
- Fixture cable
- One EASY-LOCK system-cable connector
- Manufacturer installation guidance
Plan the circuit as one system
Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.
