In-Lite BIG FLUX 12V Recessed Uplight

In-Lite BIG FLUX 12V Recessed Uplight

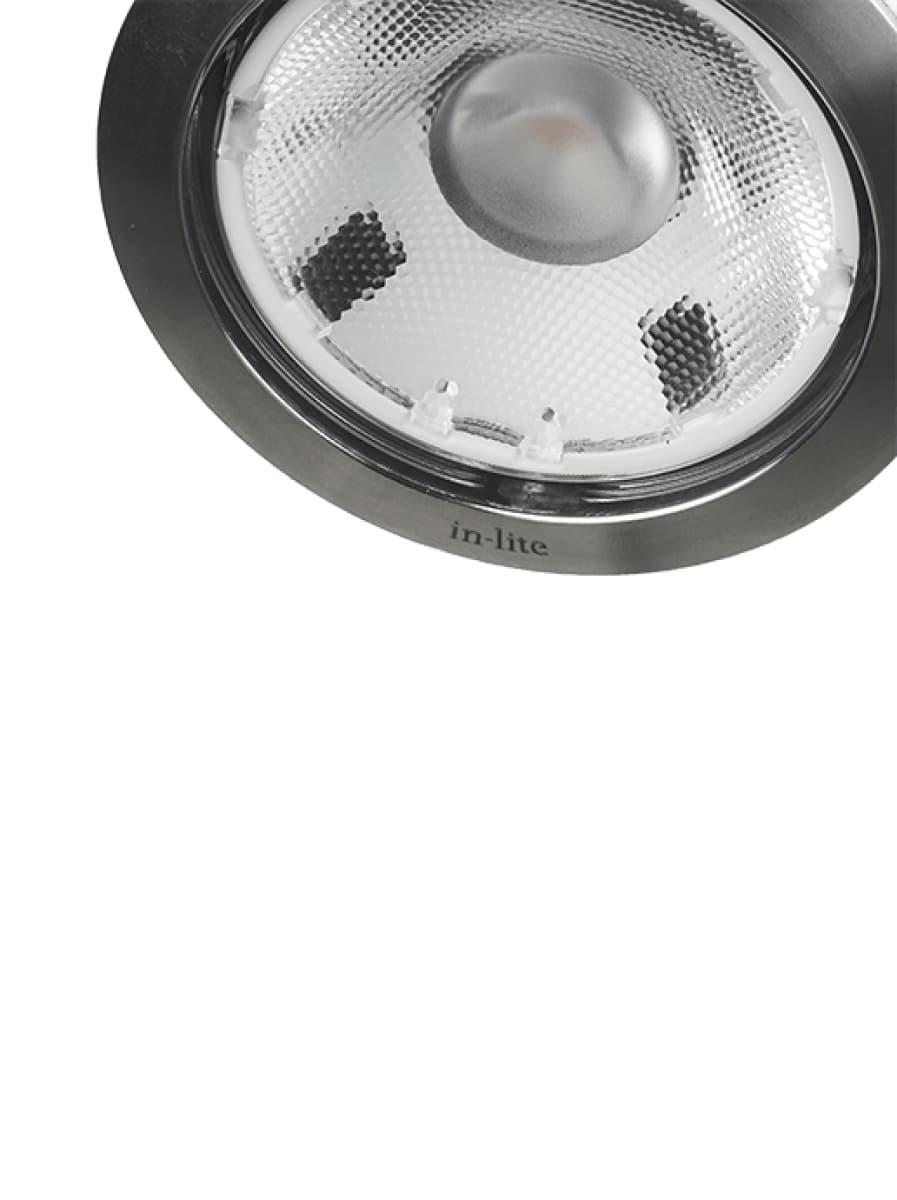

BIG FLUX 12V Recessed Uplight is a powerful recessed uplight for medium trees, taller planting, facades and architectural features. The 68mm round bezel sits neatly over the installation opening, while the fitting produces a controlled warm-white beam rather than a general wash of light.

It is designed to be integrated into paving, decking, gravel or a prepared border position. Three bezel finishes—Stainless Steel, Black and Pearl Grey—let the fitting coordinate with the surrounding surface and the rest of an In-Lite scheme.

Choose the beam for the feature, not simply the brightest model

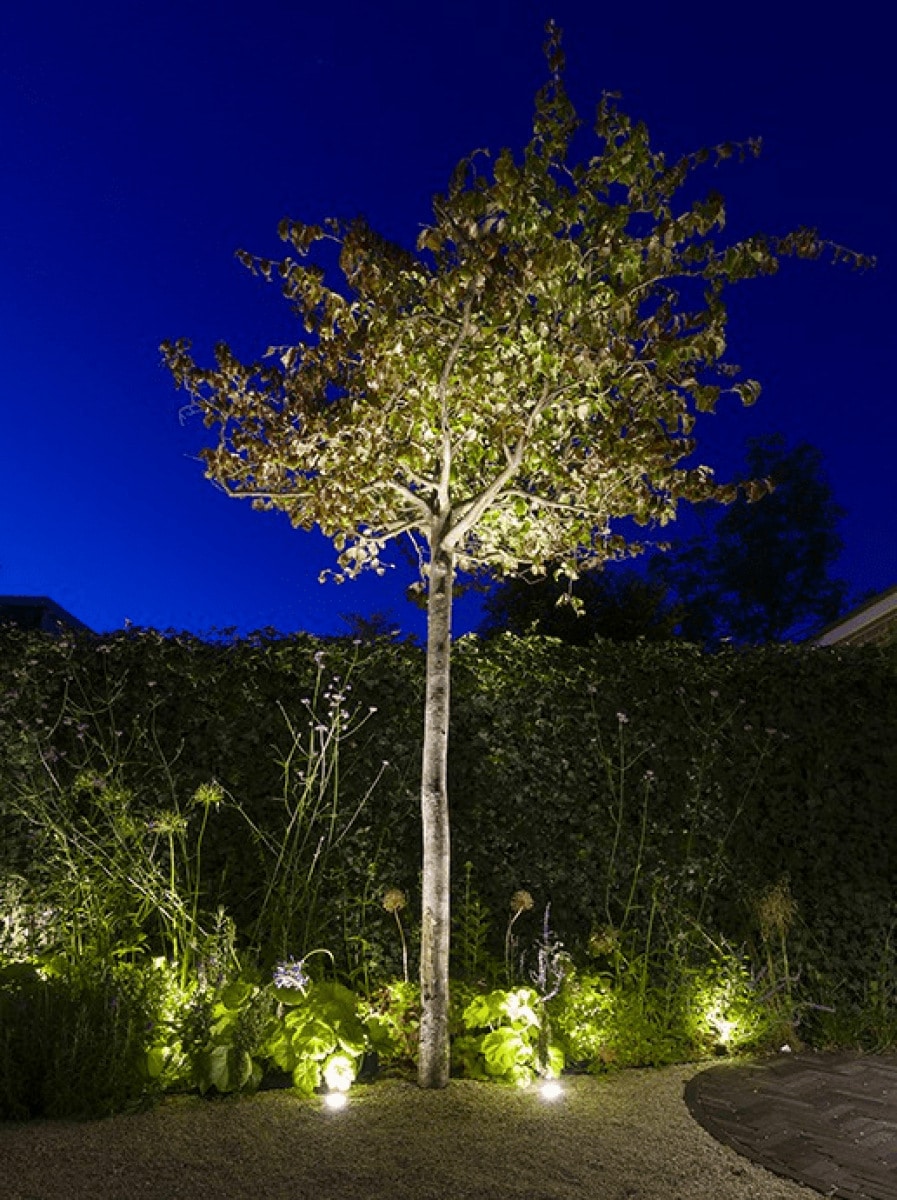

This model has a 26° beam and a practical light reach of approximately 6 metres. Position and aiming matter: a fitting close to a trunk gives dramatic grazing and texture, while moving it farther away spreads light more evenly across the crown or surface.

Use FLUX for smaller features, BIG FLUX for greater reach, BIG FLUX NARROW where height matters more than spread, and BIG FLUX ASYMMETRIC for a wider rectangular surface. Browse our In-Lite recessed-light range to compare them together.

Suitable surfaces and installation planning

Plan the light position, cable route and drainage before cutting or drilling the finished surface. Recessed fittings should sit square and stable, with water able to drain away rather than collect around the body. Always follow the current In-Lite installation template for the exact opening and depth.

In soil or loose aggregate, use the appropriate In-Lite ground-mounting accessory. In timber or paving, protect the cable from sharp edges and future fixings. The supplied EASY-LOCK connects the fitting to genuine In-Lite system cable.

Warm white light with accurate colour

The 3000K light is warm enough for domestic gardens while remaining crisp on stone, bark and planting. CRI 92 helps foliage, paving and architectural materials retain a natural appearance after dark.

Verified technical information

• Light output: 285 lm
• Practical light reach: up to 6 metres
• Beam angle: 26°
• Colour temperature: 3000K warm white
• Colour rendering: CRI 92
• Transformer load: 4.2 VA
• LED power: 3W
• Supply: In-Lite 12V low-voltage system
• Protection: IP67
• Bezel diameter: 68mm
• Expected LED life: 25,000 hours
• Manufacturer guarantee: 5 years when correctly installed as an In-Lite system

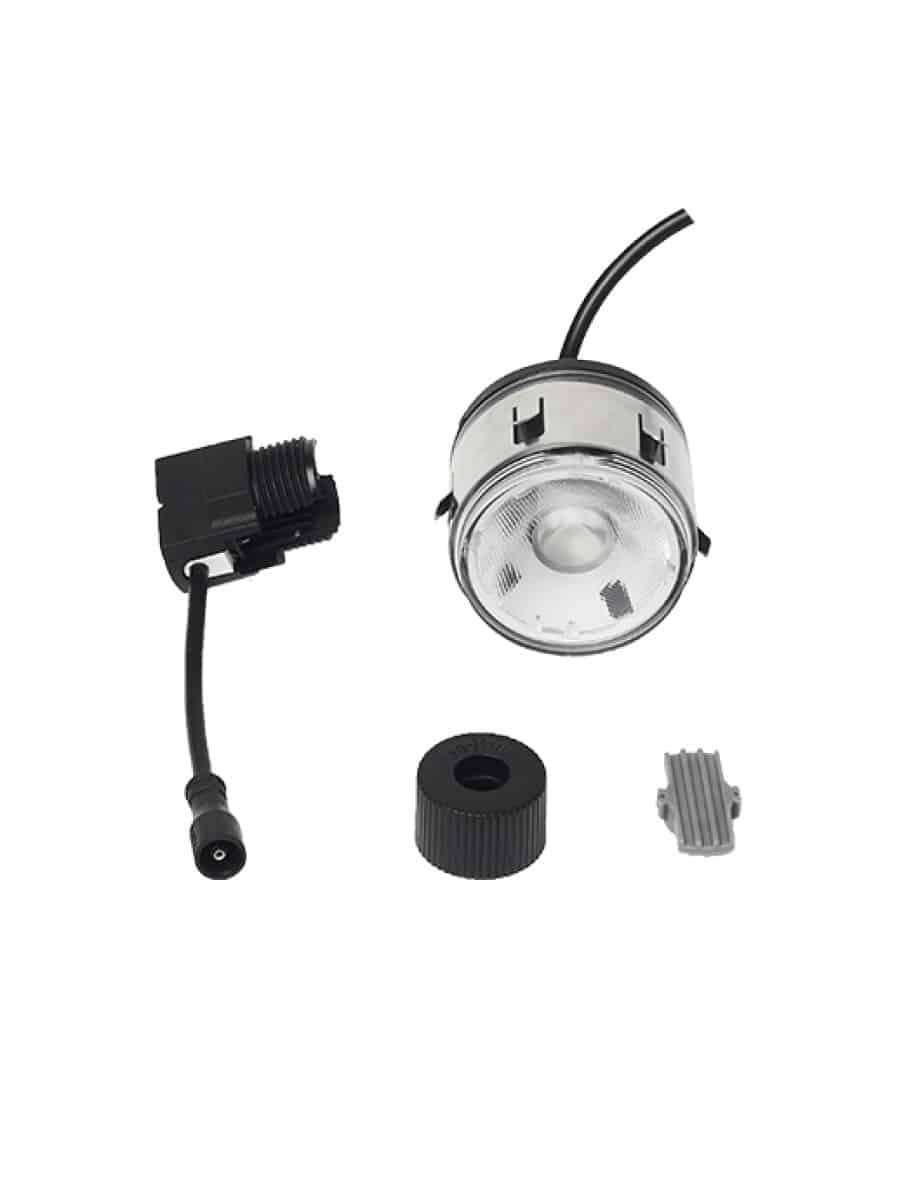

What is supplied

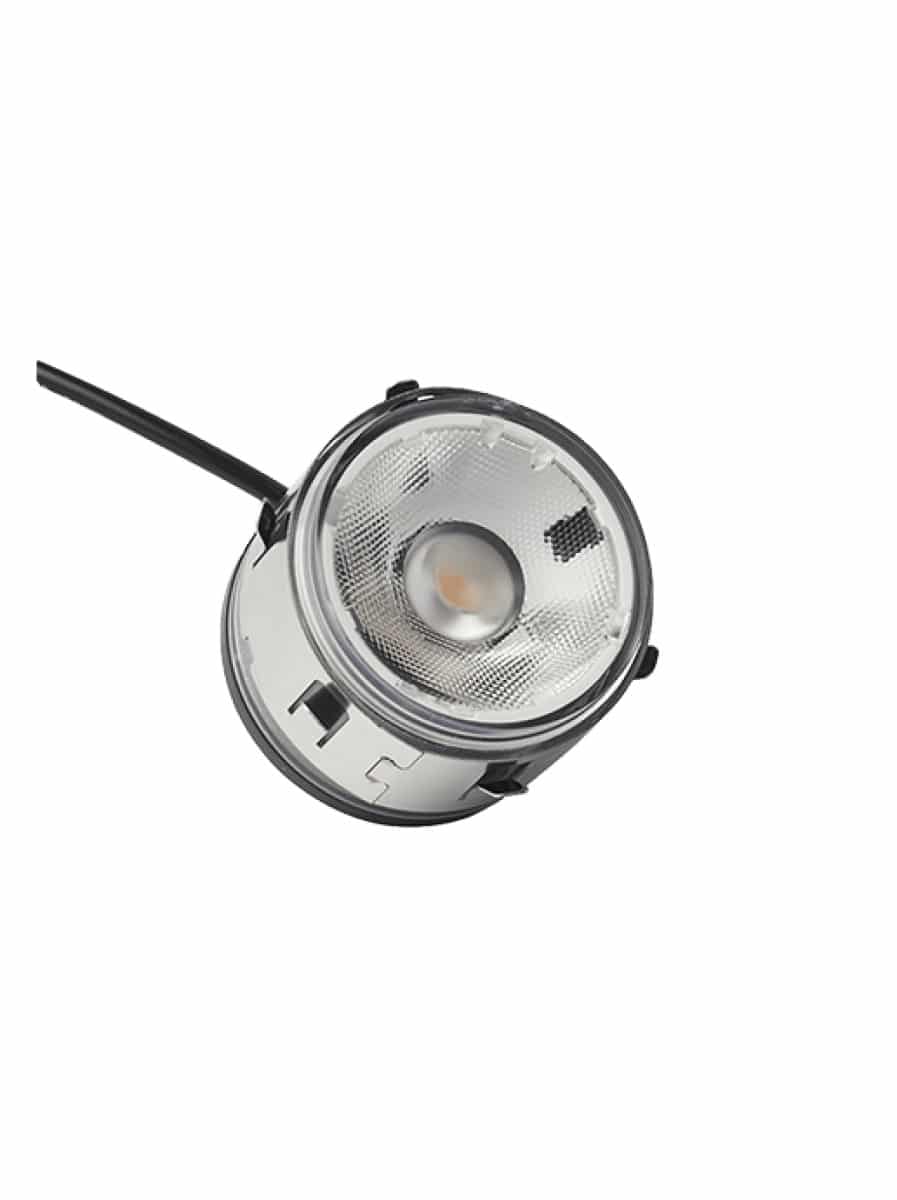

• One complete recessed light in the selected finish
• Pre-fitted fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the transformer and cable route

Add 4.2 VA for each fitting when calculating transformer capacity. Total the VA load—not only the wattage—on every cable route, and leave sensible capacity for later additions. Compare the In-Lite transformers and smart controls, or send us a sketch for help checking fitting choice, spacing and circuit load.
