In-Lite FUSION 22 Diffuse 12V Recessed Light

In-Lite FUSION 22 Diffuse 12V Recessed Light

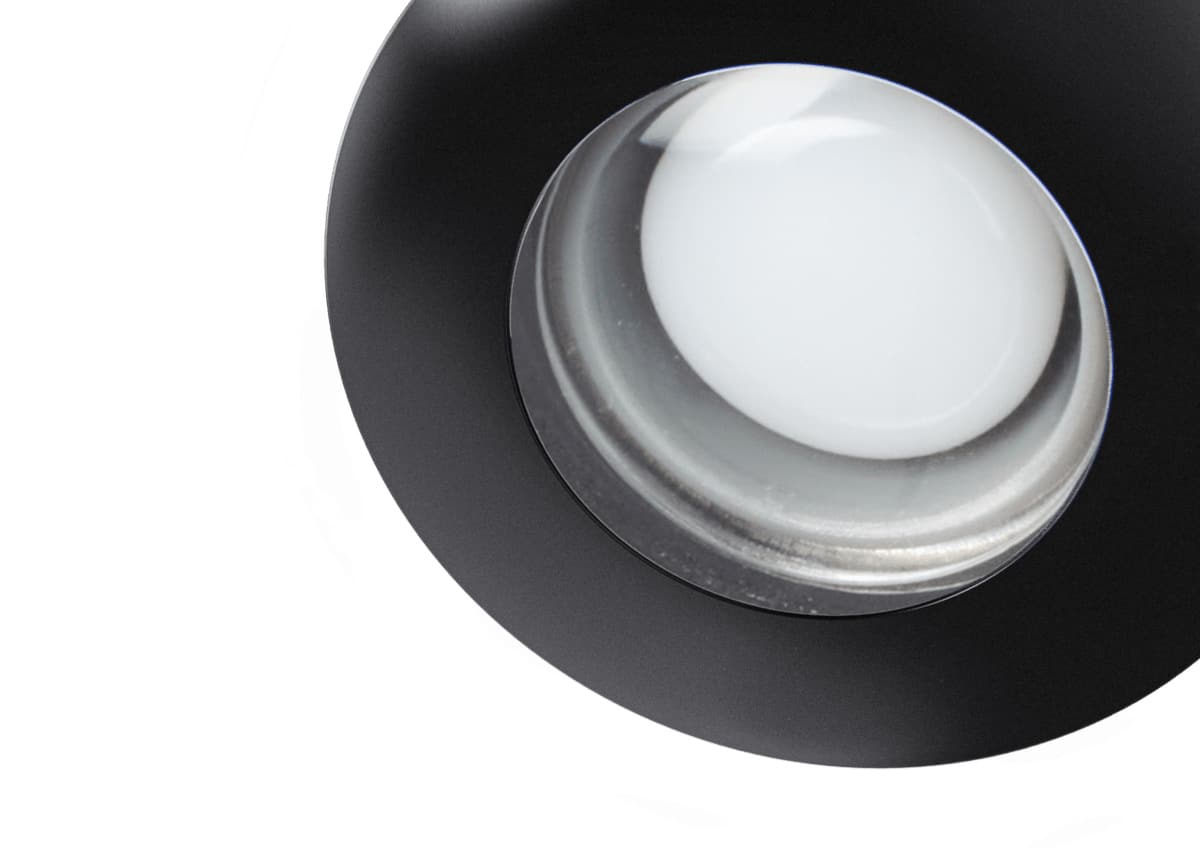

A discreet 22mm diffuse recessed marker for paths, steps and terraces, available trimless or with Ring 28 bezels in Stainless Steel, Black or Pearl Grey

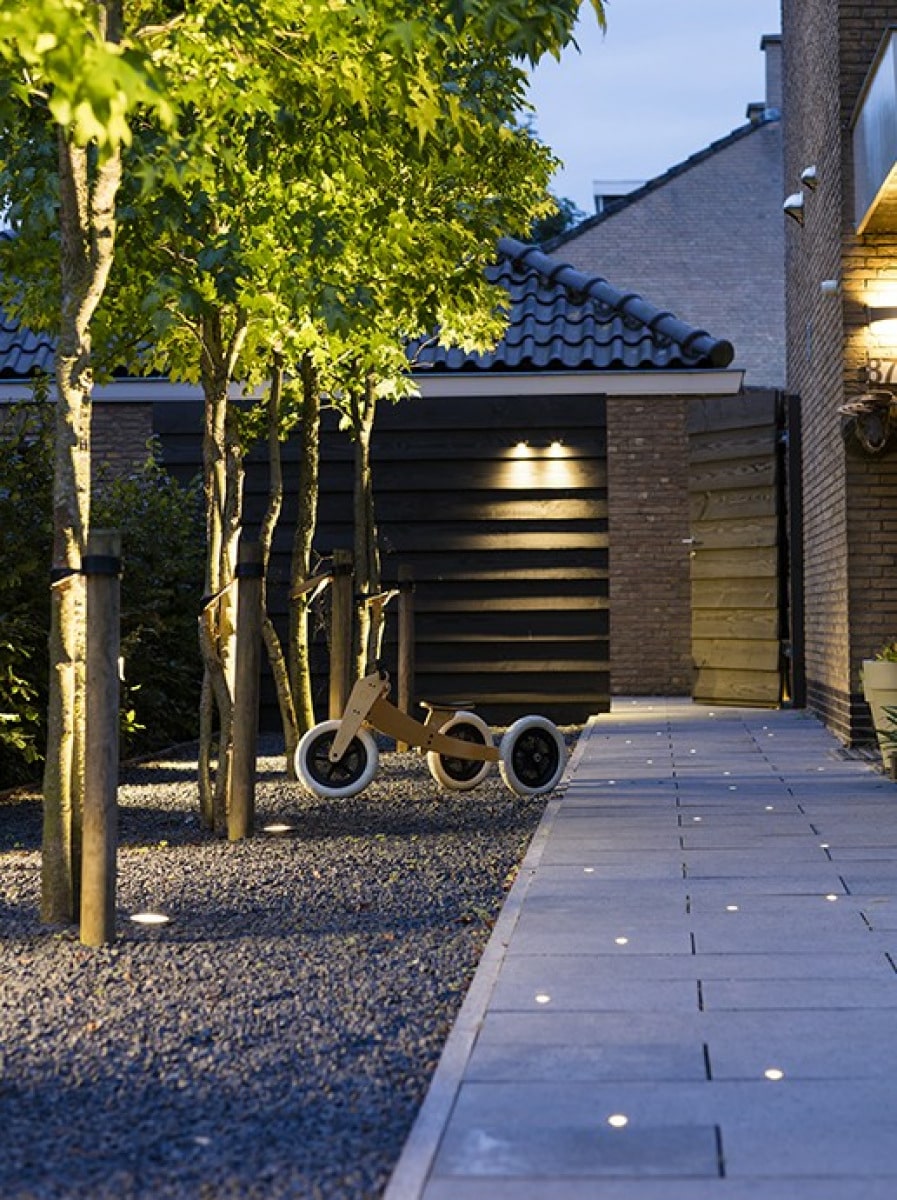

FUSION 22 is a tiny recessed marker light that is almost invisible by day and gives a soft, non-glare point of warm light after dark. It suits paths, steps, terraces and driveway edges where orientation matters more than a bright pool of light.

The diffused lens produces only 1 lumen, deliberately trading brightness for visual comfort. Used as a repeated rhythm, the fittings define an edge without creating the runway effect of a sharp exposed LED.

Where this light works best

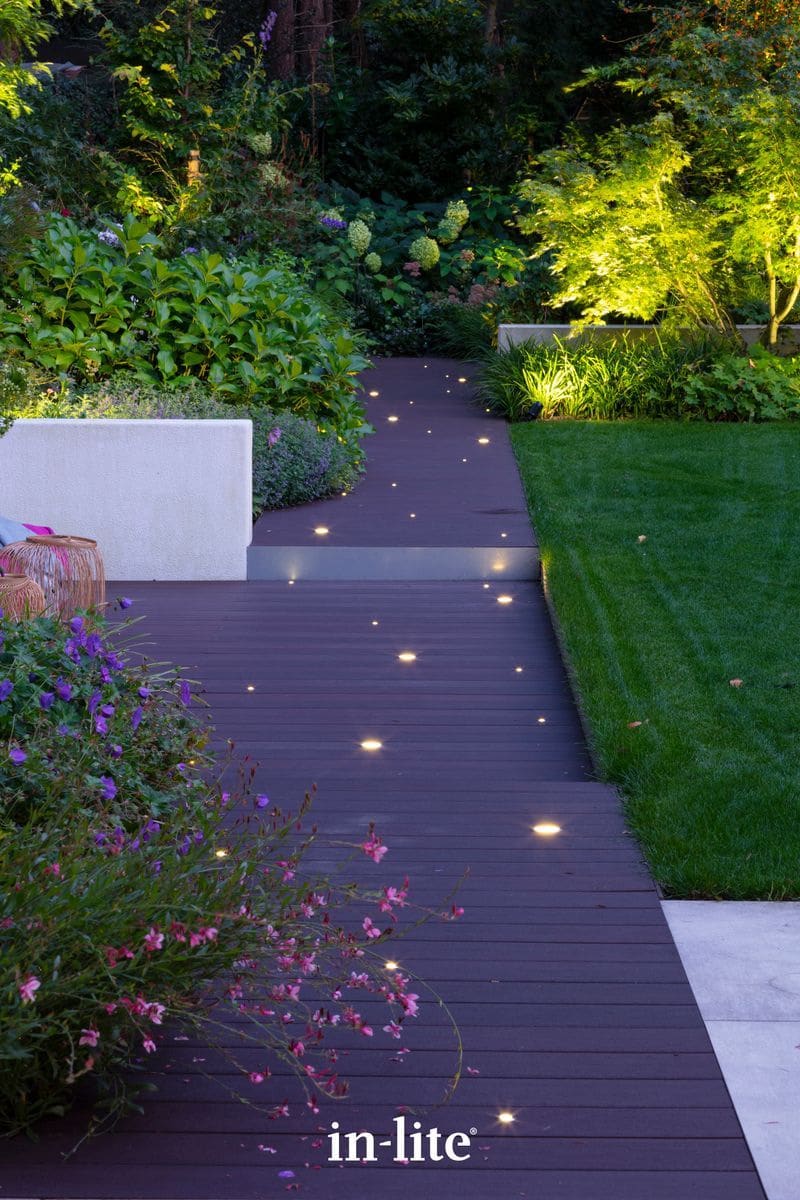

In-Lite recommends a starting spacing of 1.5 to 2 metres. The trimless 22mm version is ideal in accurately drilled stone; the finished Ring 28 version gives a neat 28mm bezel and is particularly useful in timber.

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose FUSION for the gentlest non-glare glow. Choose HYVE when you want the honeycomb lens to appear a little more graphic, or DOT where a clearer direct point and SMART HUB-300 compatibility are important.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

Technical information

• Light output: 1 lumen
• Colour temperature: 2750K warm white
• CRI: 93
• VA load: 0.2VA
• LED power: 0.2W
• IP rating: IP67

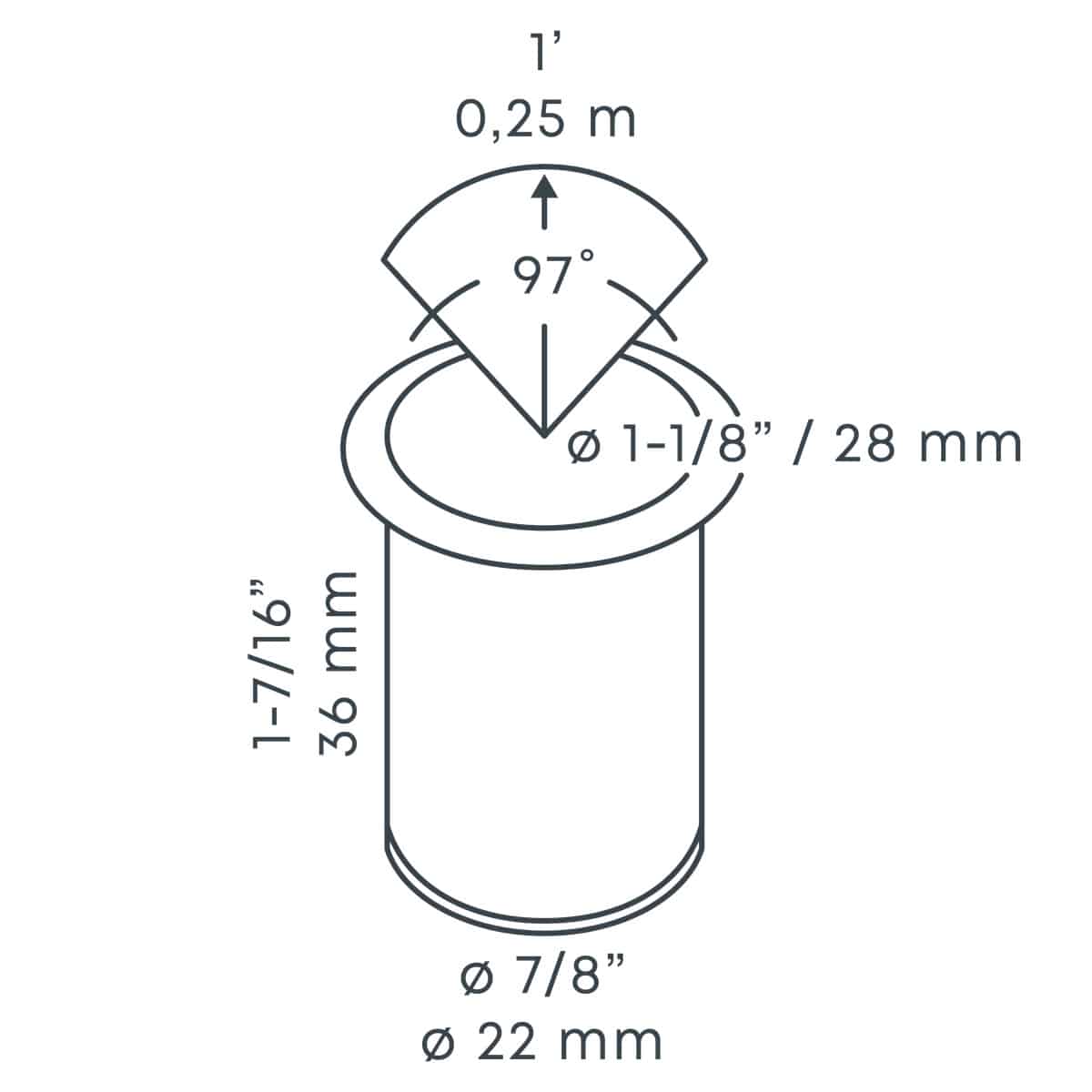

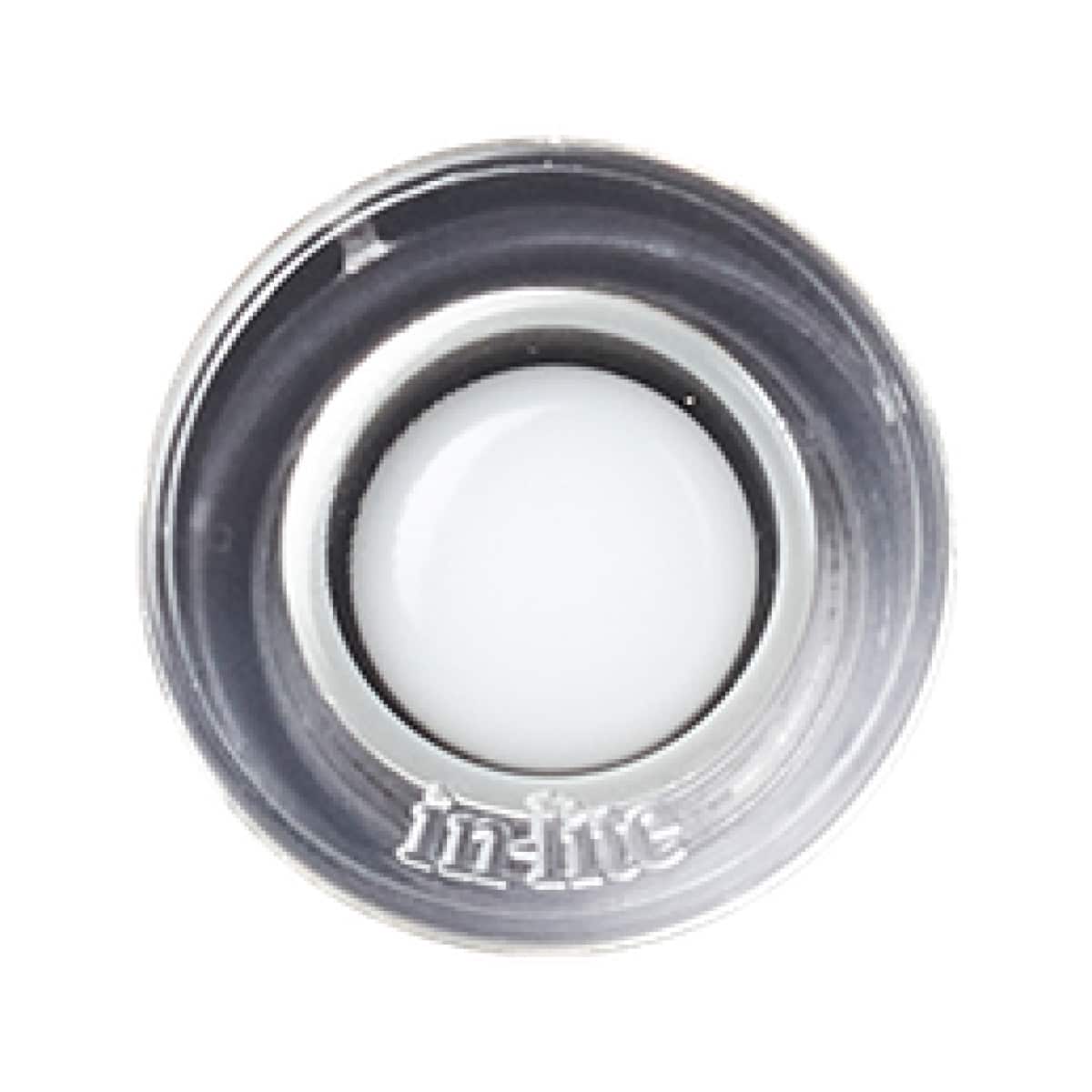

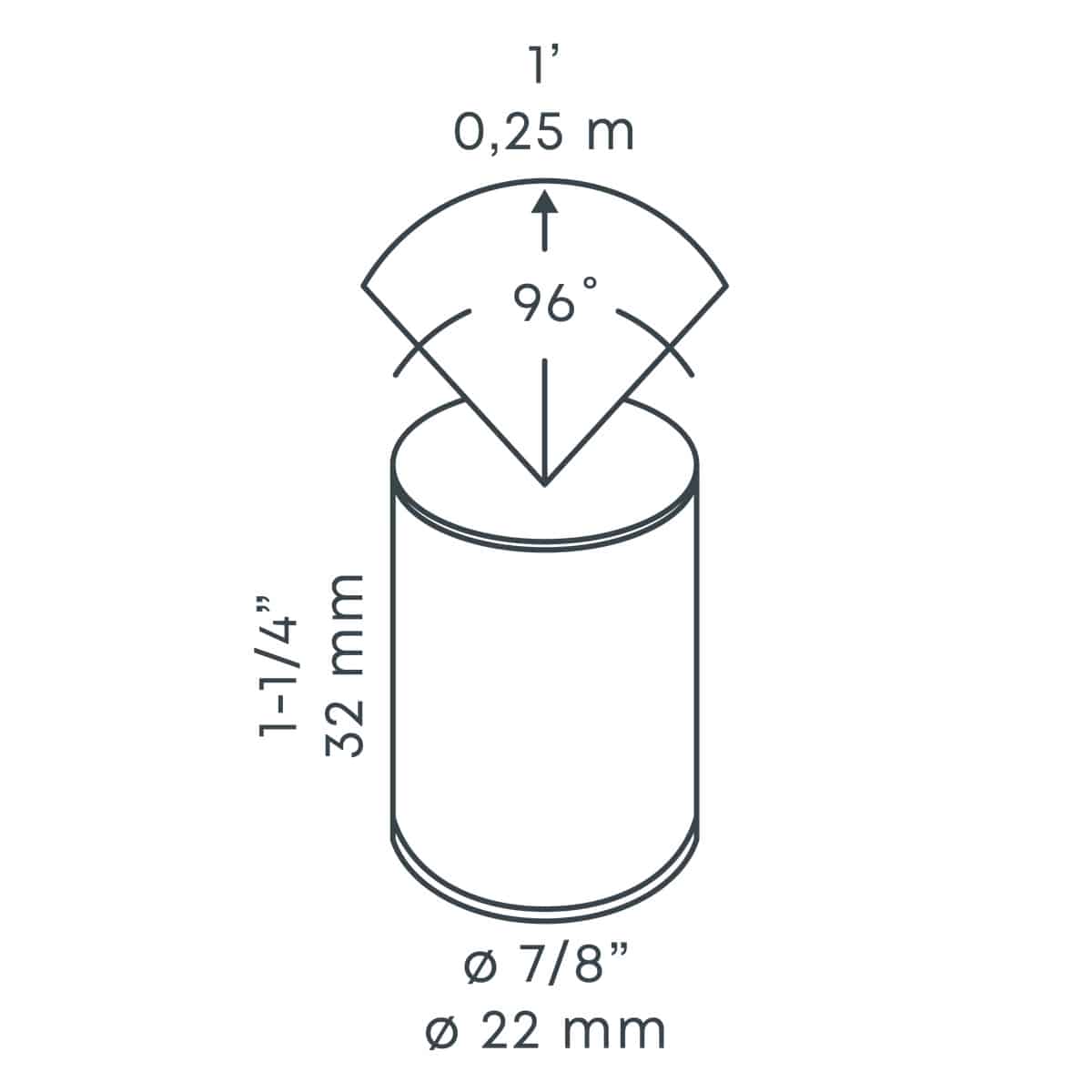

• Trimless diameter: 22mm; Ring version bezel: 28mm
• Recessed depth: 50mm
• Drive-over rated when correctly installed
• 5-year manufacturer guarantee

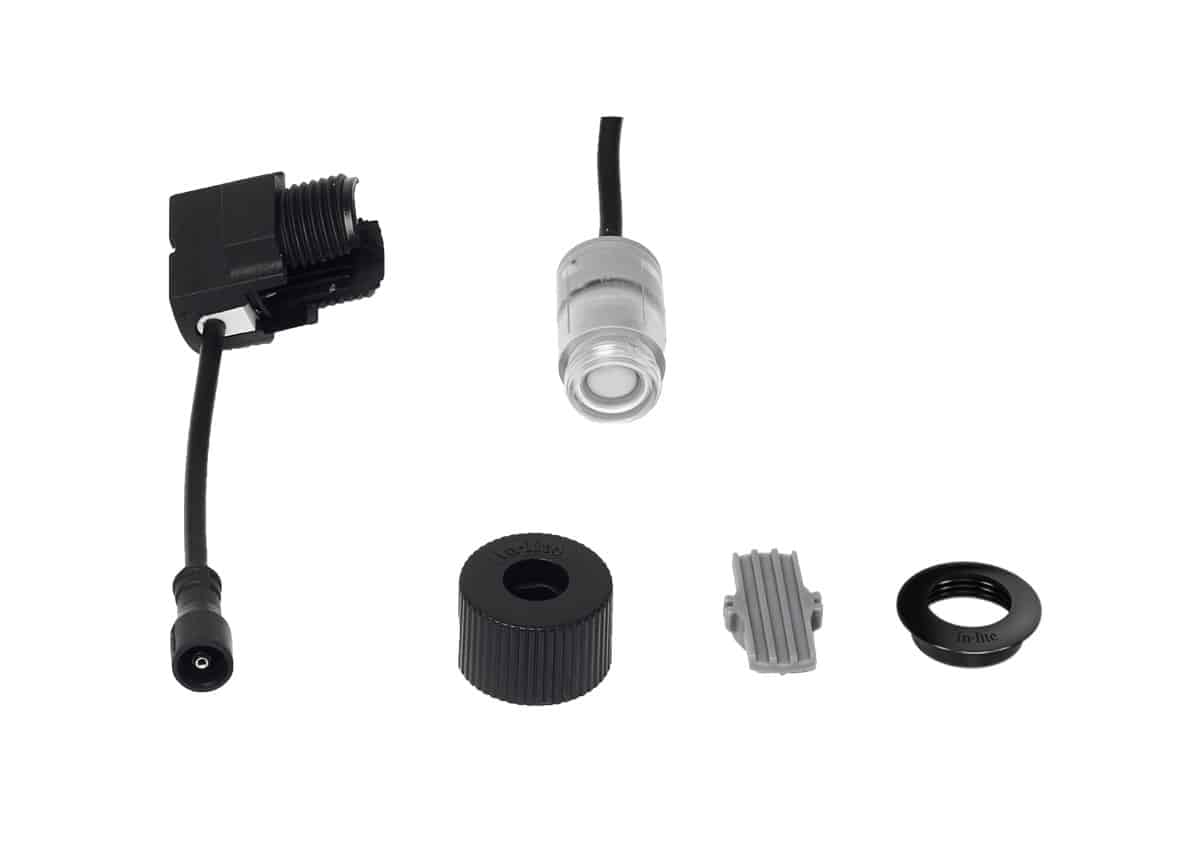

What is supplied

• One complete In-Lite recessed fitting in the selected configuration

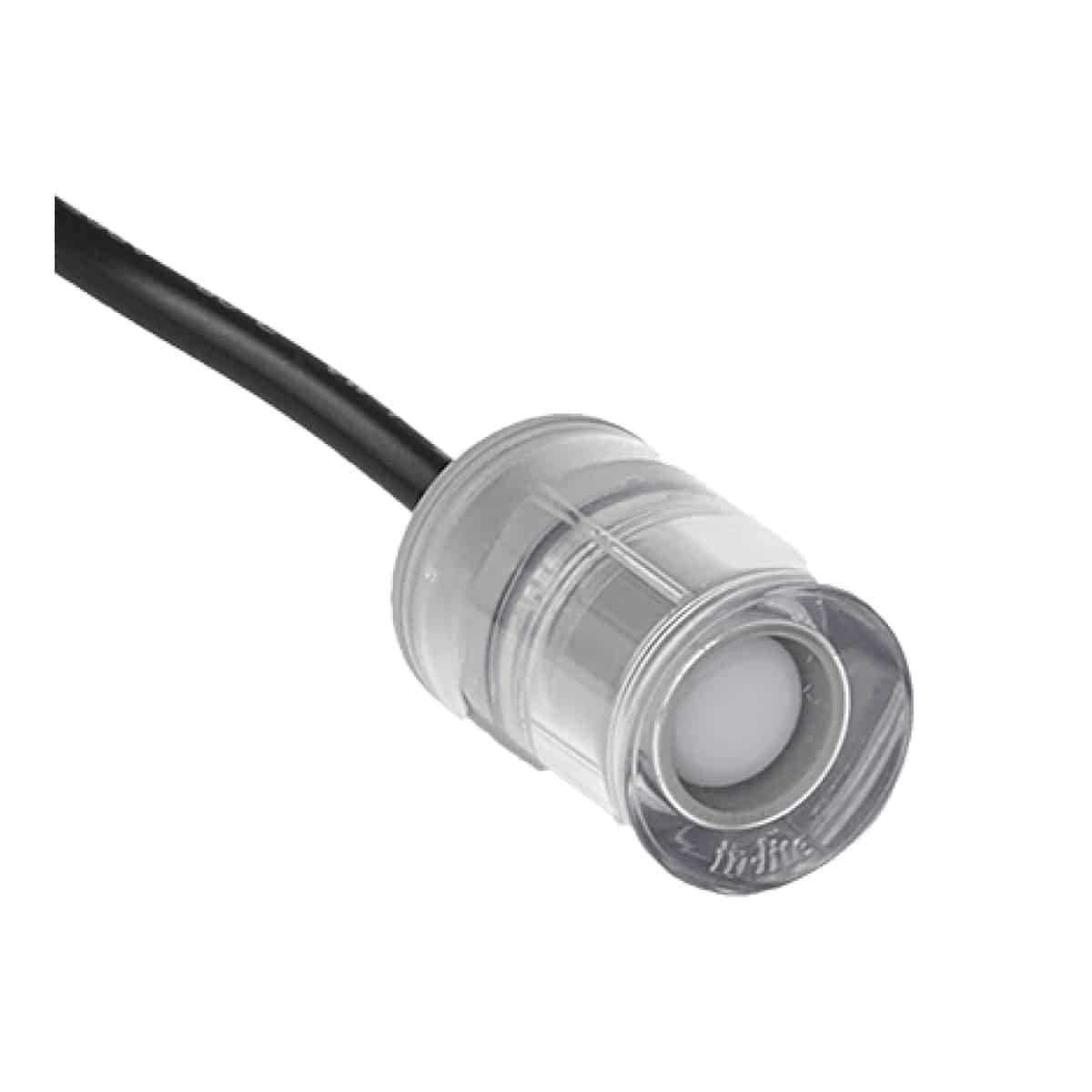

• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.

Compare 22mm effects

FUSION gives a diffuse marker, HYVE a honeycomb effect, and DOT a more direct point. These are alternative lighting effects rather than interchangeable replacement modules.

In-Lite HYVE 22 Honeycomb 12V Recessed Light · In-Lite DOT 22 Direct 12V Recessed Path Light

Optional accessories

SPIKE 22 supports the appropriate 22mm fitting in loose ground. Select the mounting arrangement for the chosen configuration, not just the bezel diameter.

In-Lite SPIKE 22 Recessed-Light Accessory

Choose a compatible transformer

Do not connect this fitting to SMART HUB 300. Use a compatible 12V HUB with sufficient total and per output VA capacity. Compare transformers and smart controls.
