In-Lite AIM CEILING 12V Outdoor Ceiling Spotlight

In-Lite AIM CEILING 12V Outdoor Ceiling Spotlight

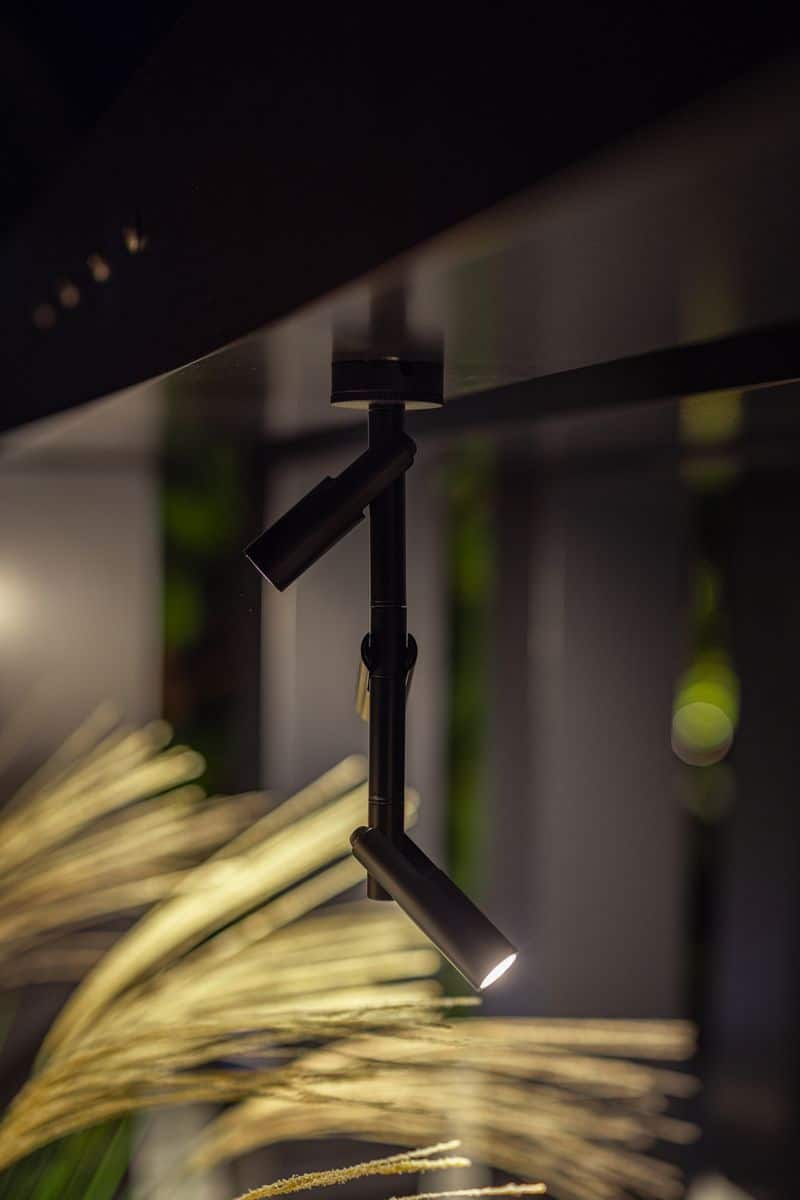

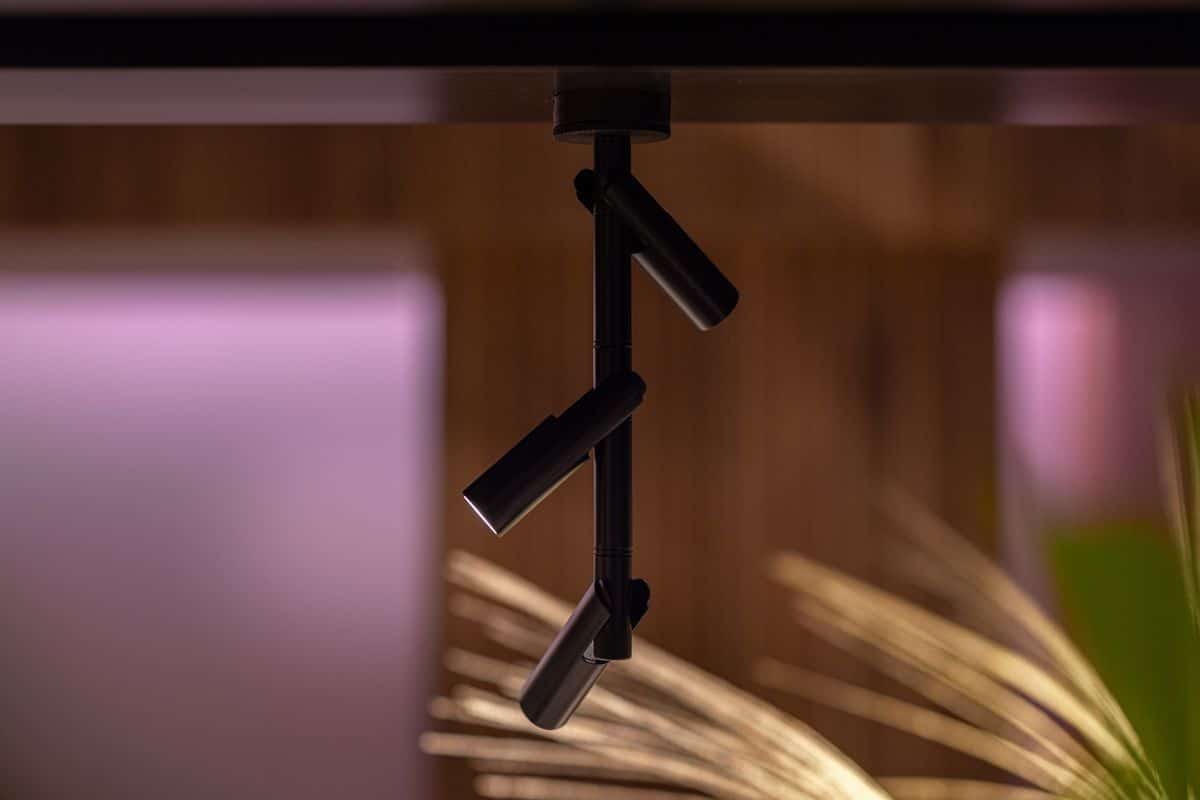

In-Lite AIM CEILING adapts the AIM optical system for overhead mounting. The compact black body is designed to sit neatly beneath a suitable outdoor ceiling, pergola or canopy while the adjustable head directs light towards a table, counter, wall, planting feature or circulation area.

It is best used where a recessed fitting is not practical and a precise, visible-but-discreet spotlight is preferable to broad general illumination. Position it so the beam lights the useful surface without shining into seated eye lines.

Part of the modular In-Lite AIM family

AIM is built around a compact warm-white light head, waterproof modular connections and precise mechanical adjustment. The 35° beam reaches up to approximately 3.5 metres and the integrated honeycomb glare control helps shield the LED from normal viewing positions. A 3000K colour temperature and CRI 90 preserve the appearance of foliage, flowers, timber and stone.

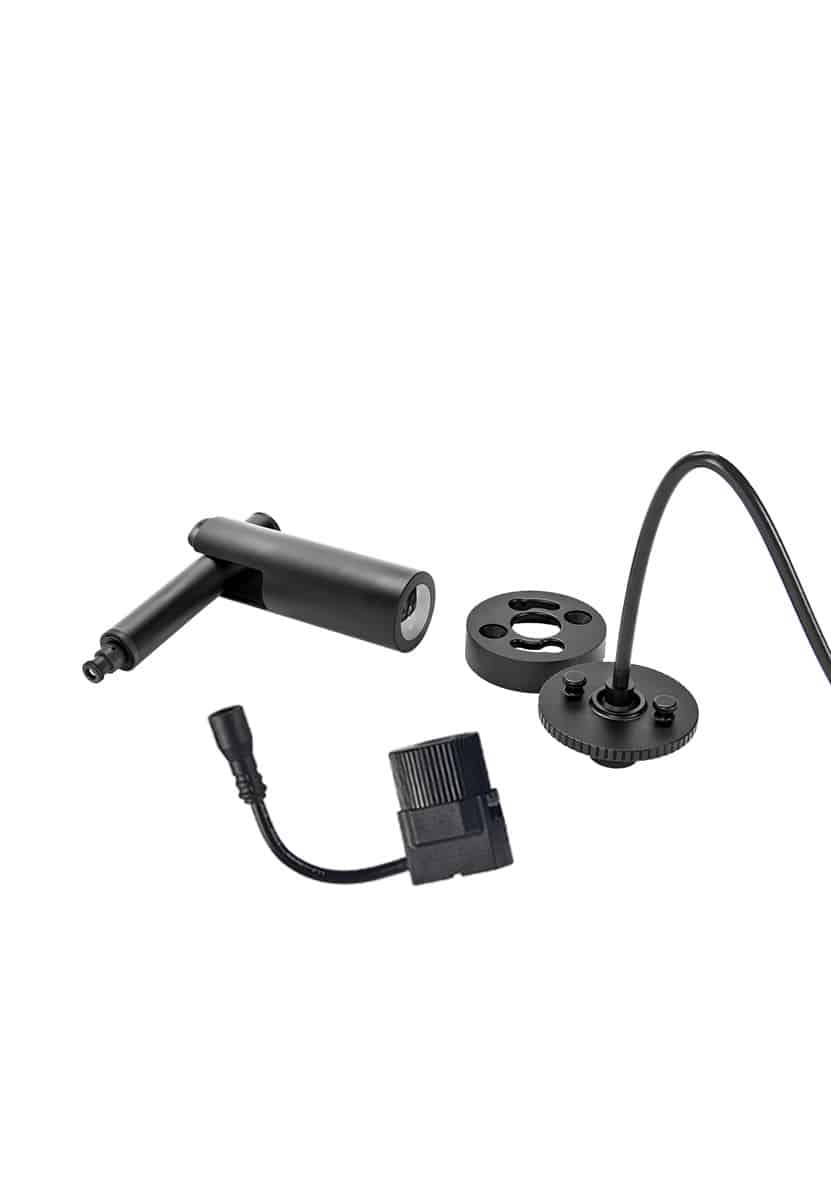

What is supplied

A complete AIM CEILING fitting for connection to a compatible In-Lite low-voltage system. Plan the transformer, cable route and switching arrangement as part of the wider installation.

Verified lighting specification

• 84 lumen light output
• 3000K warm-white LED
• CRI 90 colour rendering

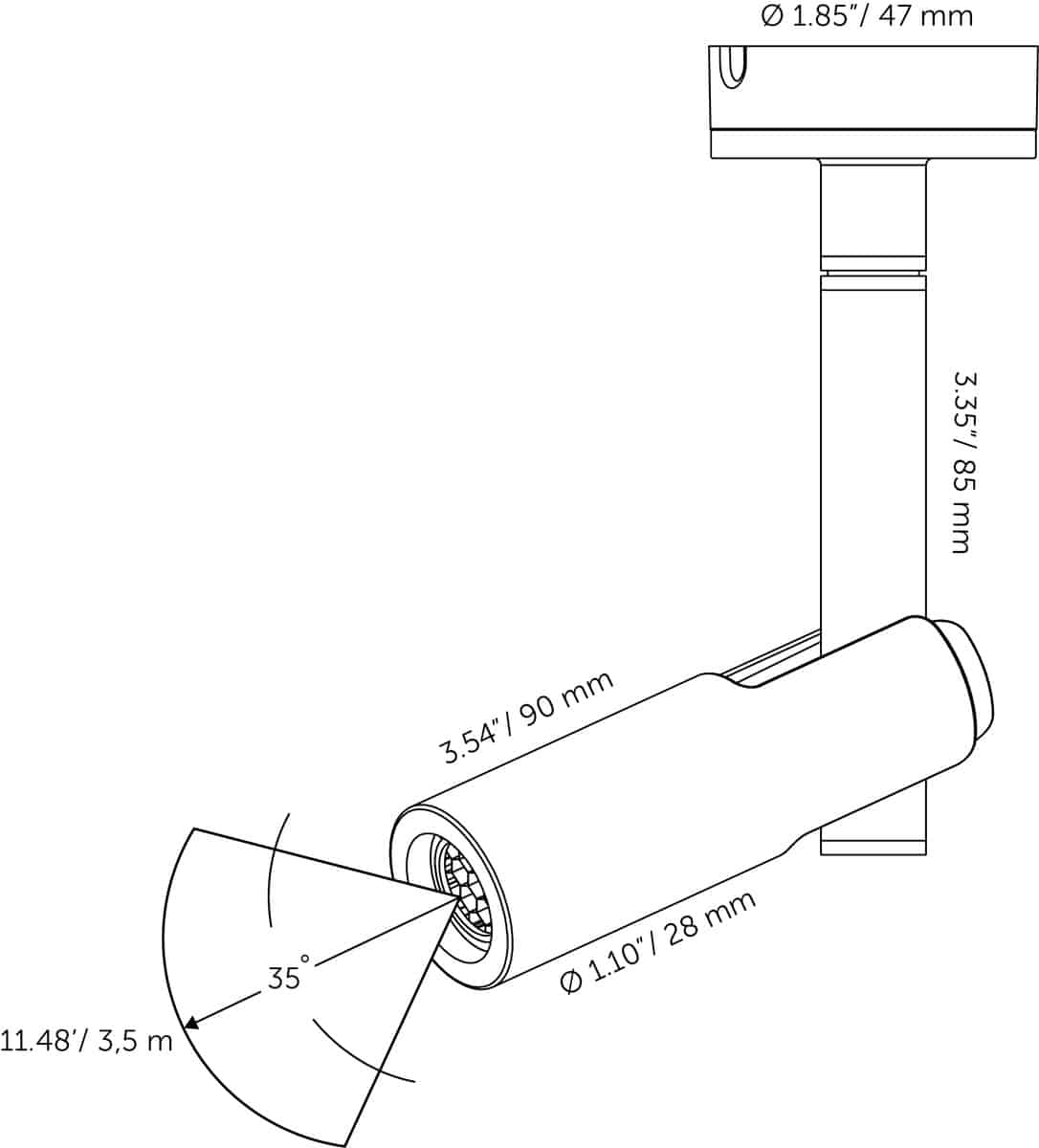

• 35° beam with reach up to 3.5m
• 2.1VA transformer load and 1.2W consumption per light head
• IP55 outdoor enclosure
• Black aluminium finish
• Five-year In-Lite system guarantee

Plan compatibility before ordering components

This is a modular AIM item, so check whether your installation requires a complete fitting, an additional light head, a mounting base or a ceiling/floor configuration. Add the VA of every head to the transformer total. If you are unsure, send us a photograph or sketch of the mounting position and we will help identify the parts required.

For a complete installation, browse the In-Lite transformers and smart controls, system cables and connectors and the full In-Lite garden lighting range. If you are planning several fittings, send us a sketch with the cable route and the features you want to light; we can help check the transformer load, cable layout and compatible accessories before you order.

Choose the mounting height from the finished light pattern

Before fixing In-Lite AIM CEILING 12V Outdoor Ceiling Spotlight, test the proposed position against the final wall, doorway, path or seating layout. Mounting height changes both the spread on the surface and how visible the source feels to people nearby. Align repeated fittings carefully and plan the cable entry before drilling so the finished installation remains tidy.

For mains-powered versions, electrical work must follow the current installation instructions and UK requirements. For 12V versions, include the stated VA load in the transformer calculation and use the specified In-Lite connection system.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite AIM LIGHT HEAD Modular Spotlight Head. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
