A tiny honeycomb-lens recessed marker for steps, paths and terraces, available trimless or with Ring 28 bezels in Stainless Steel, Black or Pearl Grey

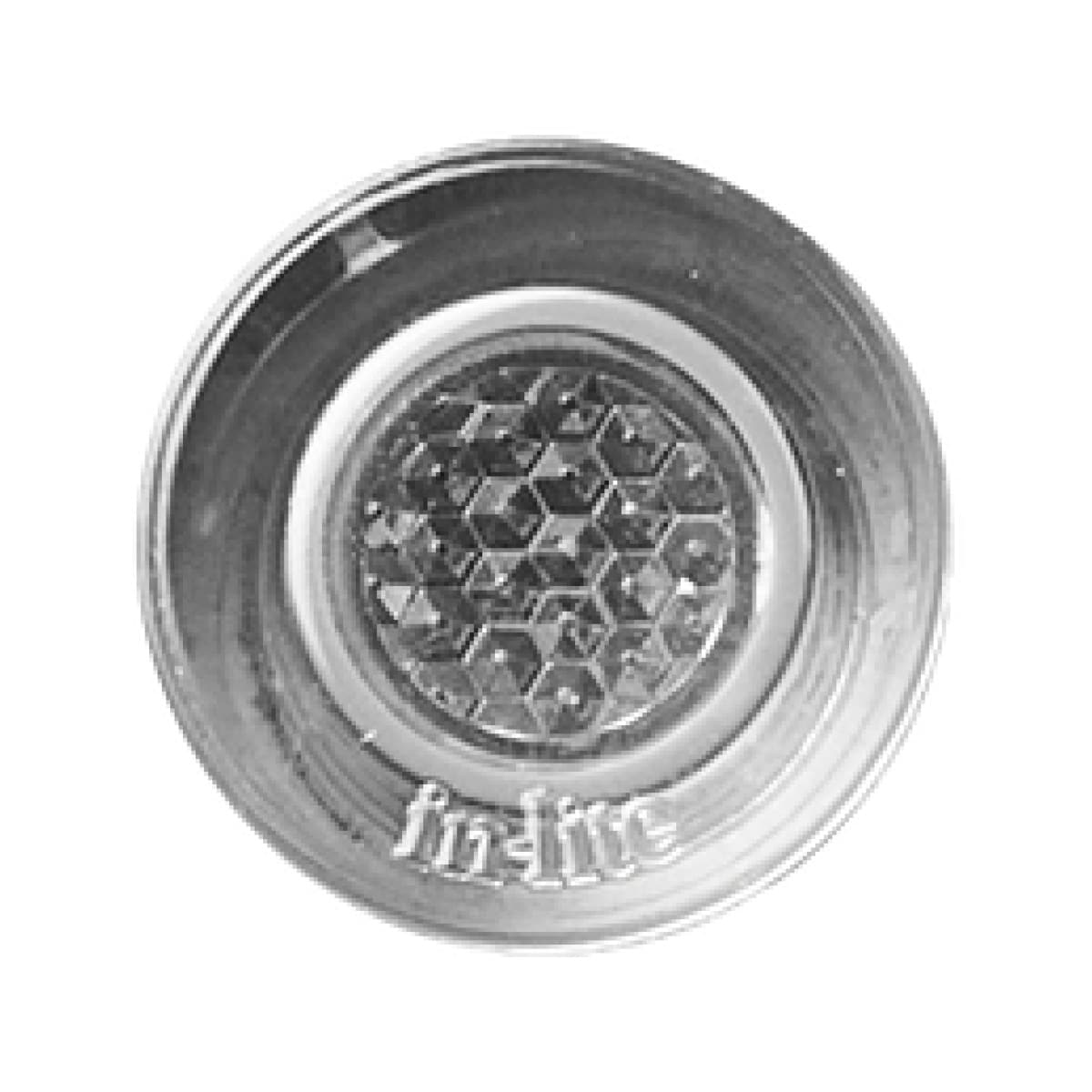

HYVE 22 is a compact recessed marker whose honeycomb lens creates a warm, decorative point of light without uncomfortable glare. During the day the 22mm trimless version is exceptionally discreet; after dark the lens adds more visible texture than FUSION 22.

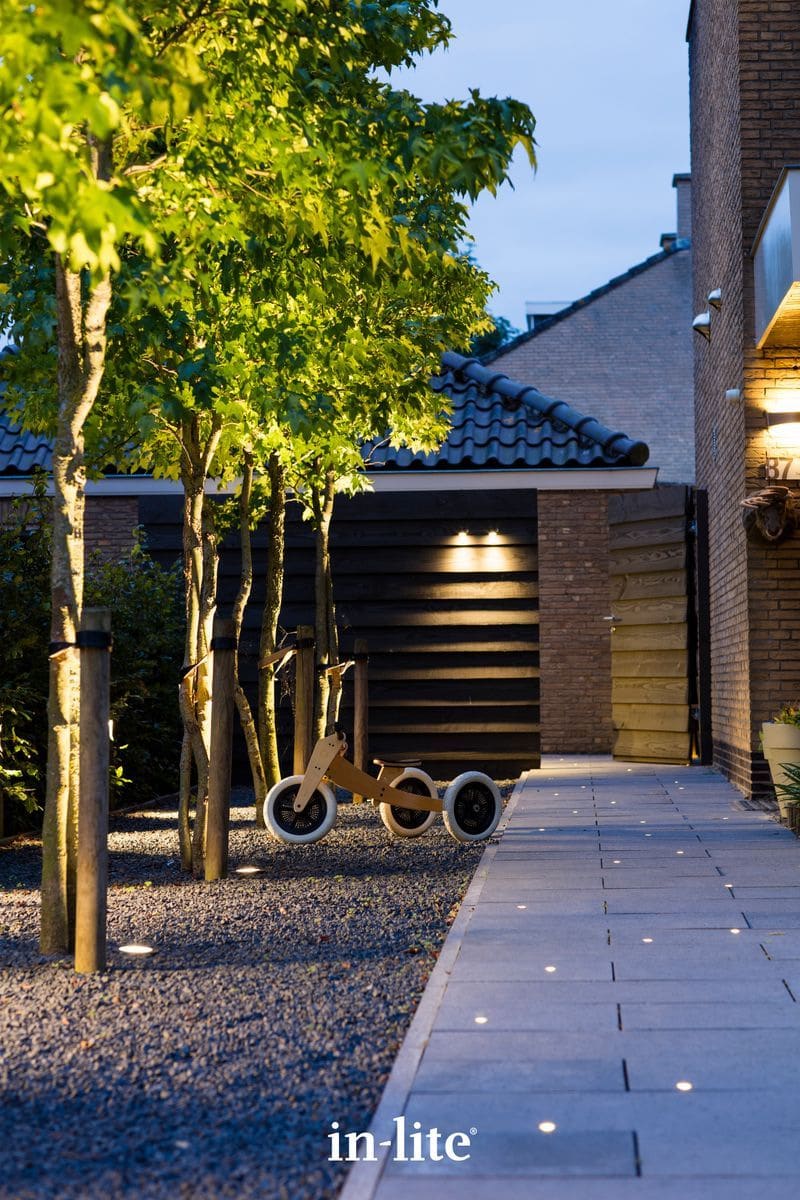

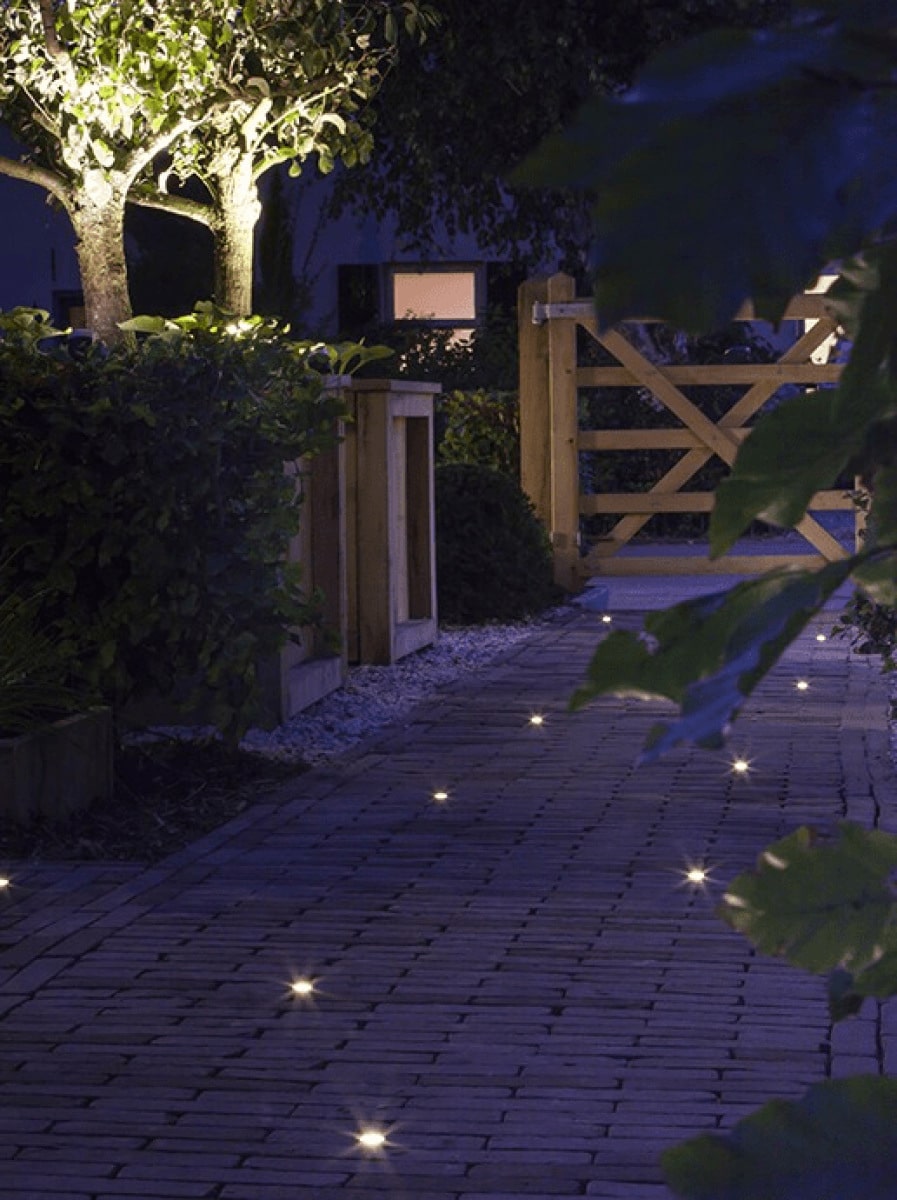

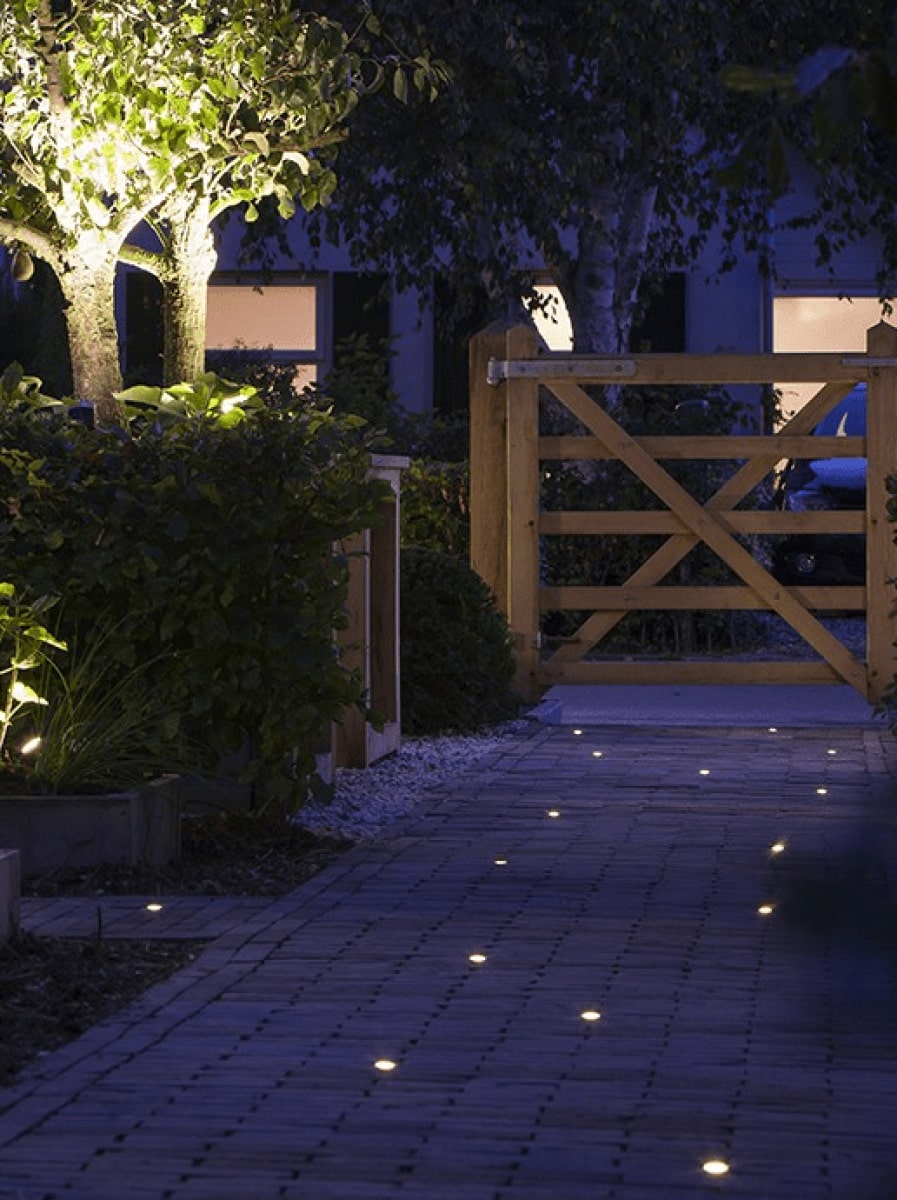

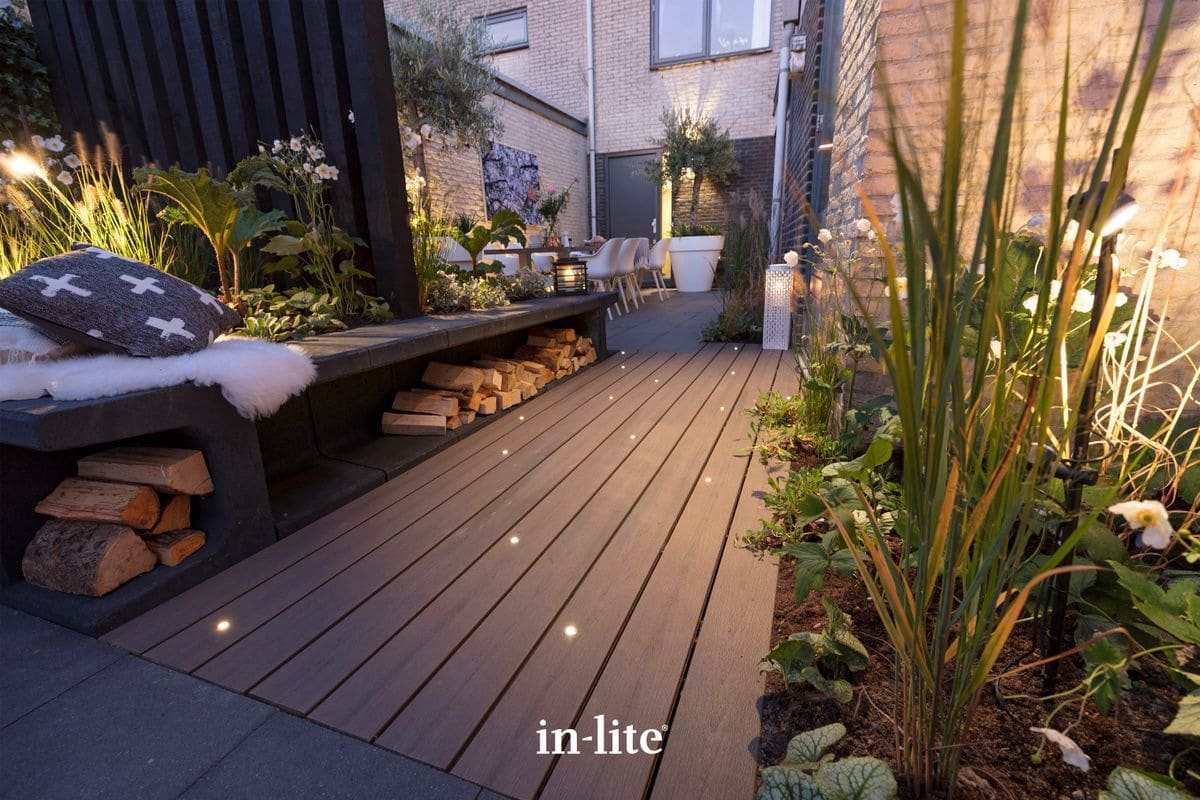

Its 2-lumen output is intended for orientation and atmosphere along steps, decking, terrace edges and paths, rather than lighting a large surrounding area.

Where this light works best

Start with spacing of around 1.5 to 2 metres. Use the trimless version in an accurately drilled 22.4mm stone opening, or the finished Ring 28 version where a visible bezel in the selected finish better suits timber or paving.

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose HYVE for the distinctive honeycomb light texture, FUSION for the softest diffused dot, or DOT for a clearer direct point and compatibility with SMART HUB-300.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

Technical information

• Light output: 2 lumens
• Colour temperature: 3000K, 3100K warm white
• VA load: 0.2VA
• LED power: 0.2W

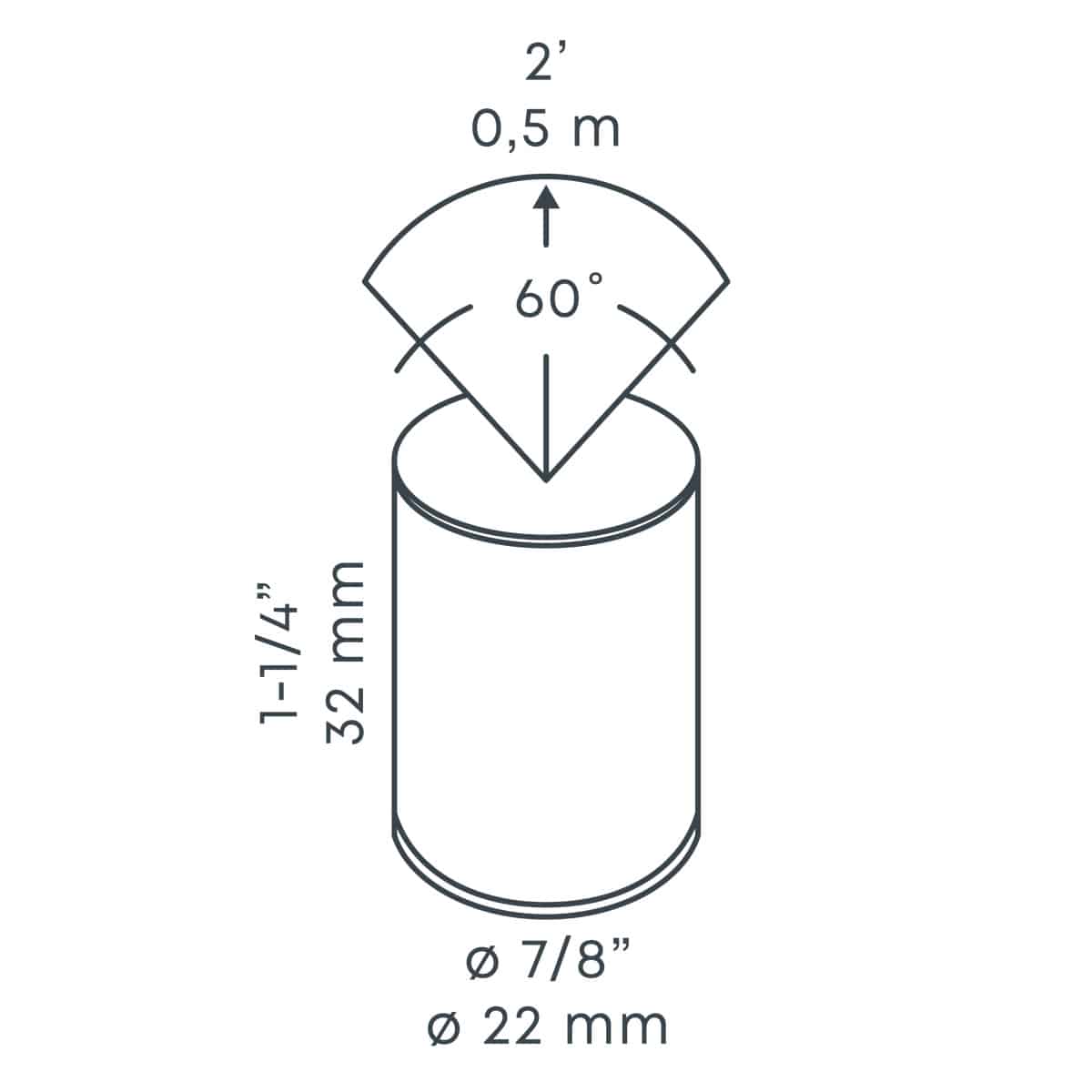

• Beam angle: approximately 60°
• IP rating: IP67
• Drive-over rated when correctly installed
• 5-year manufacturer guarantee

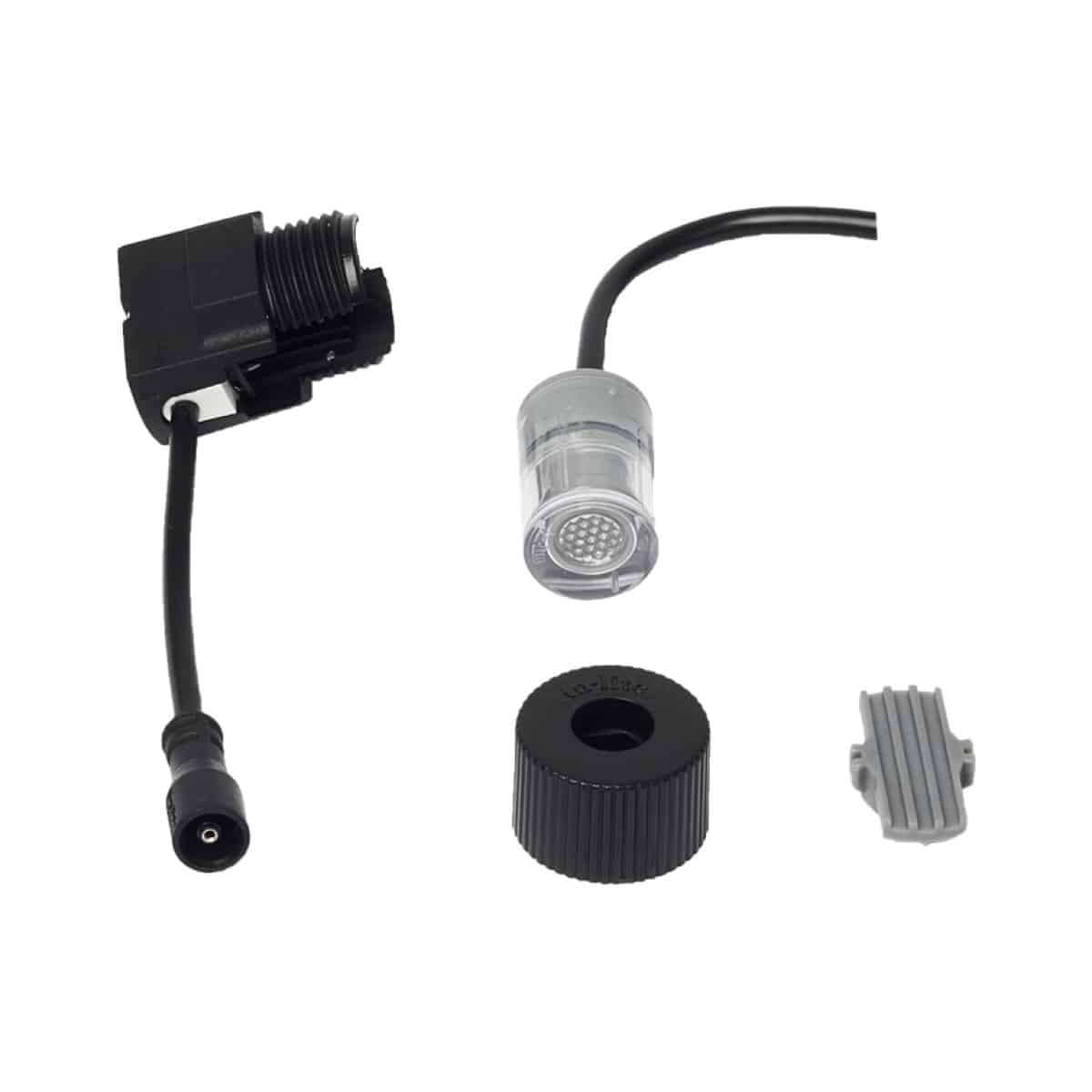

What is supplied

• One complete In-Lite recessed fitting in the selected configuration
• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.

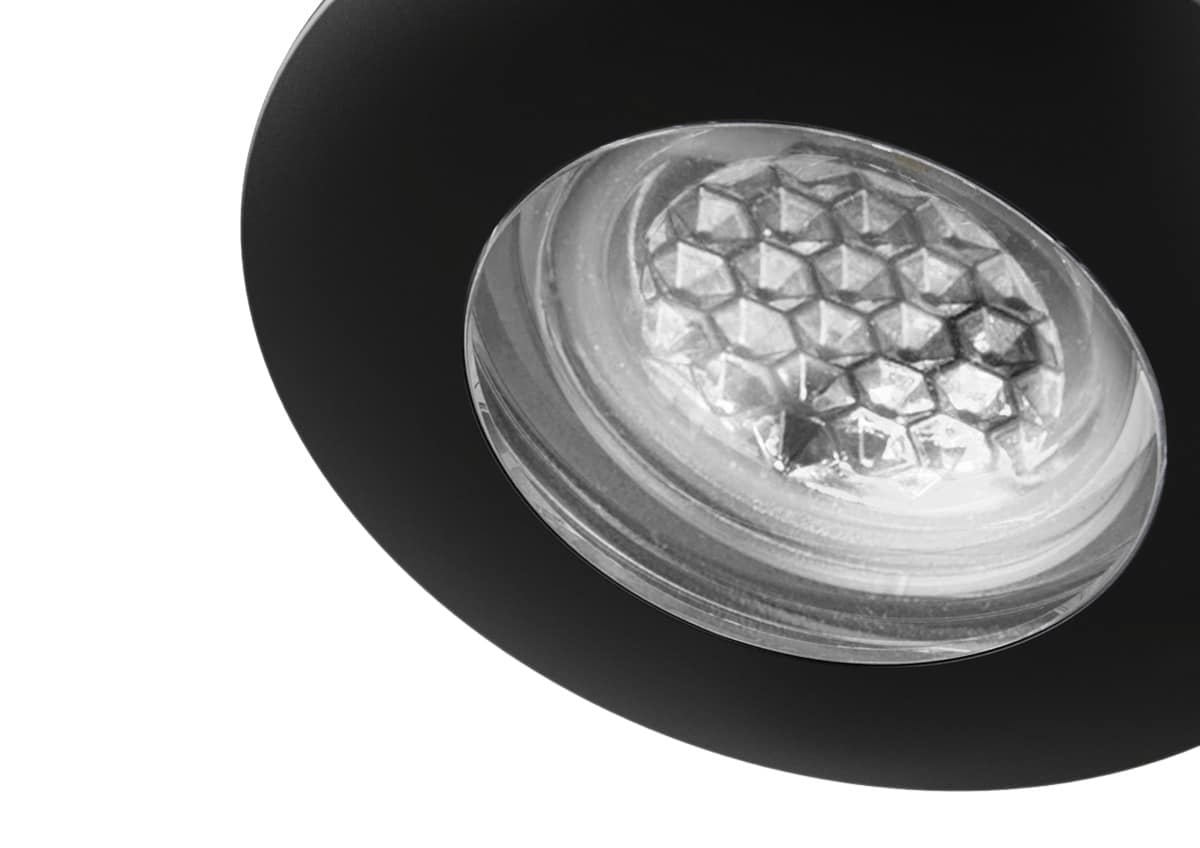

Trimless and ring options

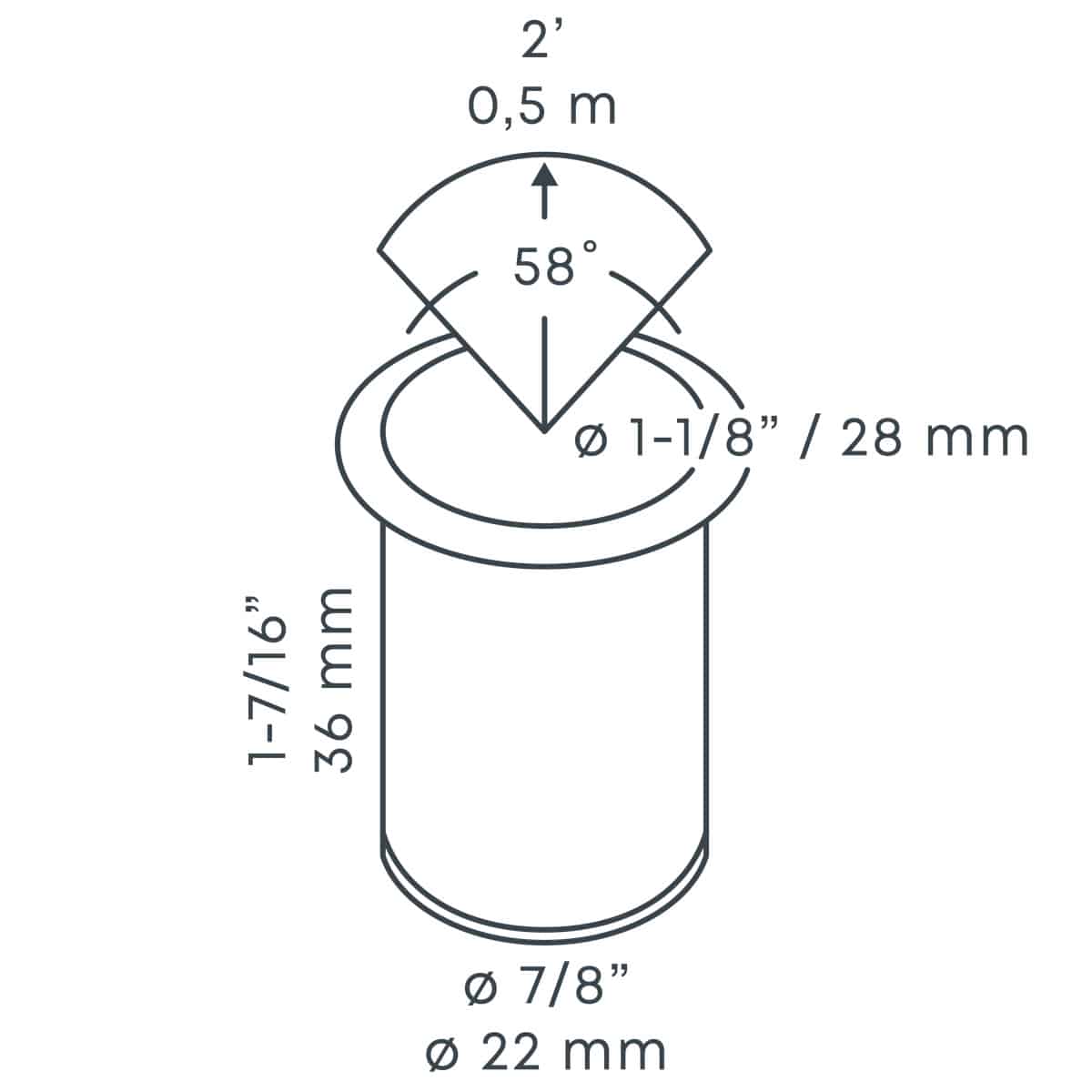

The trimless HYVE 22 is listed at 3100K. The add ring version is 3000K. Choose the exact configuration before ordering so the visible finish and light colour match the intended installation.

Compare 22mm effects

FUSION gives a diffuse marker, HYVE a honeycomb effect, and DOT a more direct point. These are alternative lighting effects rather than interchangeable replacement modules.

In-Lite FUSION 22 Diffuse 12V Recessed Light · In-Lite DOT 22 Direct 12V Recessed Path Light

Optional accessories

SPIKE 22 supports the appropriate 22mm fitting in loose ground. Select the mounting arrangement for the chosen configuration, not just the bezel diameter.

In-Lite SPIKE 22 Recessed-Light Accessory

Choose a compatible transformer

Do not connect this fitting to SMART HUB 300. Use a compatible 12V HUB with sufficient total and per output VA capacity. Compare transformers and smart controls.
