In-Lite CBL-EXT CORD Garden Light Extension Cable

In-Lite CBL-EXT CORD Garden Light Extension Cable

A genuine In-Lite fixture-side extension cable in 1m, 2m or 3m lengths for increasing the distance between a light or sensor and its EASY-LOCK connection

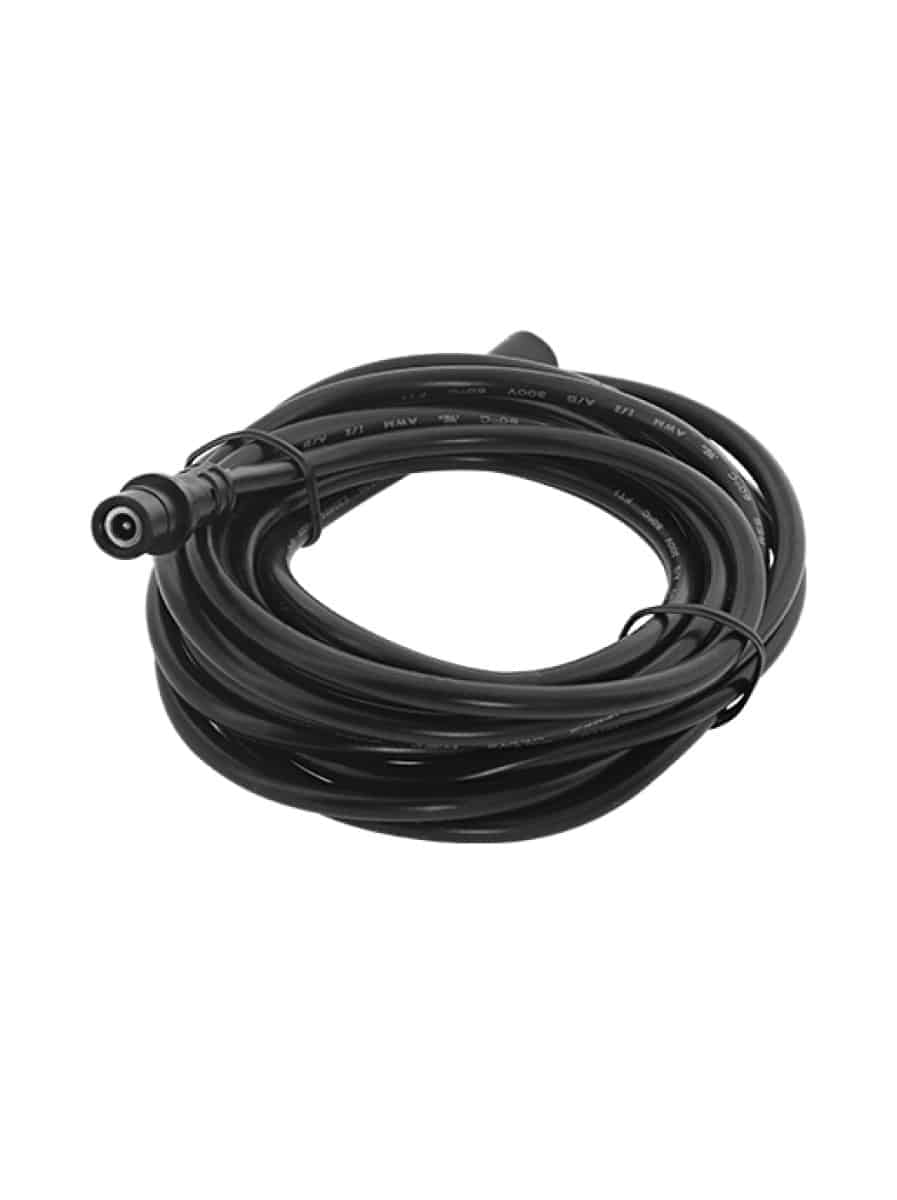

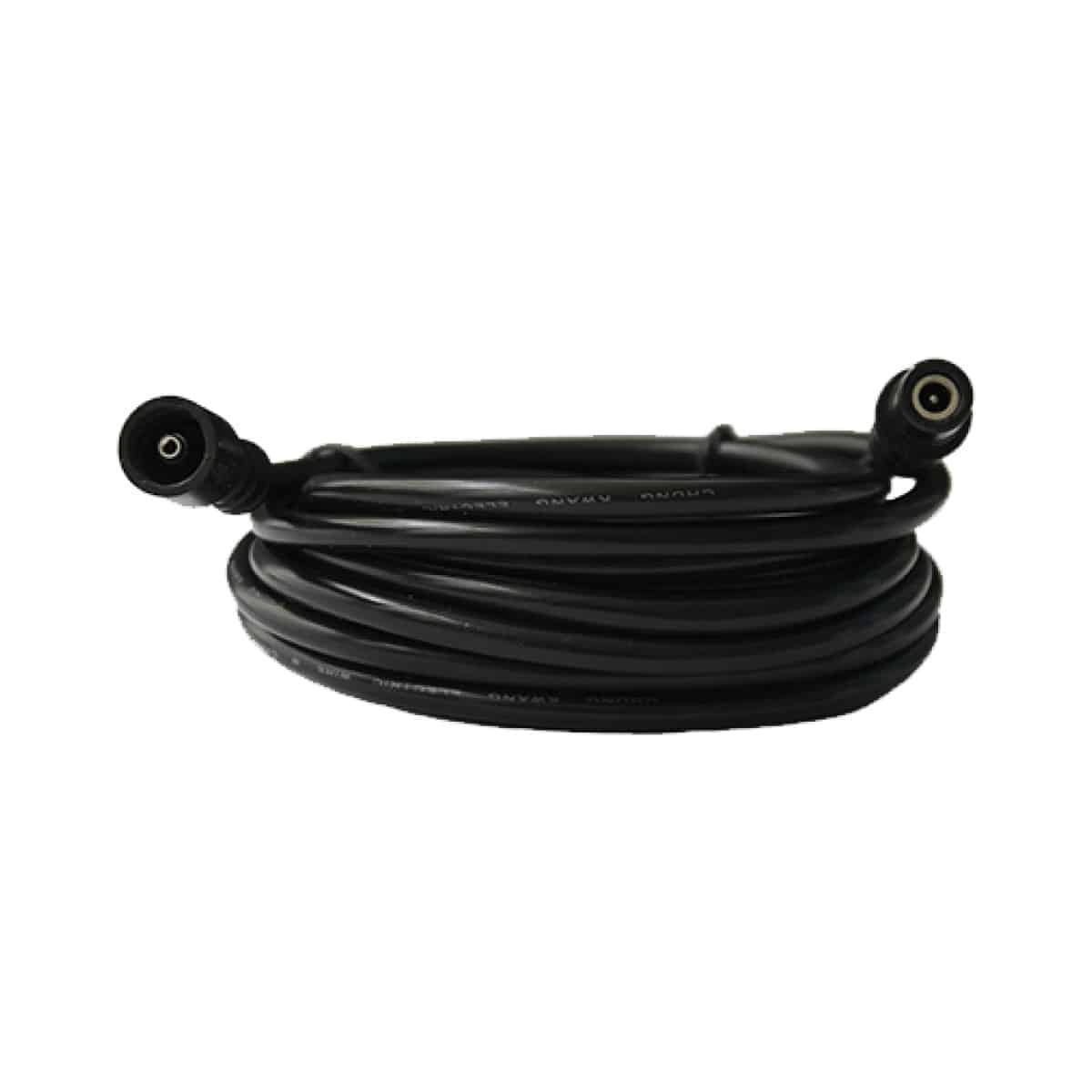

CBL-EXT CORD increases the fixture-side distance between an In-Lite light and its EASY-LOCK on the main system cable. It is available in one, two and three-metre lengths and uses the matching push-fit mini-connectors, avoiding an improvised cable joint in the garden.

How and where to use it

Fit the extension between the fitting mini-connector and the mini-connector from the EASY-LOCK. It can also extend the distance between a compatible light sensor and transformer. This is useful for wall lights, elevated fittings and carefully concealed spotlights when the main CBL route cannot reasonably pass within the length of the attached fixture cable.

Important compatibility and installation limits

The manufacturer permits the fixture-to-main-cable distance to be extended by up to four metres in total. For example, combine a 1m and 3m lead when the full four metres is required. Use the shortest practical extension and do not mistake CBL-EXT CORD for a replacement for the heavier main CBL 14/2 or 10/2 system cable.

Technical information

• Available lengths: 1m, 2m and 3m
• Cable type: fixture-side 20/2 extension
• Maximum stated total fixture extension: 4m
• Connection: matching In-Lite push-fit mini-connectors
• Can also extend a compatible light sensor connection
• Installed between EASY-LOCK and fixture
• Not a main system cable

Plan the complete In-Lite cable system

Use after a genuine EASY-LOCK and plan the main route with In-Lite CBL system cable.

Keep every connector reasonably accessible and test the complete circuit before covering cable routes or finishing hard landscaping. Contact us with the transformer, cable type and fitting list if you would like help checking compatibility.

Check the exact system connection before ordering

In-Lite CBL-EXT CORD Garden Light Extension Cable should be selected by its actual connection and job in the circuit, not by appearance alone. In-Lite main cable, fixture-side extension leads and family-specific drivers are not interchangeable simply because two plugs look similar. Check the model name and manufacturer’s instructions before ordering.

Lay out the route before burying or enclosing anything. Keep serviceable connections accessible, protect cable from sharp edges and future digging, and test the complete lighting section before the final surface is reinstated.

Related connection parts

CBL EXT CORD extends a fixture lead. A splitter creates an appropriate local connection to more than one fitting; main CBL is a separate cable.
