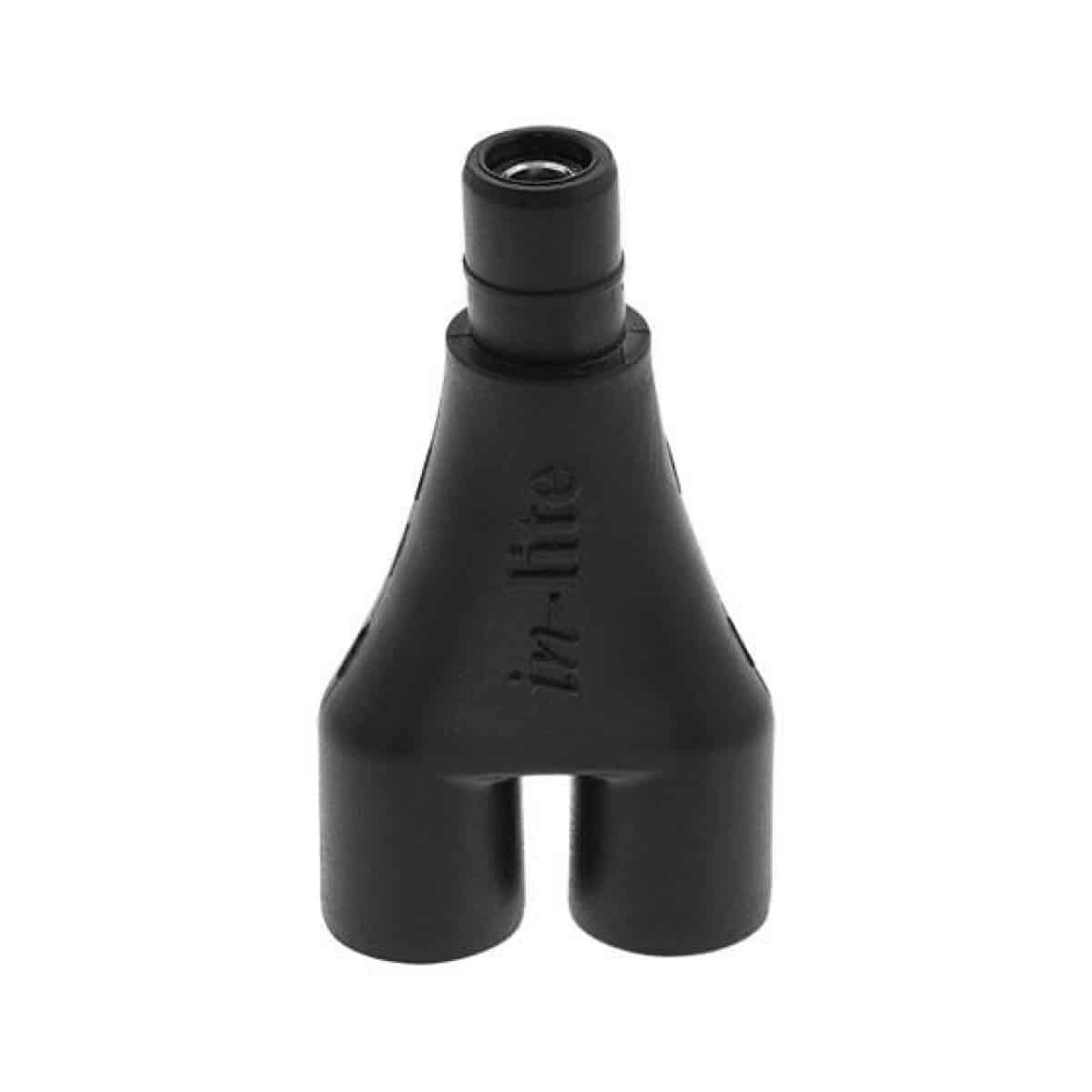

In-Lite SPLITTER Two-Way Fixture Cable Splitter

In-Lite SPLITTER Two-Way Fixture Cable Splitter

A two-way In-Lite splitter for connecting two suitable fixtures to one EASY-LOCK point or sharing one sensor between compatible transformers

The In-Lite SPLITTER provides two fixture-side connections from one compatible EASY-LOCK point. It is useful where two suitable lights need to be grouped around the same section of main cable without installing a separate EASY-LOCK for each one.

How and where to use it

Connect the SPLITTER after the EASY-LOCK, then connect the mini-connectors from the two suitable fittings. In-Lite also permits a SPLITTER to distribute one compatible light-sensor connection to multiple non-smart transformers so those transformers can switch together. Position the unit where it remains accessible above or below ground.

Important compatibility and installation limits

The combined compatible light load connected through one SPLITTER and EASY-LOCK must not exceed the manufacturer’s stated 10W limit. A maximum of five compatible transformers may share the sensor arrangement. Do not use the SPLITTER for EVO FLEX; each EVO FLEX requires its own driver and approved connection method.

Technical information

• Fixture outlets: 2
• Connection point: after one EASY-LOCK
• Maximum stated combined fixture load: 10W
• Alternative use: compatible light sensor sharing
• Maximum stated transformers on sensor arrangement: 5
• Suitable for accessible above- or below-ground placement
• Not compatible with EVO FLEX fixture splitting

Plan the complete In-Lite cable system

Choose SPLITTER TRIPLE for three suitable fixture connections, and use a genuine EASY-LOCK at the main cable.

Keep every connector reasonably accessible and test the complete circuit before covering cable routes or finishing hard landscaping. Contact us with the transformer, cable type and fitting list if you would like help checking compatibility.

Check the exact system connection before ordering

In-Lite SPLITTER Two-Way Fixture Cable Splitter should be selected by its actual connection and job in the circuit, not by appearance alone. In-Lite main cable, fixture-side extension leads and family-specific drivers are not interchangeable simply because two plugs look similar. Check the model name and manufacturer’s instructions before ordering.

Lay out the route before burying or enclosing anything. Keep serviceable connections accessible, protect cable from sharp edges and future digging, and test the complete lighting section before the final surface is reinstated.

Plan the cable route

A splitter joins suitable fixture connections. It does not replace CC2 for branching the main system cable.
