Filtreau Excellent Combi Drum 30/45 Inline L – Gravity Fed
| Brand |
|---|
The Filtreau Excellent Combi Drum 30/45 L Gravity Fed is a high capacity self cleaning drum filter designed for gravity fed koi ponds up to approximately 45000 to 50000 litres. Featuring a 120 micron stainless steel drum, industrial 130Nm SPG XL motor, integrated 80W high output UV and enlarged biological chamber supporting up to 200 litres of media, it delivers powerful mechanical and biological filtration for serious pond installations.
£4,687.50 (inc VAT)
Filtreau Excellent Combi Drum 30/45 Inline L – Gravity Fed
High Capacity Long Body Gravity Fed Drum Filter for Professional Koi Pond Systems
The Filtreau Excellent Combi Drum 30/45 L Gravity Fed is a high capacity combi drum filtration system designed for gravity fed pond installations where strong flow rates and increased biological volume are required including auto top up.
Featuring a long, heavy duty footprint, this model measures approximately 2254mm x 700mm x 1005mm. Because of its extended body design, it offers greater internal chamber capacity compared to the 30/40 series while maintaining reliable mechanical and biological performance.
This model supports gravity fed flow rates of up to approximately 50000 litres per hour. Depending on stocking levels, it is typically suited for koi ponds up to approximately 45000 to 50000 litres, with larger volumes possible in ornamental systems.
High Efficiency Mechanical Filtration with Integrated UV
At the centre of the system sits a 500mm x 400mm stainless steel drum fitted with a precision 120 micron screen. This fine mesh removes suspended solids before they enter the biological chamber. Consequently, the bio stage remains cleaner and more stable over time.
When debris restricts flow, the stainless steel float switch activates the automatic cleaning cycle. The industrial 130Nm SPG XL motor rotates the drum while high pressure spray nozzles clean the mesh. Meanwhile, the internal RVS 5 bar 600W flushing pump powers the wash cycle.
As a result, the filter maintains consistent performance with minimal manual intervention.
The integrated 80W high output stainless steel immersion UV C operates at 253.7nm. It helps control green water algae and harmful microorganisms while supporting improved water clarity without additional inline UV equipment.
Enlarged Biological Capacity and Media Configuration
The 30/45 L model features a larger biological chamber than the 25/30 and 30/40 series. While an exact factory figure is not always published, most installations utilise between 150 and 200 litres of plastic moving bed media for effective biological filtration.
For optimal performance, many systems use 100 to 150 litres of Hel-X 13 moving bed media. In addition, Japanese matting can be added in the static section to provide further biological surface area and water polishing.
Because this chamber is designed to run a substantial volume of moving media, strong and consistent aeration is essential. For this model, we recommend the Charles Austen ET150 air pump to ensure the media remains fully oxygenated and in constant motion.
The unit is supplied without Hel-X or Japanese matting. Therefore, media must be purchased separately to suit your pond’s stocking density.
The 130Nm SPG XL drive motor features double seals to prevent leaks and protect against moisture ingress. Meanwhile, the control box manages drum cleaning cycles for reliable long term operation.
Key Benefits
- High capacity gravity fed drum filter
- Suitable for koi ponds up to approx 45000 to 50000 litres
- Maximum gravity flow up to approx 50000 litres per hour
- Long body heavy duty design
- 120 micron stainless steel drum screen
- Fully automatic self cleaning operationIndustrial 130Nm SPG XL drive motor
- Internal 5 bar 600W RVS flushing pump
- Integrated 80W high output UV C steriliser
- Supports approx 150 to 200 litres of biological media
- Compatible with Hel-X 13 and Japanese matting
- 3 x 110mm inlets and 2 x 110mm outlets
- Control box supplied
- Media supplied separately
Technical Specifications
- Maximum gravity flow rate: up to 50000 litres per hour
- Suggested koi pond capacity: approx 45000 to 50000 litres

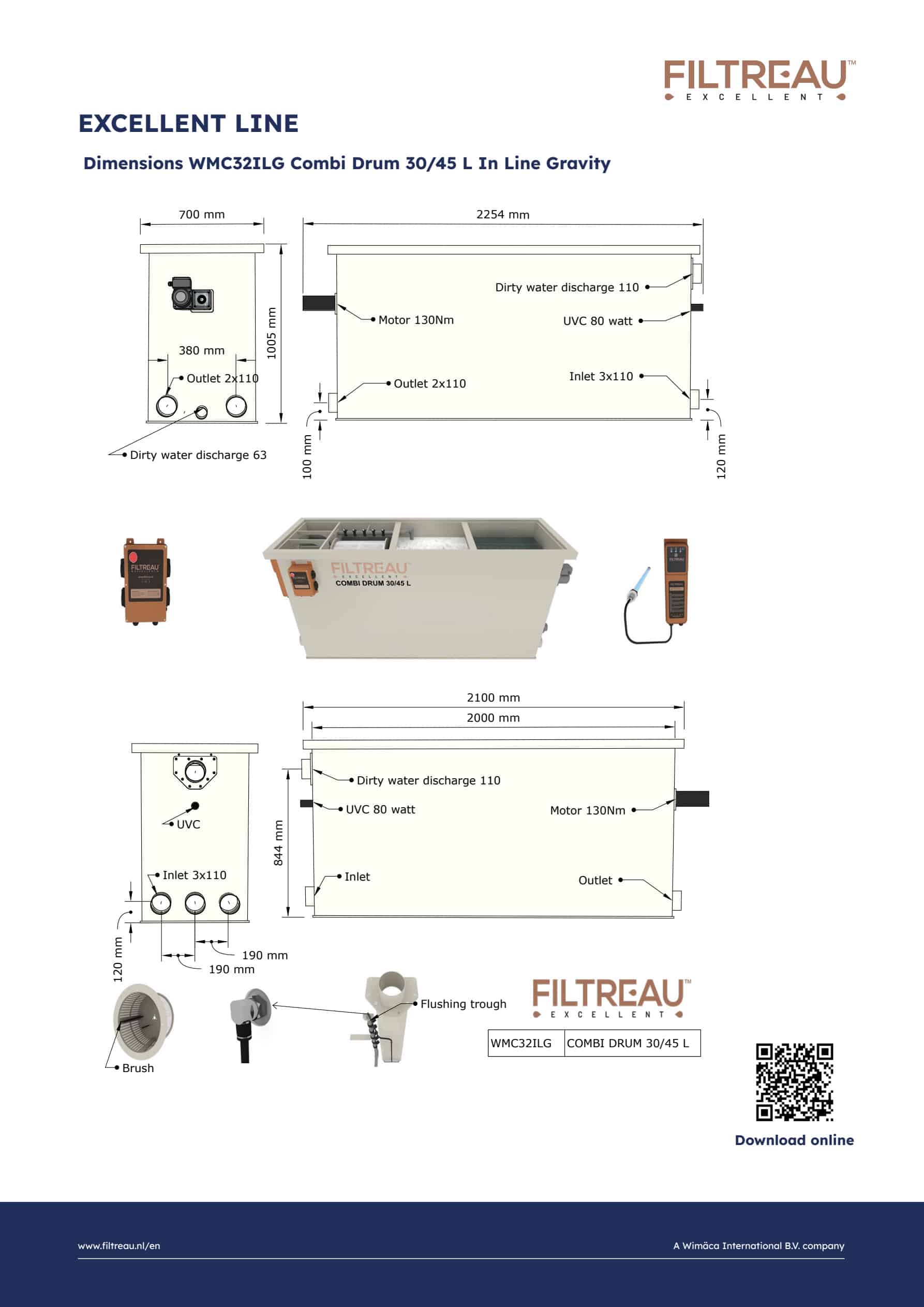

- Dimensions: 2254mm L x 700mm W x 1005mm H
- Model type: Gravity Fed
- Inlets: 3 x 110mm
- Outlets: 2 x 110mm
- Drum size: 500mm x 400mm
- Drive motor: 130Nm 60W 220V
- Flushing pump: RVS 5 bar 600W
- UV unit: 1 x 80W High Output immersion
- Control box included
- Biological media not included
- Manufacturer code: WMC32ILG
