Filtreau Excellent Bio Drum 100 – Pump Fed

Filtreau Excellent Bio Drum 100 Pump Fed

Ultra High Capacity Pump Fed Mechanical Drum Filtration for Large Koi Ponds

The Filtreau Excellent Bio Drum 100 Pump Fed is a professional mechanical drum filtration system built for large koi ponds and demanding aquatic installations. It is designed specifically for pump fed systems where an external pump delivers water directly from the pond into the filter.

Because this configuration does not rely on gravity feed, it offers flexible installation options. For example, it suits situations where the filter must sit above pond water level. At the same time, it maintains consistent high flow mechanical separation.

With a maximum flow rate of approximately 100m³ per hour, this model suits koi ponds up to around 100000 litres. However, actual capacity depends on stocking density and feeding intensity. Since the unit focuses purely on mechanical filtration, it operates best ahead of a separate biological filter such as a large moving bed or multi bay system.

By removing solids at the earliest stage, the drum prevents waste from reaching the biological filter. As a result, the downstream bio stage runs cleaner and performs more efficiently over time.

High Flow Mechanical Separation with Dual UV Clarification

At the centre of the system sits a large stainless steel drum fitted with a precision 120 micron stainless mesh screen. This fine mesh captures fish waste, uneaten food and suspended solids before they break down inside the system. Consequently, ammonia spikes reduce and water clarity improves.

As debris accumulates on the drum screen, a stainless steel float switch detects the restriction and activates the automatic cleaning cycle. The industrial SPG XL drive motor rotates the drum with 130Nm of torque. Meanwhile, high pressure spray nozzles powered by the internal RVS 5 bar flushing pump clean the mesh and flush waste directly to drain. Therefore, the filter maintains peak mechanical efficiency without manual cleaning.

In addition, the unit includes dual 80W High Output immersion UV C units operating at 253.7nm. This increased UV capacity suppresses algae growth and reduces harmful pathogens across large water volumes. As a result, pond water remains clearer and healthier even in heavily stocked systems.

After mechanical separation, water exits via 4 x 110mm outlets. It then flows to a separate biological filtration stage. Because this staged layout separates mechanical and biological processes, you can size the bio system precisely to match fish stocking levels and feeding intensity.

Overall, the Filtreau Excellent Bio Drum 100 Pump Fed delivers ultra high flow automated mechanical waste removal with integrated dual UV clarification. Therefore, it provides a strong mechanical foundation for advanced koi pond systems.

---

Key Features

• Designed for pump fed pond systems
• Suitable for koi ponds up to approximately 100000 litres
• Maximum flow rate up to approximately 100m³ per hour
• Large 120 micron stainless steel drum screen
• Fully automatic self cleaning operation
• Industrial SPG XL drive motor delivering 130Nm torque
• Internal RVS 5 bar high pressure flushing pump
• Dual 80W High Output immersion UV C units
• 7 x 110mm inlets
• 4 x 110mm outlets
• Designed to feed a separate biological filtration stage
• Control box included

---

Technical Specifications

• Model type Pump Fed Mechanical Drum
• Maximum flow rate approximately 100m³ per hour
• Suggested koi pond capacity approximately 100000 litres

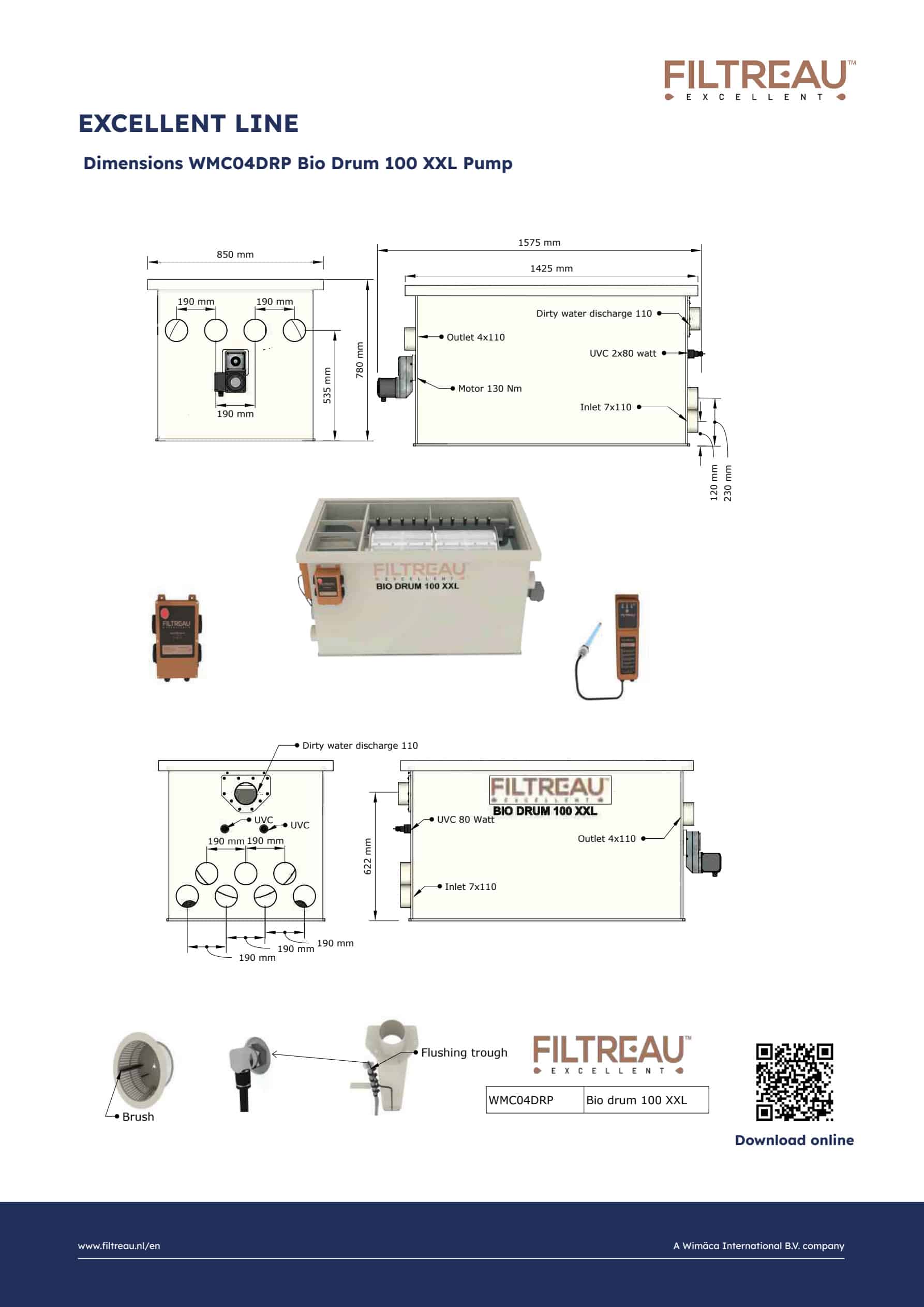

• Dimensions approximately 1463mm L x 850mm W x 880mm H
• Inlets 7 x 110mm
• Outlets 4 x 110mm
• Drive motor SPG XL 130Nm 60W 220V
• Drum size 850 x 400mm
• Mesh 120 micron stainless steel with PP frame
• Flushing pump RVS 5 bar 600W 220V
• UV units 2 x 80W High Output immersion
• Control box included
• Manufacturer code: WMC04DRP
