Evolution Aqua Nexus 220 Titanium
| Brand |
|---|
Evolution Aqua Nexus 220 Titanium combines static K1 Micro mechanical filtration and an aerated K+ moving bed with integrated UV clarification. Supplied with 50 litres of K+ media; manufacturer pond guidance up to 18,000 litres. Match the pump, air supply and installation to the pond.
When purchasing your Nexus filter from us, we include a genuine Evolution Aqua Nexus Lid at no additional cost. Ti lids and fittings must suit the exact filter version.
£1,845.00 (inc VAT)
Evolution Aqua Nexus 220 Titanium
Mechanical and moving-bed filtration with integrated UV
Includes FREE Genuine Evolution Aqua Nexus Lid. Supplied at no extra cost when purchased with this filter.
Lid compatibility: an unmodified standard Nexus 220+ lid is not a direct fit for the Ti model. Check the supplied lid and any additional fittings against the exact filter version.
For a later replacement, see the Nexus Ti lids with fixing kits and choose the 220Ti option.

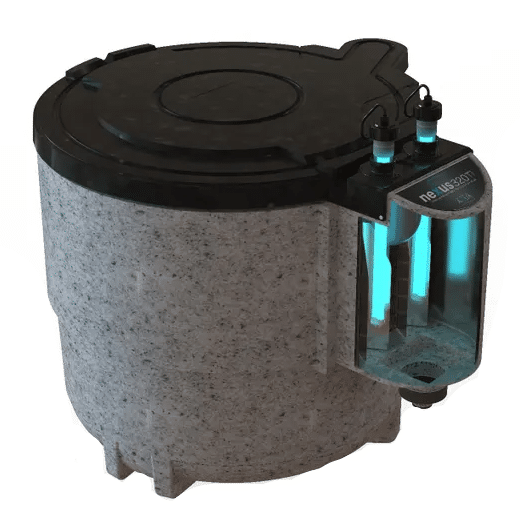

The Nexus 220 Titanium combines the 220-size mechanical and biological filter with integrated UV clarification. It is worth considering when you want the Nexus filtration layout and green-water control in the same housing, while keeping the pump, air supply and service access planned separately.
The manufacturer gives a maximum pond-volume guideline of 18,000 litres. That is a sizing guideline, rather than a guarantee for every stocking or feeding level. We would also look at the fish load, daily feed, delivered pump flow, filter maturity and cleaning access before recommending a system.
What the two media chambers do
The central Eazy section contains 18 litres of static K1 Micro media. Waste is held here during normal filtering; air is used to agitate the media during the cleaning sequence. The waste still needs to leave the system through the drain.
The outer chamber contains 50 litres of K+ moving-bed media as supplied. Air keeps it moving during filtration and supports the bacteria that process ammonia and nitrite. These bacteria need time to establish, so test the water during maturation and after changes to feeding or fish load.
| Specification | This model |
|---|---|
| Manufacturer maximum pond guidance | 18,000 litres |
| Maximum permitted filter flow | 10,000L/h |
| K1 Micro in the Eazy section | 18 litres |
| K+ supplied / maximum media volume | 50 / 150 litres |
| Integrated UV | Two UV units; match replacement parts to the supplied revision |
| Cleaning automation | Optional compatible system; auto-ready does not mean a cleaning kit is included |
Plan the pump-fed or gravity-fed layout first
In a pump-fed installation, the pump sends pond water to the filter and the return flows back by gravity. In a gravity-fed system, water enters the filter from the pond and the pump follows the filter. The working water level, standpipe arrangement, base height and return route must suit the chosen layout.
Use the instructions for the exact Ti model and UV revision when planning the layout. The Ti upgrade instructions have additional requirements for some configurations, so do not assume that every accessory for a standard Nexus transfers unchanged.
Use a level base that supports the complete water-filled filter. Leave room for the lid, waste valves, unions and routine servicing. Check the current installation drawing before building the base or ordering connecting pipework.
Choose flow for this pond
The 10,000L/h figure is a maximum filter limit. It is not a universal operating target. The standard Nexus+ manuals suggest considering pond turnover over about two to three hours, while staying within the filter limit. Select the pond pump from the flow it can deliver after lift, pipework and fittings, and measure that flow once installed.
An adjustable Evolution Aqua Varipump can help set the duty, but its maximum flow alone does not prove that a particular model suits the pond. Our pump-sizing guide explains how to allow for head and friction losses.
Air supply and additional media
The Nexus 220+ manual pairs an Airtech 75 with 50–75 litres of biological media, Airtech 95 with 75–100 litres, and Airtech 130 with 100–150 litres. Use the guidance for the actual filter and media load, and check that the whole bed is moving properly once running.
Compare Airtech air pumps and additional K+ media together. A pump’s free-air rating is not a guarantee of the air delivered through the installed air line and diffuser. Confirm the required duty before substituting another air-pump model.
UV clarification and the Ti version
The integrated UV acts on suspended green-water algae as water passes through its chamber. It does not remove settled sludge or blanketweed, and clear water is not evidence that ammonia, nitrite or oxygen levels are suitable.
Ti lamp and ballast specifications have changed between revisions. Match replacement lamps, quartz sleeves and other parts to the product label and manual for the unit supplied. The manufacturer’s September 2026 upgrade instructions use different lamps from earlier Ti material, so a single wattage claim is not reliable for every existing unit.
Isolate the equipment before servicing and follow the manufacturer’s UV safety instructions. Keep the correct UV cover and lid arrangements in place during operation.
Cleaning and automatic-kit compatibility
Auto-ready fixings allow a compatible automatic cleaning system to be added. Compare the 220 gravity-fed kit with the pump-fed cleaning kit and check the filter’s age, model and UV arrangement before choosing.
Without automation, follow the manual’s isolation, air-cleaning and waste-draining sequence. With automation, continue to check the waste outlet, valve operation, water level and replacement water. Set the interval around the actual debris load rather than assuming the filter needs no further attention.
Use pond water tests while the biology establishes and whenever feeding, fish load or filter performance changes. For installation examples and a fuller comparison, read our Nexus filter guide. You can also compare the Nexus range and the wider Evolution Aqua range.
See the Nexus 220+ installation manual for the base filter, and use the separate Ti instructions where the filter has integrated UV.
