Oase ProfiClear Premium Compact L Gravity Fed Drum Filter OC

Oase ProfiClear Premium Compact L Gravity Fed Drum Filter OC

High Performance Gravity Fed Drum Filtration for Koi Ponds

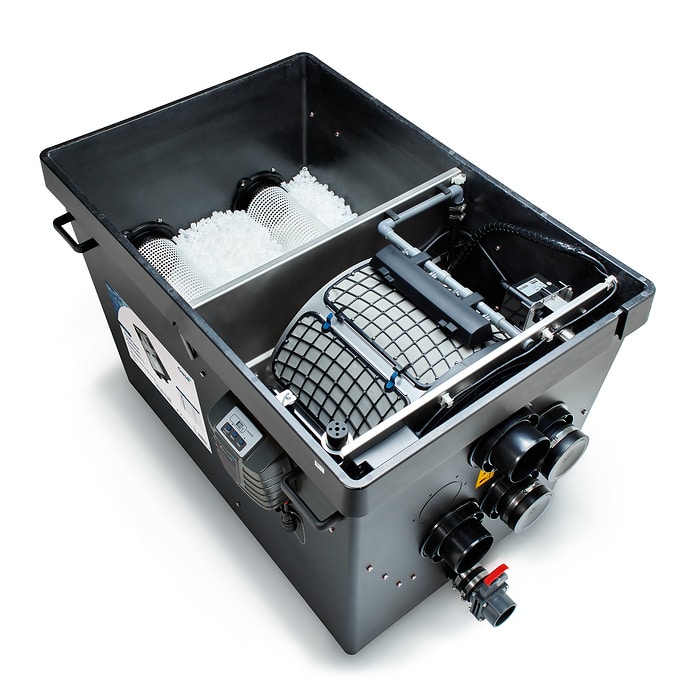

The Oase ProfiClear Premium Compact L Gravity Fed Drum Filter OC is a high performance self cleaning filtration system engineered for koi ponds and ornamental ponds up to 35 cubic metres. Designed specifically for gravity fed installations, this compact unit combines powerful mechanical filtration with advanced biological processing. As a result, it delivers exceptional water clarity while maintaining stable biological balance.

By integrating a stainless steel drum screen with Hel X 13 moving bed biological media, the Compact L provides both immediate debris removal and continuous pollutant breakdown. Therefore, it is particularly well suited to dedicated koi ponds where water quality and stability are critical.

Intelligent Drum Technology with Integrated Moving Bed Filtration

At the core of the system sits a 60 micron stainless steel drum screen. As water flows by gravity from bottom drains and skimmers into the drum chamber, the screen captures solid waste, uneaten food and fine suspended particles. Consequently, mechanical filtration occurs before water enters the biological stage.

When debris accumulation begins to restrict flow, the integrated controller activates the automatic cleaning cycle. High pressure spray jets then rinse the drum surface and flush collected sludge into the waste channel. As a result, the system continues operating without manual cleaning or interruption.

Following mechanical filtration, water enters the integrated moving bed chamber filled with Hel X 13 bio media. This high surface area media supports beneficial bacteria growth, which breaks down ammonia, ammonium and nitrite. Therefore, biological filtration remains efficient even under higher stocking densities.

The unit includes a digital control system with temperature display for accurate monitoring. In addition, it is fully compatible with the Oase Control system, allowing app based monitoring and adjustments. Furthermore, the insulated housing reduces operational noise, making it ideal for residential garden installations.

Key Features

• Self cleaning stainless steel drum filtration
• 60 micron mechanical filtration as standard
• Designed for gravity fed installations
• Integrated Hel X 13 moving bed biological chamber
• Fully automated drum cleaning system
• Suitable for ponds up to 35 m³
• Digital control unit with temperature display
• Oase Control App compatible
• Modular integration with ProfiClear Premium systems
• Quiet operation with insulated housing
• Durable construction for long term reliability

Technical Specifications

• Installation type: Gravity fed system
• Maximum pond size: 35 m³
• Mechanical filtration: Stainless steel drum screen
• Screen size: 60 micron
• Biological filtration: Hel X 13 moving bed media
• Control system: Integrated digital controller
• Temperature monitoring: Built in sensor
• •App connectivity: Oase Control compatible
• Construction: High durability insulated housing

Technical information

• Match the pump flow to the filter and pond volume, allowing for head height and pipework losses.
• Keep unions, valves and waste outlets accessible for cleaning and maintenance.
• Use suitable hose, pressure pipe or DN discharge pipework where specified by the manufacturer.
• Check compatible UV bulbs, quartz sleeves, media and spare parts before the pond season starts.

Plan this product as part of the complete filtration layout, rather than as an isolated item. Check the recommended flow rate, inlet and outlet sizes, waste connection, access for cleaning and the space needed for routine servicing before installation. A well matched filter system is easier to maintain and gives more reliable water clarity over the long term.

Filter setup notes

Compatible Oase Discharge Pipework

This Oase product uses DN-sized outlet or sludge-discharge connections, so it is worth planning the pipework before installation. Use the matching DN pipework for the connection size stated on the exact filter or module, and avoid reducing gravity outlets unless the system has been designed for it.
