Oase Bitron Eco 120 Watt UVC

Oase Bitron Eco 120 Watt UVC

Intelligent High Output UVC Clarifier with Eco Control for Large Pond Systems

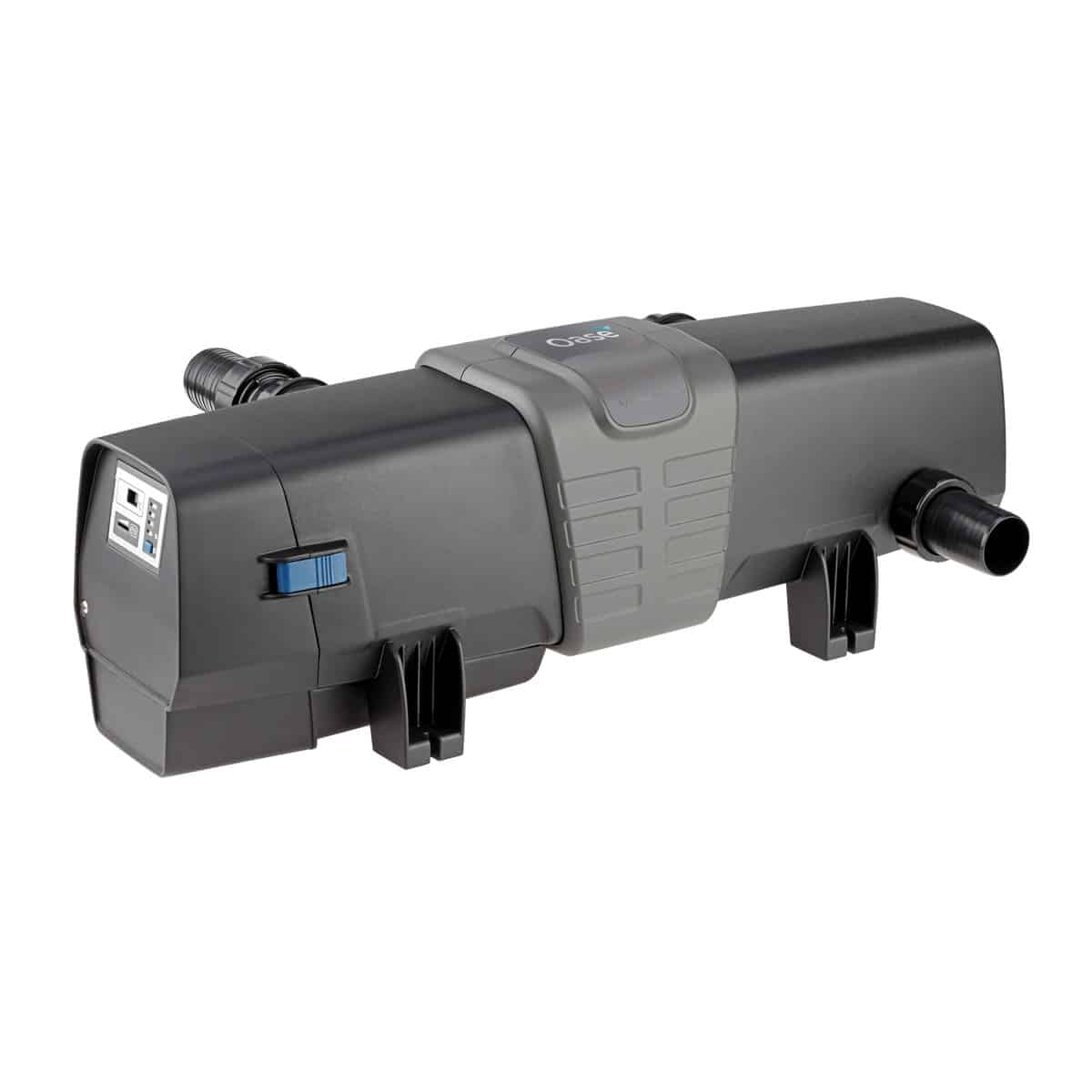

The Oase Bitron Eco 120 Watt UVC is a high performance ultraviolet clarifier designed for large koi and ornamental ponds where maximum efficiency and intelligent energy control are essential. It removes floating algae, reduces harmful bacteria and clears turbid water while optimising energy consumption throughout the season.

Unlike conventional UV units, the Bitron Eco 120W features intelligent eco control technology. The system automatically adjusts irradiation time depending on seasonal demand. As a result, it can reduce power consumption by up to 50% during cooler months while still maintaining effective algae control.

Eco Control Technology and Energy Efficiency

The unit uses dual 60 watt UVC lamps developed in collaboration with Philips. These lamps offer an extended service life of up to 12000 hours, which is approximately 50% longer than standard UV bulbs. Consequently, you benefit from reduced maintenance costs and fewer bulb replacements.

The high volume housing increases water retention time within the irradiation chamber. Because of this extended exposure, the unit delivers highly effective treatment of suspended algae and harmful microorganisms even at flow rates of up to 50000 litres per hour.

An intelligent automatic bypass regulation system adjusts internal water distribution based on flow rate changes. Therefore, the Bitron Eco maintains optimal UV exposure whether the system operates at minimum or maximum flow.

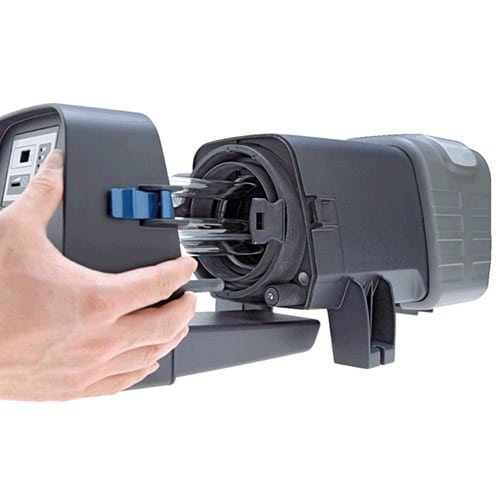

Maintenance remains straightforward. The automatic cleaning rotor continuously cleans the quartz sleeves, preventing limescale and debris build up. In addition, the lamp can be replaced easily without dismantling the quartz glass, which reduces servicing time.

The digital display provides clear information including lamp status and water temperature. With IP68 protection, the unit can be installed directly beside or even partially in the pond. It integrates seamlessly with Oase ProfiClear, BioTec 30 and BioTec ScreenMatic² filtration systems.

Key Benefits

• Suitable for large koi and ornamental pond systems
• Dual 60 watt UVC lamps with 12000 hour lifespan
• Intelligent eco control system reduces energy use by up to 50%
• Automatic bypass regulation adapts to flow rate changes
• Effective at flow rates up to 50000 litres per hour
• High volume housing increases water retention time
• Automatic cleaning rotor prevents limescale build up
• Digital display with lamp change indicator and temperature display
• IP68 rated for direct pond side installation
• Compatible with ProfiClear, BioTec 30 and BioTec ScreenMatic²
• 2 + 1 year guarantee

Technical Specifications

• Dimensions: 725 x 227 x 248 mm
• Rated voltage: 220 to 240 V 50 to 60 Hz
• Power consumption: 120 watts
• Lamp configuration: 2 x 60 watt UVC
• Estimated UVC operating time: 12000 hours
• Minimum flow rate: 10000 litres per hour
• Maximum flow rate: 50000 litres per hour
• Maximum operating pressure: 1 bar
• Inlet conConnections: 38 mm and 50 mm 1½ inch and 2 inch
• Outlet conConnections: 38 mm and 50 mm 1½ inch and 2 inch
• Power cable length: 5 metres
• Net weight: 7.75 kg
• Cleaning system: automatic rotor
• Bypass control: automatic
• Housing: impact resistant plastic

Technical information

Best results in the pond

Oase Bitron Eco 120 Watt UVC should be used as part of a sensible water quality routine. Treatments work best when the pond is correctly filtered, well aerated and tested regularly. Before adding any pond treatment, check the pond volume, read the dosage instructions and consider recent changes such as heavy rain, filter cleaning, medication, water changes or new fish.

• Measure the pond volume as accurately as possible before dosing.
• Use water tests to understand the problem before treating.
• Keep filters and aeration running unless the product instructions say otherwise.
• Allow time for the pond to respond before repeatedly adding more product.

Good pond care is usually a combination of filtration, testing, sensible feeding and the correct treatment at the right time. That approach gives more reliable results than treating symptoms without checking the cause.
