Water Wall Blade

Water Wall Blade

A discreet stainless steel outlet for a cascading water wall

Temporary made to order lead time: Due to exceptionally high demand at the Water Blades factory, these stainless steel water blades are currently being made to order. Please allow up to 3 weeks for manufacture and dispatch. This is temporary, and we will always aim to send sooner wherever possible.

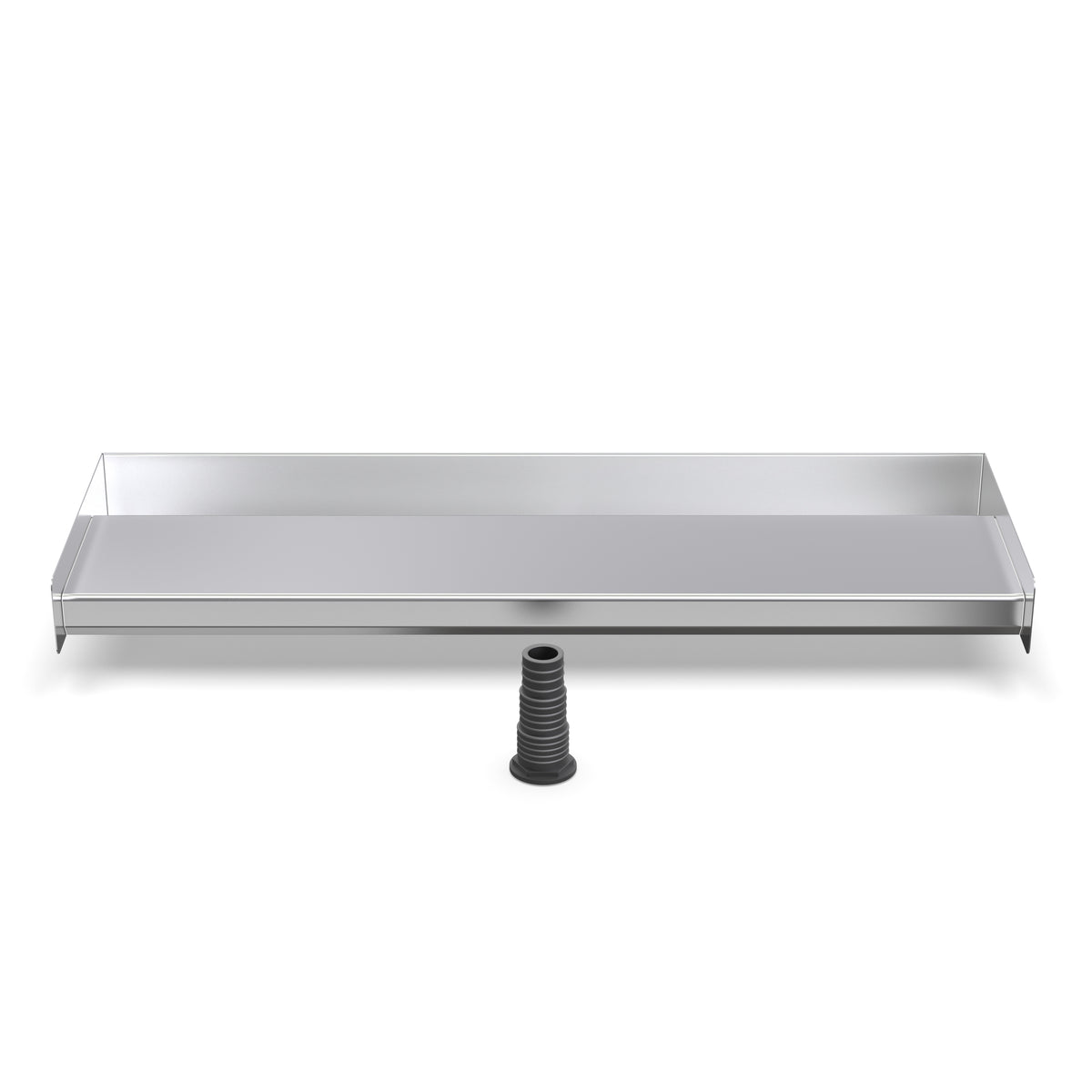

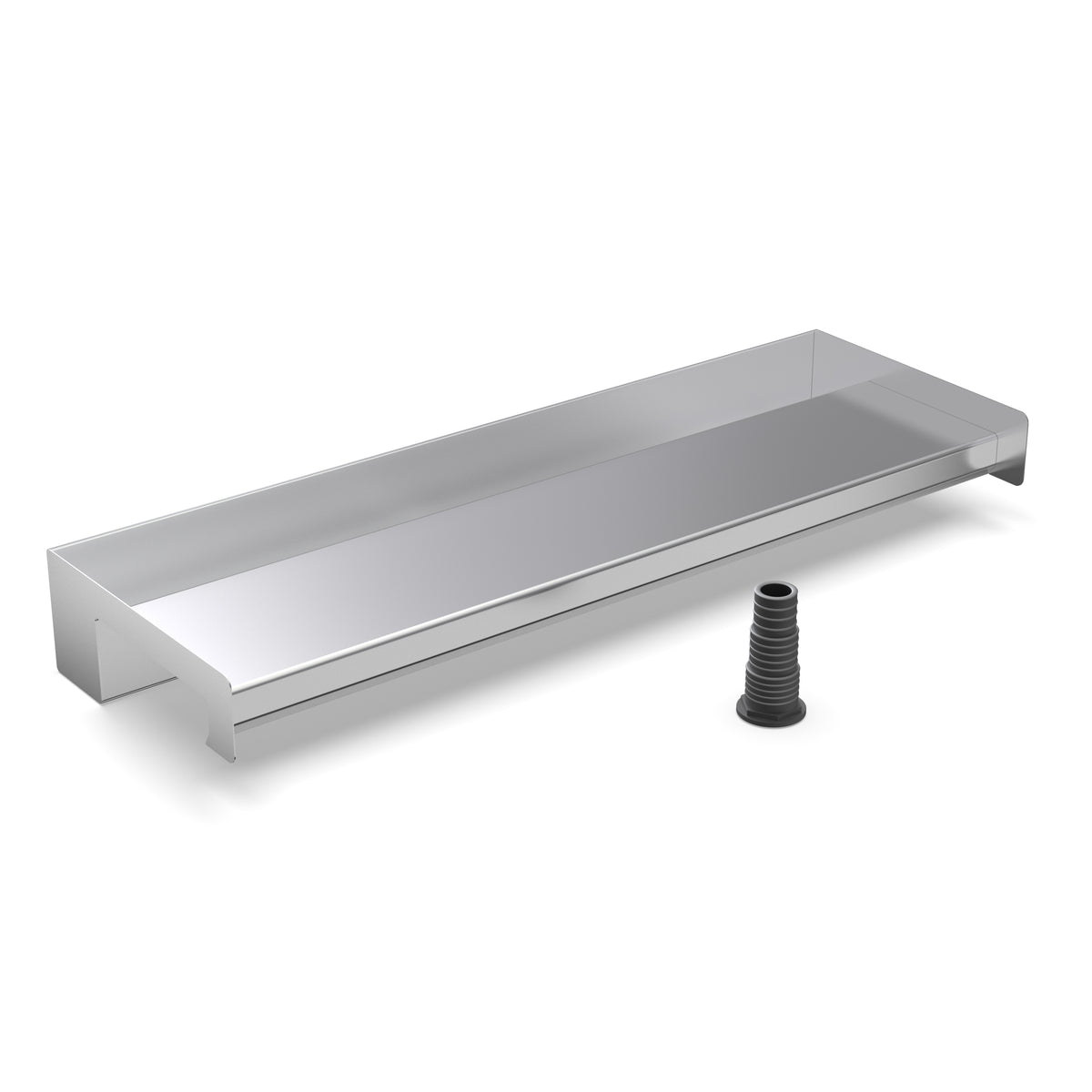

The Water Wall Blade feeds water down the face of a feature wall. Its front lip is intended to finish flush with the face of the structure, with the body fitted in or behind the wall. It is a useful choice when the wall surface itself is part of the water display. Plan the wall finish, waterproofing and collection basin together before fixing the blade in position.

Made by Water Blades in Sheffield, UK, this stainless steel feature is designed to be incorporated into your own pond or water-feature installation.

Choose the right size and connection

Available outlet sizes on this page: 750, 1000mm. Select the exact option above before adding it to your basket.

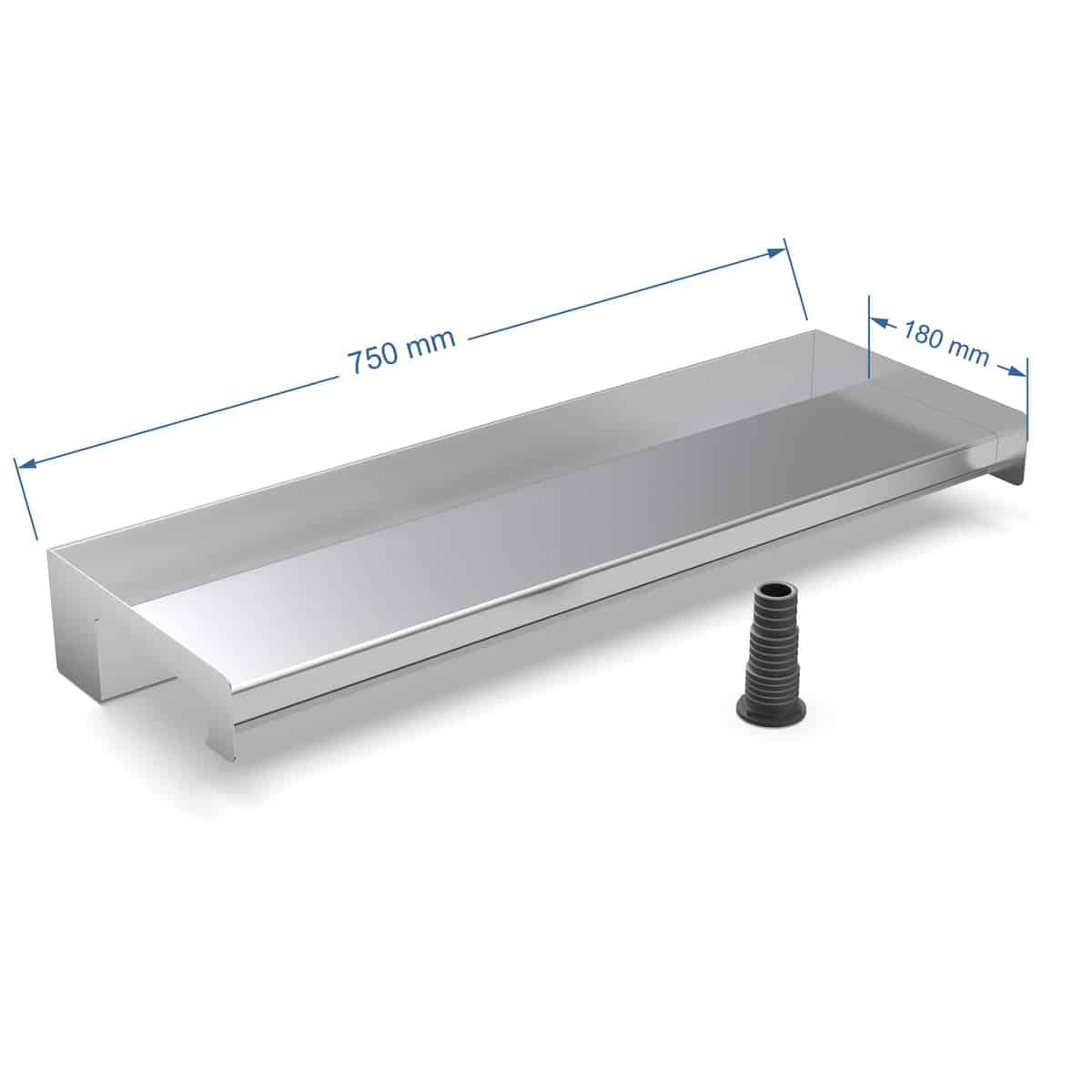

The 180mm projection is confirmed by the supplier’s description and illustrated 750mm model. The inlet is a 1¼-inch BSP threaded socket, supplied with a stepped hosetail for 25, 32 or 38mm flexible pond hose. Confirm the complete body height, depth and installation recess with us before building the wall.

Plan the installation

Position the blade on a rigid, level support and check the finished wall or coping line before fixing it. Route the supply without tight bends, leave access to the inlet and provide room to remove the fitting later. Connect and test the water flow before permanently enclosing the body.

A rear inlet needs clearance behind the blade. A bottom inlet needs room below it for the fitting and pipe bend. For a stand-alone feature, provide a reservoir that catches the whole fall and splash area and keeps the pump adequately submerged while running.

Pump selection and water flow

Choose a pump from its flow curve at the working lift, allowing for hose length and bends. A headline maximum litres-per-hour figure is measured under different conditions from most installed features. The vertical lift is measured from the pond or reservoir water surface to the outlet.

Variable flow makes adjustment easier during commissioning. Start gently and increase the flow while checking the full outlet, the landing position and the splash area. Wider outlets and longer pipe routes need particular attention. Send us the selected blade size, lift and pipe route if you need help choosing a pump.

Care and seasonal use

Wipe the stainless steel regularly with a soft cloth and remove deposits before they build up. Avoid chlorine-based cleaners; stainless steel can stain or corrode, particularly with salt exposure. Keep cleaning residues out of the pond. If shutting the feature down for winter, drain and dry the blade and exposed pipework.

Useful checks before ordering

Check the selected size, the fixing space, the pipe connection and the collection area together. Gallery photographs show examples of the range; use the size table and selected option for your order. Pumps, reservoirs and surrounding landscaping shown in installation photographs are not included with the blade.

Size options and product codes

Codes for the options sold on this page

Option	Product code
750mm Back	WWB750BK-1
750mm Bottom	WWB750BOT-1
1000mm Back	WWB1000BK-1
1000mm Bottom	WWB1000BOT-1
