Corner Water Blade

Corner Water Blade

Temporary made to order lead time: Due to exceptionally high demand at the Water Blades factory, these stainless steel water blades are currently being made to order. Please allow up to 3 weeks for manufacture and dispatch. This is temporary, and we will always aim to send sooner wherever possible.

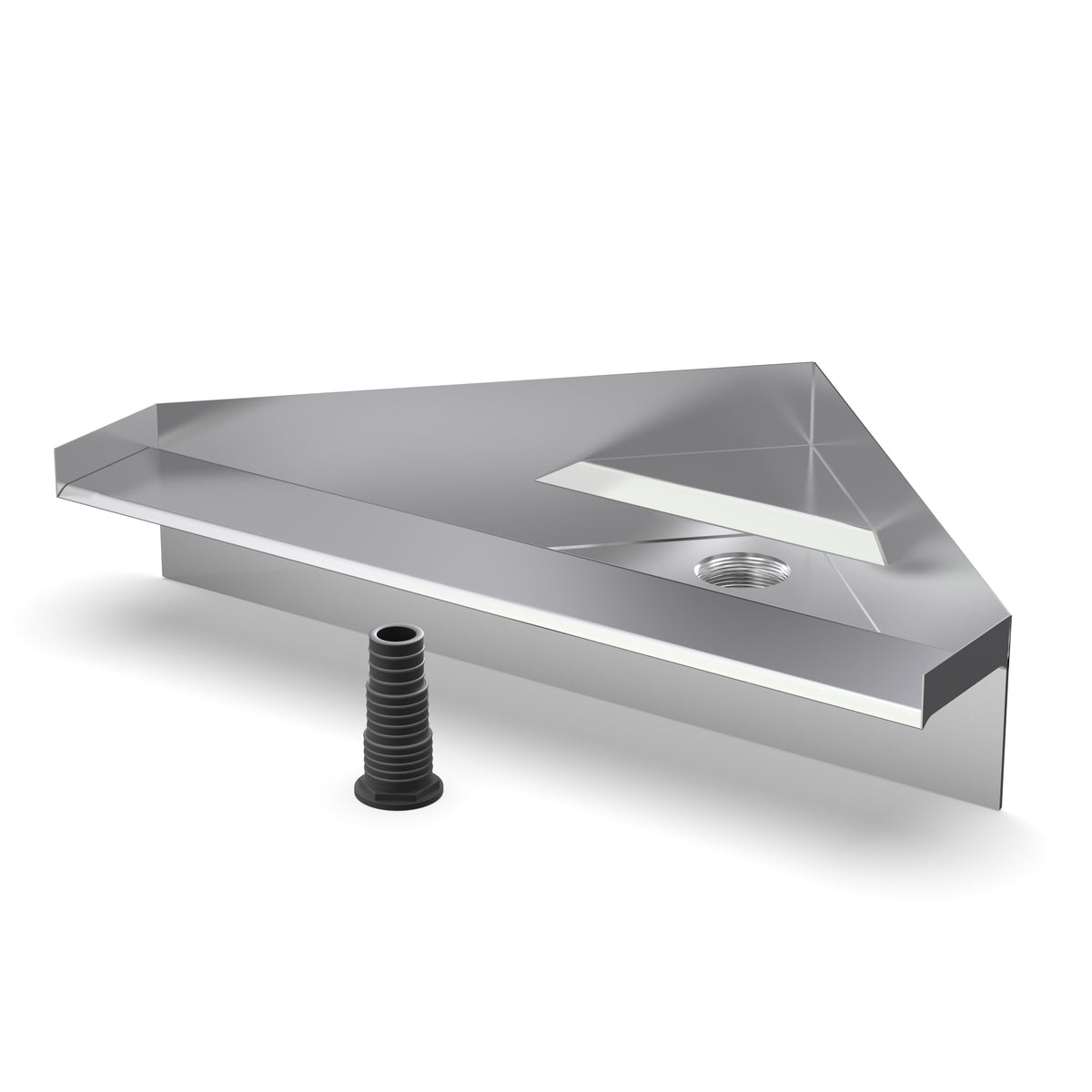

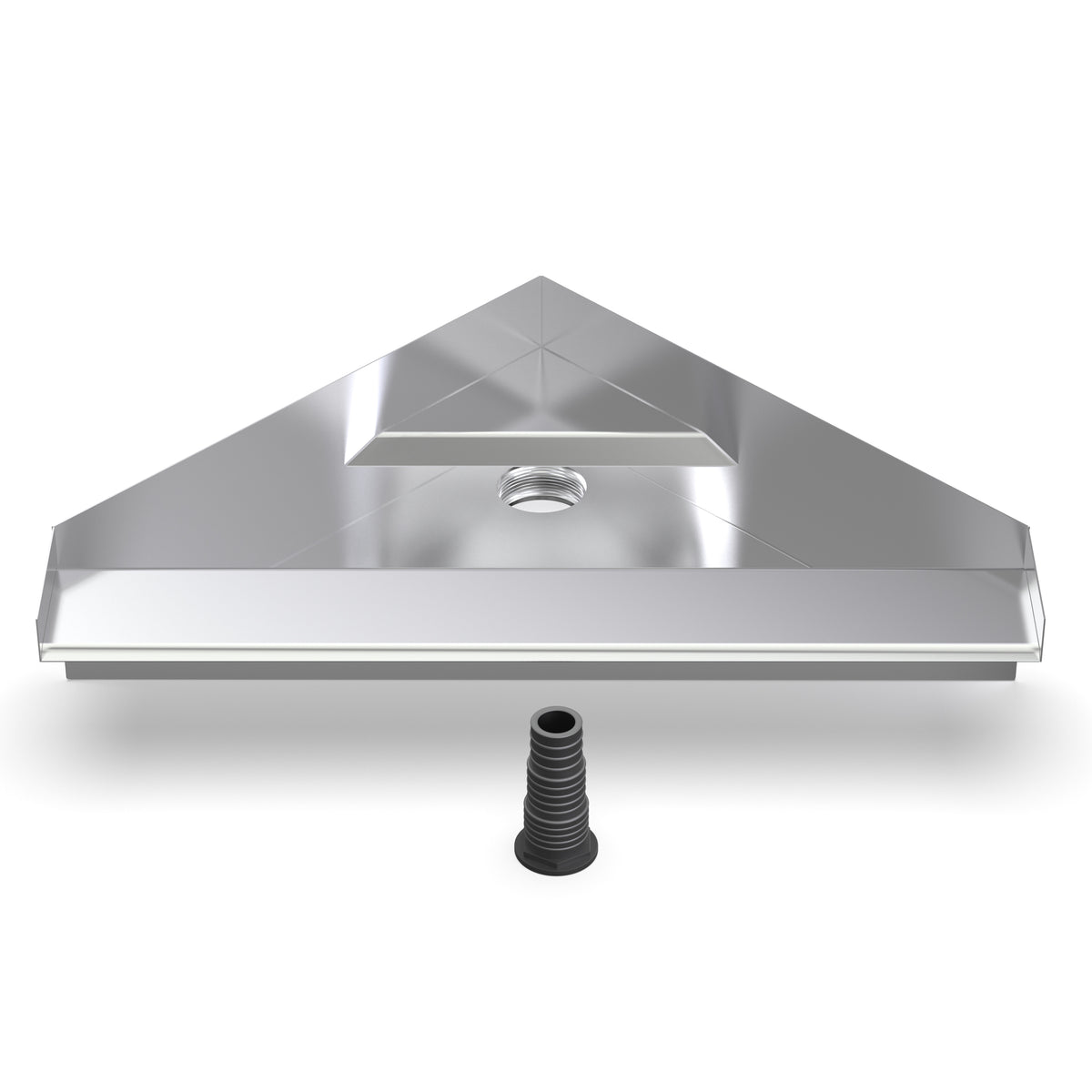

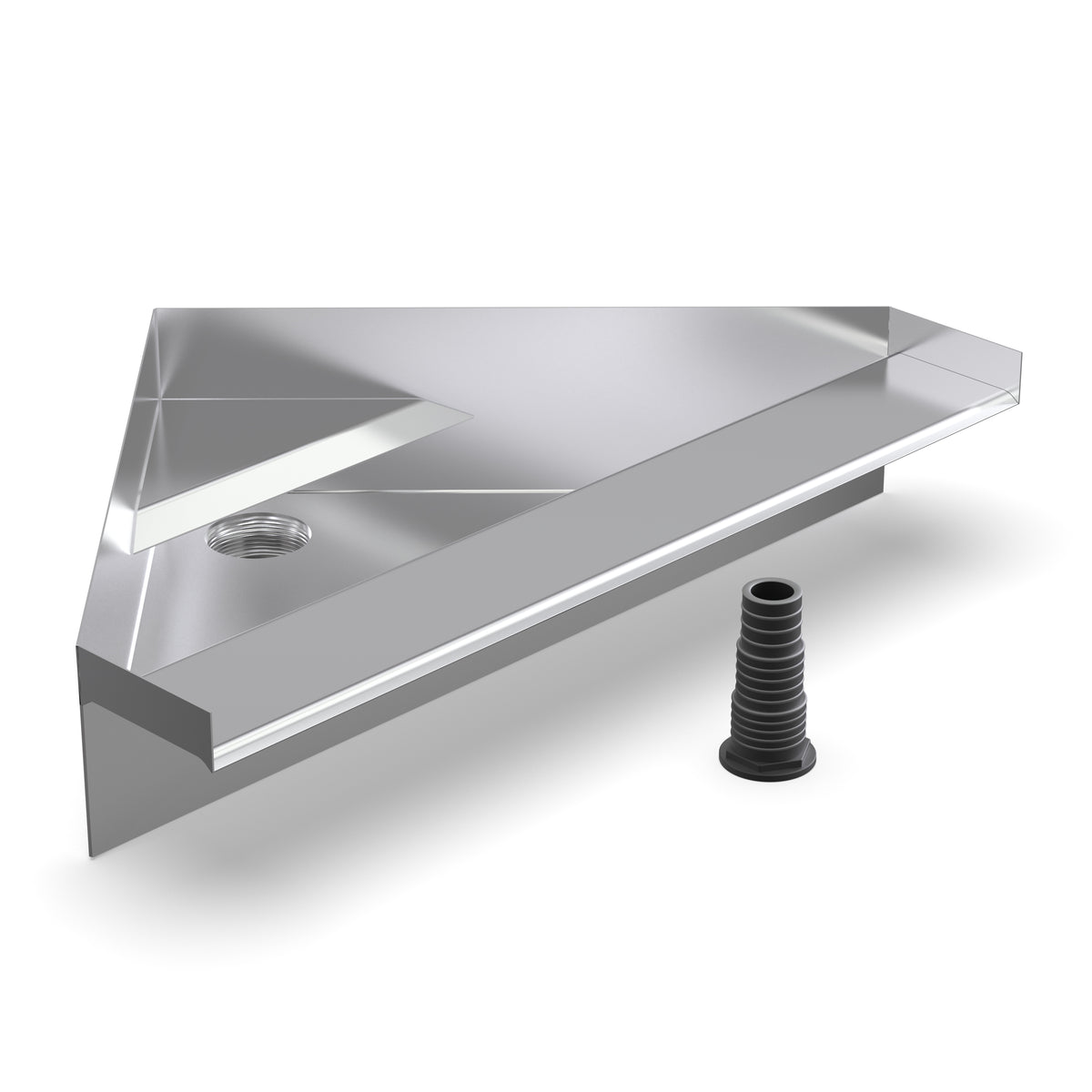

The Stainless Steel Corner Water Blade is a beautifully engineered feature designed to bring elegance and sophistication to any pond, pool, or garden landscape. Perfect for both modern and traditional outdoor spaces, this unique design allows you to install a waterfall neatly into a corner, making the most of your space while creating a striking focal point.

Available in widths from 200mm to 600mm, the Corner Water Blade offers versatility for a range of projects, whether you want a subtle water accent or a bold, dramatic cascade. Its 60mm spout projection delivers a smooth, consistent sheet of water, ideal for enhancing the tranquillity of your outdoor environment.

Every Corner Water Blade is handcrafted in the UK from high-quality polished stainless steel, ensuring durability, corrosion resistance, and a premium finish that reflects light beautifully. Each blade is designed to withstand the elements while maintaining its sleek, modern appearance for years to come.

Installation is made simple and secure, with each unit supplied complete with a plastic threaded hosetail with O-ring and stainless steel screws with cup washers for a professional fit. Designed in 2016, the Corner Water Blade underwent years of rigorous testing and performance checks before its official launch in 2019, ensuring it meets the highest standards of quality and reliability.

As proud members of the Made in Sheffield brand, our commitment to craftsmanship is evident in every product. We also provide custom manufacturing to order, so if your project requires bespoke dimensions or design, we can tailor the waterfall to meet your exact needs.

Key Benefits

• Space-saving corner design – Ideal for fitting waterfalls into compact or angular spaces.
• Durable stainless steel construction – Made from polished stainless steel for strength and corrosion resistance.
• Smooth water projection – 60mm spout delivers a consistent, elegant sheet of water.
• Complete installation kit – Includes hosetail, O-ring, screws, and cup washers.
• Custom sizes available – Choose widths from 200mm to 600mm or request bespoke options.
• Handcrafted in the UK – Premium Made in Sheffield quality with rigorous testing.

Technical Specifications

• Spout Length: 60mm
• Full Height: 95mm
• Height to Spout: 68.5mm
• Spout Width: 200mm
• Overall Width: 200mm
• Full Length/Depth: 200mm
• Base Length/Depth: 100mm
• Inlet Size: 1.25″ BSP Threaded Socket
• Inlet Position: Bottom

Bring a sleek, stylish, and space-efficient design to your pond or garden with the Corner Water Blade – expertly crafted for long-lasting beauty and reliable performance.

Pump and flow rate guidance

Water blade pump sizing is one of the most common areas where people get caught out. The important figure is not simply the maximum flow printed on the pump box, but the actual flow reaching the water blade after vertical lift, hose size, bends and fittings have all taken effect. As a guide, allow around 1,250 litres per hour for every 100mm of blade width for a strong, even sheet of water. Wider blades and longer spout projections need more water to keep the sheet full and consistent.

Blade width	Suggested starting flow at the blade
200mm	Approx. 2,500 LPH
300mm	Approx. 3,750 LPH
400mm	Approx. 5,000 LPH
500mm	Approx. 6,250 LPH
600mm	Approx. 7,500 LPH

Because head height can reduce the delivered flow significantly, we strongly recommend choosing a controllable pump where possible. A variable flow pond pump lets you oversize slightly to overcome losses, then turn the flow down until the blade looks right. Good options include the Evolution Aqua Varipump 10000, PondXpert VariFlow SINE 10000 and AquaForte DM Vario S 10000, depending on the width of the blade and the height of the installation.

Hose, clips and installation extras

Most pump-fed water blades work best with a short, neat run of correctly sized flexible pond hose. For simple installations, standard flexible pond hose is usually suitable. For higher flow rates, longer runs or where you want to reduce friction losses, the heavy duty flexible pond hose is the better option because the smoother bore helps maintain more of the pump’s output.

Always secure hose tails with suitable stainless steel clips. These products are supplied with hosetail fittings depending on the model, but the hose and clips should be chosen to match your pump and pipework layout. We recommend using stainless steel hose clips on flexible hose connections, especially where the blade is built into a wall and access may be awkward later. A pair of 20-50mm stainless steel hose clips has also been added as an optional extra on the pump-fed water blade pages for convenience.
