Water Blade 300mm Spout

Water Blade 300mm Spout

A long projecting spout for deeper walls and coping

Temporary made to order lead time: Due to exceptionally high demand at the Water Blades factory, these stainless steel water blades are currently being made to order. Please allow up to 3 weeks for manufacture and dispatch. This is temporary, and we will always aim to send sooner wherever possible.

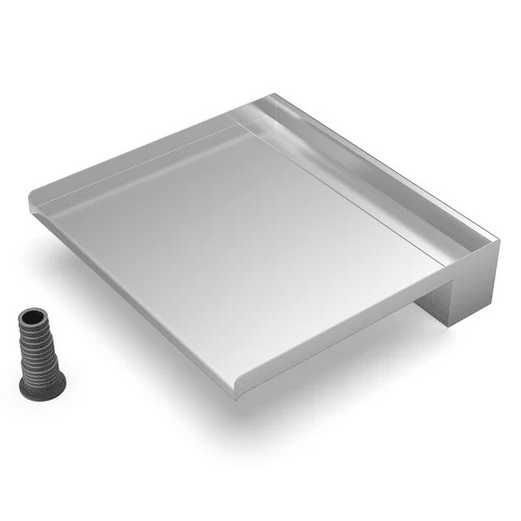

This stainless steel blade creates a continuous sheet of water from a straight outlet. The spout measurement in the product name describes the physical projection from the body; the selected width determines the span of the waterfall. Plan both measurements together so the outlet clears the finished wall or coping and the water lands inside the pond or reservoir.

Made by Water Blades in Sheffield, UK, this stainless steel feature is designed to be incorporated into your own pond or water-feature installation.

Choose the right size and connection

Available outlet sizes on this page: 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1500mm. Select the exact option above before adding it to your basket.

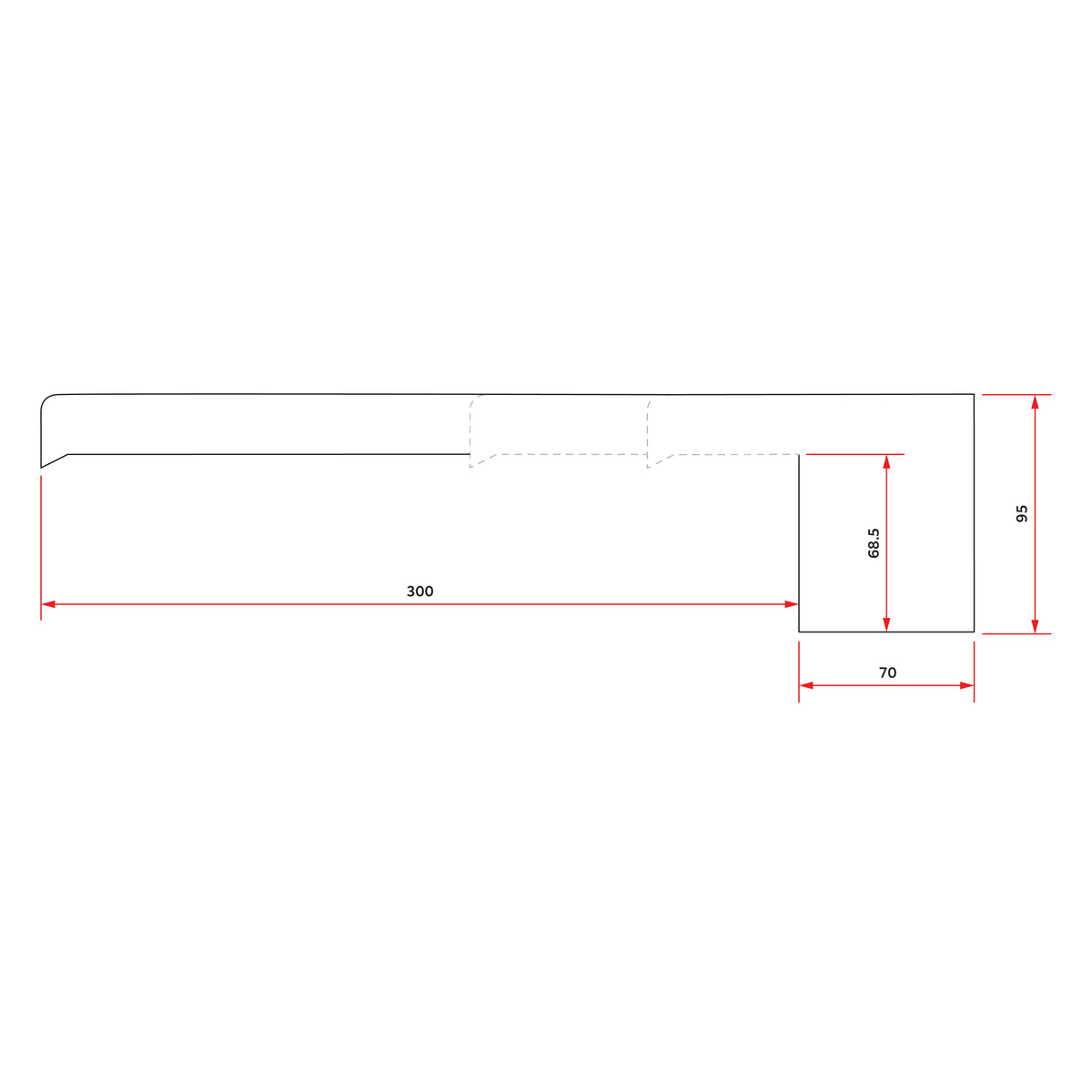

Spout projection: 300mm. Height to outlet: 68.5mm. The table describes the blade body; leave additional space for the inlet fitting and hose. Both rear and bottom inlet options are listed on this page.

The 1¼-inch BSP threaded socket accepts the supplied hosetail for 25, 32 or 38mm hose.

Widths below 800mm have one inlet; 800–1200mm models have two, and the 1500mm model has three. Plan a balanced feed to every inlet so the full outlet receives water evenly.

Plan the installation

Position the blade on a rigid, level support and check the finished wall or coping line before fixing it. Route the supply without tight bends, leave access to the inlet and provide room to remove the fitting later. Connect and test the water flow before permanently enclosing the body.

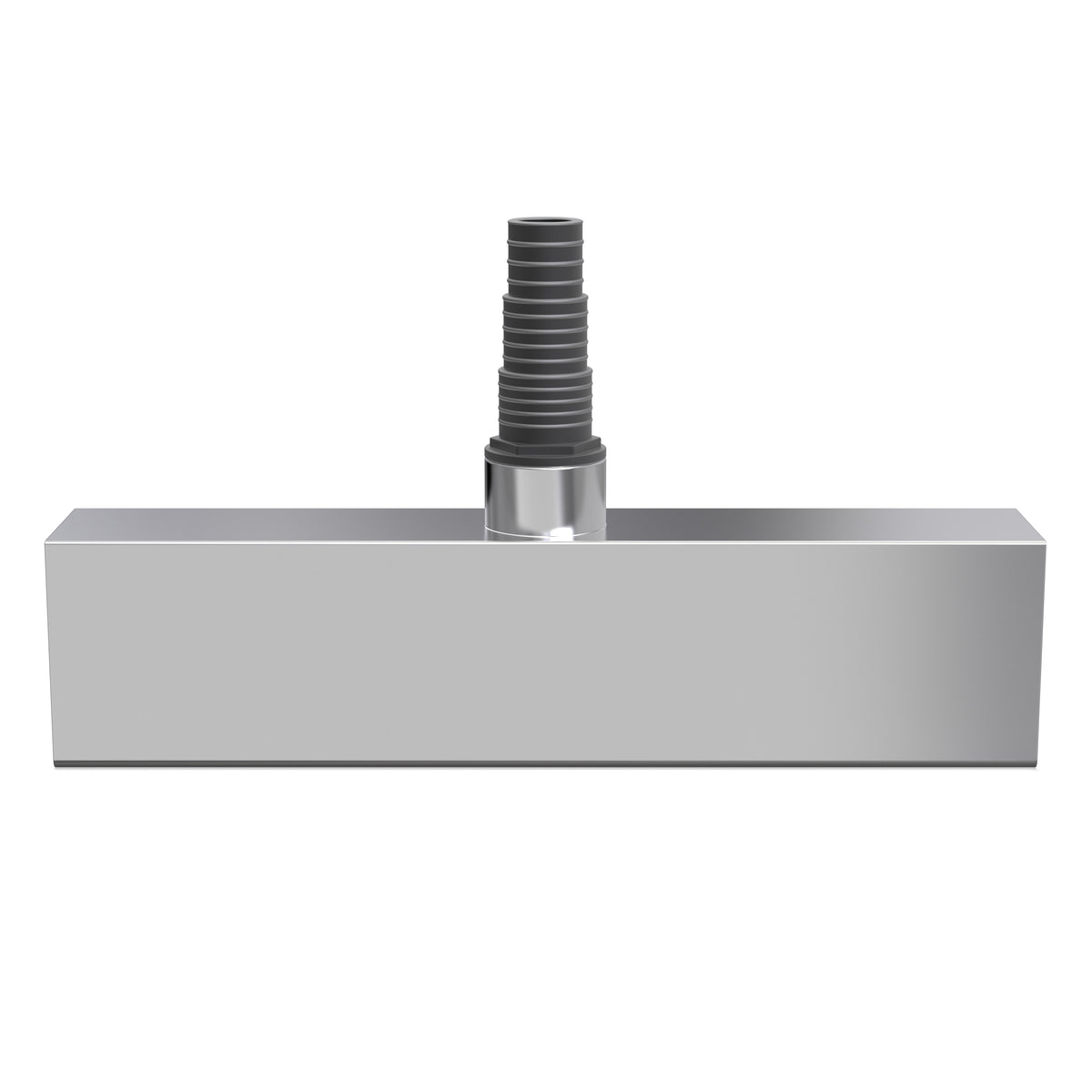

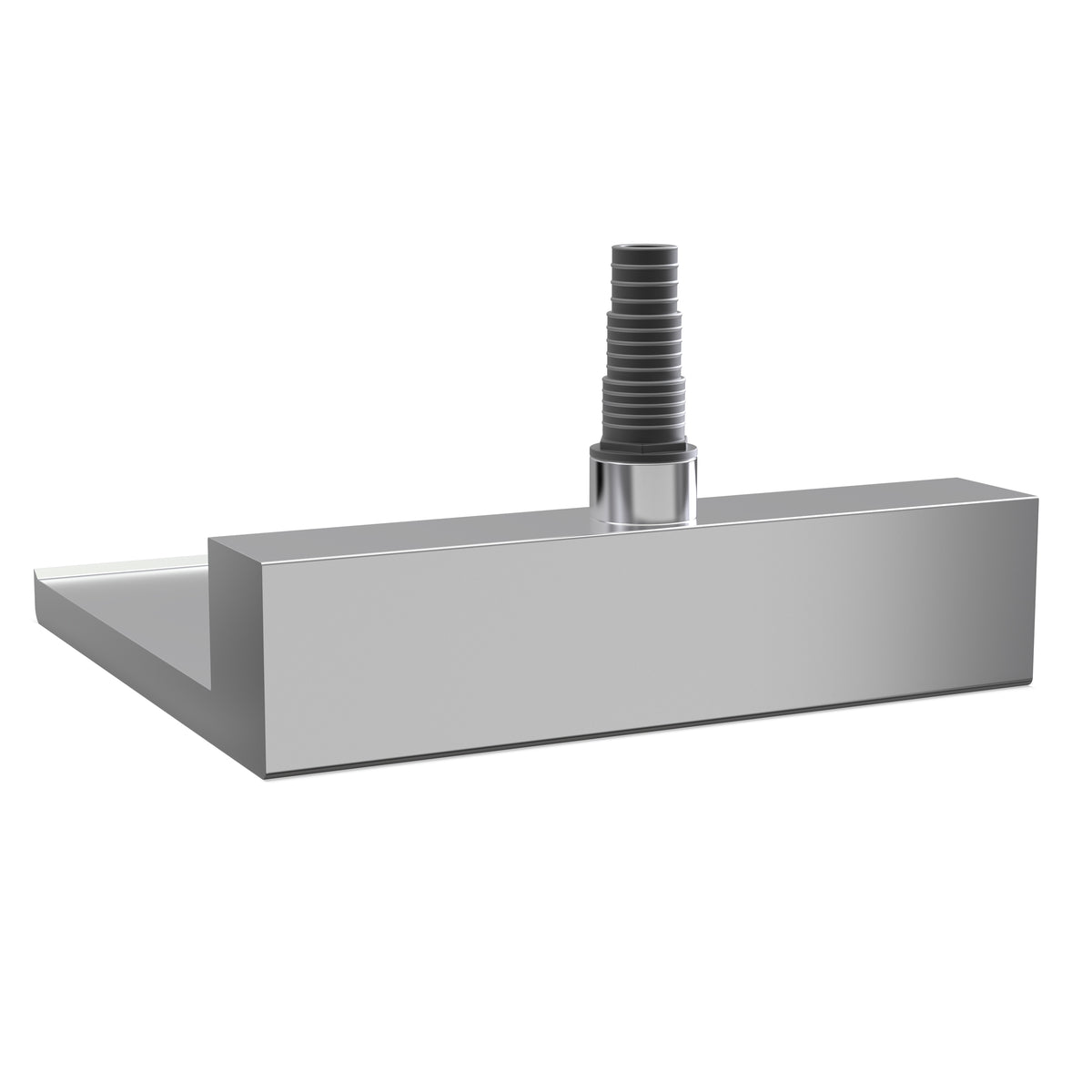

A rear inlet needs clearance behind the blade. A bottom inlet needs room below it for the fitting and pipe bend. For a stand-alone feature, provide a reservoir that catches the whole fall and splash area and keeps the pump adequately submerged while running.

Pump selection and water flow

Choose a pump from its flow curve at the working lift, allowing for hose length and bends. A headline maximum litres-per-hour figure is measured under different conditions from most installed features. The vertical lift is measured from the pond or reservoir water surface to the outlet.

Variable flow makes adjustment easier during commissioning. Start gently and increase the flow while checking the full outlet, the landing position and the splash area. Wider outlets and longer pipe routes need particular attention. Send us the selected blade size, lift and pipe route if you need help choosing a pump.

Care and seasonal use

Wipe the stainless steel regularly with a soft cloth and remove deposits before they build up. Avoid chlorine-based cleaners; stainless steel can stain or corrode, particularly with salt exposure. Keep cleaning residues out of the pond. If shutting the feature down for winter, drain and dry the blade and exposed pipework.

Useful checks before ordering

Check the selected size, the fixing space, the pipe connection and the collection area together. Gallery photographs show examples of the range; use the size table and selected option for your order. Pumps, reservoirs and surrounding landscaping shown in installation photographs are not included with the blade.

Size options and product codes

Codes for the options sold on this page

Option	Product code
200mm Back	WB200300SBK-1
200mm Bottom	WB200300SBOT-1
300mm Back	WB300300SBK-1
300mm Bottom	WB300300SBOT-1
400mm Back	WB400300SBK-1
400mm Bottom	WB400300SBOT-1
500mm Back	WB500300SBK-1
500mm Bottom	WB500300SBOT-1
600mm Back	WB600300BK-1
600mm Bottom	WB600300BOT-1
700mm Back	WB700300BK-1
700mm Bottom	WB700300BOT-1
800mm Back	WB800300SBK-1
800mm Bottom	WB800300SBOT-1
900mm Back	WB900300SBK-1
900mm Bottom	WB900300SBOT-1
1000mm Back	WB1000300BK-1
1000mm Bottom	WB1000300SBOT-1
1200mm Back	WB1200300SBK-1
1200mm Bottom	WB1200300SBOT-1
1500mm Back	WB1500300BK-1
1500mm Bottom	WB1500300BOT-1
