Arc Waterfall

Arc Waterfall

A curved stainless steel waterfall with a raised outlet

Temporary made to order lead time: Due to exceptionally high demand at the Water Blades factory, these stainless steel water blades are currently being made to order. Please allow up to 3 weeks for manufacture and dispatch. This is temporary, and we will always aim to send sooner wherever possible.

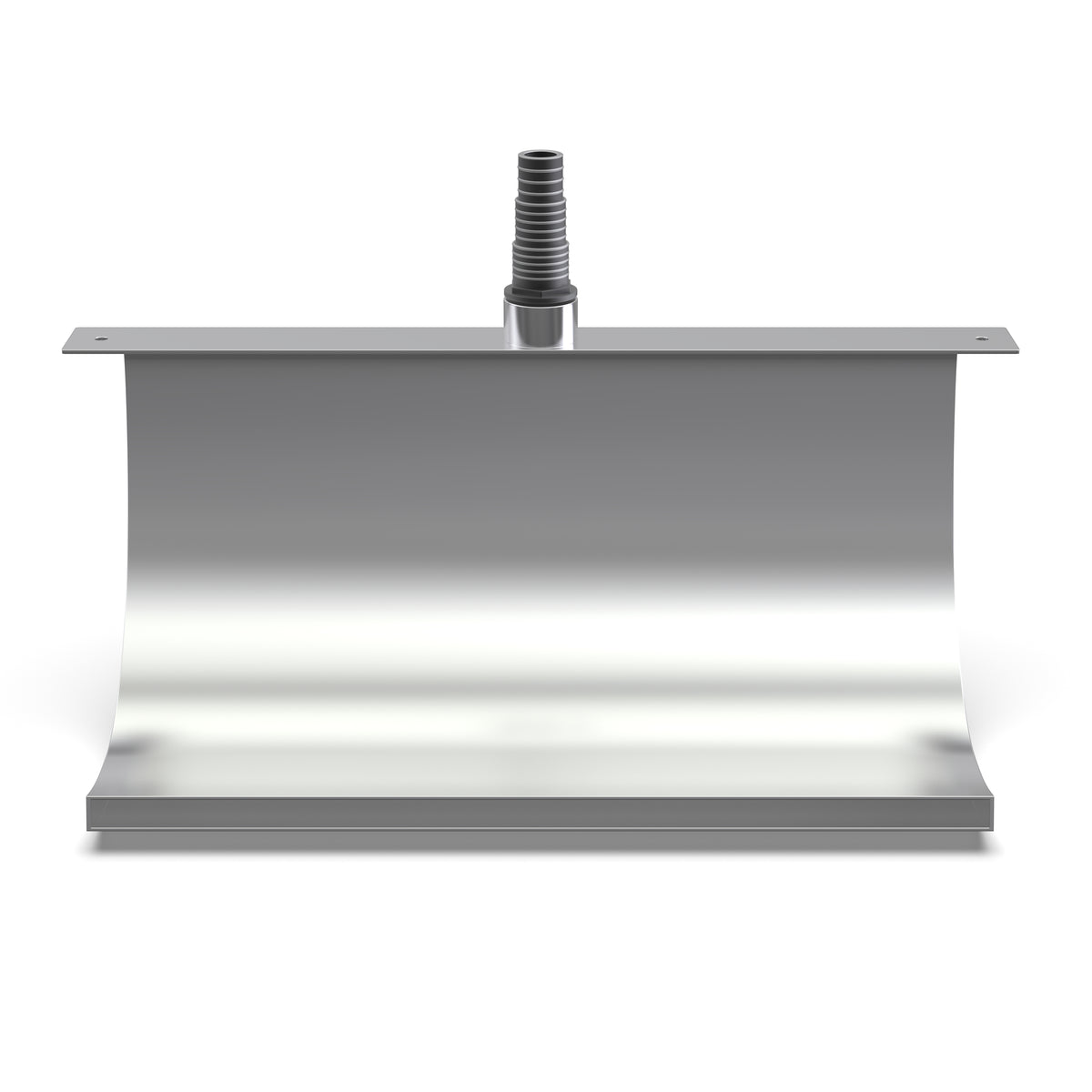

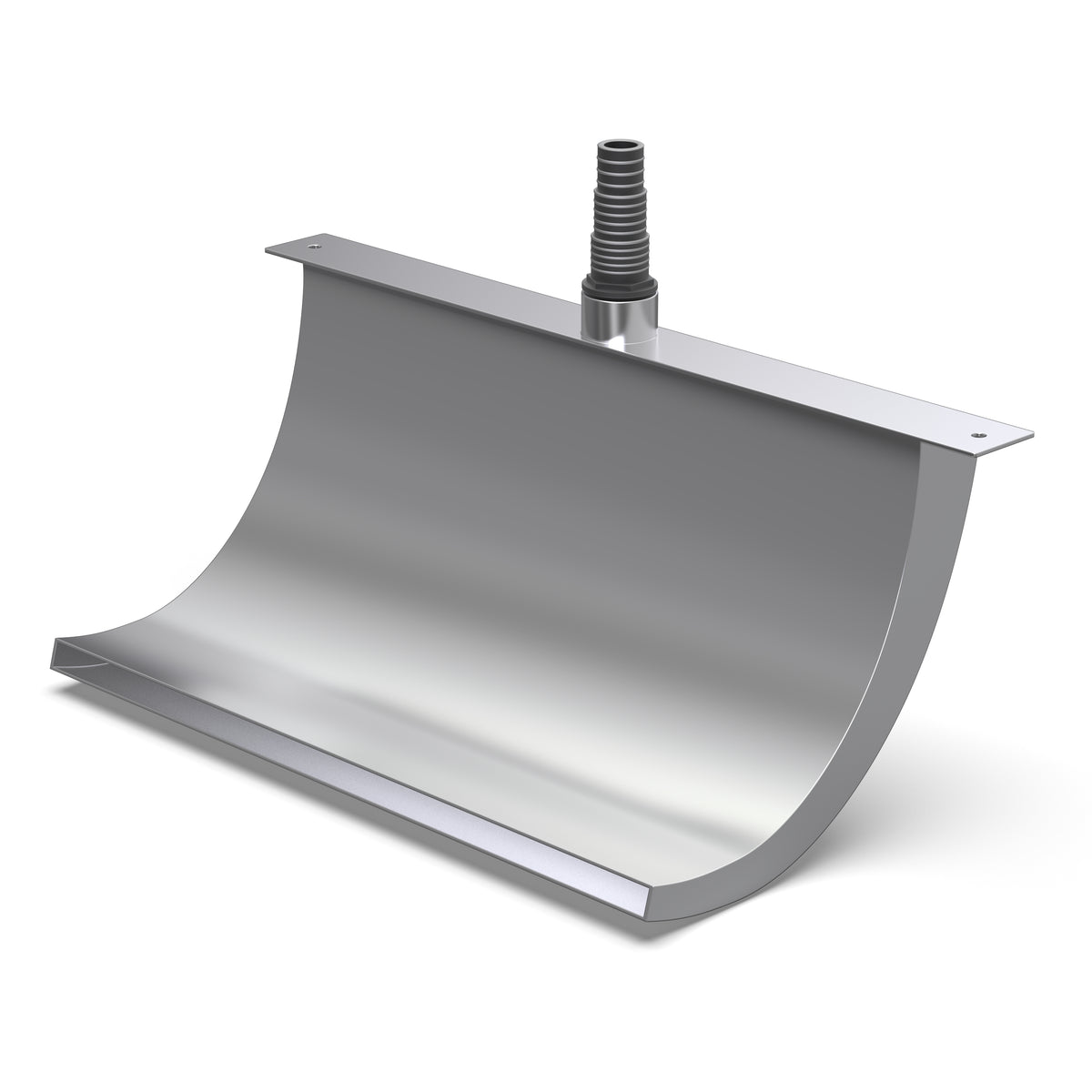

The Arc Waterfall combines a curved stainless steel body with a raised outlet. Its 170mm height gives the feature a visible architectural shape even when the pump is off. The mounting plate extends beyond the selected water width, so allow for its full span when planning a ledge or recess.

Made by Water Blades in Sheffield, UK, this stainless steel feature is designed to be incorporated into your own pond or water-feature installation.

Choose the right size and connection

Available outlet sizes on this page: 200, 300, 400, 500, 600mm. Select the exact option above before adding it to your basket.

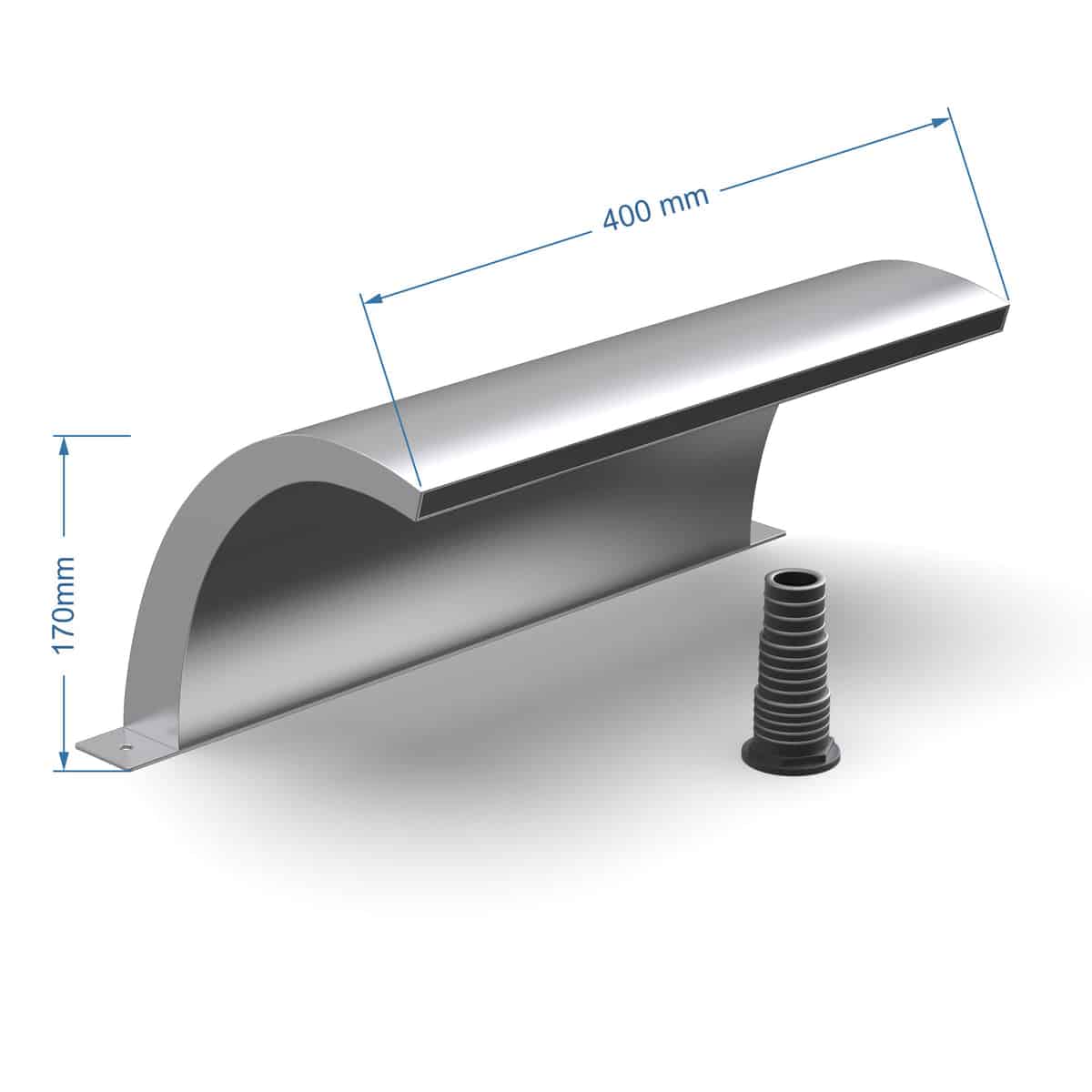

Spout projection: 140mm. Height to outlet: 170mm. The table describes the blade body; leave additional space for the inlet fitting and hose. Both rear and bottom inlet options are listed on this page.

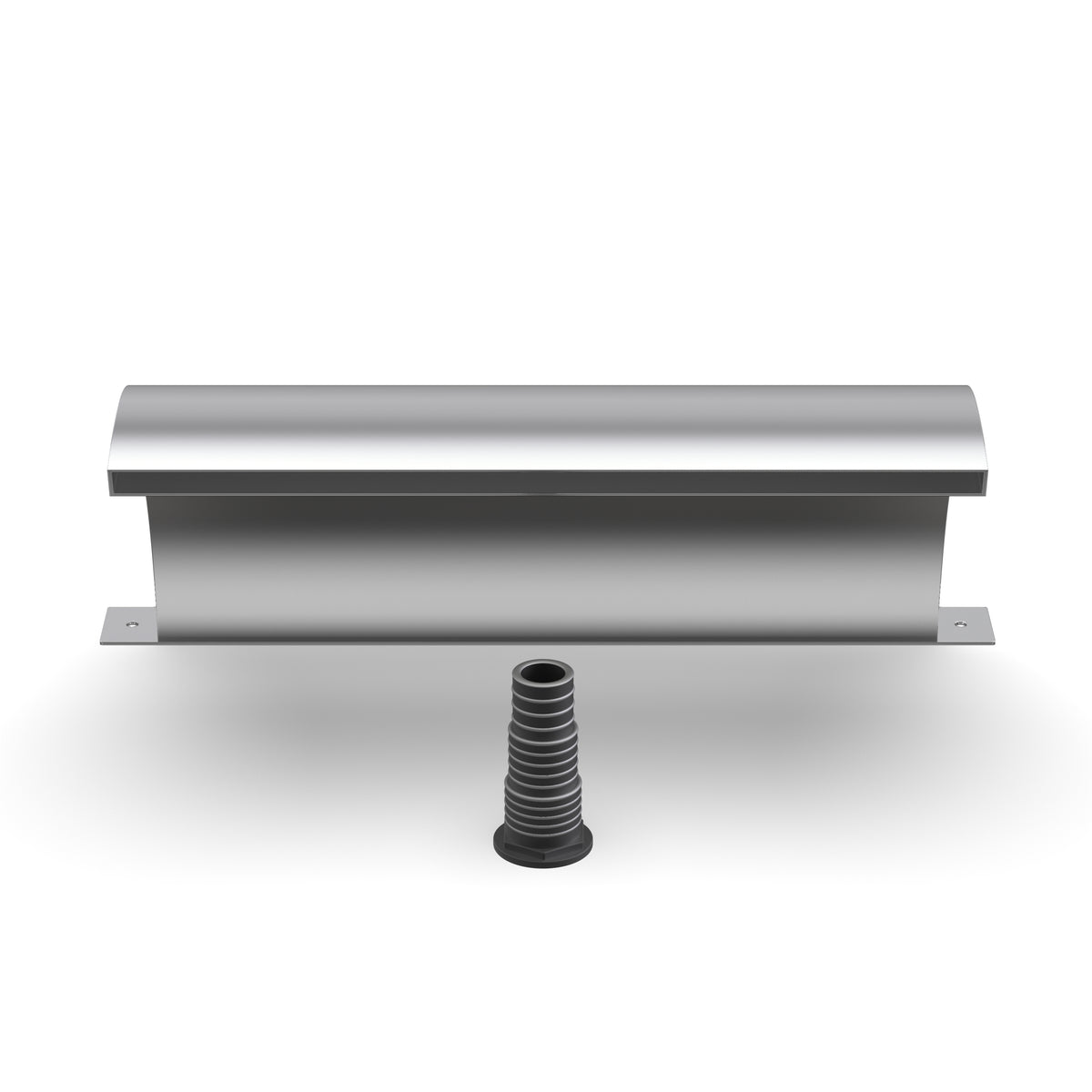

The 1-inch BSP inlet accepts the supplied hosetail for 20, 25 or 32mm hose.

Plan the installation

Position the blade on a rigid, level support and check the finished wall or coping line before fixing it. Route the supply without tight bends, leave access to the inlet and provide room to remove the fitting later. Connect and test the water flow before permanently enclosing the body.

A rear inlet needs clearance behind the blade. A bottom inlet needs room below it for the fitting and pipe bend. For a stand-alone feature, provide a reservoir that catches the whole fall and splash area and keeps the pump adequately submerged while running.

Pump selection and water flow

Choose a pump from its flow curve at the working lift, allowing for hose length and bends. A headline maximum litres-per-hour figure is measured under different conditions from most installed features. The vertical lift is measured from the pond or reservoir water surface to the outlet.

Variable flow makes adjustment easier during commissioning. Start gently and increase the flow while checking the full outlet, the landing position and the splash area. Wider outlets and longer pipe routes need particular attention. Send us the selected blade size, lift and pipe route if you need help choosing a pump.

Care and seasonal use

Wipe the stainless steel regularly with a soft cloth and remove deposits before they build up. Avoid chlorine-based cleaners; stainless steel can stain or corrode, particularly with salt exposure. Keep cleaning residues out of the pond. If shutting the feature down for winter, drain and dry the blade and exposed pipework.

Useful checks before ordering

Check the selected size, the fixing space, the pipe connection and the collection area together. Gallery photographs show examples of the range; use the size table and selected option for your order. Pumps, reservoirs and surrounding landscaping shown in installation photographs are not included with the blade.

Size options and product codes

Codes for the options sold on this page

Option	Product code
200mm Back	AW200ABK-1
200mm Bottom	AW200ABOT-1
300mm Back	AW300ABK-1
300mm Bottom	AW300ABOT-1
400mm Back	AW400ABK-1
400mm Bottom	AW400ABOT-1
500mm Back	AW500ABK-1
500mm Bottom	AW500ABOT-1
600mm Back	AW600ABK-1
600mm Bottom	AW600ABOT-1

Explore the stainless steel water-blade range.
