Angled Vertical Spout Waterfall

Angled Vertical Spout Waterfall

Temporary made to order lead time: Due to exceptionally high demand at the Water Blades factory, these stainless steel water blades are currently being made to order. Please allow up to 3 weeks for manufacture and dispatch. This is temporary, and we will always aim to send sooner wherever possible.

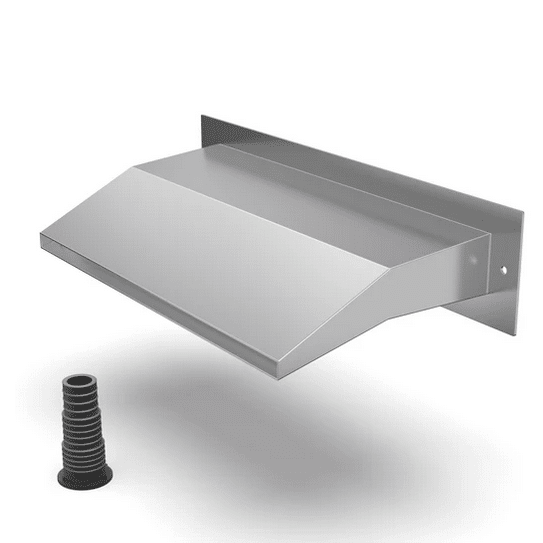

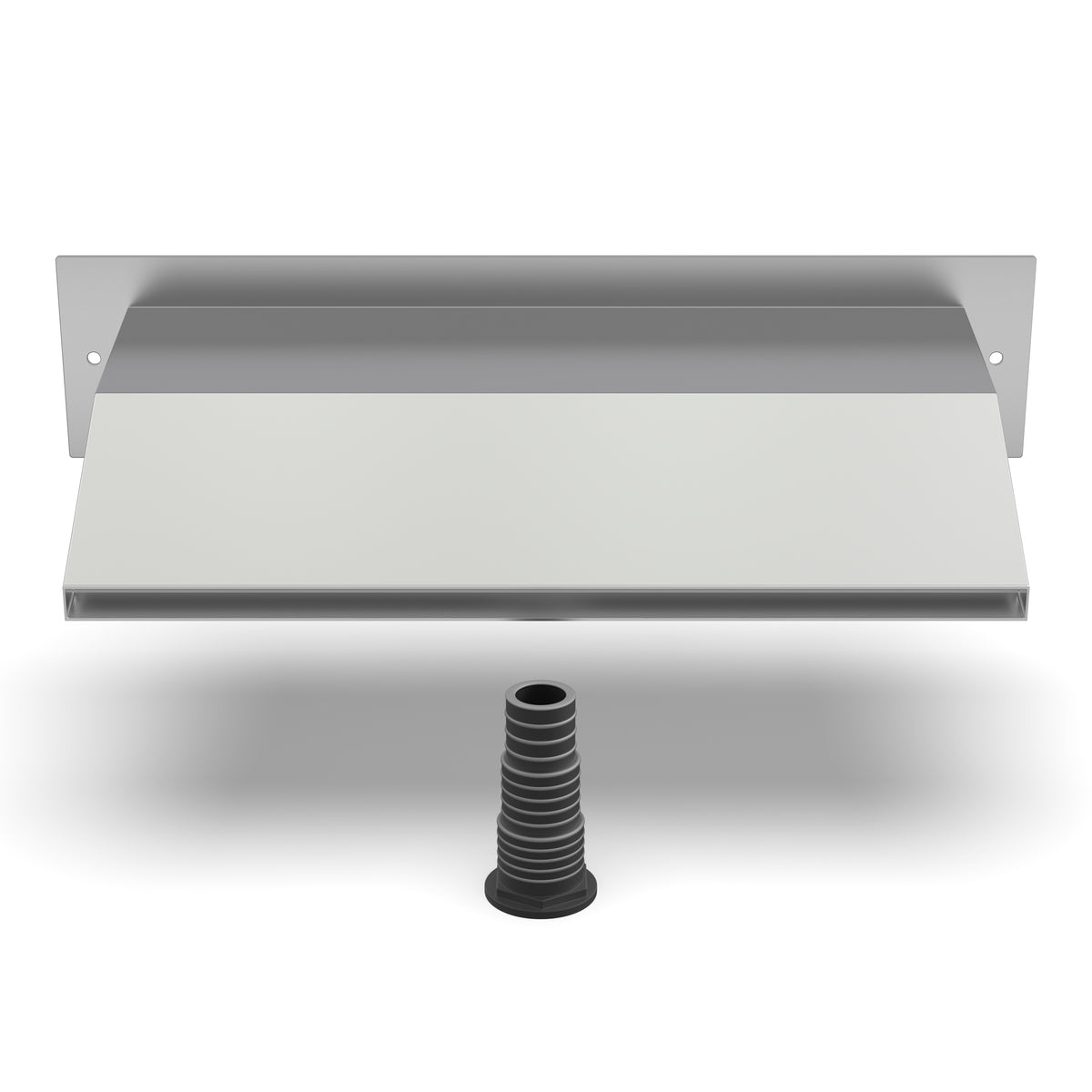

The Angled Vertical Spout Waterfall is a premium water feature designed to bring elegance, tranquillity, and modern style to your pond or garden. Whether you want to create a calming focal point, add gentle sound to your outdoor space, or elevate the design of your pond, this spout waterfall is the perfect solution.

Available in three sizes — 200mm, 300mm, and 400mm spout options — it delivers a smooth, consistent sheet of water, adding both visual beauty and a soothing atmosphere. Its angled vertical design ensures the water flows gracefully and seamlessly, making it a versatile choice for both contemporary and traditional gardens.

Constructed from 240g polished stainless steel, the Angled Vertical Spout Waterfall is corrosion resistant, strong, and designed to last for many years. The polished finish reflects light beautifully, adding a luxury touch to your pond or water feature. Every unit is handcrafted in the UK and proudly carries the Made in Sheffield hallmark of quality.

Installation is quick and straightforward thanks to the back inlet design, which allows for discreet fitting. Each waterfall is supplied with a hosetail connection compatible with 25mm, 32mm, and 38mm flexible corrugated pond pipe, making it suitable for a wide range of pond pump setups.

In addition to the standard sizes, we also offer custom manufacturing to order, ensuring your waterfall spout is tailored to your exact space and requirements. Whether for a small decorative pond or a large, statement water feature, this spout offers both practicality and refined style.

Key Benefits

• Modern design – Adds a sleek, contemporary look to ponds and gardens.
• Durable stainless steel construction – Built to withstand long-term use and resist corrosion.
• Smooth water flow – Creates a calming atmosphere with a clean sheet of water.
• Easy installation – Back inlet design with hosetail fitting for flexible pipes.
• Handmade in the UK – Crafted to the highest standards with Made in Sheffield quality.
• Available in multiple sizes – Choose from 200mm, 300mm, or 400mm spouts, with bespoke options available.

Technical Specifications

• Spout Length: 200mm
• Full Height: 100mm
• Height to Spout: 25mm
• Spout Width: 200mm
• Overall Width (with back plate): 250mm
• Full Length/Depth: 200mm
• Inlet Size: 1″ BSP Inlet
• Inlet Position: Back

Elevate your garden or pond with the Angled Vertical Spout Waterfall — a reliable, stylish, and expertly crafted feature that combines durability with modern design.

Pump and flow rate guidance

Water blade pump sizing is one of the most common areas where people get caught out. The important figure is not simply the maximum flow printed on the pump box, but the actual flow reaching the water blade after vertical lift, hose size, bends and fittings have all taken effect. As a guide, allow around 1,250 litres per hour for every 100mm of blade width for a strong, even sheet of water. Wider blades and longer spout projections need more water to keep the sheet full and consistent.

Blade width	Suggested starting flow at the blade
200mm	Approx. 2,500 LPH
300mm	Approx. 3,750 LPH
400mm	Approx. 5,000 LPH

Because head height can reduce the delivered flow significantly, we strongly recommend choosing a controllable pump where possible. A variable flow pond pump lets you oversize slightly to overcome losses, then turn the flow down until the blade looks right. Good options include the Evolution Aqua Varipump 10000, PondXpert VariFlow SINE 10000 and AquaForte DM Vario S 10000, depending on the width of the blade and the height of the installation.

Hose, clips and installation extras

Most pump-fed water blades work best with a short, neat run of correctly sized flexible pond hose. For simple installations, standard flexible pond hose is usually suitable. For higher flow rates, longer runs or where you want to reduce friction losses, the heavy duty flexible pond hose is the better option because the smoother bore helps maintain more of the pump’s output.

Always secure hose tails with suitable stainless steel clips. These products are supplied with hosetail fittings depending on the model, but the hose and clips should be chosen to match your pump and pipework layout. We recommend using stainless steel hose clips on flexible hose connections, especially where the blade is built into a wall and access may be awkward later. A pair of 20-50mm stainless steel hose clips has also been added as an optional extra on the pump-fed water blade pages for convenience.

Compare other water blade options

Choosing the right water blade comes down to the installation style, spout projection, inlet position and the look you want to create. These related options may help you compare the full range before ordering.

• Standard pump-fed water blades: Water Blade 60mm Spout, Water Blade 130mm Spout, Water Blade 300mm Spout, Water Wall Blade.
• Gravity-fed water blades: Gravity Fed Water Blade – 100mm Spout, Gravity Fed Water Blade – 200mm Spout, Gravity Fed Water Blade – 300mm Spout.
• Decorative stainless steel waterfall spouts: Curved Vertical Spout Waterfall, Arc Waterfall, Archer Falls Waterfall, Lagoon Falls Waterfall, Corner Water Blade.
• Stainless steel spillways: Stainless Steel Spillway with 25mm Sides, Stainless Steel Spillway with 50mm Sides.
