Water Blade 60mm Spout

Water Blade 60mm Spout

Temporary made to order lead time: Due to exceptionally high demand at the Water Blades factory, these stainless steel water blades are currently being made to order. Please allow up to 3 weeks for manufacture and dispatch. This is temporary, and we will always aim to send sooner wherever possible.

The Stainless Steel Water Blade with 60mm Spout Overhang is the perfect choice for creating stylish, modern, and relaxing water features in ponds, pools, and garden landscapes. Designed for both performance and durability, it produces a smooth, even flow of water that enhances any outdoor space, whether you’re looking to build a serene pondside cascade, a decorative water wall, or a striking poolside feature.

Available in widths ranging from 200mm to 1500mm, this water blade gives you complete flexibility to choose the perfect size for your design. The 60mm spout projection provides a neat, controlled flow of water that is ideal for creating elegant waterfalls without excessive splashback.

Each water blade is handcrafted from premium stainless steel, offering excellent durability, corrosion resistance, and a sleek brushed finish. This ensures it not only looks modern and stylish but also stands up to long-term outdoor use.

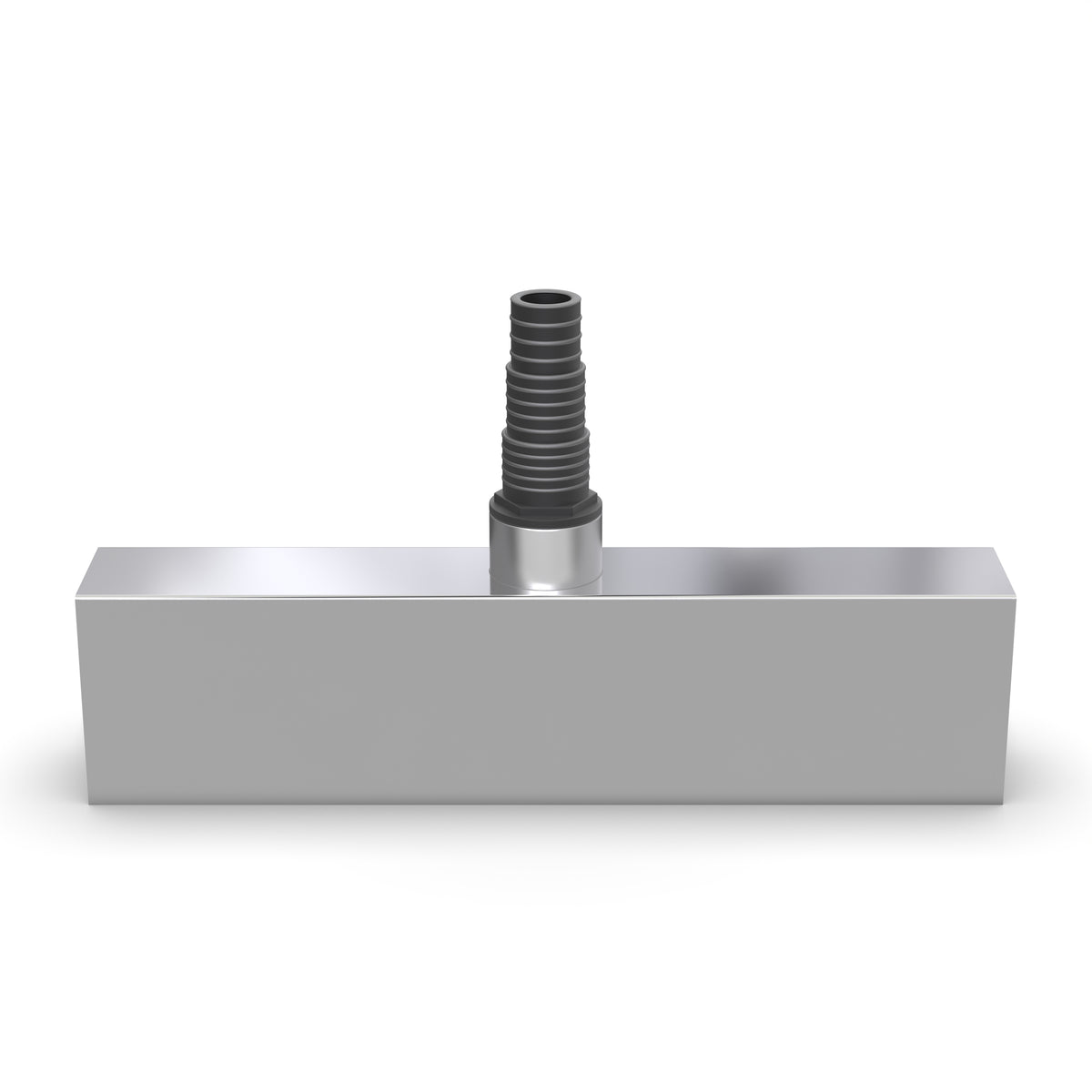

For added flexibility, the Water Blade 60mm Spout includes a 1.25″ BSP threaded socket inlet, with the option of either back or bottom inlet positions. This allows for easy installation into a variety of pond or pool setups. On 200mm wide blades, a side inlet option is also available. Larger models (800mm and above) come with two inlets, while the 1500mm model includes three inlets, ensuring balanced water distribution across the full width.

Proudly handcrafted in Sheffield, these water blades are manufactured to the highest standards. We also offer bespoke manufacturing to meet specific project requirements, giving you a truly custom water feature.

Key Benefits

• Modern stainless steel design – Durable, corrosion resistant, and finished to a professional standard.
• Smooth, even water flow – Creates a clean sheet of water for ponds, pools, and garden features.
• 60mm spout overhang – Produces a controlled projection with minimal splashback.
• Flexible inlet options – Choose back, bottom, or side (200mm blades only).
• Multiple inlets for larger blades – Wider blades (800mm+) come with two or three inlets for even flow.
• Customisable sizes – Available from 200mm up to 1500mm wide.
• Handmade in Sheffield – Quality craftsmanship with the option for bespoke designs.

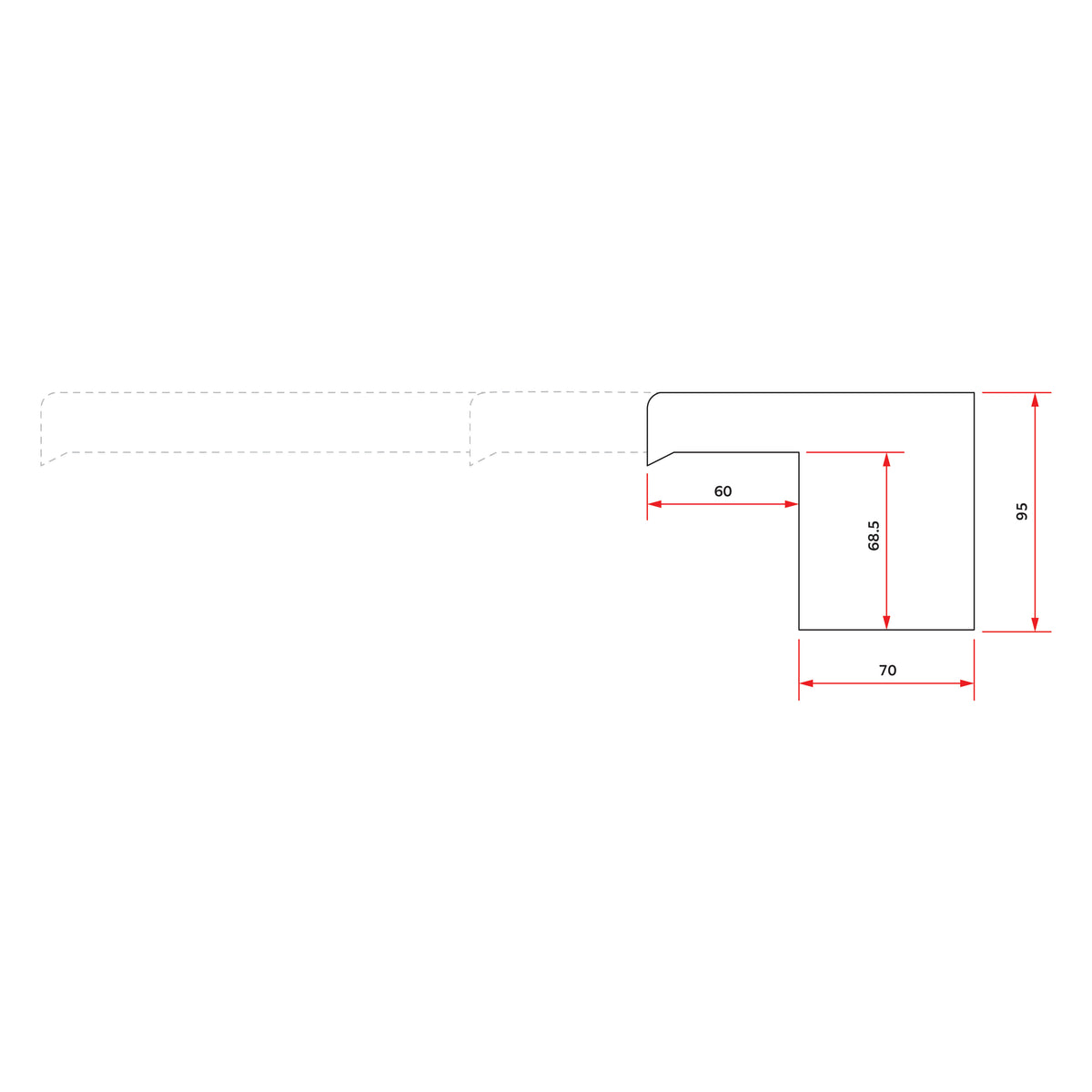

Technical Specifications

• Spout Length: 60mm
• Full Height: 95mm
• Height to Spout: 68.5mm
• Spout Width: 200mm
• Overall Width: 200mm
• Full Length/Depth: 130mm
• Base Length/Depth: 70mm
• Inlet Size: 1.25″ BSP Threaded Socket
• Inlet Position: Back (bottom or side inlet options available depending on model)

Enhance your pond, pool, or garden feature with the Stainless Steel Water Blade – 60mm Spout, a durable, stylish, and versatile choice for modern outdoor water features.







Pump and flow rate guidance

Water blade pump sizing is one of the most common areas where people get caught out. The important figure is not simply the maximum flow printed on the pump box, but the actual flow reaching the water blade after vertical lift, hose size, bends and fittings have all taken effect. As a guide, allow around 1,250 litres per hour for every 100mm of blade width for a strong, even sheet of water. Wider blades and longer spout projections need more water to keep the sheet full and consistent.

Blade width	Suggested starting flow at the blade
200mm	Approx. 2,500 LPH
300mm	Approx. 3,750 LPH
400mm	Approx. 5,000 LPH
500mm	Approx. 6,250 LPH
600mm	Approx. 7,500 LPH
700mm	Approx. 8,750 LPH
800mm	Approx. 10,000 LPH
900mm	Approx. 11,250 LPH
1000mm	Approx. 12,500 LPH
1200mm	Approx. 15,000 LPH
1500mm	Approx. 18,750 LPH

Because head height can reduce the delivered flow significantly, we strongly recommend choosing a controllable pump where possible. A variable flow pond pump lets you oversize slightly to overcome losses, then turn the flow down until the blade looks right. Good options include the Evolution Aqua Varipump 10000, PondXpert VariFlow SINE 10000 and AquaForte DM Vario S 10000, depending on the width of the blade and the height of the installation.

Hose, clips and installation extras

Most pump-fed water blades work best with a short, neat run of correctly sized flexible pond hose. For simple installations, standard flexible pond hose is usually suitable. For higher flow rates, longer runs or where you want to reduce friction losses, the heavy duty flexible pond hose is the better option because the smoother bore helps maintain more of the pump’s output.

Always secure hose tails with suitable stainless steel clips. These products are supplied with hosetail fittings depending on the model, but the hose and clips should be chosen to match your pump and pipework layout. We recommend using stainless steel hose clips on flexible hose connections, especially where the blade is built into a wall and access may be awkward later. A pair of 20-50mm stainless steel hose clips has also been added as an optional extra on the pump-fed water blade pages for convenience.

Compare other water blade options

Choosing the right water blade comes down to the installation style, spout projection, inlet position and the look you want to create. These related options may help you compare the full range before ordering.

• Standard pump-fed water blades: Water Blade 130mm Spout, Water Blade 300mm Spout, Water Wall Blade.
• Gravity-fed water blades: Gravity Fed Water Blade – 100mm Spout, Gravity Fed Water Blade – 200mm Spout, Gravity Fed Water Blade – 300mm Spout.
• Decorative stainless steel waterfall spouts: Angled Vertical Spout Waterfall, Curved Vertical Spout Waterfall, Arc Waterfall, Archer Falls Waterfall, Lagoon Falls Waterfall, Corner Water Blade.
• Stainless steel spillways: Stainless Steel Spillway with 25mm Sides, Stainless Steel Spillway with 50mm Sides.
