Synergy Combi 25

Synergy Combi 25

Advanced All-in-One Pond Filtration System with Integrated Mechanical and Biological Filtration for Medium-Sized Ponds

Synergy Combi 25

The Synergy Combi 25 is a premium compact pond filtration system designed to provide both ultra-efficient mechanical and biological filtration in a single unit, ideal for ponds up to 5,500 gallons. Engineered to deliver crystal-clear water and maintain a healthy aquatic ecosystem, it combines an automated drum filter with a biochamber to remove debris and promote beneficial bacteria growth. The water level is designed to match the Nexus 220 for easy integration, making it suitable for hobbyist and semi-professional ponds.

Equipped with a fully automated Siemens LOGO control panel, the Synergy Combi 25 ensures precise management of cleaning cycles while reducing manual maintenance. Dry-run protection and a 210Nm direct-drive motor guarantee durability, while the 70-micron drum screen with integrated Blanketweed and debris trap efficiently captures solids. The biochamber, aerated by a built-in air stone, holds 135 litres and comes with 50 litres of Hel-X media (expandable to 100 litres) to support optimal biological filtration. The filter can continue operating even if the motor fails, providing consistent water quality at all times.

Compact yet powerful, the Synergy Combi 25 is ideal for koi and ornamental ponds requiring high-performance filtration with minimal intervention. Its innovative design, automated drum cleaning, and integrated biochamber simplify pond maintenance while delivering reliable water clarity and ecosystem stability.

Benefits

• Integrated mechanical and biological filtration in a single compact unit
• Flow rate of 5,500 gallons per hour for rapid water turnover
• Fully automated Siemens LOGO control panel with manual adjustment
• Dry-run protection and durable 210Nm direct-drive motor
• 70-micron drum screen with Blanketweed and debris trap
• Aerated biochamber with 135 litres capacity and Hel-X media
• Can continue operating even if the motor fails
• Reduces manual maintenance while maintaining optimal water clarity and ecosystem health

When to Use

• Medium-sized koi or ornamental ponds up to 5,500 gallons
• Ponds requiring combined mechanical and biological filtration
• Water features with moderate to high organic load or debris
• Automated pond systems requiring minimal intervention
• After pond cleaning or chemical treatments

How It Works

• 2 x 110mm inlets and 1 x 110mm outlet for efficient water distribution

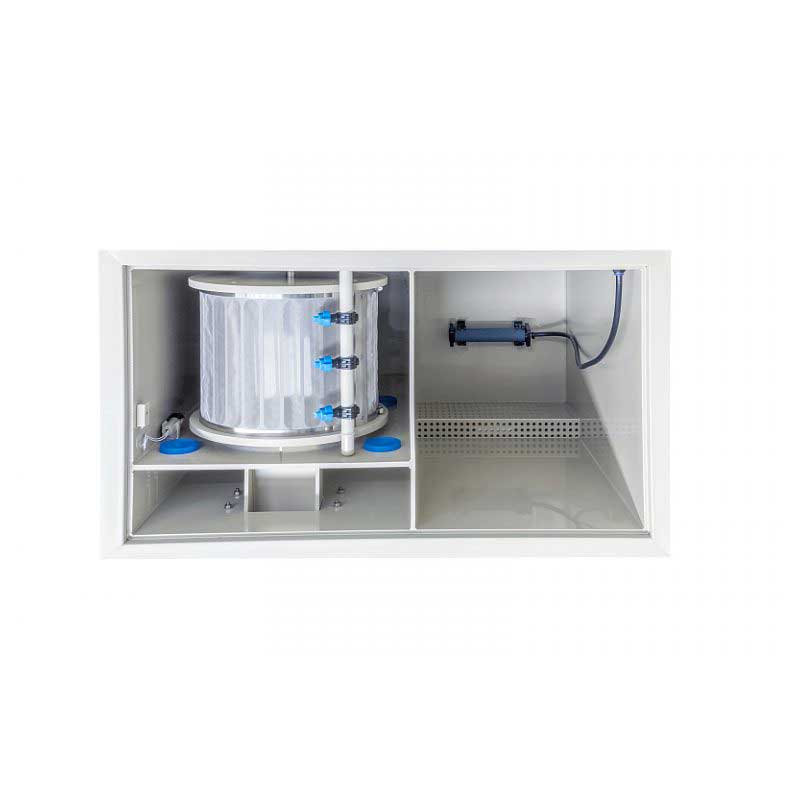

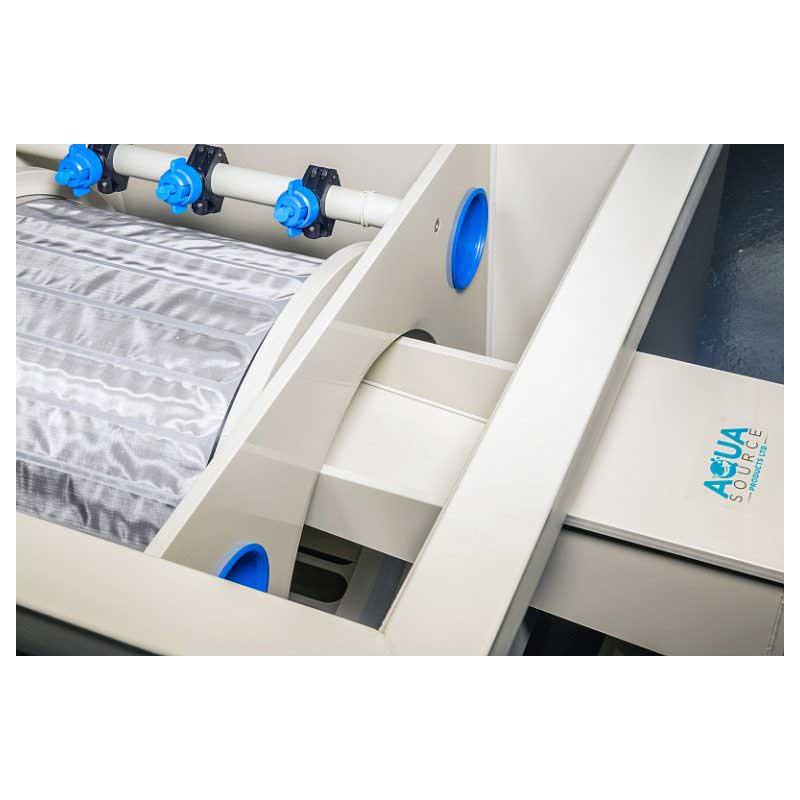

• Mechanical drum filter captures solids and Blanketweed
• Biochamber supports beneficial bacterial growth for nutrient processing

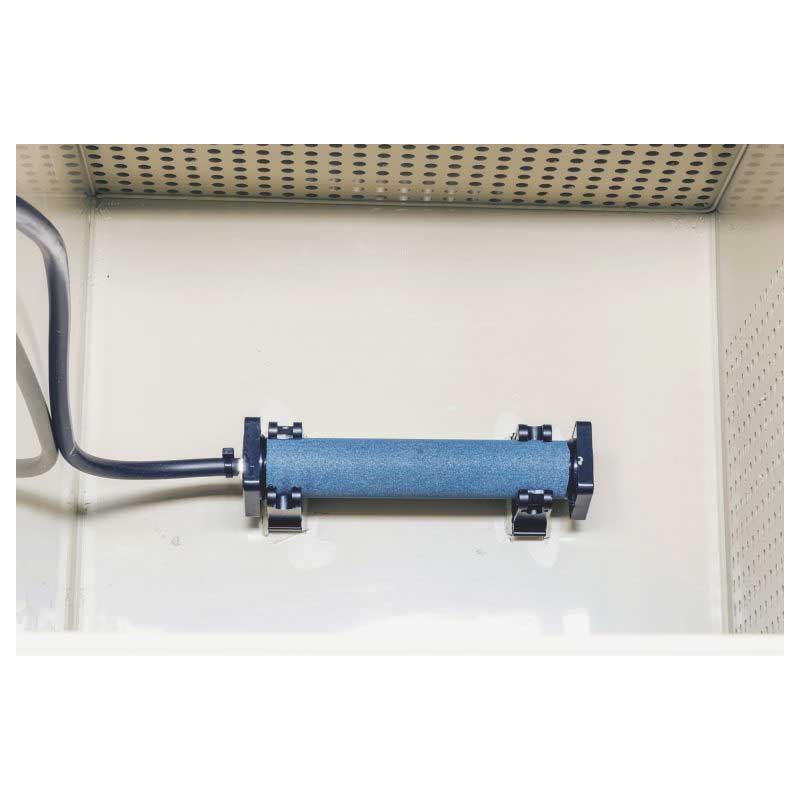

• Built-in air stone optimizes biological filtration
• Automated 4-bar cleaning pump maintains drum screen efficiency
• Siemens LOGO control panel allows scheduling and manual adjustment

How To Use

• Install filter at maximum water level of 73cm, minimum 69cm, positioned 12.5cm above pond water level
• Connect the 110mm inlets and outlet to pond piping
• Fill biochamber with Hel-X media and position air stone
• Set Siemens LOGO control panel for desired cleaning cycles
• Inspect drum screen and waste trap periodically
• Adjust Hel-X media or air stone for optimal performance

Product Specifications

• Flow Rate: 5,500 gallons per hour
• Inlets/Outlet: 2 x 110mm inlets, 1 x 110mm outlet
• Drum Screen Size: 70-micron
• Drum Dimensions: 420mm (D) x 300mm (W)
• External Dimensions: 1080mm x 620mm x 860mm (L x W x H)
• Maximum Water Level: 73cm
• Minimum Water Level: 69cm
• Biochamber Volume: 135 litres
• Hel-X Media Supplied: 50 litres (max 100 litres)
• Motor: 210Nm direct-drive
• Cleaning Pump: 4-bar
• Control Panel: Siemens LOGO, fully automated, manually adjustable
• Installation Height: 12.5 cm above pond water level
• Warranty: 12 months (filter, excluding screen), 3 years on flushing pump (extendable)

Ideal For

• Medium-sized koi ponds and ornamental ponds up to 5,500 gallons
• Owners seeking automated mechanical and biological filtration in one unit
• Ponds with moderate to heavy organic debris or plant matter
• Hobbyist or semi-professional pond setups requiring minimal maintenance
• Integration with Nexus 220 height water systems
