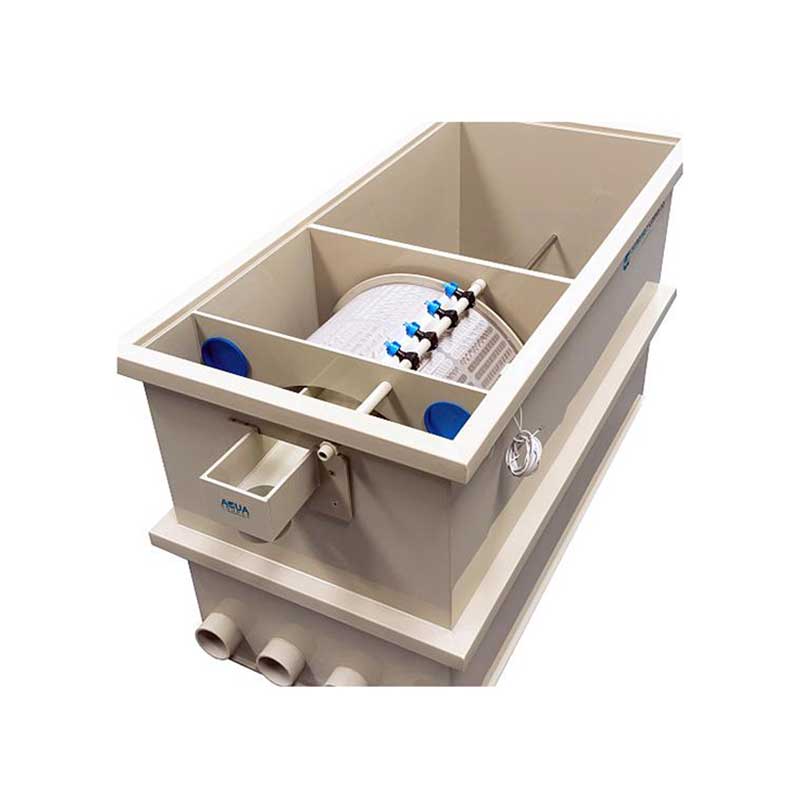

Aqua Source Synergy Combi 55 Drum Filter

Synergy Combi 55

All-in-One Mechanical and Biological Pond Filtration System for Large Koi and Ornamental Ponds

The Synergy Combi 55 is a professional-grade pond filtration system designed to provide ultra-efficient mechanical and biological filtration in a single compact unit. Engineered for high-performance applications, this all-in-one filter combines a high-capacity drum for mechanical debris removal with a spacious biological chamber to cultivate beneficial bacteria, ensuring optimal water clarity, nutrient breakdown, and a balanced pond ecosystem. The system is ideal for large koi ponds, ornamental ponds, or high-load aquatic environments where water quality and fish health are paramount.

Built with precision and quality in mind, the Synergy Combi 55 features a high flow rate of 12,400 gallons per hour, multiple inlet and outlet connections, and a fully automated Siemens LOGO control panel for effortless operation. The integrated 4-bar cleaning pump, direct-drive 210Nm motor, and dry-run protection allow the filter to operate reliably, even under demanding conditions. With a bio chamber capable of holding 550 litres of water and pre-supplied Hel-X media for optimal biological filtration, the Synergy Combi 55 ensures superior performance with minimal maintenance.

This system is designed for pond owners who require both mechanical and biological filtration from a single, efficient, and reliable unit. Its combination of advanced engineering, robust construction, and automated cleaning mechanisms makes it an essential solution for maintaining crystal-clear water, healthy fish, and a sustainable pond ecosystem.

Benefits

• Combines mechanical drum filtration with high-capacity biological chamber
• Flow rate of 12,400 gallons per hour for rapid water turnover
• Fully automated Siemens LOGO control panel with manual adjustment capability
• Dry-run protection ensures pump safety
• 4-bar cleaning pump efficiently removes debris from the drum screen
• Direct-drive 210Nm motor ensures reliable, long-term operation
• Bio chamber holds 550 litres; supports up to 275 litres of Hel-X media
• Air dome supplied for optimal biological filtration performance
• Filter can continue operating even if the motor fails
• Minimizes pond maintenance while maintaining superior water quality

When to Use

• Large koi or ornamental ponds requiring both mechanical and biological filtration
• Ponds with heavy organic load, high fish density, or frequent debris accumulation
• Professional or high-demand pond installations requiring automated control
• Seasonal or routine pond maintenance for water clarity and ecosystem stability
• Ponds with high aesthetic and environmental quality requirements

How It Works

• Multiple 110mm inlets and outlets distribute water evenly through the system

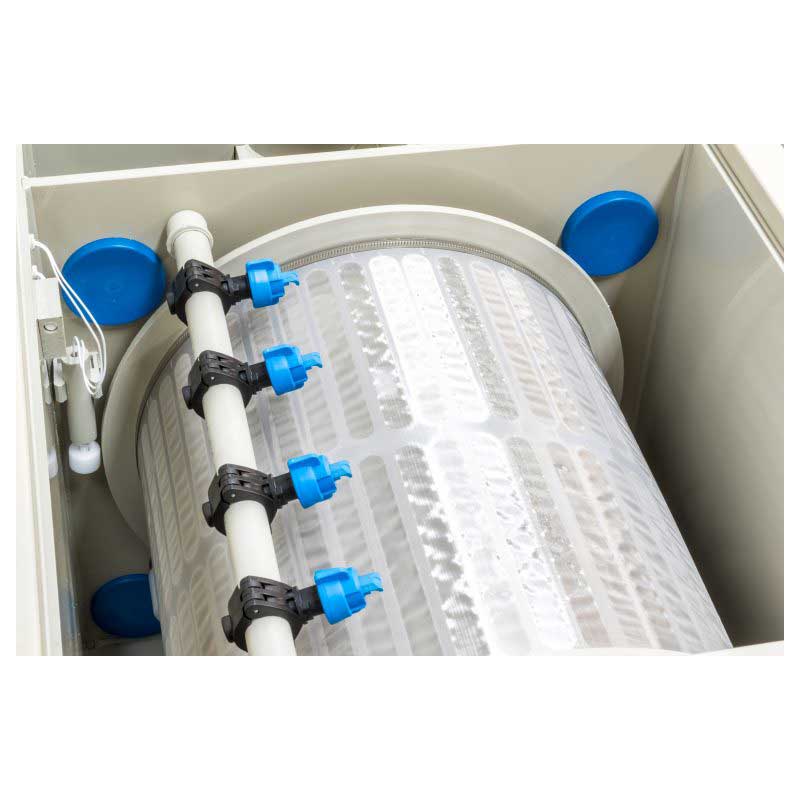

• Drum filter mechanically removes debris from pond water efficiently
• Bio chamber provides large volume for beneficial bacteria to break down nutrients
• Automated 4-bar cleaning pump clears the drum screen without manual intervention
• Siemens LOGO control panel allows scheduling and adjustment of cleaning cycles
• Direct-drive motor ensures consistent flow and reliable operation
• Combined mechanical and biological filtration supports healthy fish and clear water

How To Use

• Position the filter so installation height is 14.5 cm above pond water level
• Connect 4 x 110mm inlets and 2 x 110mm outlets to pond piping system
• Fill the bio chamber with pre-supplied Hel-X media and connect air dome
• Set the Siemens LOGO control panel to desired automated cleaning schedule
• Periodically inspect drum screen and bio chamber for optimal operation
• Adjust control panel and maintenance schedule based on seasonal or pond load

Product Specifications

• Flow Rate: 12,400 gallons per hour
• Inlets/Outlets: 4 x 110mm inlets, 2 x 110mm outlets
• Drum Size: 650mm (D) x 415mm (W)
• Bio Chamber: 550 litres (max 275 litres Hel-X media)
• External Dimensions: 1941mm x 836mm x 973mm (L x W x H)
• Maximum Water Level: 825mm
• Motor: 210Nm direct-drive, ultra-reliable
• Cleaning Pump: 4-bar
• Control Panel: Siemens LOGO fully automatic, manually adjustable
• Installation Height: 14.5 cm above pond water level
• Warranty: 12 months

Ideal For

• Large koi and ornamental ponds requiring high-performance filtration
• Ponds with heavy organic loads or dense fish populations
• Pond owners seeking automated, low-maintenance water management
• Professional pond installations or commercial water features
• Ecosystem-sensitive ponds requiring combined mechanical and biological filtration
