Synergy Combi 100

Synergy Combi 100

High-Capacity All-in-One Mechanical and Biological Pond Filtration System for Large Koi and Ornamental Ponds

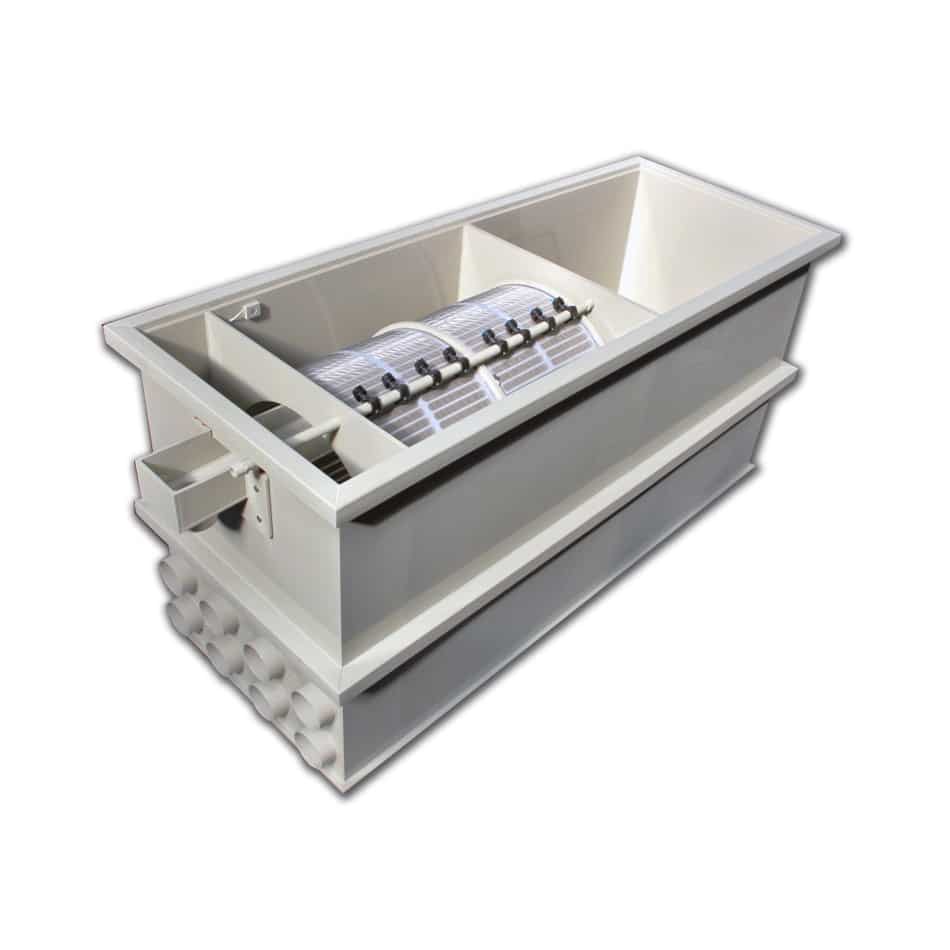

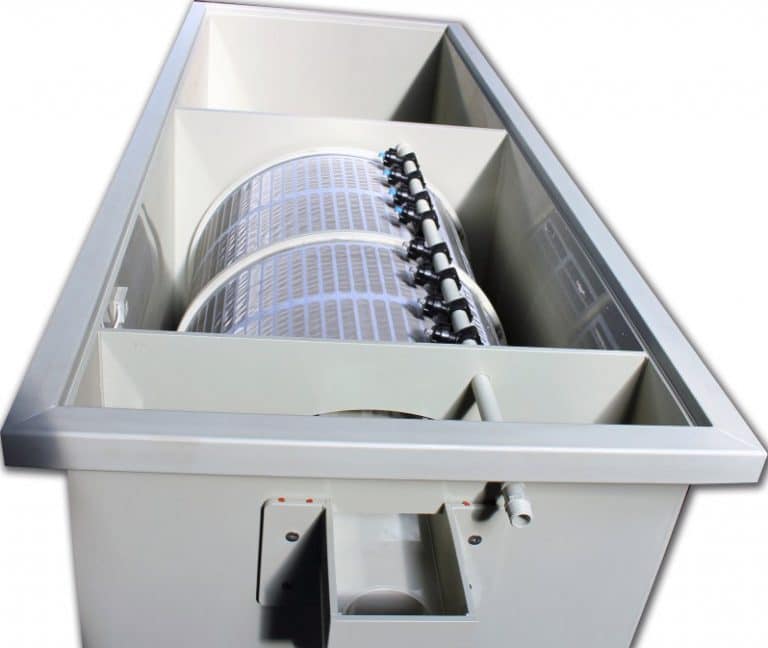

The Synergy Combi 100 is a professional-grade pond filtration system engineered to provide ultra-efficient mechanical and biological filtration within a single, compact unit. Designed for large koi and ornamental ponds, this high-performance filter combines a powerful drum for mechanical debris removal with a substantial biological chamber that fosters beneficial bacteria, ensuring optimal water clarity, nutrient breakdown, and a balanced pond ecosystem. This system is ideal for high-load ponds where water quality, fish health, and ease of maintenance are critical.

Built to the highest standards, the Synergy Combi 100 features a high flow rate of 24,800 gallons per hour, multiple inlet and outlet connections, twin flush capability, and a fully automated Siemens LOGO control panel. The integrated 4-bar cleaning pump, direct-drive 210Nm motor, and dry-run protection allow the filter to operate reliably even in demanding conditions. With a bio chamber capable of holding 550 litres of water and pre-supplied Hel-X media for biological filtration, the Synergy Combi 100 ensures superior performance while minimizing maintenance efforts. An air dome is supplied to optimize biological efficiency.

This system is ideal for pond owners who require both mechanical and biological filtration in a single, reliable, and automated unit. Its combination of robust construction, intelligent automation, and high-capacity filtration makes it essential for maintaining crystal-clear water, healthy koi, and a sustainable pond ecosystem.

Benefits

• Combines high-capacity mechanical drum filtration with a large biological chamber
• Flow rate of 24,800 gallons per hour for rapid water turnover
• Fully automatic Siemens LOGO control panel with manual adjustment
• Twin flush system enhances drum cleaning efficiency
• Dry-run protection ensures safe operation
• 4-bar cleaning pump efficiently removes debris from the drum screen
• Direct-drive 210Nm motor for consistent, reliable performance
• Bio chamber holds 550 litres; supports up to 275 litres of Hel-X media
• Air dome supplied for optimal biological filtration performance
• Filter continues operating even if the motor fails
• Minimizes maintenance while maintaining superior water quality

When to Use

• Large koi or ornamental ponds requiring both mechanical and biological filtration
• Ponds with heavy organic load, high fish density, or frequent debris accumulation
• Professional or high-demand pond installations requiring automated control
• Seasonal or routine pond maintenance for water clarity and ecosystem stability
• Ponds where both high flow and robust biological filtration are required

How It Works

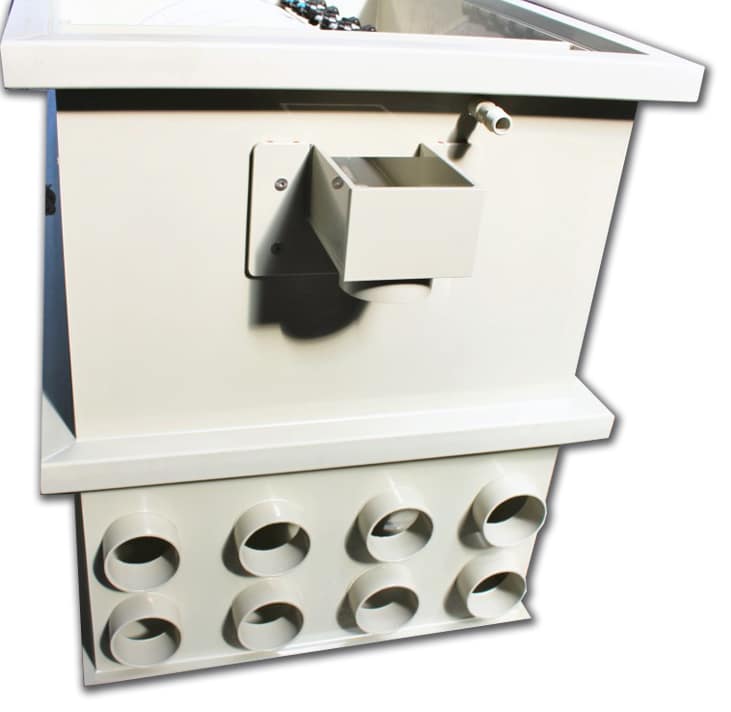

• Multiple 110mm inlets and outlets distribute water evenly through the system

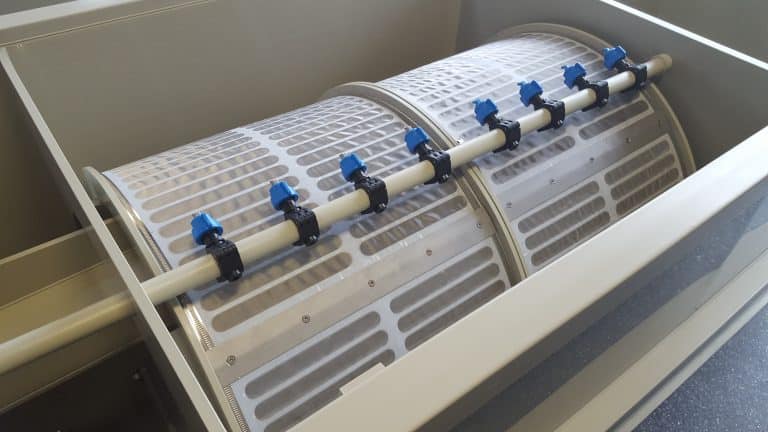

• Drum filter mechanically removes debris from pond water efficiently
• Bio chamber provides large volume for beneficial bacteria to break down nutrients
• Automated 4-bar cleaning pump clears the drum screen without manual intervention
• Siemens LOGO control panel allows scheduling and adjustment of cleaning cycles
• Direct-drive motor ensures consistent flow and reliable operation
• Combined mechanical and biological filtration maintains water clarity and healthy fish

How To Use

• Position the filter so installation height is 14.5 cm above pond water level
• Connect 8 x 110mm inlets and 3 x 110mm outlets to pond piping system
• Fill the bio chamber with pre-supplied Hel-X media and connect air dome
• Set the Siemens LOGO control panel to desired automated cleaning schedule
• Periodically inspect drum screen and bio chamber for optimal operation
• Adjust control panel and maintenance schedule based on seasonal or pond load

Product Specifications

• Flow Rate: 24,800 gallons per hour
• Inlets/Outlets: 8 x 110mm inlets, 3 x 110mm outlets
• Drum Size: 800mm (D) x 650mm (W) x 2
• Bio Chamber: 550 litres (max 275 litres Hel-X media)
• External Dimensions: 2380mm x 836mm x 973mm (L x W x H)
• Maximum Water Level: 830mm
• Motor: 210Nm direct-drive, ultra-reliable
• Cleaning Pump: 4-bar
• Control Panel: Siemens LOGO fully automatic, manually adjustable
• Installation Height: 14.5 cm above pond water level
• Warranty: 12 months on filter, 3 years on cleaning pump

Ideal For

• Large koi and ornamental ponds with high fish density
• Ponds requiring both mechanical and biological filtration in one unit
• Professional pond installations or commercial water features
• Ponds with high organic load or frequent debris accumulation
• Automated and low-maintenance pond water management systems
