Synergy Combi 35

Synergy Combi 35

Advanced All-in-One Pond Filtration System with Integrated Mechanical and Biological Filtration for Large Ponds

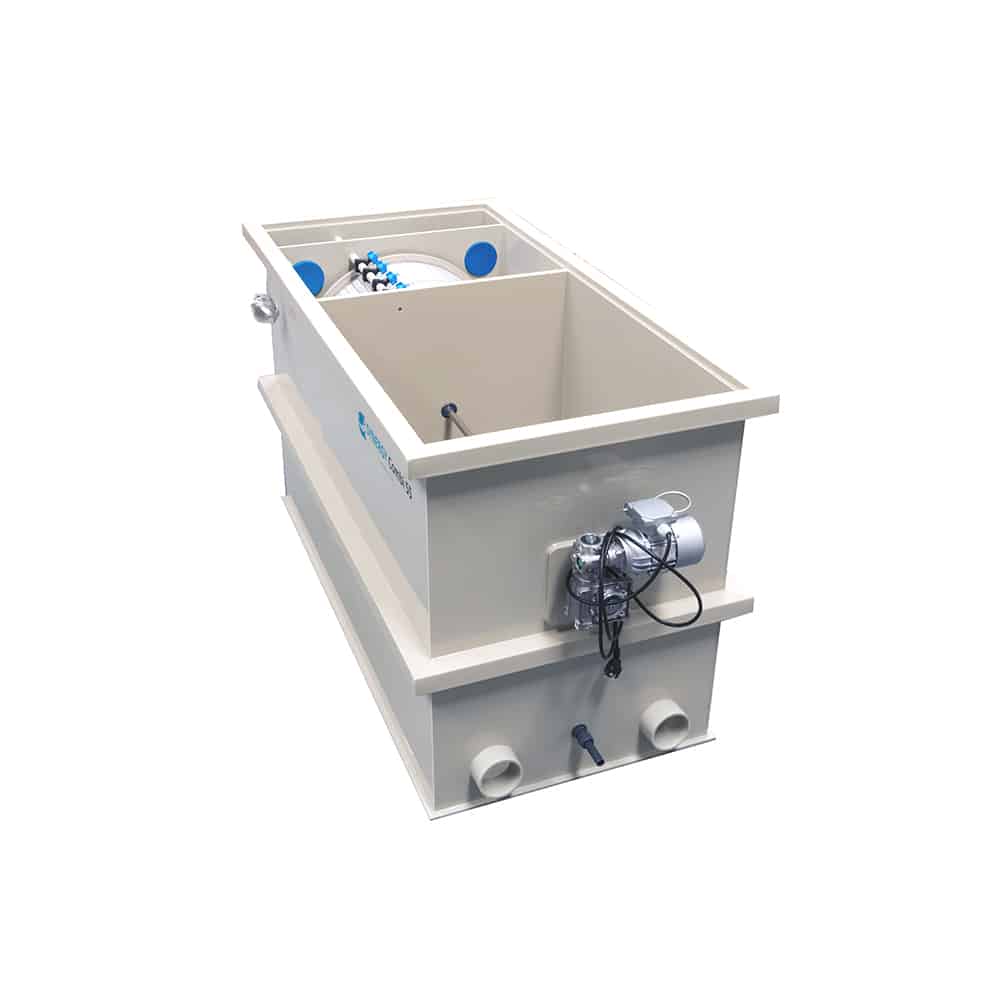

The Synergy Combi 35 is a high-performance, compact pond filtration system designed to deliver both ultra-efficient mechanical and biological filtration in a single unit, ideal for ponds requiring rapid turnover and superior water clarity. Engineered for ponds up to 7,700 gallons per hour, this all-in-one system combines a high-capacity automated drum filter with a large biochamber, providing comprehensive debris removal and nutrient processing to maintain a healthy and balanced aquatic ecosystem.

Equipped with a fully automated Siemens LOGO control panel, the Synergy Combi 35 ensures precise management of drum cleaning cycles while reducing manual maintenance requirements. The 70-micron drum screen efficiently captures solids, while the direct-drive 210Nm motor with dry-run protection guarantees long-lasting performance and reliability. The biochamber holds 450 litres and comes pre-filled with 100 litres of Hel-X media (expandable to 225 litres), and an integrated air dome promotes optimal aeration for beneficial bacteria growth. The filter can continue operating even if the motor fails, ensuring uninterrupted filtration and consistent water quality.

The Synergy Combi 35 is ideal for koi and ornamental ponds that demand superior mechanical and biological filtration in one compact, automated unit. Its innovative design reduces maintenance effort, provides reliable water clarity, and supports a thriving pond ecosystem.

Benefits

• Combines high-performance mechanical and biological filtration in one unit
• Flow rate of 7,700 gallons per hour for rapid pond turnover
• Fully automated Siemens LOGO control panel with manual adjustment options
• Dry-run protection and 210Nm direct-drive motor for reliable operation
• 70-micron drum screen captures solids and debris efficiently
• Large 450-litre biochamber with Hel-X media for optimal biological filtration
• Air dome supplied for enhanced aeration in the biochamber
• Operates even if the motor fails, providing consistent water quality

When to Use

• Large koi or ornamental ponds requiring high-capacity filtration
• Ponds experiencing high organic load, debris, or Blanketweed
• Automated systems needing minimal manual maintenance
• After pond cleaning, chemical treatments, or heavy rainfall
• For ponds requiring combined mechanical and biological filtration in one unit

How It Works

• 3 x 110mm inlets and 2 x 110mm outlets for efficient water distribution

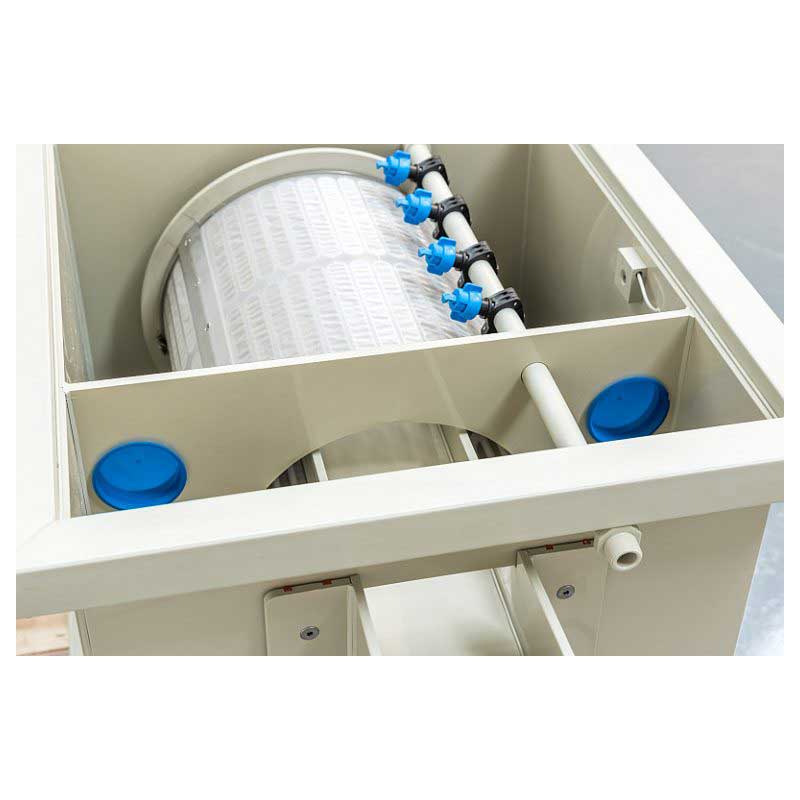

• Drum filter captures solids and fine debris

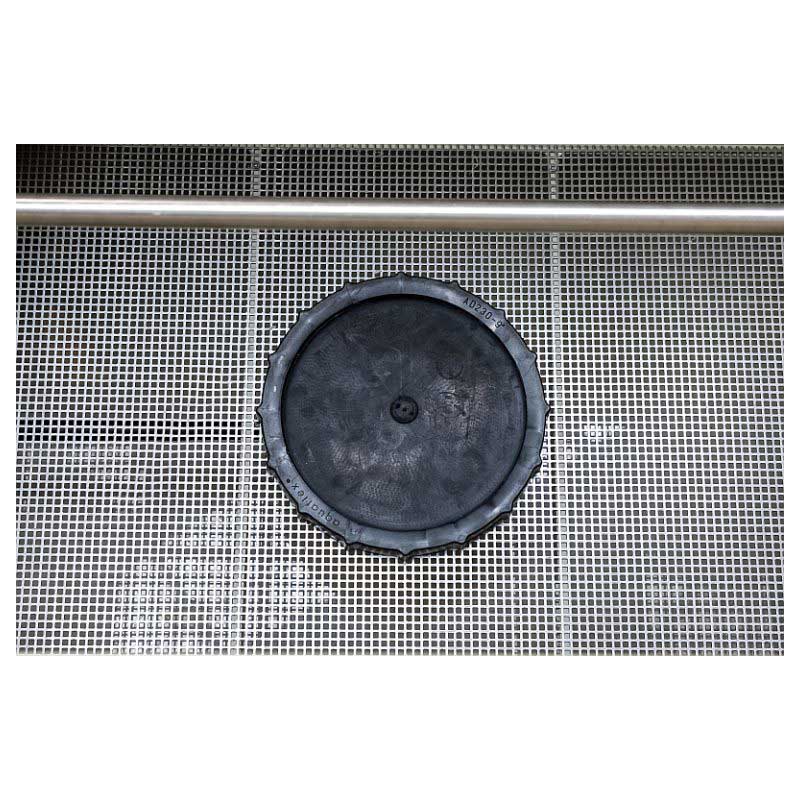

• Biochamber aerated by supplied air dome promotes beneficial bacteria growth

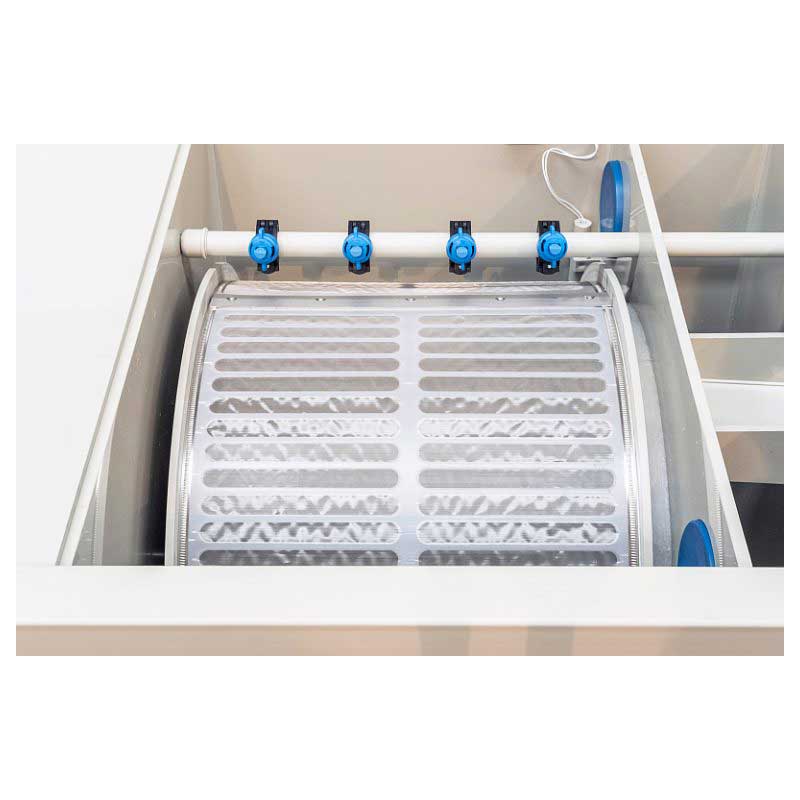

• Fully automated 4-bar cleaning pump maintains drum screen efficiency
• Siemens LOGO control panel allows automated and manual operation

How To Use

• Install filter at maximum water level of 825mm, minimum 812.5mm, positioned 12.5cm above pond water level
• Connect inlets and outlets to pond piping
• Fill biochamber with Hel-X media and position air dome
• Set Siemens LOGO control panel for desired cleaning cycles
• Inspect drum screen and debris trap periodically
• Adjust Hel-X media or air dome as needed for optimal biological filtration

Product Specifications

• Flow Rate: 7,700 gallons per hour
• Inlets/Outlet: 3 x 110mm inlets, 2 x 110mm outlets
• Drum Screen: 70-micron
• Drum Dimensions: 420mm (D) x 415mm (W)
• External Dimensions: 1941mm x 685mm x 947mm (L x W x H)
• Maximum Water Level: 825mm
• Biochamber Volume: 450 litres
• Hel-X Media Supplied: 100 litres (max 225 litres)
• Motor: 210Nm direct-drive
• Cleaning Pump: 4-bar
• Control Panel: Siemens LOGO, fully automated, manually adjustable
• Installation Height: 12.5cm above pond water level
• Warranty: 12 months (filter, excluding screen), 3 years on flushing pump

Ideal For

• Large koi and ornamental ponds requiring combined mechanical and biological filtration
• Ponds with high debris, organic load, or Blanketweed issues
• Hobbyist or professional pond setups seeking automated high-capacity filtration
• Systems needing continuous operation even in case of motor failure
• Ponds designed for Nexus 220 water level compatibility
