Burtons Bio Tank moving bed biological filter chamber for pond filtration systems

Burtons Bio Tank 1200

Name: That Pond Guy
Price range: $$$

Categories: Bio Chambers, Biological Filters, Pond Filters

SKU: BA-BIO-TANK-1200

Brand	Burtons Aquatics

Burtons Bio Tank 1200 is part of the Burtons biological filtration range for koi ponds and larger pond systems. Use it alongside suitable mechanical filtration, aeration, media and water testing for the best long term result.

£1,275.00 (inc VAT)

Be the first to leave a review.

Burtons Bio Tank 1200

Large moving bed biological filter chamber designed to increase biological filtration capacity in pond filtration systems.

The Burtons Bio Tank 1200 is a large and highly effective moving bed biological filter designed to increase the biological filtration capacity of pond filtration systems. Burtons Aquatics designs and manufactures this robust bio tank in the UK, ensuring excellent build quality and long term reliability.

Biological filtration plays a vital role in maintaining stable pond water conditions. As fish produce waste and organic debris break down, harmful compounds such as ammonia and nitrite enter the water. Beneficial bacteria colonise biological filter media and convert these compounds into less harmful substances. As a result, the pond remains safe and healthy for fish.

The Bio Tank 1200 provides space for between 200 and 250 litres of moving bed filter media. When combined with aeration, the media tumbles freely inside the chamber. This movement creates a highly oxygenated environment where beneficial bacteria can efficiently process waste.

The chamber has a maximum flow rate of 20,000 litres per hour. However, the recommended operating flow rate is between 12,000 and 15,000 litres per hour. Therefore, the Burtons Bio Tank 1200 is well suited to medium and large pond filtration systems. In addition, it works extremely well as a biological stage following a drum filter.

Designed for Moving Bed Biological Filtration

The Burtons Bio Tank 1200 is designed specifically for moving bed biological filtration systems.

Inside the chamber, aeration causes the biological filter media to circulate continuously. As a result, the media remains suspended and moves freely within the tank. At the same time, oxygen rich water constantly passes across the bacterial biofilm.

As the media circulates and tumbles, beneficial bacteria remain highly active. Consequently, the bacteria can break down ammonia and nitrite more efficiently. In addition, the constant movement helps maintain a thin and healthy biofilm layer. This prevents clogging and ensures reliable biological filtration.

Therefore, moving bed filtration provides a highly efficient way to maintain stable water quality in ponds and koi pond filtration systems.

Optimised Media Performance

The Bio Tank 1200 can hold between 200 and 250 litres of fluidised biological filter media.

For optimal filtration performance, Burtons recommends using a mixture of Bio Flo+ Media and Bio Tube Media. Because the two media types have different shapes and structures, they interact as they circulate inside the chamber.

As the media moves, the pieces gently collide and bounce against each other. This increases the tumbling or boiling motion within the tank. Consequently, oxygen circulation improves and beneficial bacteria remain highly active.

The increased movement also helps maintain a thin biofilm layer while preventing debris from accumulating on the media. As a result, the filter processes waste efficiently and maintains stable water conditions.

Benched Side Design for Improved Circulation

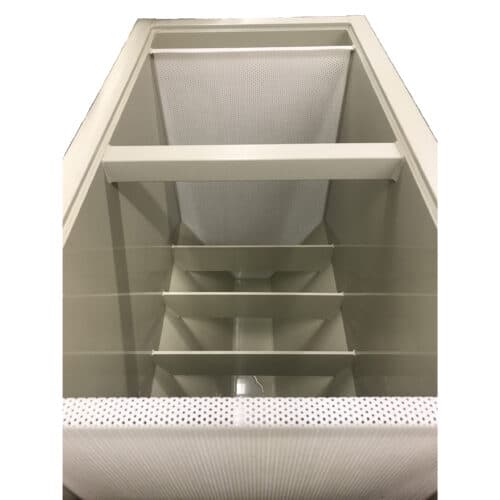

The Burtons Bio Tank 1200 features a benched internal design which improves water circulation inside the chamber.

These internal contours guide water flow through the tank and help create a natural circular movement. This increases the tumbling motion of the filter media and ensures the entire media volume remains active.

As a result, beneficial bacteria receive a constant supply of oxygen and nutrients. This helps maximise biological filtration performance and improves overall pond water quality.

Flexible Installation Options

The Burtons Bio Tank 1200 offers flexible installation options to suit different pond filtration systems.

The tank can be installed at water level within gravity fed filtration systems. Alternatively, it can be positioned above water level for pump fed filtration systems.

This flexibility allows the Bio Tank 1200 to work with a wide range of pond setups, particularly systems using Burtons drum filters.

Recommended Air Pump

To operate a moving bed biological filter effectively, the filter media must remain constantly suspended and tumbling inside the chamber. This requires a reliable air pump capable of producing sufficient airflow to create a strong boiling motion within the filter.

For the Burtons Bio Tank 1200 we recommend using either the Charles Austen ET80 Air Pump or the Charles Austen ET100 Air Pump. These pumps provide strong airflow which helps keep the biological media fully fluidised while ensuring beneficial bacteria receive plenty of oxygen.

Using the correct air pump ensures the filter media circulates freely inside the chamber. As a result, the biological filtration stage can efficiently break down ammonia and nitrite within the pond.

The Charles Austen ET range is well known for reliability, energy efficiency and quiet operation, making it an excellent choice for pond filtration systems.
