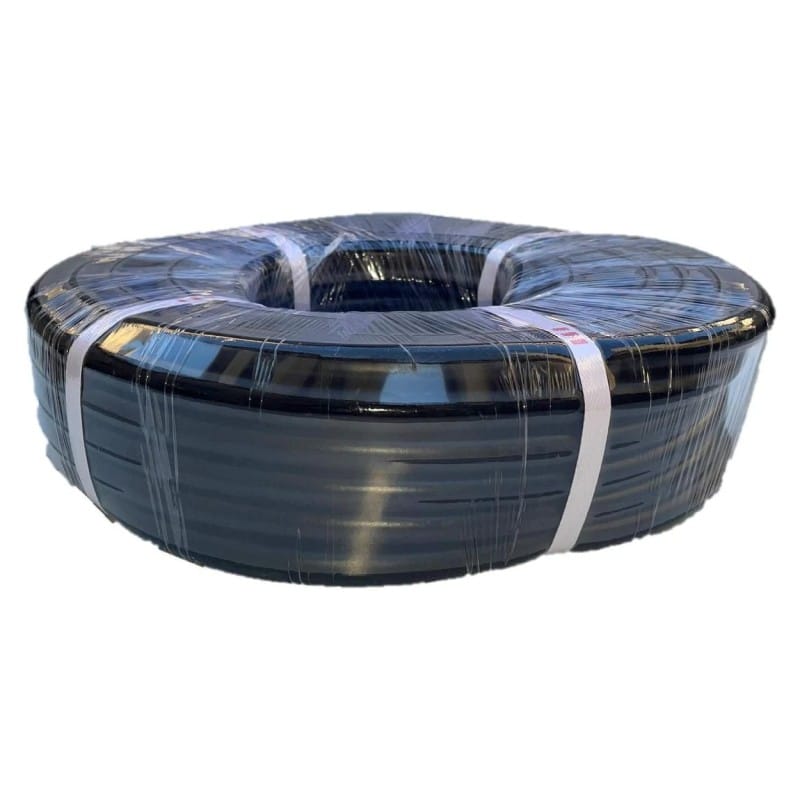

Super Heavy Duty Weighted Airline – 30m

Super Heavy Duty Weighted Airline – 30m

1/2 inch or 12.5mm ID self sinking airline for large pond and lake aeration systems

Super Heavy Duty Weighted Airline is a substantial self sinking air hose designed for larger pond, koi pond and lake aeration installations where standard small bore airline is not suitable. With a 1/2 inch internal diameter, approximately 12.5mm, and a very heavy 30mm external diameter, it is designed to stay on the pond or lake bed without needing separate weights, bricks or clips to hold it down.

This makes it ideal for permanent underwater aeration runs where a neat, protected and reliable installation is needed. Standard clear or black PVC airline can float once filled with air, which can leave pipework visible across the water surface and exposed to boats, wildlife, nets, maintenance work and ice. This super heavy duty weighted airline is made from a high density flexible PVC composite, giving it the weight needed to sink naturally while still being manageable during installation.

The larger bore is particularly useful where higher airflow is required or where the airline run is longer than normal. Smaller airline can create unnecessary friction loss, especially when used with large air pumps or multi disc diffuser stations. A larger internal diameter helps reduce restriction, allowing more of the pump output to reach the diffuser rather than being lost through narrow pipework and tight fittings.

Each length is supplied as a full 30 metre roll, which is approximately 100 feet. A single 30 metre length weighs around 16kg, making this a very robust product compared with standard sinking airline. It is best suited to serious aeration work, including large ponds, estate lakes, fisheries, farm ponds and commercial water bodies where the airline is expected to remain in place for long periods.

Where this airline is best used

This airline is most useful as a heavy underwater run from the bank or equipment area to a lake diffuser station. It is a strong match for larger air pumps and diffuser stations, including Charles Austen DSW diffuser stations and other large pond and lake aeration systems. It is not normally required for small aquarium air stones or tiny pond air pumps, where 4mm, 8mm or 10mm sinking airline will usually be easier and more suitable.

For systems with multiple diffuser lines, this airline can also be used as a larger trunk line before splitting the airflow through suitable manifolds or adaptors. The new 12mm and 14mm options on our 2 way air manifold and 4 way air manifold can be helpful on larger aeration layouts, although fittings should always be checked against the 12.5mm internal diameter and 30mm external diameter before installation.

Key benefits

• Very heavy weighted airline designed to sink naturally
• No separate bricks, weights or additional sinkers normally required
• 1/2 inch internal diameter, approximately 12.5mm
• Large 30mm outside diameter for a very substantial underwater hose
• Supplied in practical 30 metre lengths
• Weighs approximately 16kg per 30 metre length
• High density flexible PVC composite construction
• Designed for large pond, lake and koi pond aeration systems
• Helps reduce airflow restriction on longer or higher flow runs
• UV resistant material for long lasting outdoor and underwater use
• Helps keep airline out of sight on the pond or lake bed
• Reduces the risk of floating airline tangling with boats, wildlife or maintenance equipment

Available option

• Internal diameter: 1/2 inch, approximately 12.5mm
• External diameter: approximately 30mm
• Supplied length: 30 metres, approximately 100 feet
• Weight: approximately 16kg per 30 metre length
• Material: high density flexible PVC composite
• Colour: black
• Construction: non lead weighted self sinking airline

Standard, heavy duty or super heavy duty airline?

Choosing the correct airline makes a big difference to airflow, neatness and long term reliability. Small bore airline is easy to handle and works well for compact systems, but larger aeration systems benefit from a more substantial hose with less restriction and better underwater stability.

Product	Best use	Internal diameter	Typical lengths	Main advantage
4mm/8mm Standard Sinking Airline	Small to medium pond and aquarium aeration, individual air stones and compact diffuser runs	4mm or 8mm	Cut lengths and full rolls	Neat weighted airline for everyday aeration installations
Evolution Aqua Heavy Duty Sinking Airline	Koi ponds, heavier pond aeration runs and stronger permanent installations	4mm, 8mm or 10mm	Cut lengths and full rolls depending on size	Thicker, more substantial sinking airline for pond installations
Super Heavy Duty Weighted Airline	Large pond and lake aeration, long underwater runs and higher airflow diffuser systems	1/2 inch, approximately 12.5mm	30 metre lengths	Very heavy 30mm outside diameter airline for demanding aeration layouts

Technical specifications

• Product type: super heavy duty weighted airline
• Internal diameter: 1/2 inch, approximately 12.5mm
• External diameter: approximately 30mm
• Length supplied: 30 metres
• Approximate weight: 16kg per 30 metre length
• Material: UV resistant high density flexible PVC composite
• Weighted construction: yes, self sinking
• Lead content: non lead weighted construction
• Suitable for: large pond aeration, lake aeration, diffuser stations and higher airflow underwater runs
• Not usually required for: small aquarium air stones or low output garden pond air pumps

Installation advice

Plan the route before placing the airline into the water. The hose is heavy, so it is easier to install with two people on larger ponds or lakes. Avoid sharp bends, crushing, tight kinks or pulling the pipe hard against edges, as any restriction in the airline can reduce airflow and increase back pressure on the air pump.

Where a longer run is required, suitable joiners can be used to connect additional lengths. Any joint should be made securely and checked before the airline is sunk into position. If the airline is being connected to a manifold, diffuser station or pump outlet, use properly sized fittings and clamps where needed. Do not force a small fitting into the hose or reduce the line down too early, as this can reduce the benefit of using a large bore airline.

Important ordering information

• This product is supplied in 30 metre lengths only.
• Ordering quantity 1 supplies one 30 metre length.
• Ordering quantity 2 supplies two separate 30 metre lengths, not one continuous 60 metre length.
• Joiners are available where longer runs are required.
• For long distance or high airflow installations, check pump output, diffuser requirements and airline sizing before ordering.
