Oase Waterfall 90

SKU: 50706
GTIN: 4010052507064
Brand

Oase Waterfall 90 (50706) is a 900mm-wide V4A stainless steel blade for a broad pump-fed water curtain. Its G 1¼ feed includes a stepped hose nozzle and plug. Plan pump delivery at the finished drop, a wide catchment and a safe return; the matching LED light is separate.

£255.99 (inc VAT)

Oase Waterfall 90: plan the full 900mm water sheet

The Oase Waterfall 90 is the 900mm-wide standard stainless steel blade in Oase’s Waterfall family, manufacturer reference 50706. It creates a broad, even curtain over a pond or water-feature edge when the pump, pipework and return are planned for the finished drop. The blade has no integral pump or light. Its width makes a strong feature on a longer wall, but it also makes sizing and containment more important than on the 30cm or 60cm models. Start with the space where the water will land, not just the available width in the wall.

Before ordering, mark the intended 90cm span on the actual wall and imagine the water falling from it in a breeze. The catchment needs to take the complete sheet plus splash, with a reliable route back to the pond or hidden reservoir. Even a small amount of water escaping behind coping, onto paving or into planting can add up during a long run. A decorative water blade should therefore be treated as part of a waterproofed circuit, not as a stand-alone stainless-steel ornament.

What Oase specifies for model 50706

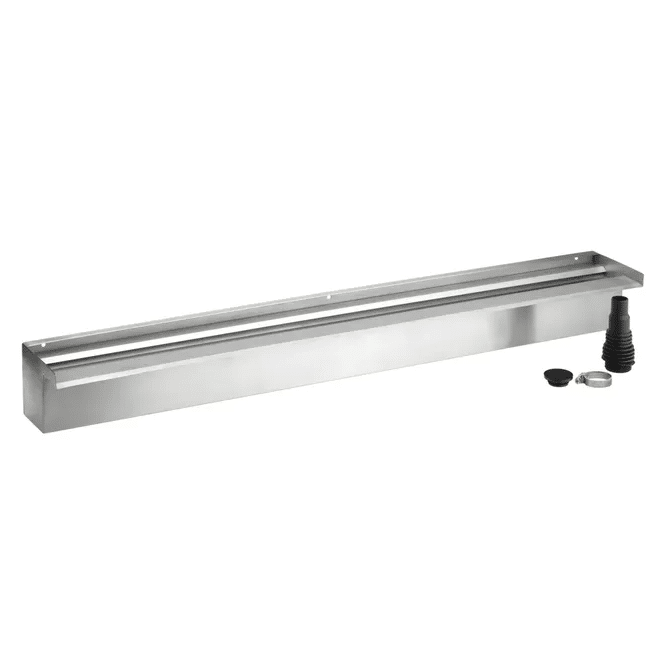

Oase’s technical specification gives this model a 900mm spill width and a 140 × 900 × 100mm body. The material is stainless steel grade 1.4401 (V4A), with a G 1¼ threaded feed connection. Oase lists a stepped hose nozzle for 19, 25, 32 and 38mm hose and a plug for the unused feed opening. It can be built into a wall or mounted on a suitable face, following the manufacturer’s instructions. Oase gives the Waterfall 90 a two-year guarantee subject to its current terms.

Oase reference 50706 — Waterfall 90
Water-sheet width 900mm
Body dimensions 140 × 900 × 100mm (length × width × height)
Feed connection G 1¼ threaded opening; stepped hose nozzle and plug included
Construction Stainless steel 1.4401 (V4A)
Optional light Oase Waterfall 90 Illumination is a separate product

Check the actual hose and connection hardware before assembly. A 900mm blade needs a consistent supply across the width; a long run of undersized hose or a poorly matched reducer can make the pump work harder without giving a satisfactory sheet. Support the feed so its weight and any movement are not borne by the threaded stainless-steel connection. Seal and blank the unused feed point as instructed, then inspect for leaks while everything is still accessible.

Match pump performance to the drop

Measure the vertical lift from the normal water surface to the waterfall feed, as well as the length, bore and bends of the pipe route. A pump’s maximum litres per hour at minimal head will not be its delivered flow at the top of a wall. Compare candidate pumps at the installed head on their performance graphs. Include any shared filtration or branches in the calculation: if part of the pump’s output feeds another item, only the remaining flow reaches the waterfall.

Oase’s current guidance gives example AquaMax Eco or Aquarius Eco Premium model-size bands for the Waterfall 90: approximately 3,500–6,500 with a 0.2m water drop, 4,500–7,000 for 0.4–0.6m, and 4,500–9,000 for 0.8–1.0m. These are examples of pump model sizes, not measured litres per hour at the blade or a universal specification for every installation. Use the candidate pump’s curve and test the visual result. Our pond-pump category is a starting point for comparing suitable controllable and fixed-flow options.

A smooth, continuous 90cm sheet needs the blade level from end to end. During commissioning, start at a modest flow, check the entire edge and increase output only as needed. If one side breaks up, investigate the mount, debris, air in the supply and inconsistent flow before buying a larger pump. Excess flow can throw water clear of a narrow return. Stand back and watch the feature from normal viewing positions as well as from beside the wall; the sheet that looks impressive up close may splash more than expected from a higher drop.

Build for service, splash and safe return

Choose a rigid mounting position and waterproof the wall behind the outlet. The leading lip should project far enough for the water to clear cladding or coping. On a raised pond, check that the whole sheet lands inside the pond when the level is at its normal operating height. For a pondless feature, account for water held in the line and waterfall while running and the volume that drains back at switch-off; leave access to the pump and an easy way to top up the reservoir. An overflow route may be appropriate where the feature is exposed to heavy rain.

Keep the hose and feed reachable for inspection. Clear the pump intake and any upstream strainer before reduced flow becomes a broken sheet. Wipe the blade with a method compatible with stainless steel and avoid pond-unsafe cleaning chemicals. If the feature is stopped in freezing weather, follow the pump and blade instructions for drainage and frost protection. Do not assume that running water alone protects an exposed feed or outlet from ice. The waterfall adds visual movement and some surface exchange; it does not replace the pond’s filtration or an aeration design sized for fish health.

Compare widths, projection and lighting

If the wall is narrower or the reservoir is small, the Waterfall 60 or Waterfall 30 may be easier to feed and contain. If you need the same 900mm width but more clearance beyond a wall face, compare the Waterfall XL 90 with its longer projection. The width alone does not decide the model: take the wall build-up, desired drop and landing area into account.

Oase’s matching Waterfall 90 Illumination can be added as a separate LED accessory. The stainless steel blade on this page has no electrical connection; if the light may be fitted later, provide a cable route before the wall is closed. Browse our Oase waterfall blades to compare the three standard widths and the longer-lipped XL versions as one system.
