Oase Waterfall 30

SKU: 50704
GTIN: 4010052507040
Brand

Oase Waterfall 30 (50704) is a 300mm stainless steel, pump-fed water blade for a clean sheet over a pond edge or wall. Its G 1 feed includes a stepped 19/25/32/38mm hose nozzle and plug. Pump and optional Waterfall 30 LED illumination are separate; size the pump for the finished drop and pipe route.

£128.99 (inc VAT)

Oase Waterfall 30: a 300mm stainless steel water blade

The Oase Waterfall 30 is a pump-fed, 30cm-wide stainless steel spillway for a clean sheet of water over a pond edge or garden wall. It is the blade itself, manufacturer reference 50704, rather than a powered pump or a complete pond kit. Oase offers a matching LED light and wider 60cm and 90cm blades separately. Choose this 30cm model when its width suits the wall and catchment area, then plan the pump, pipework and water return around the drop you want.

The flat, even curtain is the appeal of this style of waterfall. A smooth sheet depends on a level blade, a steady water supply and enough flow at the installed height. It also needs somewhere for every drop to land and return. A blade fitted above paving without a lined catchment can lose water through splash or wind drift, even if the pump and stainless steel component are working correctly.

What the 30cm model includes

Oase specifies a 300mm spill width and a 140 × 300 × 100mm body for the standard Waterfall 30. Its stainless steel is grade 1.4401 (V4A). The manufacturer describes a G 1 threaded feed connection and supplies a stepped hose nozzle for 19, 25, 32 and 38mm hose, along with a plug for the unused opening. The body can be recessed into a wall or fixed on its face. Oase states a two-year guarantee for this blade; check the current guarantee terms and your installation against the supplied instructions.

Manufacturer reference 50704
Water-sheet width 300mm
Body dimensions 140 × 300 × 100mm (length × width × height)
Material Stainless steel 1.4401 (V4A)
Water feed G 1 threaded connection; stepped 19/25/32/38mm hose nozzle supplied
Power No electrical component in the blade; a suitable pond pump is required separately
Lighting Optional Oase Waterfall 30 Illumination is separate

The two water-entry positions are useful when planning concealed pipework. Fit the supplied plug to whichever opening is not being used and follow Oase’s instructions for sealing and supporting the feed. The standard Waterfall 30 has a shorter projection than the Waterfall XL 30; compare the wall build-up and where the water must land before choosing the longer-lipped version. Neither model includes the circulation pump merely because a pump appears in an installation photograph.

Choose a pump for the finished installation

Start by measuring from the pond or reservoir water surface to the waterfall feed, then add the hose route, bends and fittings. A pump’s advertised maximum litres per hour is usually measured under favourable conditions; its delivered flow falls as lift and pipe resistance increase. Consult the pump’s performance curve at your actual head height and use hose of an appropriate diameter rather than throttling the feature through a long, narrow run.

Oase gives pump-size examples for this 30cm blade by waterfall height. Its product guidance points to AquaMax Eco or Aquarius Eco Premium pump models in the 2,500–4,500 range for lower drops around 0.2–0.6m, and approximately 3,500–4,000 for a drop around 0.8–1.0m. Those numbers identify example pump models; they are not a promise of delivered flow at your site. Check the current pump curve and the final appearance rather than buying solely by a model number. Browse our pond pumps and leave access to adjust or service the chosen pump.

A controllable pump can make commissioning easier. Begin at a moderate setting and look for an even sheet across the full width. If the sheet breaks up, first check that the blade is level and free of debris, that the supply is steady, and that air is not entering the line. More flow is not automatically the answer: an over-strong sheet can overshoot a narrow return or splash onto paving. Test at the finished wall height, with the real hose and fittings, before closing the wall or burying the pipe.

Plan the wall and catchment together

Position the blade so its outlet projects far enough beyond any wall face, cladding or coping to keep water away from the structure. Allow for the water’s path when it falls, not merely the blade’s 30cm width. Wind can move a thin sheet, while a high drop can create more splash than a short one. The pond, lined channel or concealed reservoir below should catch the moving water and the drain-back after the pump stops. For a raised formal pond, pay particular attention to waterproofing behind the wall finish and the route that returns stray water to the pond rather than into the masonry.

Support the stainless steel body securely, keep it level from side to side, and avoid twisting the threaded connection with the weight of unsupported hose. Decide whether rear or underside feeding gives the cleanest route before cutting the opening. Keep a route to inspect the feed connection and clear any debris. The supplied hose nozzle offers several nominal hose sizes, but confirm the actual internal hose diameter and clamp fit instead of assuming every “1-inch” or “32mm” hose has the same wall thickness. Our Oase waterfall range lets you compare blade widths before the wall is built.

Lighting, care and alternative widths

If you want the falling water lit at night, Oase’s separate Waterfall 30 Illumination is designed to retrofit to the 30cm blade. It is a powered accessory with its own transformer and cable; the plain Waterfall 30 on this page has no built-in light and no mains electrical connection. Allow for the light’s cable route while the installation remains open, even if you plan to add it later. Follow the light’s own electrical and water-protection instructions.

Inspect the lip and water path periodically. Leaves, algae and mineral deposits can disturb a clean sheet, while an intake blocked at the pump can reduce the water reaching the blade. Isolate the pump before handling its intake or opening the feed, and clean the stainless steel as directed by Oase. Avoid abrasive tools or household chemicals that could mark the surface or enter the pond. In freezing conditions, follow the pump and waterfall instructions for shutdown, drainage and protection rather than assuming an exposed water sheet can run safely in every frost.

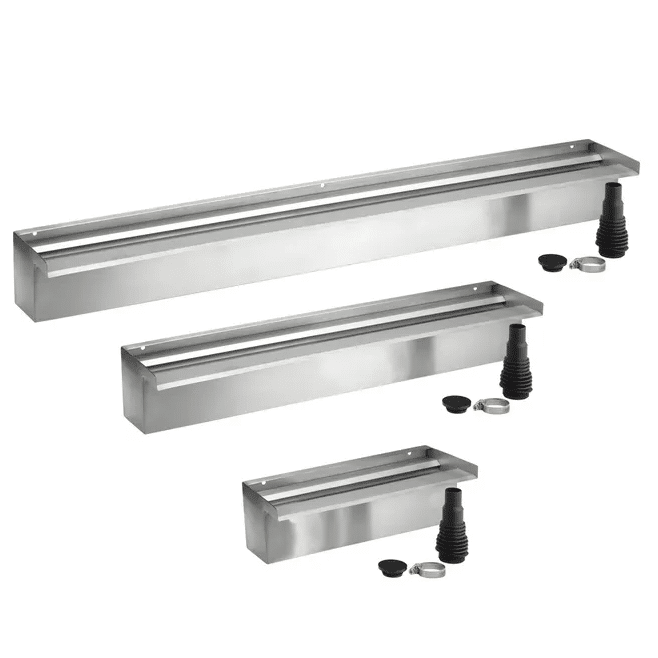

For a wider curtain across the same style of edge, compare the Oase Waterfall 60 and Oase Waterfall 90. Those wider blades need their own pump and catchment assessment; a pump that looks right on a 30cm blade may not create the same sheet over 60 or 90cm. The XL 30 keeps the 30cm width but projects farther from the wall. Compare actual body dimensions, wall depth and falling-water path before ordering, particularly when replacing an existing blade in a finished opening.
