Oase Waterfall XL 90

SKU: 70773
Brand

Oase Waterfall XL 90 (70773): a 900mm V4A stainless steel blade with an extended outlet lip for wall clearance and a G 1¼ feed. The pump, water return and optional Waterfall 90 Illumination are selected separately; compare pump guidance for your installation height.

£324.99 (inc VAT)

Oase Waterfall XL 90: a 900mm architectural water curtain

The Oase Waterfall XL 90 (part 70773) is the widest XL stainless steel waterfall blade in this Oase family. Its 900mm spillway forms a strong, straight sheet for a substantial garden wall or raised pond. The XL body extends 60mm farther from the wall than the standard Waterfall 90, helping the falling water clear coping or cladding. It is a passive blade, not a complete pumped water feature: the pump, feed hose, catchment and any lighting must be planned around the site.

At 90cm wide, the water’s landing area becomes a major part of the installation. A narrow pond margin that works with a 30cm blade might lose water from a 90cm fall when the wind changes. Measure the inside width and depth of the pond or reservoir, the intended drop height, the completed wall surface and the distance from the lip to the water. Dry-position the blade before building the recess, then wet-test the full circuit before closing any wall access.

Manufacturer specification for 70773

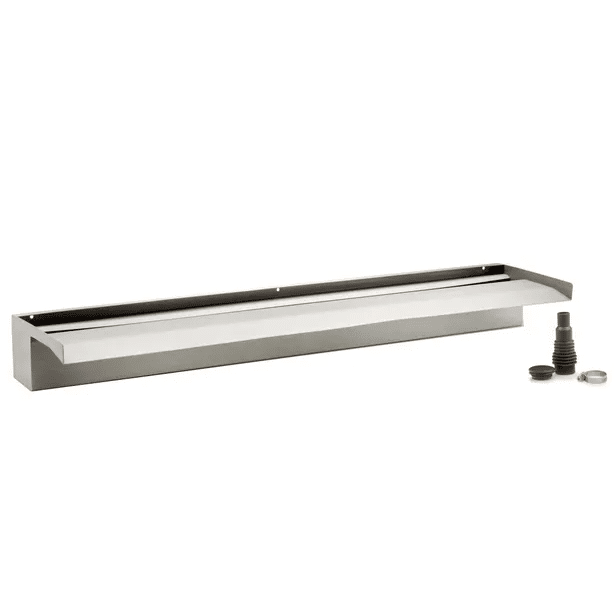

Oase lists the XL 90 dimensions as 200 × 900 × 100mm, with a 900mm overrunning width. It is constructed from stainless steel grade 1.4401 (V4A) and has a G 1¼ feed connection. The stepped hose nozzle provides 19, 25, 32 and 38mm steps, with an extra-flat plug supplied. Oase states a two-year guarantee, subject to its terms. Because the 90cm model has a larger feed thread than the two narrower XL blades, check fittings against this exact model rather than copying a parts list from the XL 30 or XL 60.

Exact Oase product Waterfall XL 90, 70773
Sheet width 900mm
Blade dimensions 200 × 900 × 100mm (length × width × height)
Water feed G 1¼ threaded connection; stepped 19/25/32/38mm hose nozzle supplied
Construction Stainless steel grade 1.4401 / V4A
Power and light Unpowered blade. Pump and Waterfall 90 Illumination are separate.

The published dimensions are the body dimensions, not the complete space required in a wall. Allow room for the hose bend, threaded feed, mounting and a route to inspect the connection. The 200mm front-to-back length is the main reason to choose the XL version when the standard 140mm body would leave the sheet too close to the finished wall. However, the final clearance depends on the actual wall construction, so confirm the projection at the site.

Get enough water to the full 90cm lip

For a continuous sheet, the pump needs to deliver water evenly across the full width after it has lifted it to the blade. Calculate the height from the normal pond or reservoir level to the feed, not just the visible drop from lip to landing surface. Include friction from pipe length, bends, valves and any strainers. The maximum-flow figure printed on a pump carton is not its delivered flow at that installed head. Compare the actual performance curves of candidate pumps in our pond-pump range.

Oase’s current guidance names AquaMax Eco or Aquarius Eco Premium model sizes around 3,500–6,500 for a 0.2m waterfall height, 4,500–7,000 for 0.4–0.6m and 4,500–9,000 for 0.8–1.0m. These are example pump model sizes, not guaranteed delivered litres per hour. A deeper-looking curtain can need more flow than a fine sheet; the line size and actual head still determine the result. Use the Oase examples to shortlist pumps, then size the complete circuit rather than treating the figures as an automatic compatibility certificate.

For a blade this wide, a level mounting surface is essential. If one end runs thin, check the lip with a level, inspect the inlet for trapped air and clear debris from the water path. A powerful pump cannot make an unlevel blade deliver a uniform sheet. A controllable pump can help tune appearance once the geometry is right. Start modestly, increase the flow gradually, and stop before the outer edges splash beyond the designed return.

Recessing, water return and safe access

Oase describes both recessed and surface fixing. Follow the installation manual and choose fixings appropriate to the supporting wall; the blade should not rely on fragile cladding for support. Build waterproofing behind the finish so an occasional run-back does not soak the structure. Keep the water sheet clear of the wall face, and include a safe path back to the pond if spray reaches the coping. Before the final finish is applied, run the system while watching both ends of the sheet and the whole landing area.

A pondless installation needs a hidden reservoir with enough usable water volume to keep the pump submerged while the hose and blade fill. It also needs capacity for drain-back when the pump stops. The access hatch or cover must support the landscaping load independently of the decorative blade. For an open pond, check that the water continues landing inside the pond footprint as the water level changes. Allow for wind, splash and evaporation when planning any automatic top-up.

Do not hide all of the pipework behind a permanently sealed wall. Support the hose so that it does not strain the G 1¼ feed, and leave room to inspect a clamp or threaded joint. Clean the pump intake and lip when the sheet becomes irregular. Isolate the pump before servicing. In freezing conditions, follow the pump and hose instructions and drain vulnerable exposed runs if the feature is shut down. The waterfall adds movement, but it does not replace appropriately sized filtration or aeration for fish.

Compare the other Waterfall sizes and optional light

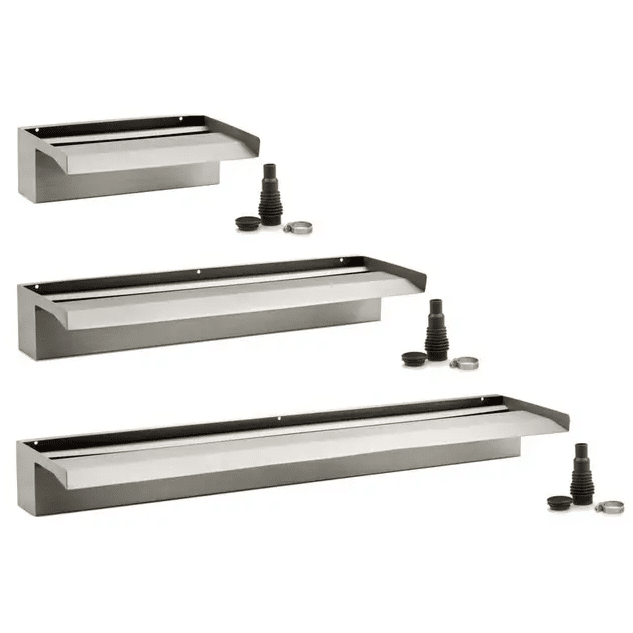

If the available wall or reservoir is narrower, compare the XL 60 or XL 30. If a longer projecting outlet is unnecessary, the standard Waterfall 90 keeps the same nominal sheet width with a shorter body. Our Oase Waterfall category lets you compare the three widths in both body depths.

For evening use, the separate Oase Waterfall 90 Illumination can light a compatible 90cm blade. Plan its cable route during the wall build; its low-voltage supply, transformer location and waterproof-connection requirements come from the lighting instructions. The stainless steel blade itself needs no electrical supply. Getting the wall position, pump performance and return-water details right will make more difference to the daytime sheet than any optional accessory.
