Oase Waterfall 60
| Brand |
|---|

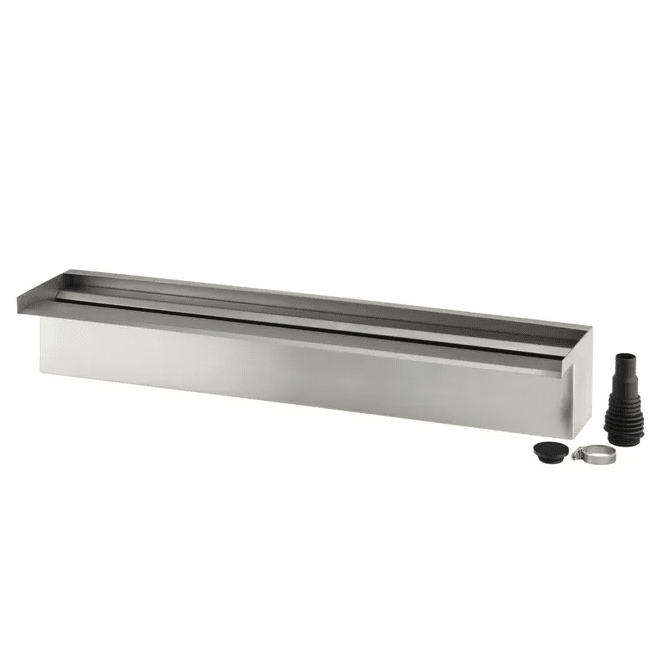

Oase Waterfall 60 (50585) creates a 600mm-wide sheet from a pump-fed V4A stainless steel blade. Its G 1 feed includes a stepped 19/25/32/38mm hose nozzle and plug. Choose the pump for the actual wall height and pipe route; optional Waterfall 60 LED lighting is sold separately.
£196.99 (inc VAT)
Oase Waterfall 60: a wider sheet for a formal pond edge
The Oase Waterfall 60, manufacturer reference 50585, creates a 600mm-wide water curtain from a stainless steel blade. It suits a garden wall, raised pond or lined water-feature channel where the full width of falling water can be caught and returned. This listing is the blade, not a pump-and-filter kit: you select a circulation pump, hose and any optional lighting for the finished installation. It is wider than the Waterfall 30, so allow more water delivery and a broader splash zone rather than treating it as a visual-only size change.
Decide first what the water will fall into. A 60cm curtain can look especially balanced against a medium-width wall, but water landing on a narrow ledge or outside a reservoir will gradually lower the water level. Splash increases with drop height and wind. Draw the likely sheet and landing area on your plan, then check it with the pump running before enclosing the pipework or finishing the masonry.
Confirmed Waterfall 60 specifications
Oase states a 140 × 600 × 100mm body with a 600mm spill width. It is made from corrosion-resistant stainless steel grade 1.4401 (V4A) and has a G 1 threaded water-feed connection. Oase lists a stepped hose nozzle for 19, 25, 32 and 38mm hose plus a plug for the unused opening. The manufacturer gives a two-year guarantee, subject to its current terms and correct installation. These figures apply to the standard 50585 Waterfall 60; the Waterfall XL 60 has a longer lip and a different body depth.
| Model and Oase reference | Waterfall 60 — 50585 |
|---|---|
| Sheet width | 600mm |
| Body dimensions | 140 × 600 × 100mm (length × width × height) |
| Water connection | G 1 threaded feed; stepped 19/25/32/38mm hose nozzle supplied |
| Material | Stainless steel 1.4401 (V4A) |
| Power and light | The blade itself has neither a motor nor a light. Pump and optional Waterfall 60 Illumination are separate. |
The connection details matter before choosing a hose. A nominal hose size does not tell you the actual outside diameter or how it will clamp onto the supplied nozzle. Check the chosen step, fit a suitable clamp and support the hose so that it cannot pull the threaded connection out of alignment. Oase’s spare-parts information names a 20–32mm hose clamp under reference 11818; select a clamp to suit the actual hose fitted, particularly if using a different nozzle step.
Size the pump for a 600mm curtain
The pump must deliver enough water across the full lip after losses from lift, hose length, bends and fittings. A pump described as “5,000 litres per hour” may deliver substantially less at a high wall; the useful number is its flow at the installed head. Measure vertically from the pond or reservoir’s normal water level to the blade feed, then trace the real route of the pipe. Use the pump curve and allow for the hose diameter. A long restrictive hose can waste much of a pump’s available performance.
Oase’s model examples for the standard Waterfall 60 vary with the height of the falling sheet: its current product guidance points to AquaMax Eco or Aquarius Eco Premium model sizes around 2,500–4,500 at a 0.2m drop, 3,500–5,500 at 0.4–0.6m and 4,500–7,000 at 0.8–1.0m. These are example pump model ranges, not delivered litres per hour or a guarantee of appearance. Pond level, feed route and desired sheet thickness still govern the choice. Compare candidate pumps in our pond-pump range using each pump’s head/flow graph.
If the water sheet is thin on one side, first check that the lip is level, the inlet is free of air and the supply is stable. Restricting one side with landscaping will not cure a blade that is mounted on a twist. A controllable pump can help find the balance between a full sheet and excessive splash, but a pump cannot compensate for an undersized return area. During a test run, watch the full width from both sides and check the pond level after the circuit has filled.
Wall mounting, return water and maintenance access
The blade can be recessed into a structure or fixed to a suitable wall surface, following Oase’s installation instructions. The lip must project far enough beyond the wall face that water falls clear of the finish. Lay out the wall finish, coping and backing waterproofing as one detail: water tracking behind the stone or brick can cause trouble long after the feature first looks good. In a raised pond, provide a catchment within the pond footprint; in a pondless feature, size the hidden reservoir for running volume, splash loss and water that drains back when the pump stops.
Build in a way to inspect the feed and remove trapped leaves or grit. A fine, even waterfall needs a clear water path, so keep the pump intake and any upstream strainer clean. Do not make the hose connection inaccessible behind a permanently closed panel. Isolate the pump before servicing. For seasonal shutdown, follow the pump and waterfall instructions, drain any vulnerable exposed pipework as required and check the blade again when restarting. A decorative waterfall can contribute movement and surface exchange, but it should not be sold as a substitute for a correctly sized pond filter or independent aeration plan.
Light it or compare a different blade
The separate Oase Waterfall 60 Illumination is designed to retrofit to this width, so leave a sensible cable route even if the LED is a later addition. Its transformer, electrical rating and water-protection requirements belong to the lighting product, not to this unpowered steel blade. It is easier to plan the cable exit before cladding the wall than to drill through a finished water feature.
For a narrower sheet and a smaller pump/catchment arrangement, compare the Waterfall 30. For a broader architectural effect, consider the Waterfall 90, allowing for its larger feed and water demand. If the wall needs more clearance at the same 60cm width, look at the XL 60. Our Oase waterfall collection keeps the widths together for comparison; choose the model from the built wall and water-return geometry, not just a picture of a flowing blade.
