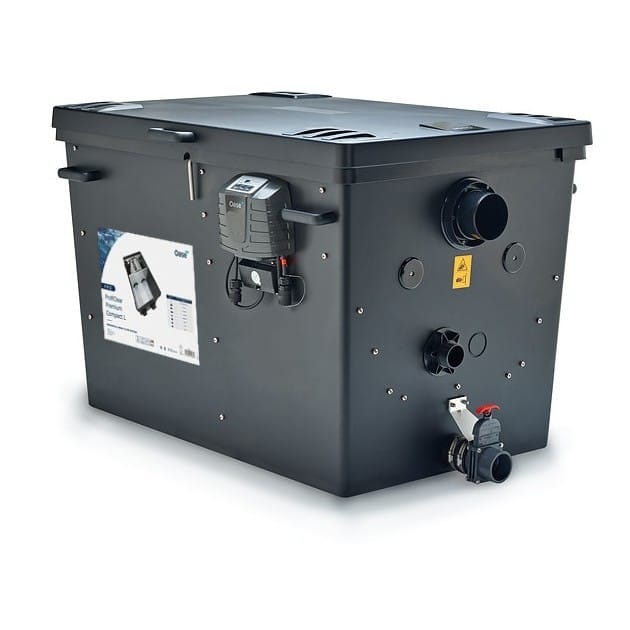

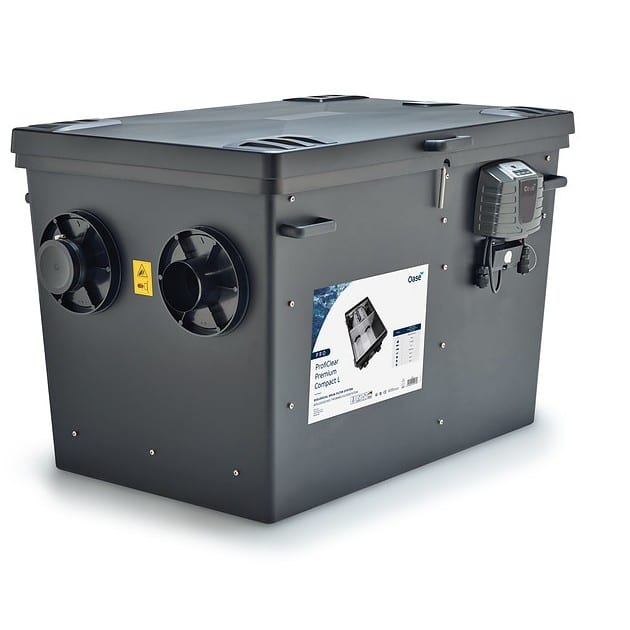

Oase ProfiClear Premium Compact L Pump Fed Drum Filter OC

Oase ProfiClear Premium Compact L Pump Fed Drum Filter OC

High Performance Pump Fed Drum Filtration for Compact Installations

The Oase ProfiClear Premium Compact L Pump Fed Drum Filter OC is a high performance self cleaning drum filtration system designed for small to medium sized koi ponds and ornamental ponds. Engineered for ponds up to 30 cubic metres, this compact drum filter combines powerful mechanical filtration with advanced biological processing. As a result, it delivers exceptional water clarity while keeping maintenance to a minimum.

Designed specifically for pump fed installations, the Compact L integrates a stainless steel drum screen with a large Hel X 13 moving bed biological chamber. Therefore, it provides both immediate debris removal and long term pollutant breakdown within a single modular unit.

Intelligent Drum Technology with Moving Bed Bio Filtration

At the centre of the system sits a 60 micron stainless steel drum screen. As water is pumped into the drum chamber, the screen captures solid waste, uneaten food and fine suspended debris before it can pass into the biological stage. Consequently, mechanical filtration occurs instantly and efficiently.

When debris begins to restrict flow, the automated cleaning cycle activates. High pressure spray jets then rinse the drum surface and flush collected waste into the discharge channel. As a result, the system continues operating without manual cleaning or interruption to circulation.

Following mechanical filtration, water enters the integrated moving bed chamber filled with Hel X 13 bio media. This high surface area media supports beneficial bacteria growth, which breaks down ammonia, ammonium and nitrite. Therefore, biological filtration remains stable even under higher fish stocking levels.

The system includes an integrated digital control unit with temperature display for real time monitoring. In addition, it is compatible with the Oase Control system, allowing app based monitoring and adjustment. Furthermore, the noise insulated design ensures quiet operation, making it ideal for garden installations where discretion is important.

Key Features

• Self cleaning stainless steel drum filtration
• 60 micron mechanical filtration as standard
• Integrated Hel X 13 moving bed biological chamber
• Fully automated drum cleaning system
• Designed for pump fed pond installations
• Suitable for ponds up to 30 cubic metres
• Digital control unit with temperature display
• Compatible with Oase Control App
• Noise insulated housing for quiet operation
• Modular integration within ProfiClear Premium systems
• Durable construction for long term reliability

Technical Specifications

• Installation type: Pump fed system
• Maximum pond size: 30 m³
• Mechanical filtration: Stainless steel drum screen
• Screen size: 60 micron
• Biological filtration: Hel X 13 moving bed media
• Control system: Integrated digital controller
• Temperature monitoring: Built in sensor
• App connectivity: Oase Control compatible
• Construction: High durability housing with noise insulation

Technical information

• Match the pump flow to the filter and pond volume, allowing for head height and pipework losses.
• Keep unions, valves and waste outlets accessible for cleaning and maintenance.
• Use suitable hose, pressure pipe or DN discharge pipework where specified by the manufacturer.
• Check compatible UV bulbs, quartz sleeves, media and spare parts before the pond season starts.

Plan this product as part of the complete filtration layout, rather than as an isolated item. Check the recommended flow rate, inlet and outlet sizes, waste connection, access for cleaning and the space needed for routine servicing before installation. A well matched filter system is easier to maintain and gives more reliable water clarity over the long term.

Filter setup notes

Compatible Oase Discharge Pipework

This Oase product uses DN-sized outlet or sludge-discharge connections, so it is worth planning the pipework before installation. Use the matching DN pipework for the connection size stated on the exact filter or module, and avoid reducing gravity outlets unless the system has been designed for it.

• Oase DN75 Filter Discharge Pipework
• Oase DN110 Filter Discharge Pipework
