Kockney Koi Mega Black Box Pond Filter

Kockney Koi Mega Black Box Pond Filter

Mechanical and biological filtration in a compact garden pond filter

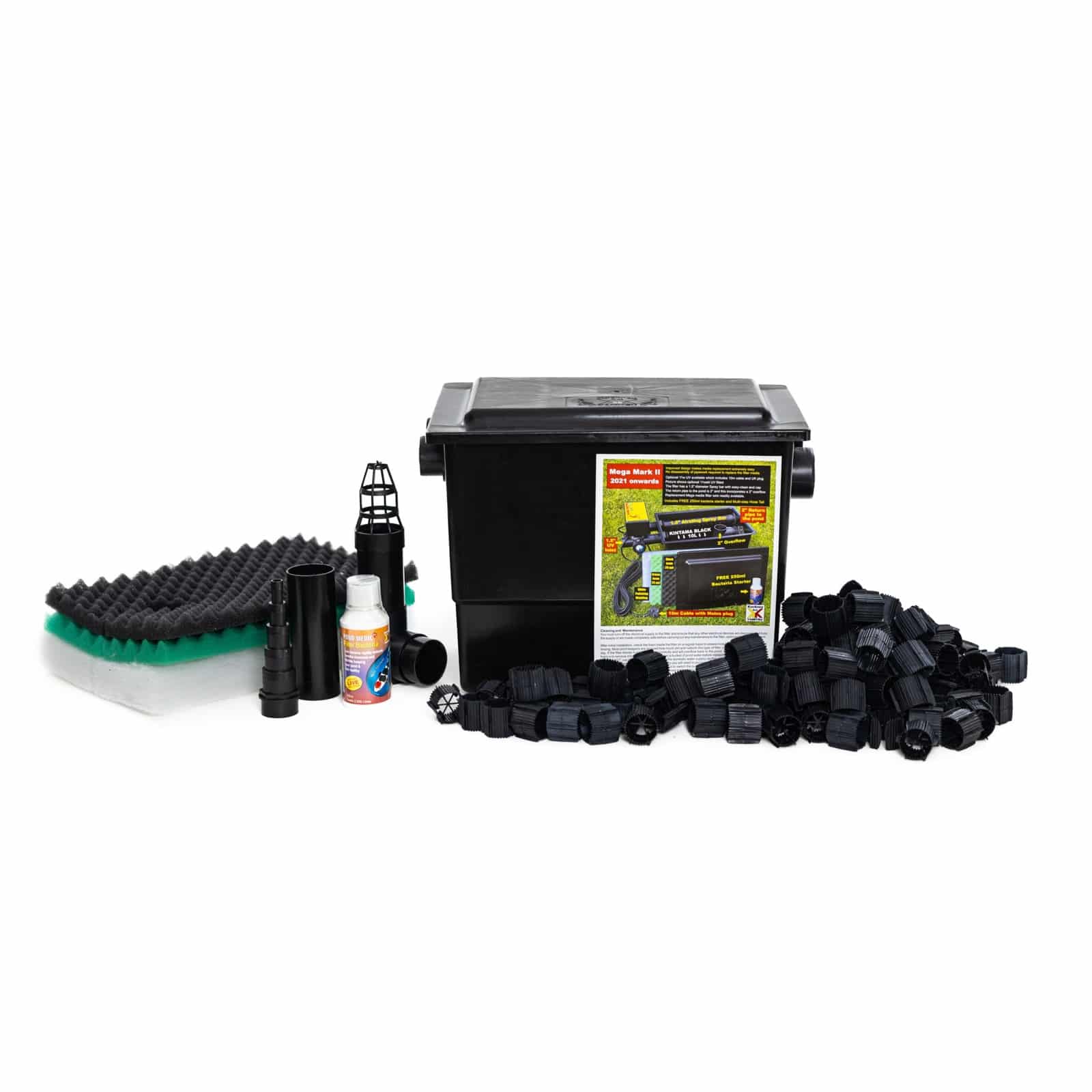

The Kockney Koi Mega Black Box Filter combines several types of filtration in one accessible unit. Corrugated foam catches suspended waste, wadding provides a finer polishing stage and Kintama Black media supplies a home for the bacteria involved in biological filtration. A filter bacteria starter pack is included. It is a practical option when you want a separate pond filter with media included, while choosing the pump and any UV clarifier to suit your installation.

Kockney Koi gives this model a maximum pond capacity of 7,000 litres. Treat that as the starting point for selection: the amount of fish, daily feeding, sunlight and maintenance all affect the load placed on a filter. A heavily stocked koi pond needs a different assessment from a lightly stocked ornamental pond of the same volume. If you are unsure, tell us your pond dimensions and fish stock before ordering so we can help you choose an appropriate system.

Specification and what is included

Model	Mega Black Box Filter Unit
Manufacturer reference	013087
Barcode	5031589013087
Maximum stated pond capacity	7,000 litres; suitability depends on stocking and conditions
Dimensions	45 × 31.5 × 30.5cm
Mechanical media	Two-stage corrugated foam and fine filter wadding
Biological media	Kintama Black

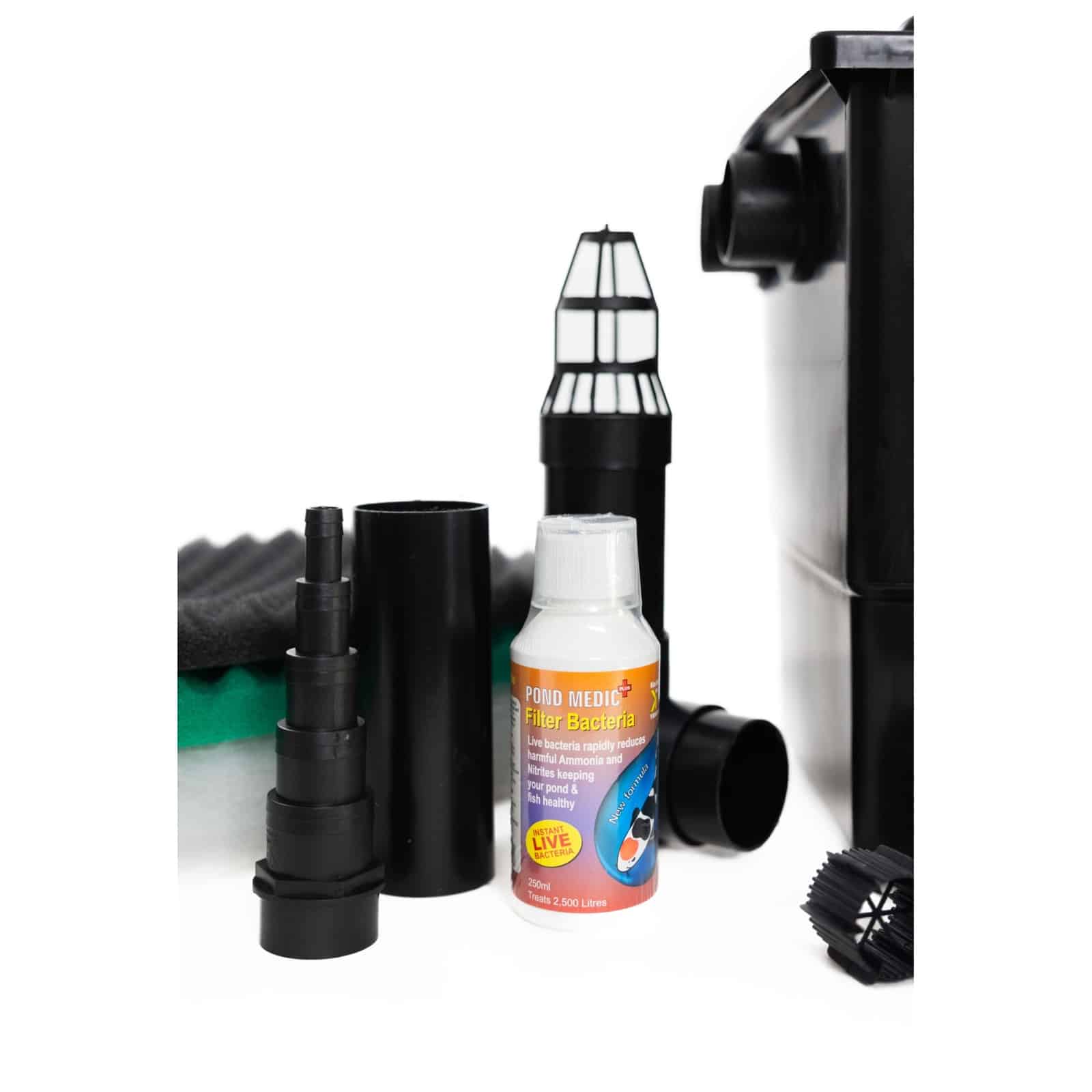

Starter bacteria	Starter pack included
Optional UV	Yamitsu 11W Tri-Port Mega Filter Fit Algae Master unit, available separately

Why the different filter stages matter

Visible dirt and dissolved fish waste require different approaches. The foam and wadding retain particles that you can remove during cleaning. Biological filtration relies on a living bacterial population processing dissolved waste. Keeping both functions working is more useful than judging the pond purely by how clear the water looks. Clear water can still contain ammonia or nitrite, particularly while a new filter is establishing.

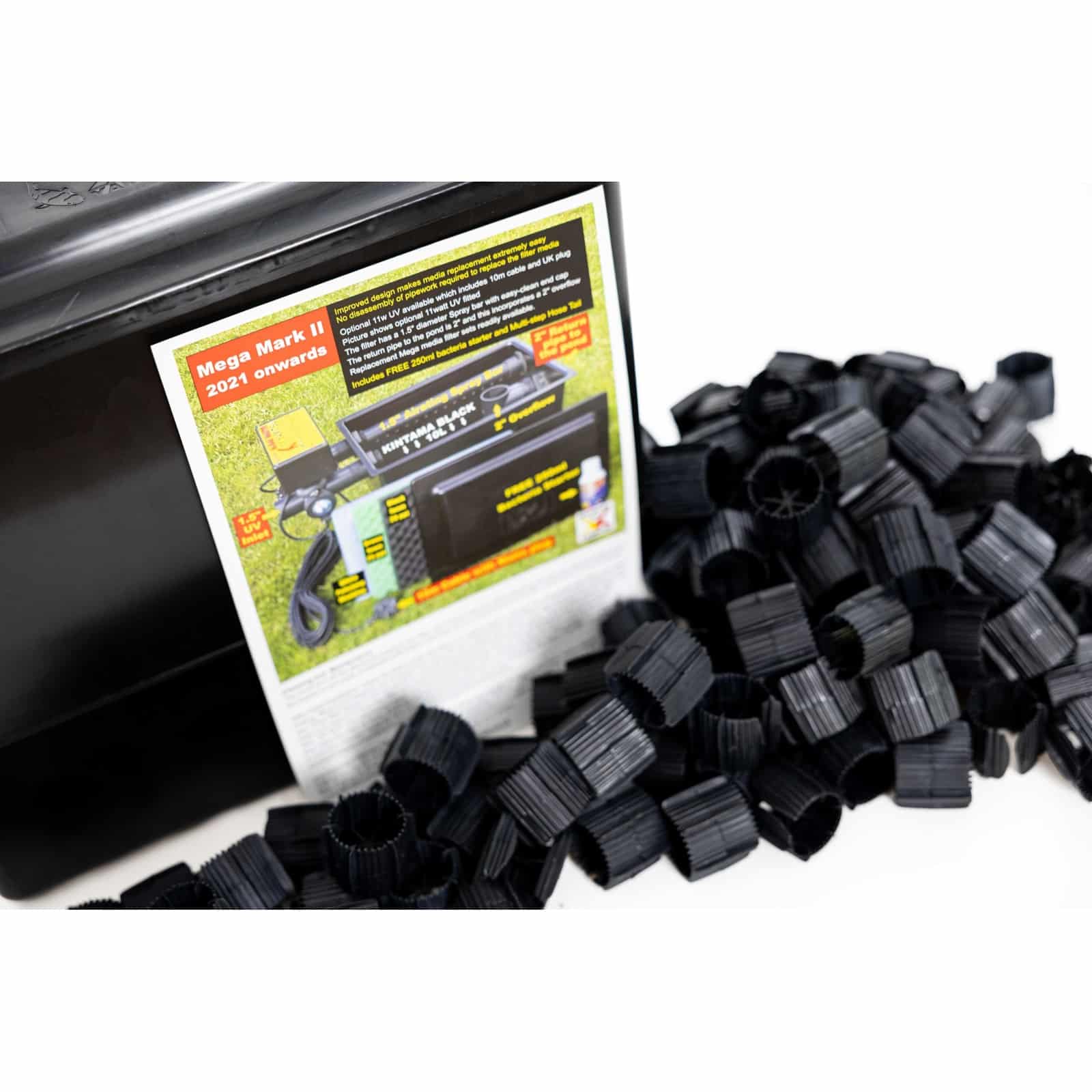

The Kintama Black media offers internal and external surfaces for bacterial growth. During commissioning, give the filter time to mature and monitor the pond rather than assuming that the included starter bacteria make it instantly ready for a full fish load. The NT Labs Pond Lab Mini Test Kit is a useful companion for routine checks. Follow the test instructions and respond to the measured results, particularly after adding fish or increasing feeding.

Connections and access for servicing

The Mega Mark II layout uses a 1.5-inch spray bar, a 2-inch return and an overflow arrangement. Its removable media can be serviced without dismantling the connected pipework, which is useful when the filter sits beside a permanent pond return. Keep the return and overflow unobstructed, and leave access to the spray bar for inspection. Follow the supplied instructions when choosing the pipe and fittings for your particular layout.

Planning the filter installation

Choose a firm, level location that allows straightforward access to the lid and media. Leave enough room to lift the foams out without moving the whole unit, and think about where dirty cleaning water will go. A filter that is easy to reach is much easier to maintain regularly. Avoid squeezing the box behind planting or permanently enclosing it before you have tested access with the lid removed.

Plan the pump, hose and return route together. The pump’s headline output is measured under particular conditions; the water actually reaching your filter depends on lift height, hose length and restrictions. Browse our pond pumps and ask us to check the combination if you are building a new system. Use the filter’s installation instructions to confirm the permitted flow and connection arrangement before selecting the final pump.

Check every connection during initial operation and make sure water returns safely to the pond. Allow the system to run while you watch for leaks, restricted discharge or unexpected changes in water level. Secure hoses so that their weight does not pull on the filter connections. Keep access available for inspection once the surrounding landscaping is complete.

Adding a UV clarifier

The separately available Yamitsu 11W Tri-Port Mega Filter Fit Algae Master UV can attach directly to this filter. Choose the dedicated Mega-fit version when planning that arrangement. A UV clarifier and a biological filter perform different jobs: the UV helps with suspended green-water algae, while the filter removes particles and supports waste processing. Adding a UV does not remove the need for cleaning or water testing.

This listing is for the filter unit with its supplied media and starter pack. The optional UV, pond pump and installation hose are separate purchases. Check the contents of your existing setup before ordering so you buy the components you actually need, particularly if you are replacing an older filter while retaining a working pump.

Cleaning and ongoing care

Inspect the mechanical stages regularly and clean them when accumulated dirt affects the water passage. Cleaning frequency varies with the pond: heavy feeding, falling leaves and disturbed sediment can all increase the amount collected. Remove larger debris from the pond promptly to reduce the work the filter has to do.

Handle the biological media gently and avoid unnecessarily cleaning every stage thoroughly at the same time. Follow the supplied care instructions, keeping established media wet during servicing and using suitable pond water for routine rinsing. Do not introduce household detergents. Check that the media is correctly seated before restarting, then observe the return flow. Regular, manageable maintenance helps you get the best from this compact filter throughout the pond season.
