In-Lite PUCK 12V Recessed Path Marker

In-Lite PUCK 12V Recessed Path Marker

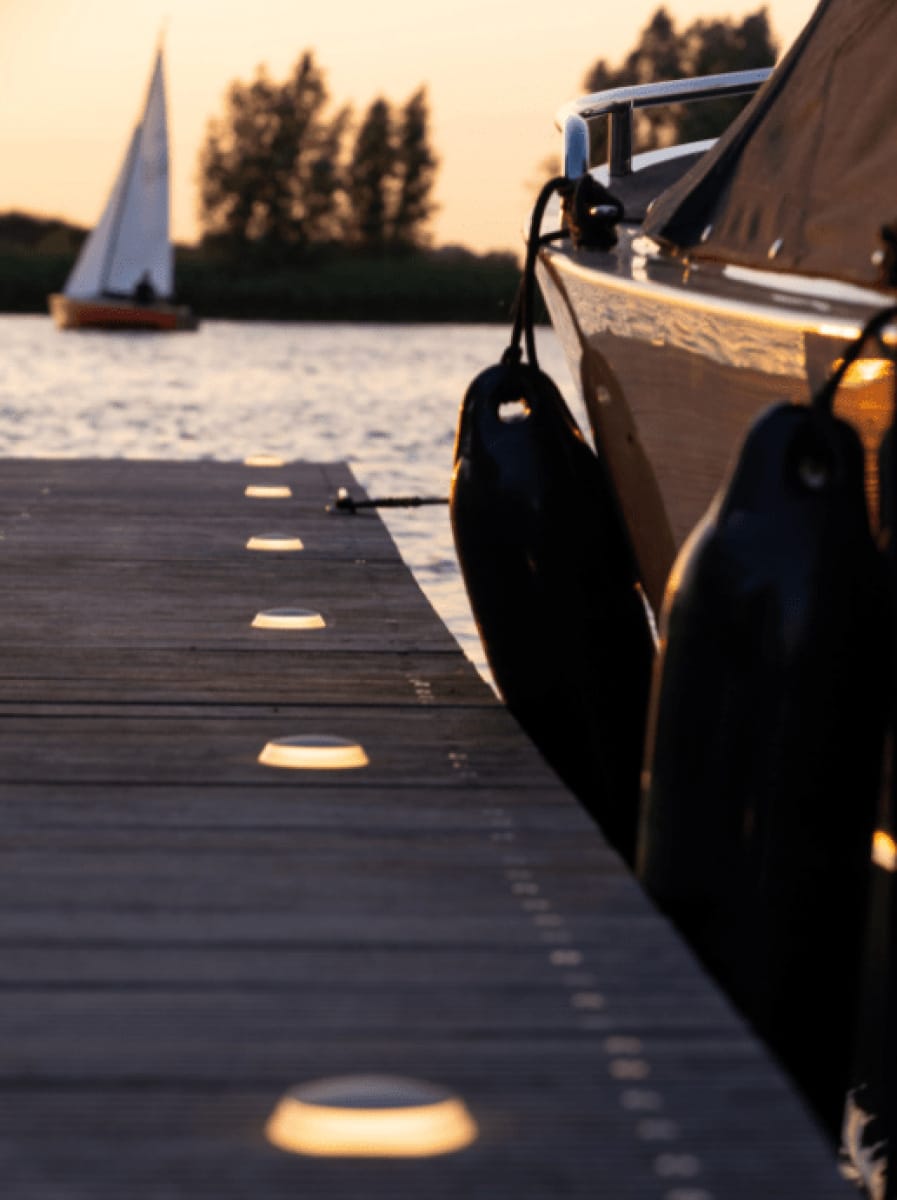

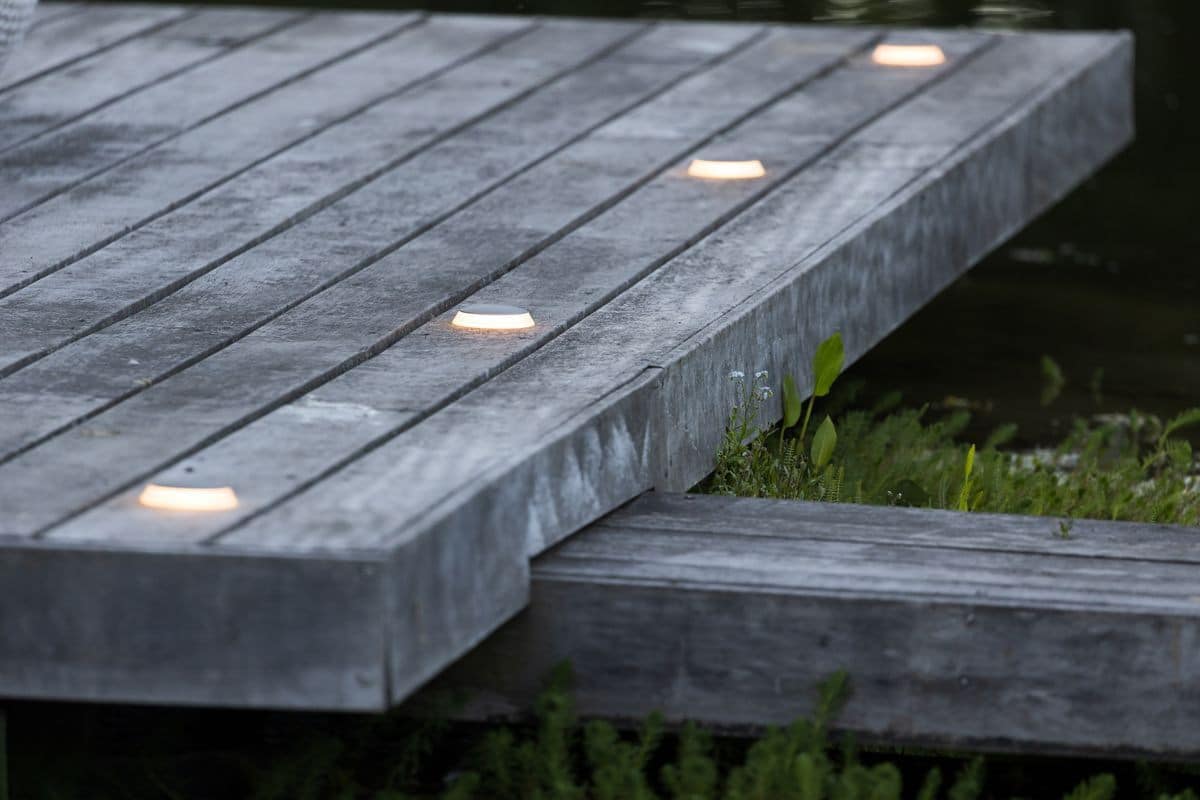

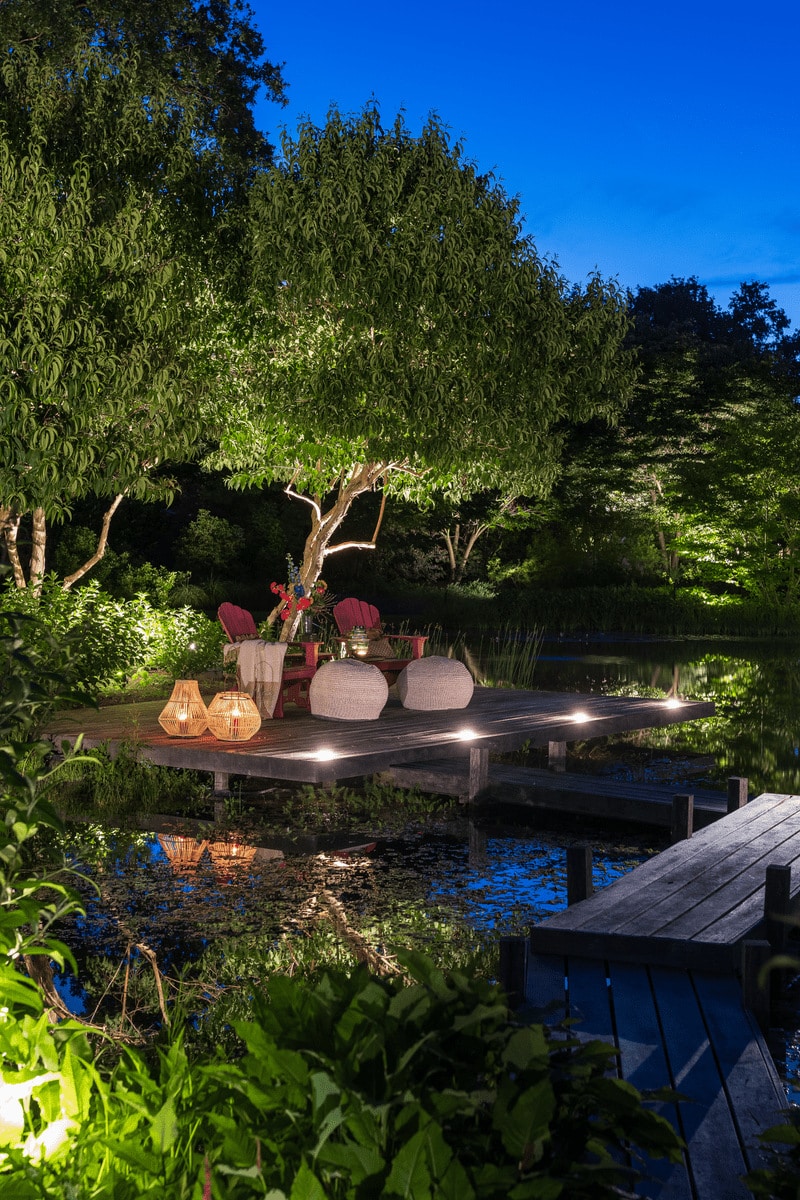

PUCK 12V Recessed Path Marker is a low-profile route marker that sends light horizontally through 360 degrees rather than shining upward into the viewer. The fitting is useful beside paths, driveways and terraces where clear lateral orientation is wanted.

The shielded top keeps direct glare low and the glowing perimeter remains visible from several approach directions. Black and Pearl Grey finishes suit dark or pale paving respectively.

Where this light works best

Use PUCK as a repeated waypoint rather than a floodlight. Check that the raised edge will not create a trip point in the chosen traffic route and follow the current manufacturer surface guidance.

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose PUCK 22 for the smallest, quietest marker or the larger PUCK when the point needs to remain more visible across a broad driveway or terrace.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

Verified technical information

• Visible diameter: 86mm
• Light direction: 360° horizontal
• Colour temperature: warm white
• VA load: 2.5 VA
• Supply: In-Lite 12V system
• Weather-resistant outdoor construction
• 5-year manufacturer guarantee

What is supplied

• One complete In-Lite recessed fitting in the selected configuration
• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.
