In-Lite LUNA Asymmetric Light Module – No Bezel

In-Lite LUNA Asymmetric Light Module – No Bezel

LUNA Asymmetric Light Module – No Bezel is the asymmetric LUNA recessed-light module supplied without a finishing bezel

LUNA Asymmetric Light Module – No Bezel is the asymmetric LUNA recessed-light module supplied without a finishing bezel. It is a modular electrical light component, not a complete finished fitting.

Where this light works best

Use the 79° × 85° light distribution to match the feature rather than choosing only by lumen or wattage. Narrow beams suit vertical targets and taller features, broad beams cover wider architecture, asymmetric optics push light across a surface, and diffuse modules provide orientation rather than a dramatic spotlight.

Choose a compatible bezel

This product is supplied without the visible finishing bezel. Select the correct RING or compatible cover separately and check the current In-Lite compatibility before installation.

Technical information

• Power source: In-Lite 12V transformer system

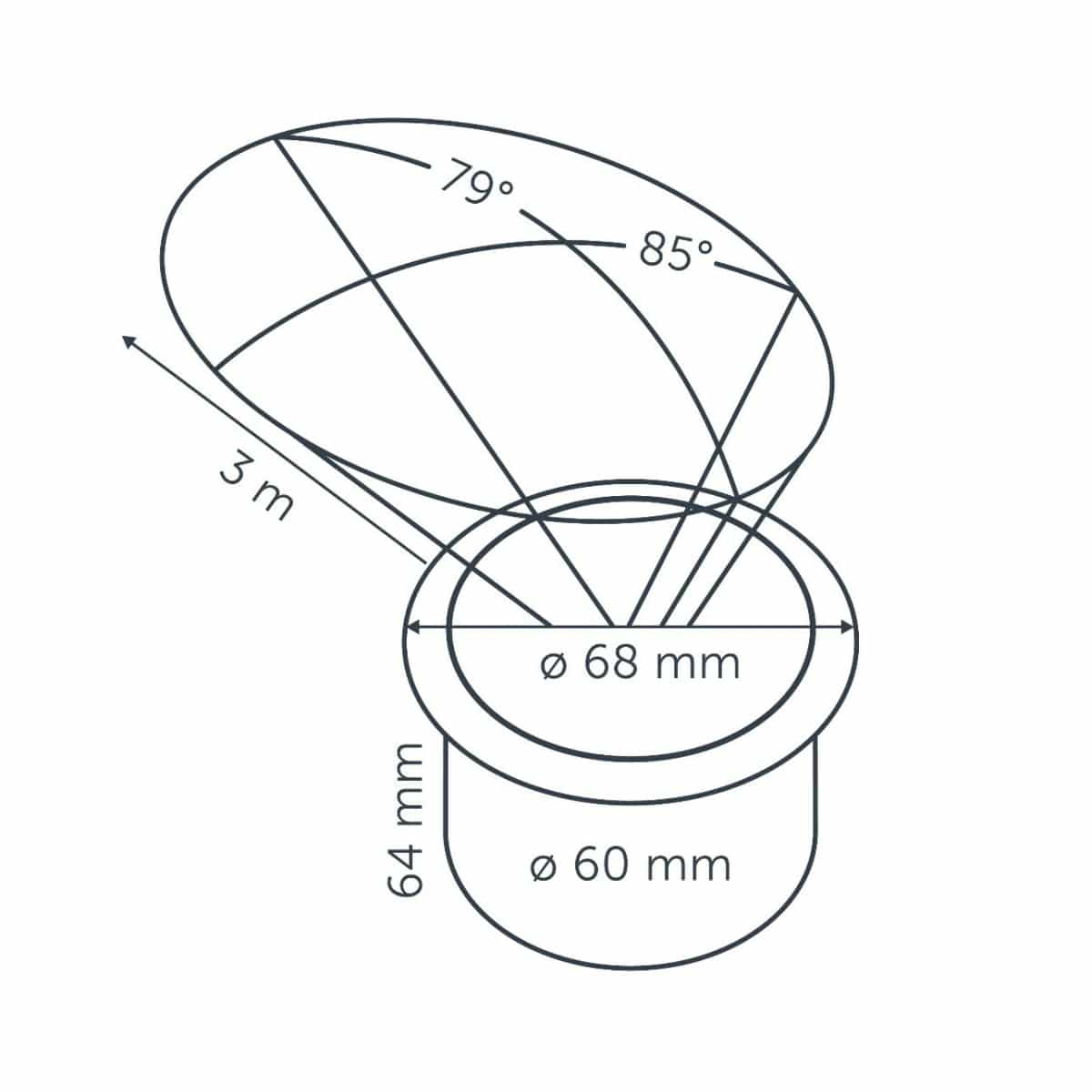

• Light distribution: 79° × 85°
• Colour / temperature: 3100K
• Rated load: 5 VA
• Protection: IP67
• Manufacturer part number: 10104180
• 5-year manufacturer guarantee when correctly installed

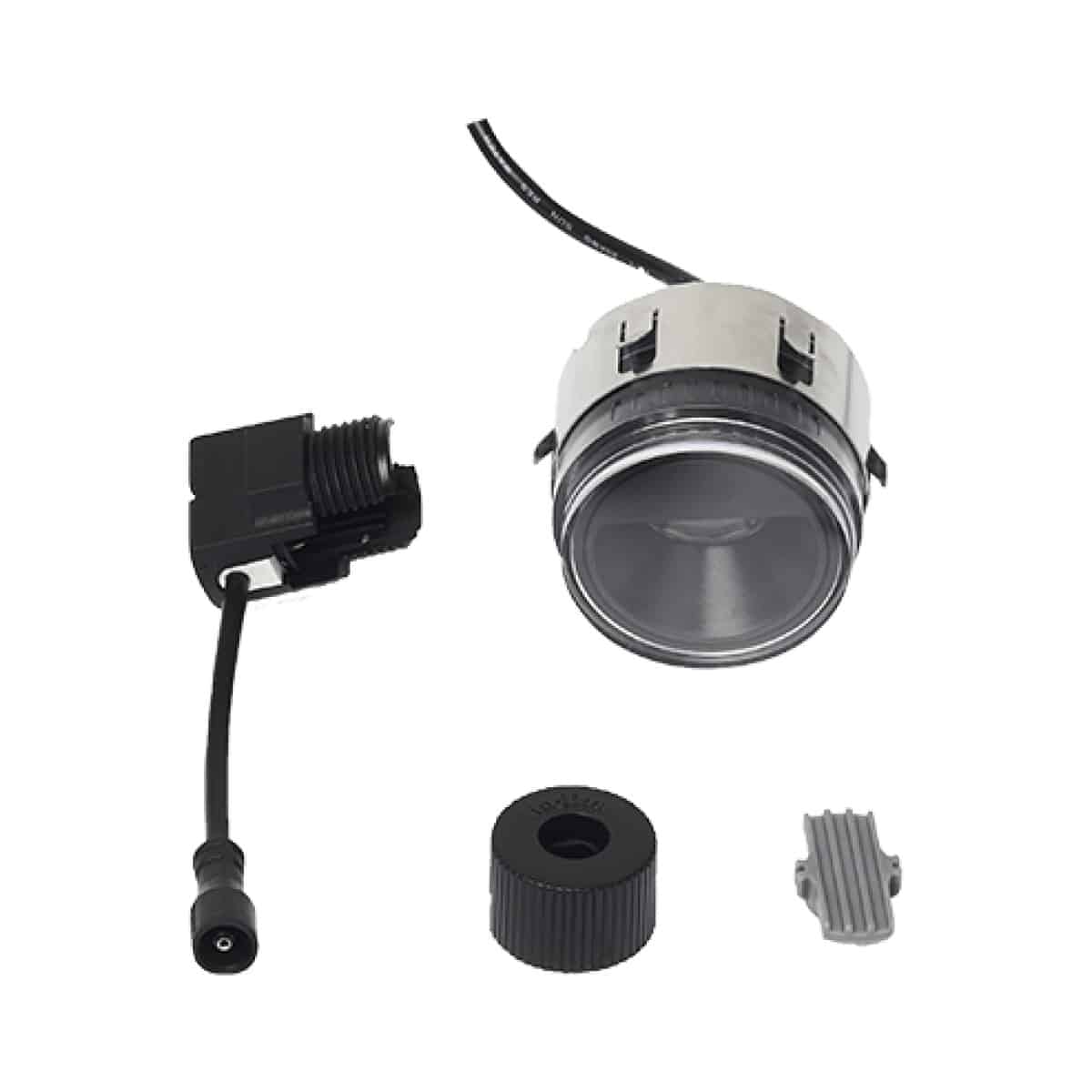

What is supplied

• One LUNA Asymmetric Light Module – No Bezel
• Light module only; finishing bezel is not included
• Manufacturer installation guidance

Complete the installation correctly

Browse In-Lite recessed lights and compatible bezels, transformers and smart controls, and cables and connectors. Contact us with the module and bezel part numbers if you would like compatibility checked before dispatch.

Practical design advice

Position recessed lights from the target backwards. Mark the centre of the tree, facade or path feature, test the aiming and glare from normal viewpoints, then commit to the cut-out. A small change in location can make more difference than choosing the next larger fitting.

Set out recessed lighting before the surface is finished

For In-Lite LUNA Asymmetric Light Module – No Bezel, confirm the cut-out, recess depth, drainage and material thickness from the current installation drawing before drilling. Recessed lights are most convincing when their spacing follows the paving, step or deck geometry and the source is not directly in the normal line of sight.

Dry-lay the fittings and cable route first, then test the effect after dark. Do not bury an EASY-LOCK or other serviceable connection where it cannot be reached without lifting a finished surface.

Ring or complete alternative

Choose the correct ring for this modular fitting, or use the complete fitting listing. The separate module does not include a decorative ring.
